Description
The UMCE10N-N is a compact HDBaseT USB 2.0 extender kit designed to extend USB and AV signals over copper up to long distances. It enables USB 2.0 device extension alongside dual DP/HDMI video connectivity, supporting modern display interfaces in a single compact solution. The product is intended for AV installations that require remote USB peripherals and high-quality video transport.
The unit features a dual DP/HDMI connector design that allows DP sources to be connected to HDMI displays and HDMI sources to DP displays. Video performance supports up to 4K@60Hz 4:4:4 over copper cabling to 100m when conditions permit. The extender carries full USB 2.0 at 480Mbps to support webcams, HID devices, and other USB peripherals that require bus power or data bandwidth consistent with USB 2.0.
Technical specifications include support for 4K video at up to 60Hz with 4:4:4 color sampling over HDBaseT copper links to 100m, USB 2.0 data at 480Mbps, and a small form factor transmitter and receiver. The UMCE10N-N uses a 5V DC power input via a USB mini B port and does not provide PoE. Operating temperature is 0°C to 40°C and storage temperature range is -20°C to 60°C.

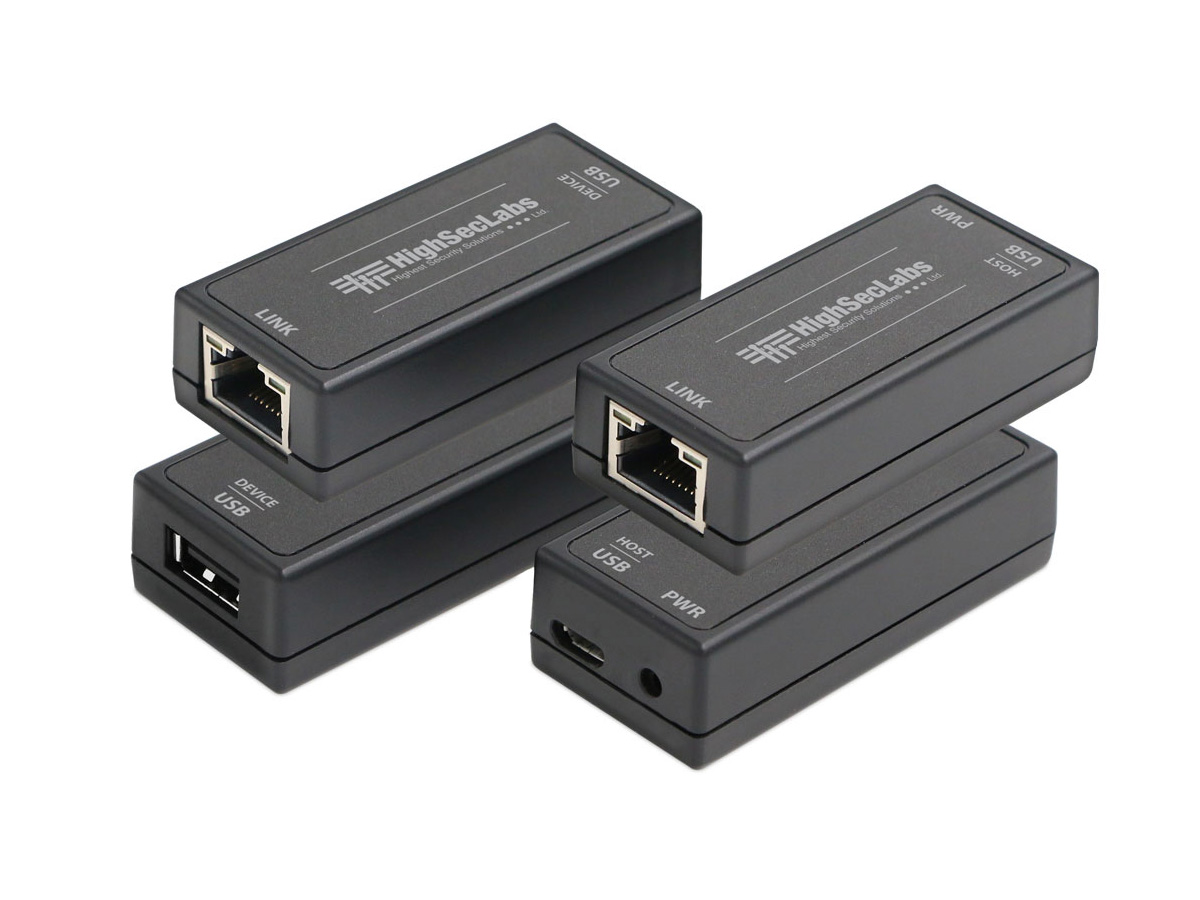

Connectivity is provided through an RJ45 HDBaseT link port for the copper connection and USB 2.0 Type B on the transmitter side with USB 2.0 Type A on the receiver side. The product includes IR remote pass-through and standard audio jack support where applicable in the kit variants, and it supports Windows, Linux, and Mac host systems. The UMCE10N-N receiver for the kit is compact and suitable for discreet mounting near end equipment.
Typical applications include remote webcam extension in conferencing rooms, USB peripheral extension in control rooms, and AV integration where displays and USB devices must be separated from host systems. The kit supports scenarios that require extended reach without compromising 4K video fidelity or USB 2.0 device operation. It is suitable for AV integrators deploying HDBaseT copper solutions that require small footprint endpoints.
Installation is straightforward – the units are compact and designed for surface or discreet placement close to host and peripheral equipment. Power is delivered to the unit via a 5V DC USB mini B input and the device does not rely on PoE for power. The product is shipped with standard external power options where required and is designed for reliable continuous operation in AV installations.
Compliance and support include CE, RCM, FCC class B, VCCI, TUV US, and TUV Canada certifications, a 2 year warranty, and a 10 year product life-cycle policy. The UMCE10N-N balances compact physical design with professional-grade signal extension capabilities and is targeted at users needing dependable USB 2.0 and 4K video extension over copper links. Its combination of HDBaseT video transport and full USB 2.0 extension makes it a practical choice for many AV deployments.
