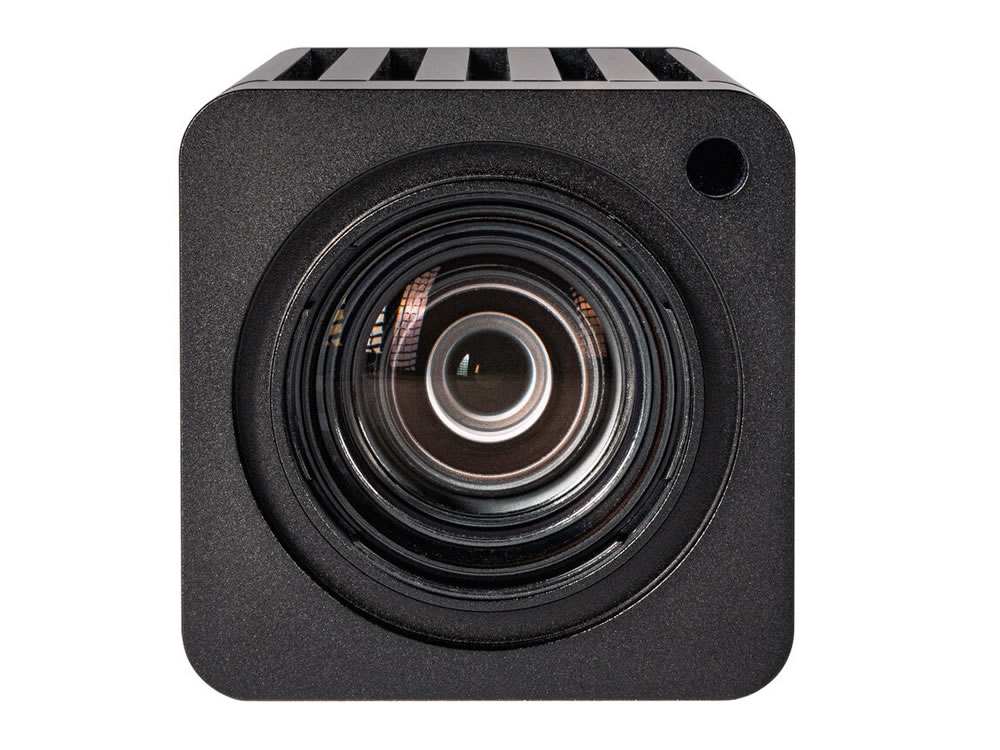

Aida UHD6G-X20L 4K 6G-SDI POV Camera with 20x Optical Zoom

Description

Capable of simultaneously outputting uncompressed 4K30 video over 6G-SDI and HDMI, this AIDA Imaging POV Camera is a practical addition to any livestreaming, broadcast, or security system setup. Its 1/1.7″, 3840 x 2160-pixel sensor captures video in vivid detail with motion-compensated noise reduction and deep, 10-bit 4:2:2 color. It sports a versatile 20x optical zoom lens with a 61 to 3.4° horizontal angle of view and a maximum aperture of f/1.5.

The POV camera features flexible control options, supporting serial VISCA and including an IR remote control, as well as a breakout cable for power input and RS-485 remote communication. Power is also available from the 12 VDC power supply with multiple AC socket adapters. Audio is input through a 3.5mm jack and embedded into the 6G-SDI video output. With its rugged design and 1/4″-20 mounting thread, this camera is ready for a variety of different workflows and applications.

Features

Video
- 1/1.7″ CMOS sensor with 3840 x 2160 effective pixels
- 4K60 video with 10bit 4:2:2 YCbCr color space
- 20x optical zoom lens with f/1.5 to 3 aperture
- Motion-compensated temporal noise reduction filter
- Automatic white balance
Connectivity
- Simultaneous 6G-SDI and HDMI 1.4 video outputs
- 3.5mm audio line input and embedded multi-channel SDI audio output
- Breakout cable with power input and RS-485 for remote communication
- Serial VISCA control protocol
- Included IR remote control

Specifications

Category	Specification	Details
Image Sensor	Sensor Type	1/2.8"-Type CMOS
Image Sensor	Sensor Size	1/2.8"-Type
Digital I/O	Ports	HDMI / BNC / Micro-USB / 1/8" / 3.5 mm TRS Stereo
Digital I/O	Interface	1x BNC (6G-SDI) Video Output 1x HDMI 1.4 Video Output 1x 1/8" / 3.5 mm TRS Stereo Audio Input 1x Micro-USB Firmware Input
Imaging	Shutter Type	Electronic Rolling Shutter
	Minimum Illumination	0.1 Lux
	Aperture Range	f/1.5 to 3
Audio	Audio Input	1x 1/8" / 3.5 mm TRS Stereo
	Embedded Audio	HDMI
	Storage	No Internal Storage / No Memory Card Slot
Connectivity	Wireless	No
	Supported Protocols	Camera Control: VISCA
	Mobile App Compatible	No
Power	Voltage	12.0 VDC
Power	Power I/O	1x Barrel Input
General	Accessory Mounting	1 x 1/4"-20 Female
	Dimensions	5.7 x 2.7 x 2.7" / 14.6 x 6.8 x 6.8 cm
	Weight	1.7 lb / 750 g
Packaging Info	Package Weight	3.305 lb
Packaging Info	Box Dimensions (LxWxH)	16.3 x 5.7 x 4"
