Aten UH3240 11-in-1 USB-C Multiport Dock with Power Pass-Through

Description

Transform Your Laptop into the Ultimate Workstation

Transform your laptop into the ultimate workstation with unparalleled productivity. The Uh4240 is a powerful 11-in-1 USB-C multiport dock that expands your connectivity through a single USB-C cable. Designed in a light, compact form factor, it allows you to charge your device up to 100W while transferring data at speeds of up to 5 Gbps.

Dual 4K Display

Extend your workspace to two 4K displays with Multi-Stream Transport (MST) support.

Enjoy Impeccable Visual Quality

Optimize your screen resolution to perfectly match the task at hand for enhanced clarity and productivity.

Vivid & Sharp 8K Display

Experience an enthralling level of visual immersion, delivering an entertainment experience at the apex of clarity.

100W Power Delivery with PD 3.0

Power and charge your devices seamlessly to support demanding multitasking workflows. Note: A self-supplied USB-C Power Delivery adapter and cable from the source device is highly recommended.

11-in-1 USB-C Dock with Power Pass-through

Simplify your setup by connecting up to 11 devices through a single USB-C connection with integrated power pass-through.

Multiplatform Support

Compatible with multiple operating systems. *Relevant compatible devices must be USB-C enabled.

Features

A one-stop upgrade for your hybrid workstation with a USB-C host and an 8K display / dual 4K displays. 11 ports provide extra expansion capabilities for HDMI, USB-C, USB Type-A, SD / MicroSD, Ethernet, and audio devices while allowing Power Delivery 3.0 up to 100W.

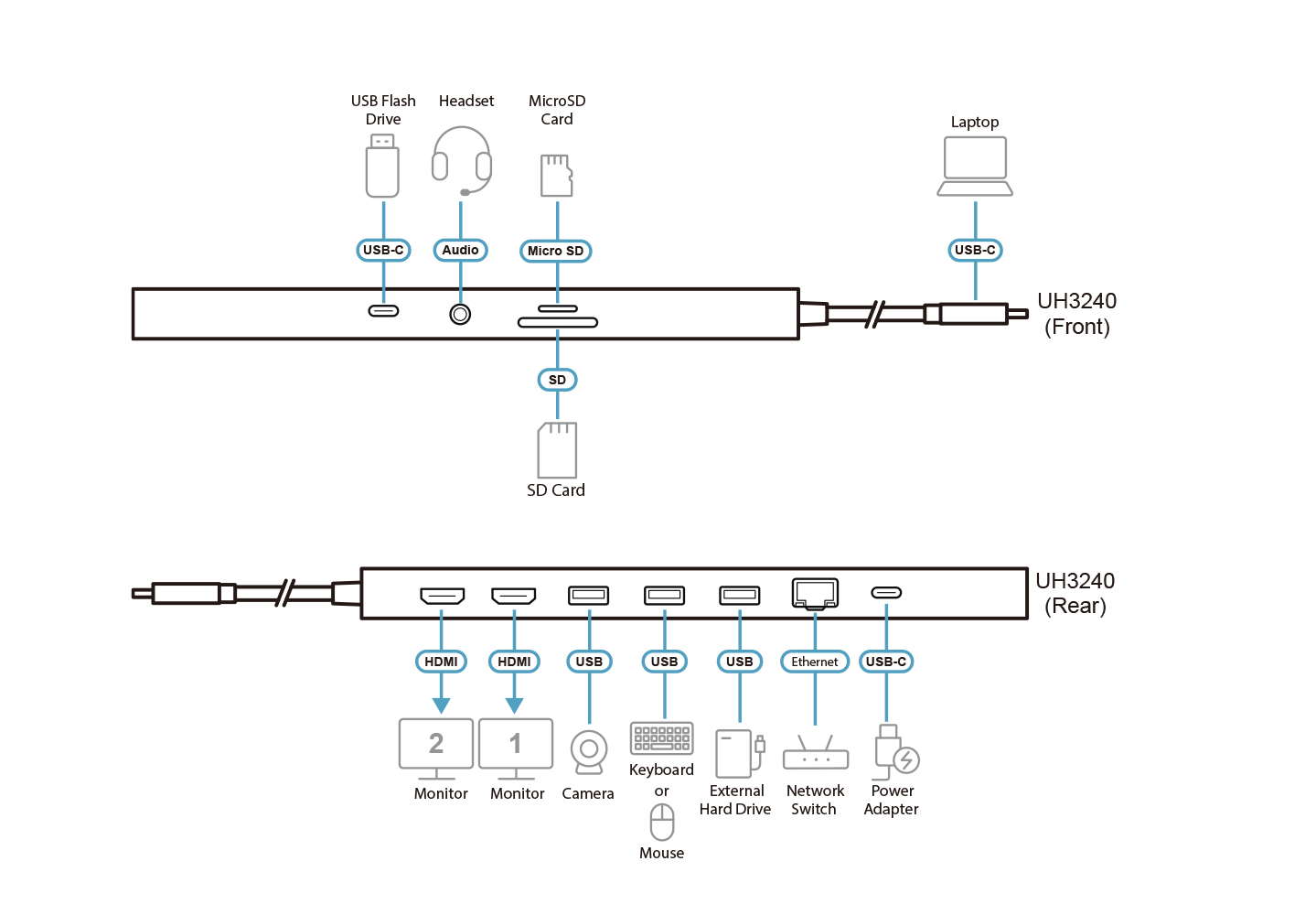

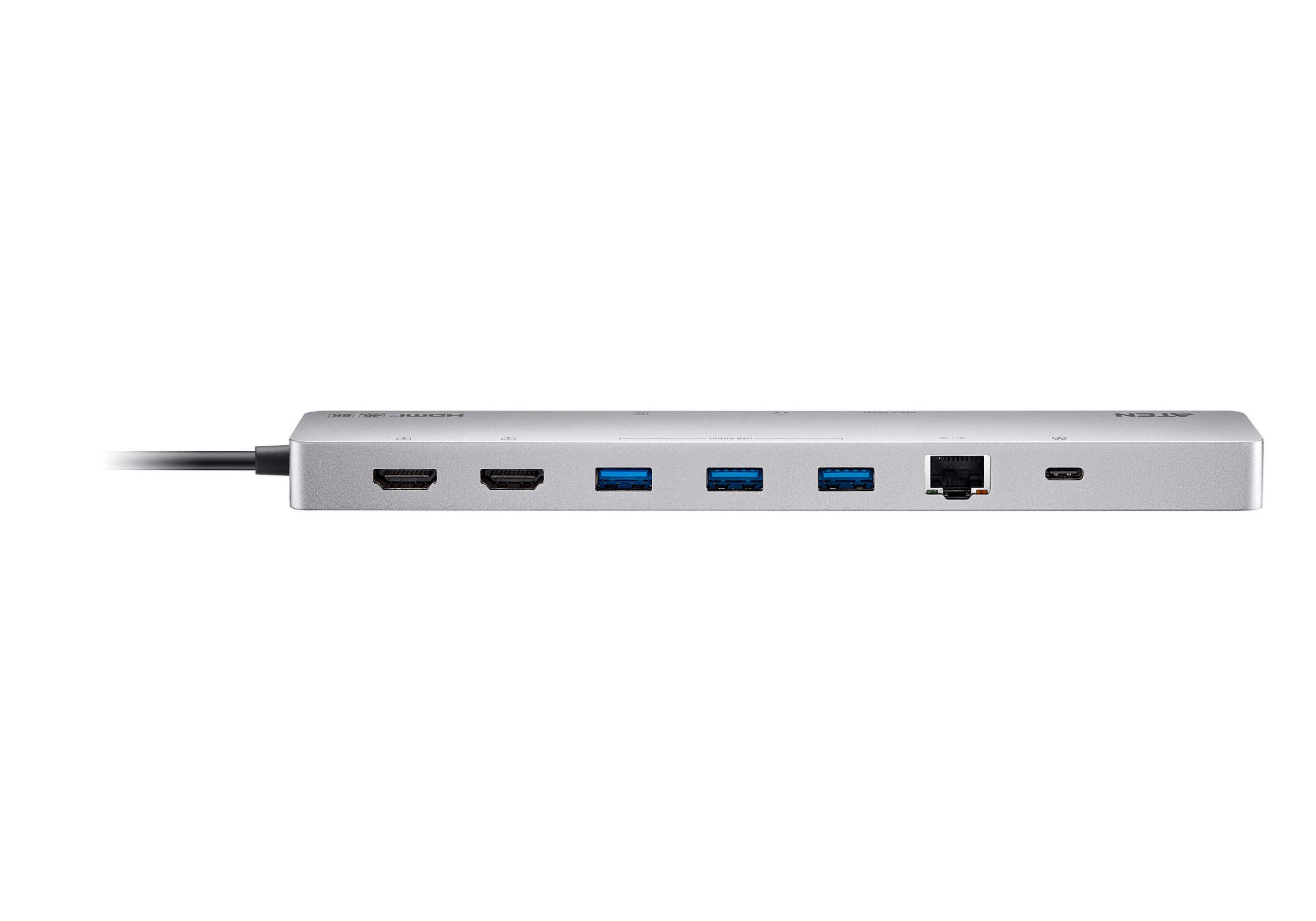

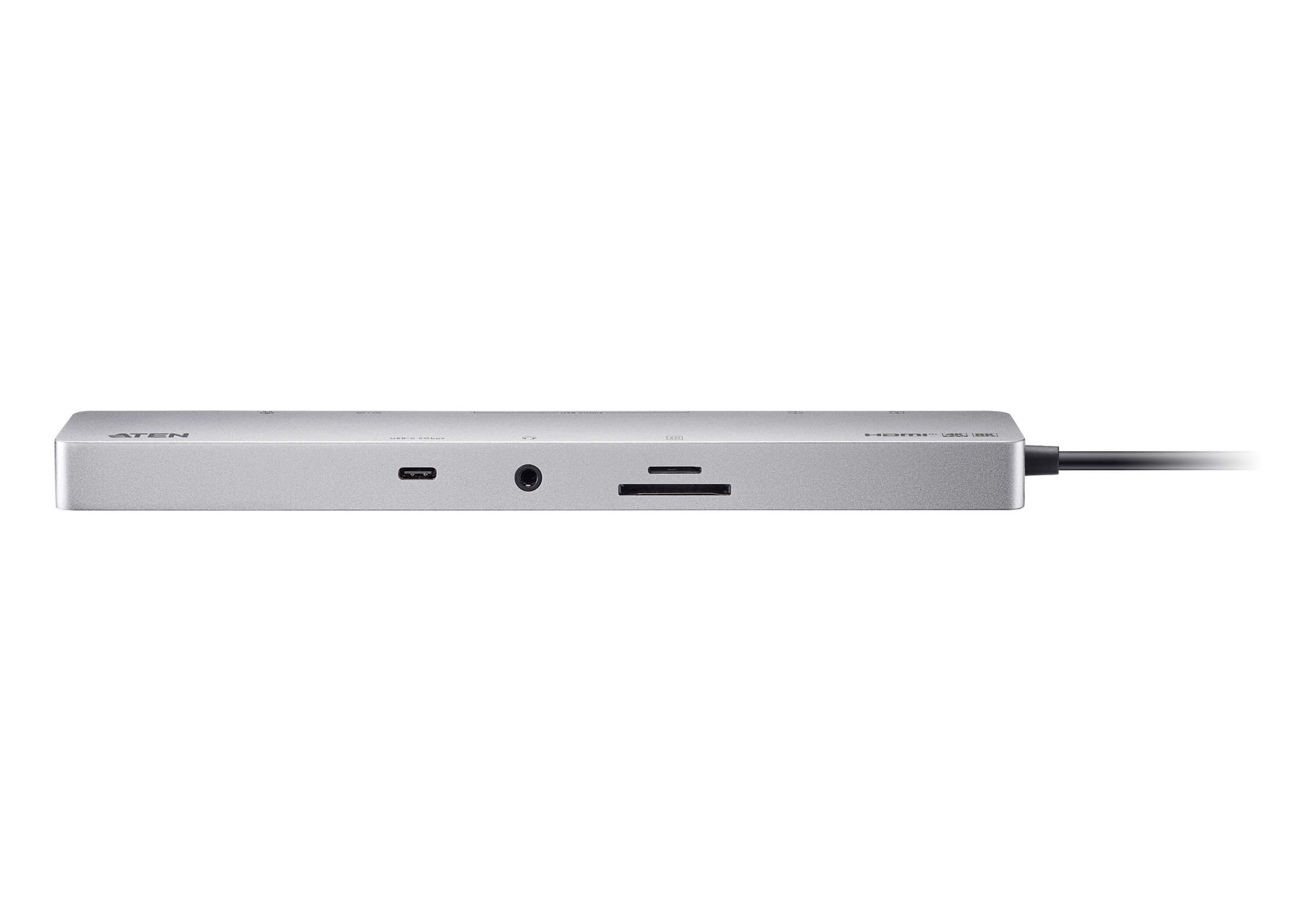

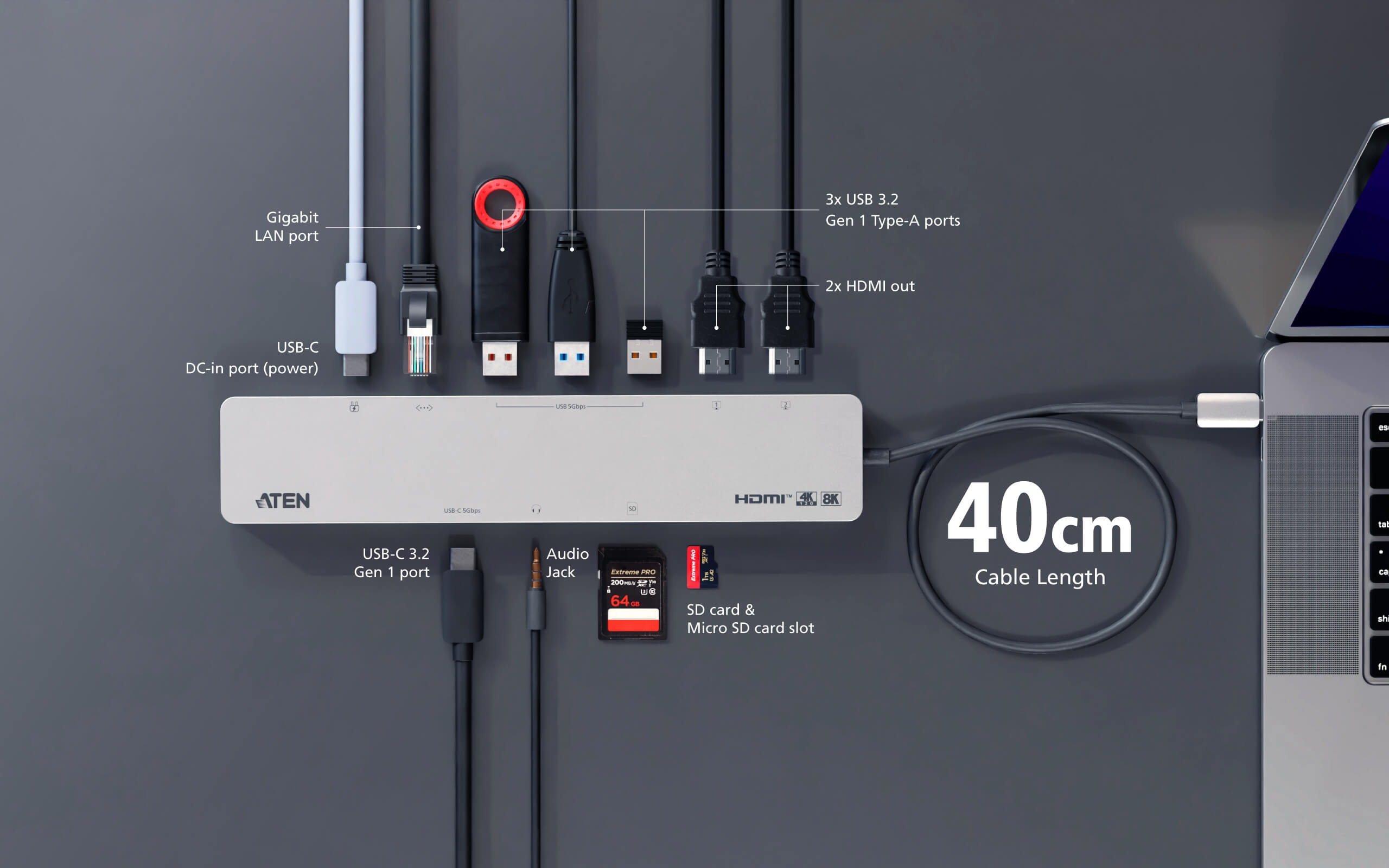

Multiport dock with 11 essential ports: 2 × HDMI, 2 × USB-C (1 for power delivery, 1 for data transmission), 3 × USB Type-A, 1 × SD, 1 × Micro SD, 1 × Ethernet, and 1 × Audio Jack
Supports up to 8K¹ (7680 × 4320) for single video output or 4K for dual video outputs^2,3
Supports high refresh rates up to 4K @ 120 Hz⁴
Supports USB Power Delivery 3.0 for charging up to 100W via USB-C PD adapter⁵, with PD profiles of 5V, 9V, 12V, 15V, and 20V
USB 3.2 Gen 1 compliant with data transfer rates up to 5 Gbps
Supports DisplayPort 1.4 Alt Mode
Plug-and-play operation with support for major operating systems: Windows, macOS, iOS, iPadOS, and Android™
Compatible with Thunderbolt™ (USB-C) technology and Apple M1 / M2 / M3 chips
Compact enclosure designed for space-constrained workspaces
Drives dual-monitor workstation performance for graphically intensive applications such as photo and video editing

Notes:

HDMI 2.1 cable is recommended for 8K resolution (ATEN 2L-7D02H21 HDMI cable supported). Intel 12th-Gen Core Processor is recommended.
Maximum bandwidth requires DP 1.4 Alt Mode with DSC 3:1 and HBR3. DP 1.2 Alt Mode limits HDMI output to 4K @ 30 Hz.
Extend mode requires GPU MST support; macOS supports single-extended display with identical content on dual monitors.
The maximum resolution supported on HDMI 2 alone is 4K @ 120 Hz.
A self-supplied USB-C PD power adapter and cable from the source device is highly recommended.

Specifications

Connections
Computer Connections	1
Cable Length	40 cm
Connectors
Computer	1 × USB-C 3.2 Gen 1 Male Cable
Device	3 × USB 3.2 Gen 1 Type-A Female (Max. output 5V, 5W each) 1 × USB 3.2 Gen 1 Type-C Female (Max. output 5V, 5W)
Note: USB Type-A and USB-C ports share a total of 5V, 15W when powered by external USB-C PD adapter. When bus-powered via PC USB-C (5V, 3A), total shared output is 5V, 12W.
Video Output	2 × HDMI Female
LAN Ports	1 × Gigabit Ethernet Female
Audio	1 × 3.5 mm Stereo 4-pole Microphone / Headphone Jack
Power	1 × USB Type-C Female
Supports USB Power Delivery 3.0 up to 100W (5V / 9V / 12V / 15V / 20V). Minimum system power requirement: 5V, 6W. A self-supplied USB-C PD power adapter and cable are recommended.
Performance
Flash Memory	1 × SD Card Slot (SD / SDHC / SDXC up to 2TB) 1 × Micro SD Card Slot (Micro SD / SDHC / SDXC up to 2TB)
Video Resolution	Single View: 7680 × 4320 3840 × 2160 @ 120 Hz Dual View: 3840 × 2160 @ 60 Hz
HDMI 2 max resolution: 4K @ 120 Hz. HDMI 2.1 cable recommended for 8K resolution. Host must support DP 1.4 Alt Mode with DSC 3:1 and HBR3 for maximum bandwidth. DP 1.2 Alt Mode limits HDMI resolution to 4K @ 30 Hz. Extend mode requires GPU MST support; macOS supports mirror mode only. MST (Extend): up to 4K @ 30 Hz; SST (Mirror): up to 4K @ 60 Hz.
Power Consumption	DC 5V: 18 W
Watts indicate typical power consumption with no external loading. BTU/h indicates power consumption when fully loaded.
System Requirements
Windows: Windows 10 or later, USB-C computer with DP Alt Mode (Intel 7th-Gen Core or later) macOS: macOS 10.12 or later, USB-C enabled computer Android: Android 8.0 or later, USB-C smartphone with DP Alt Mode iPadOS: iPadOS 13.1 or later (USB-C iPad; mirror mode only) iOS: iOS 17.0 or later (USB-C iPhone; mirror mode only)
Environmental
Operating Temperature	0 – 40°C
Storage Temperature	-20 – 60°C
Humidity	0 – 80% RH, Non-condensing
Physical Properties
Housing	Aluminum
Weight	0.18 kg (0.41 lb)
Dimensions (L × W × H)	22.00 × 4.30 × 1.60 cm (8.66 × 1.69 × 0.63 in.)
Note: For some rack-mount products, dimensions may be expressed as L × W × H.
