Aten UE3415F 15 m Ultra HD USB-C Active Optical Cable

Description

The UE3410F (10 m) / UE3415F (15 m) Ultra HD USB-C DisplayPort 2.1 Active Optical Cable is designed for high-performance video conferencing, professional presentations, and connectivity with various USB-C peripherals such as tablets, monitors, and camera devices. Supporting DisplayPort 2.1 over USB-C, it ensures stable video transmission and ultra-high USB data transfer rates of up to 10 Gbps, adapting to connected device specifications. With strong EMI/RFI resistance and active optical design, it guarantees rapid, long-distance transmission without signal degradation.

Ideal for commercial, educational, and healthcare applications, this cable delivers reliable performance across a wide range of devices, ensuring pristine visuals and smooth plug-and-play connectivity.

Full-Featured USB-C Active Optical Cable

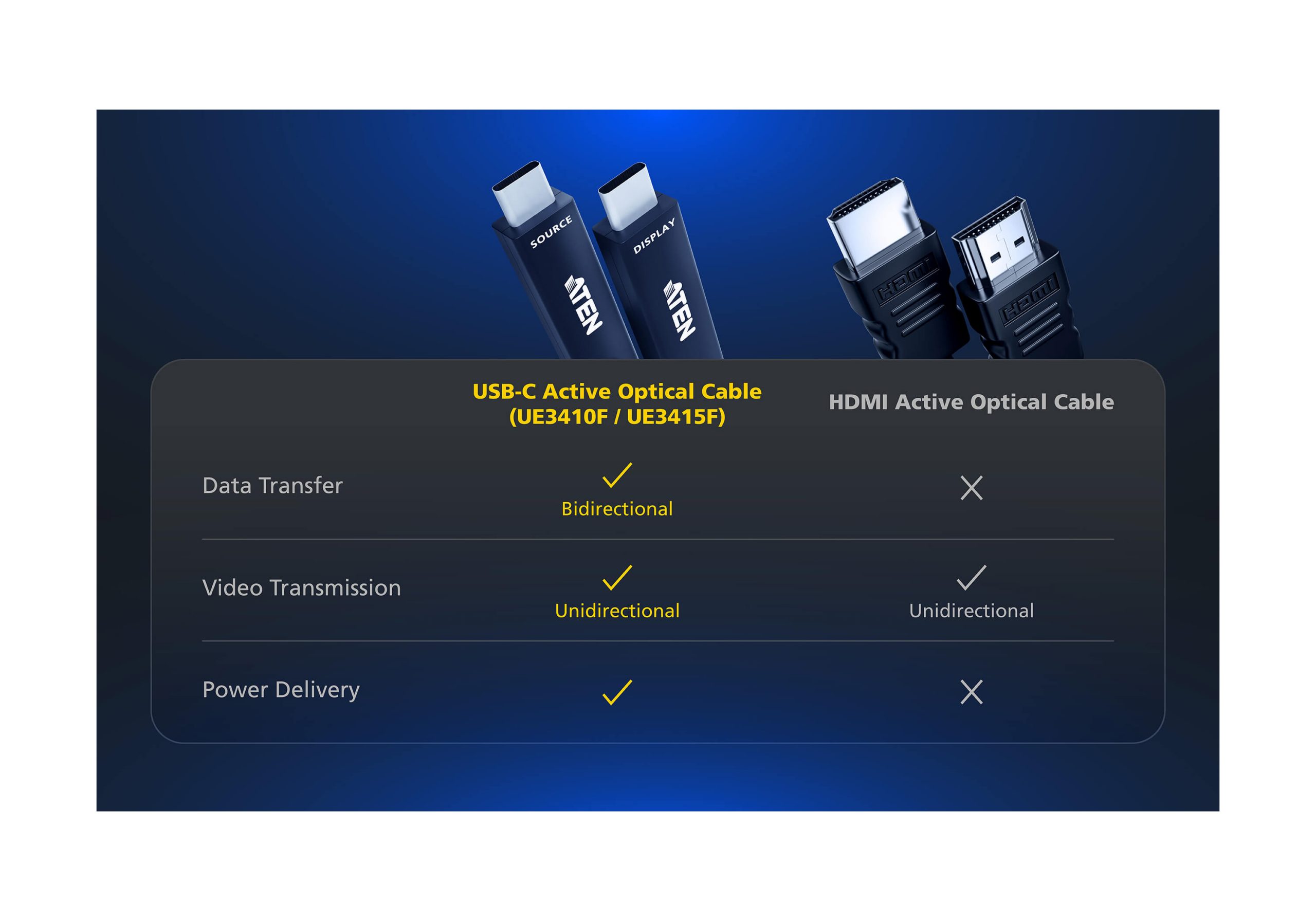

The cable supports high-bandwidth USB-C 3.2 Gen 2 data transfer, DisplayPort 2.1 video streaming, and power delivery for versatile connectivity.

Adaptive DP Lane Switching for Optimal USB and Display Output

Whether operating in 4-lane DP 2.1 UHBR10 with USB 2.0 or 2-lane DP 1.4 with USB 3.2 Gen 2 at 10 Gbps, the connected device intelligently selects the optimal DisplayPort mode. This ensures smooth, high-speed transmission and maximum compatibility for the intended application.

Up to 60W Power Delivery

The cable can supply power up to 60W to modern devices and peripherals, ensuring all-around, hassle-free operation.

Wide Compatibility with USB-C Devices

The USB-C Active Optical Cables provide a smooth link between source and display, ensuring exceptional performance and compatibility across a broad range of USB-C–enabled devices.

Features

Extends the distance between PCs and USB-C peripherals up to 15 m
Supports 60W Power Delivery
Supports either 4-lane DP 2.1 UHBR10 with USB 2.0 (480 Mbps) or 2-lane DP 1.4 with USB 3.2 Gen 2 (10 Gbps), depending on the connected device
Supports resolutions up to 4K @ 60Hz (without HDR or DSC)
Backward compatible with USB 2.0 / 1.1
Highly resistant to EMI and RFI due to high-quality material construction
Plug-and-play operation

Specifications

Connectors
USB Port	1 × USB-C Male
Downstream	1 × USB-C Male

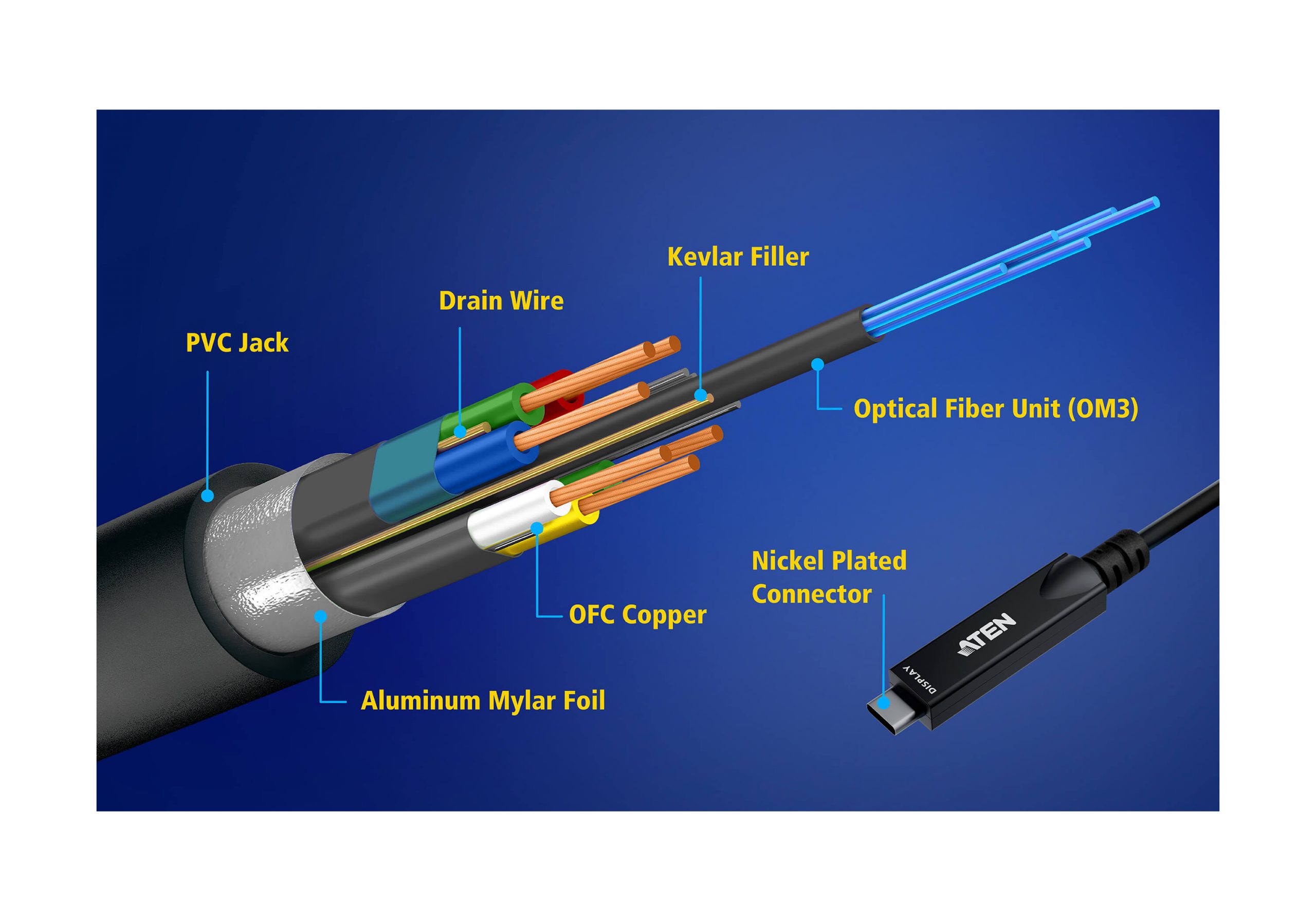

Cable Type	Hybrid type with optical fiber and copper wire
Cable Length	15 m
Data Rate	Up to 10 Gbps
Power Consumption
Power Consumption	DC 5V: 2W, BTU/h
Note: ● Watts indicate typical power consumption with no external loading. ● BTU/h indicates power consumption when fully loaded.
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	10–80% RH
Jacketed
Material	PVC
Color	Black
Physical Properties
Housing	Connector Case: Zinc-Alloy
Weight	1.10 kg (2.42 lb)

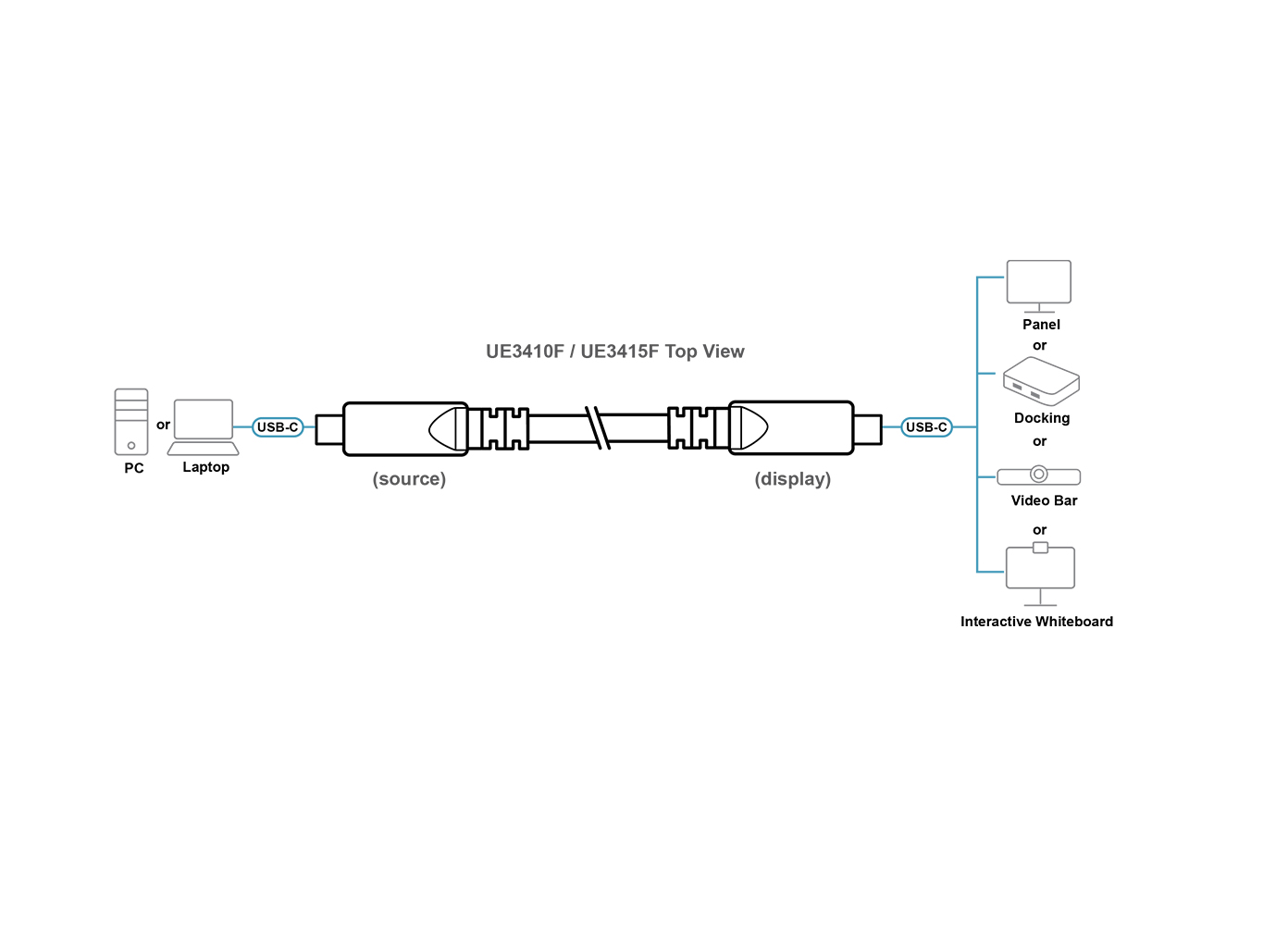

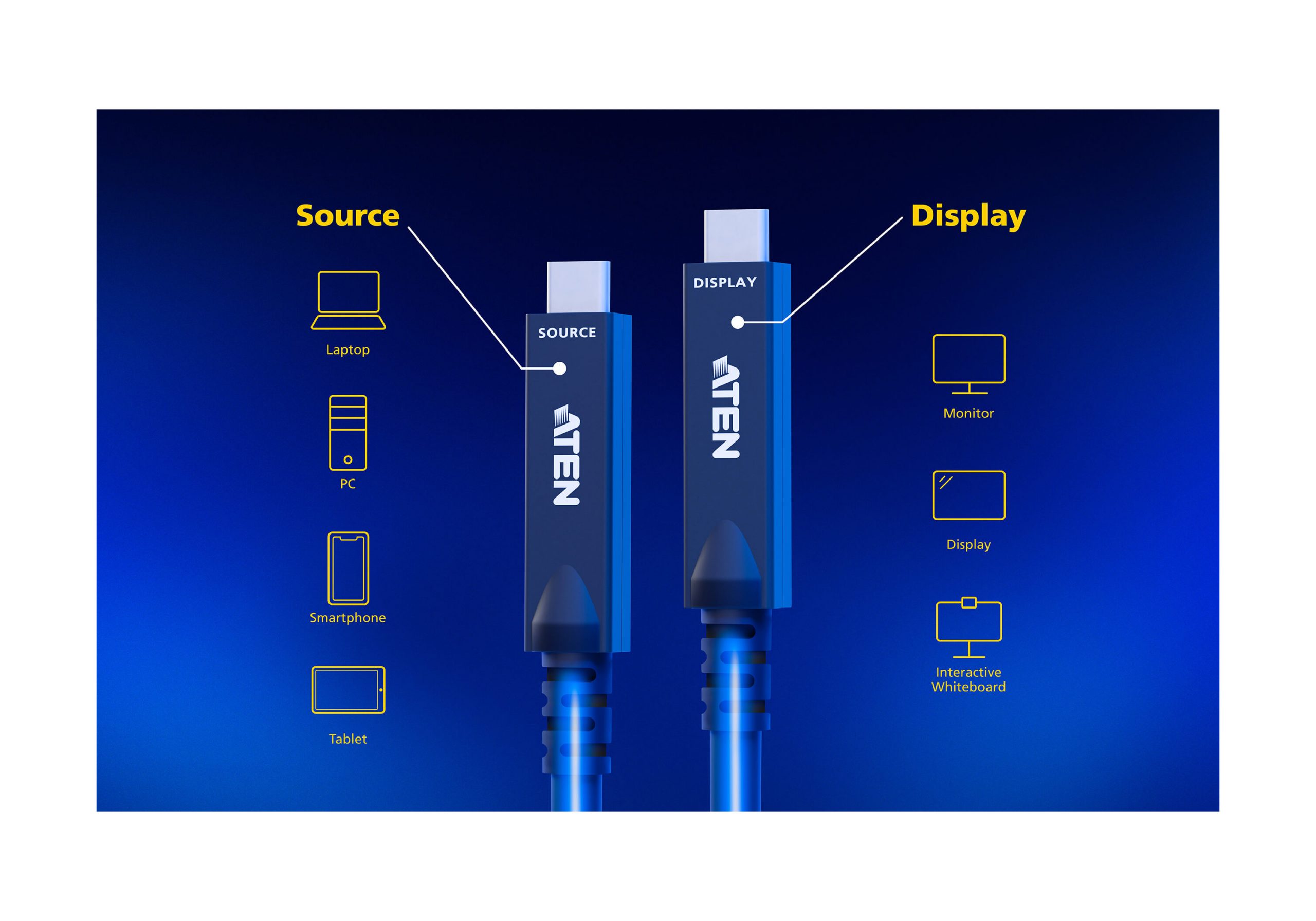

Notes: Ensure the SOURCE connector is plugged into the output port of the source device and the DISPLAY connector into the input port of the display device. The bending radius of the optical cable must exceed 65 mm. Bending or intermediate splicing is not allowed. Avoid heavy pressure on the connectors. They are fragile and must be handled with care. When laying optical cables, ensure the pulling force does not exceed 50 kg. Lay the cable evenly to avoid sudden stops or impacts. Cable laying speed must not exceed 20 m/min.
