Description

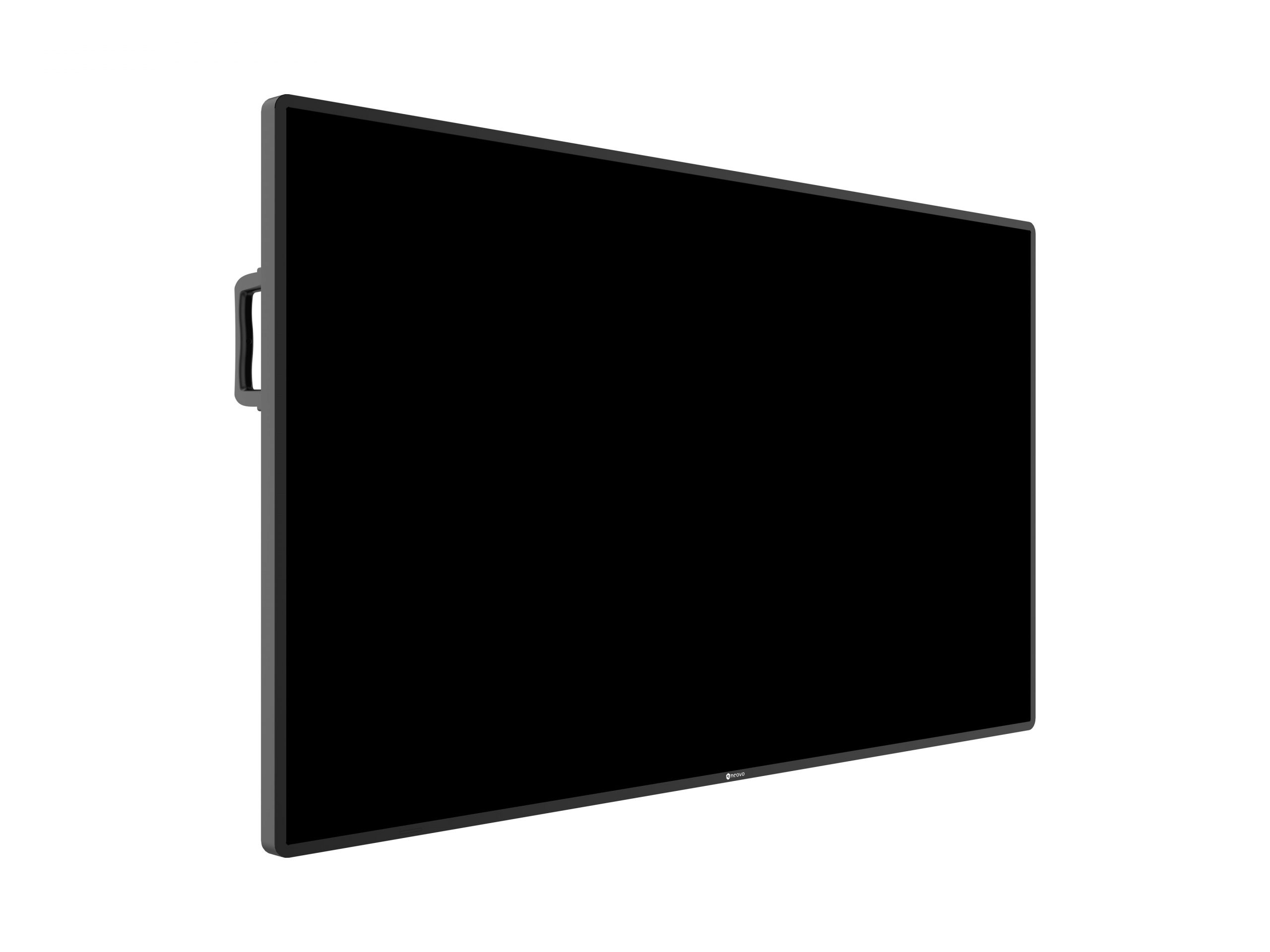

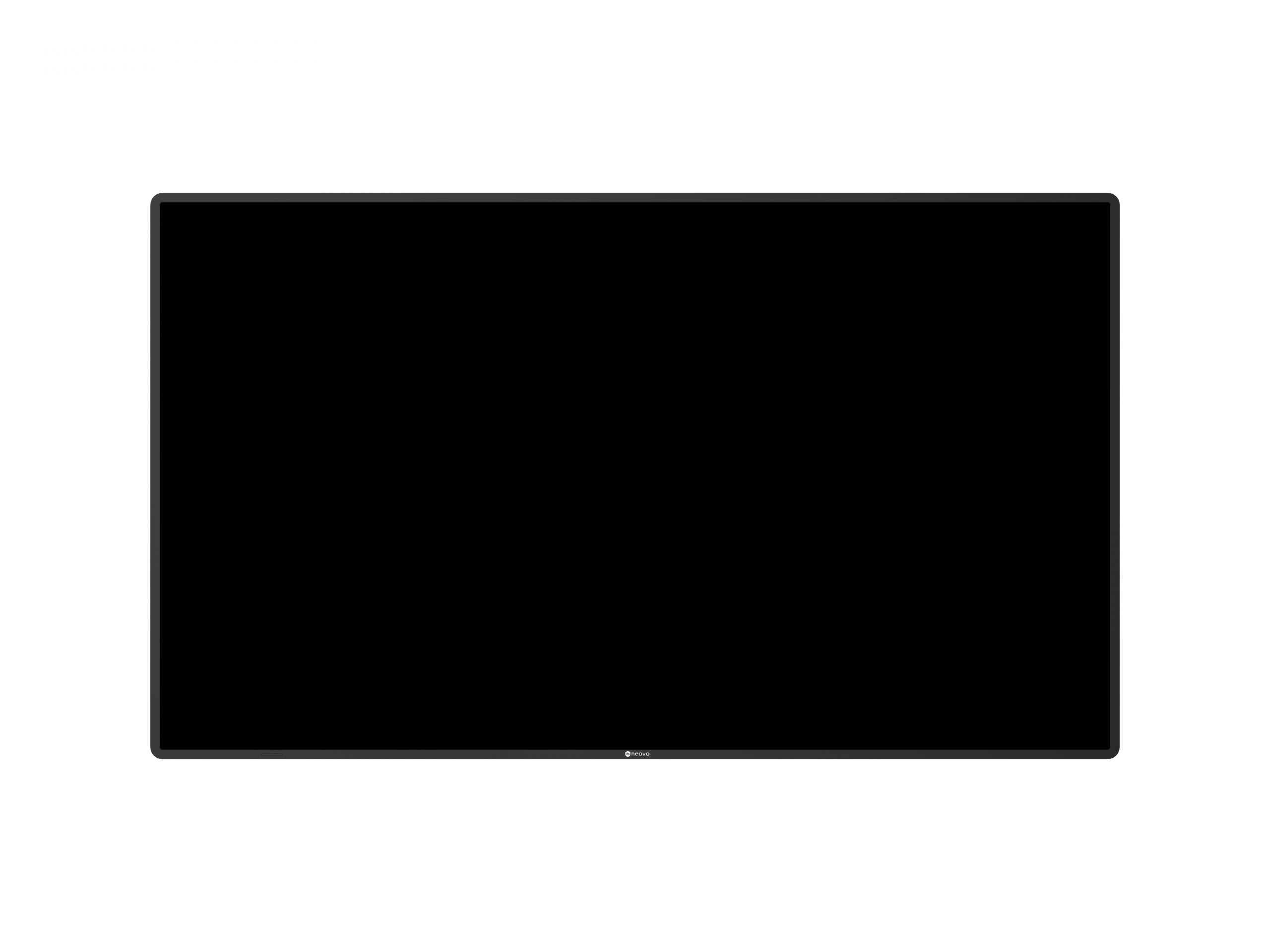

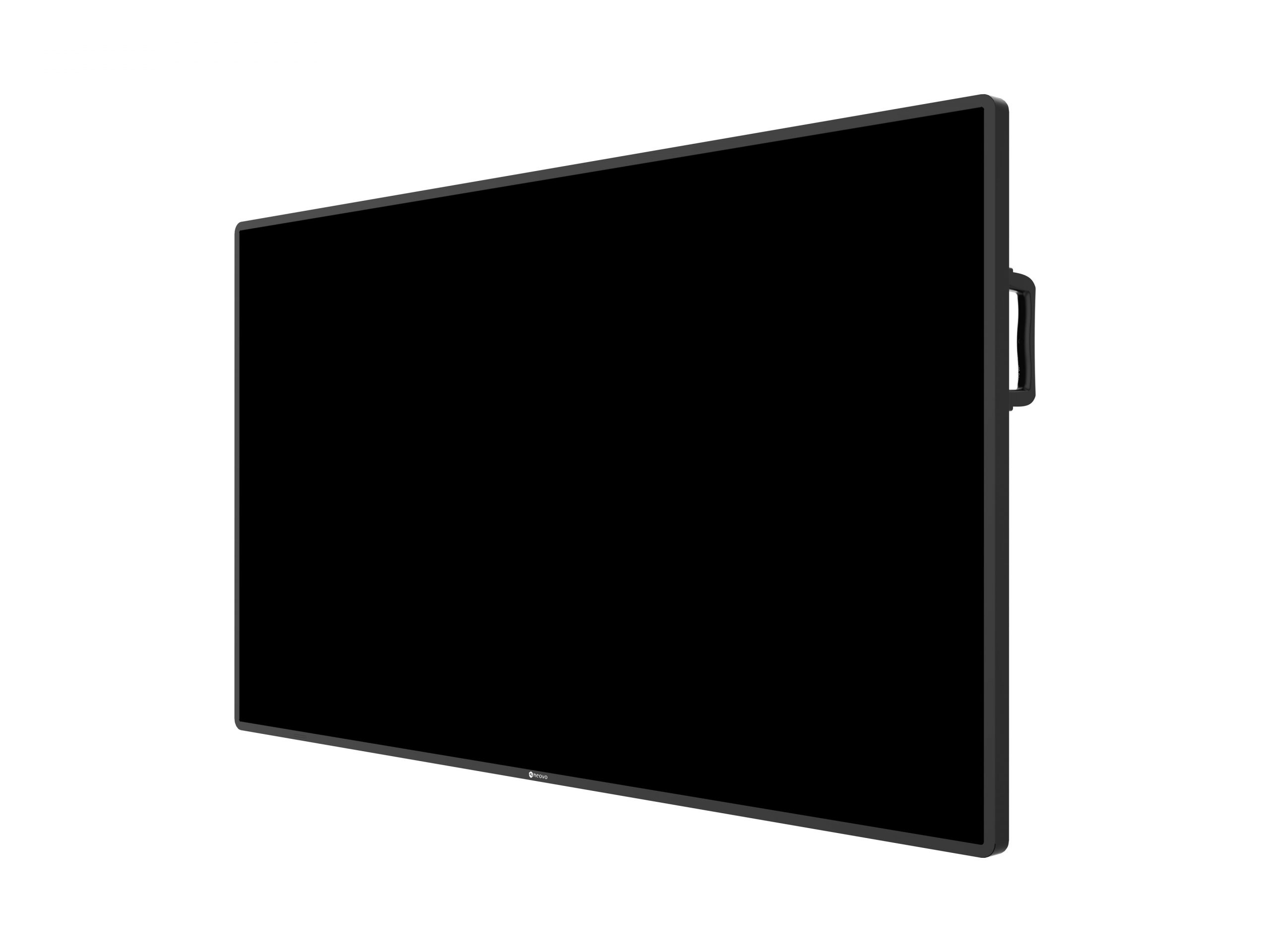

The TTN-5501 is a 55in 4K UHD professional display engineered for continuous operation in demanding environments. It delivers a 3840×2160 resolution on an IPS panel to ensure wide viewing angles and consistent color reproduction. Built features target long duty cycles and predictable visual performance for control rooms and public information displays.
The display includes NeoV Optical Glass with IK08 hardness and IP22 front protection to resist dust and incidental contact. Anti-Burn-in technology mitigates image retention when static content is shown for extended periods. An integrated heat control sensor and fan-assisted cooling provide active thermal management and system alerts to prevent overheating.
Performance specifications include 400 cd/m² brightness, 1200:1 contrast ratio, 5 ms response time, and a 1.07G color depth to present information-dense content clearly. The surface is treated with anti-glare coating (Haze 1%) and a 3H hardness rating to reduce reflections and surface wear. EcoSmart backlight control reduces power use by 30-50% through dynamic adjustment to ambient light.

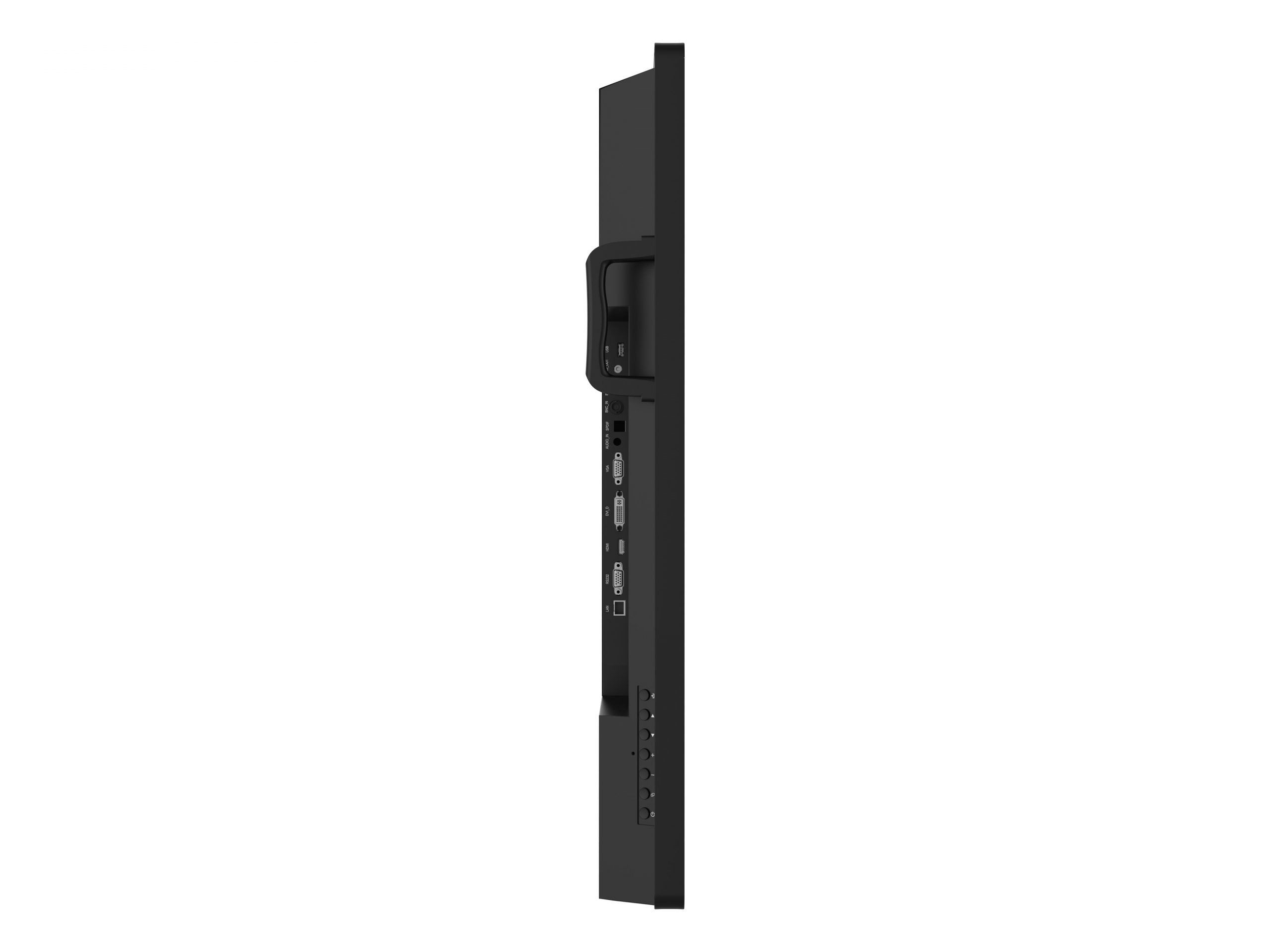

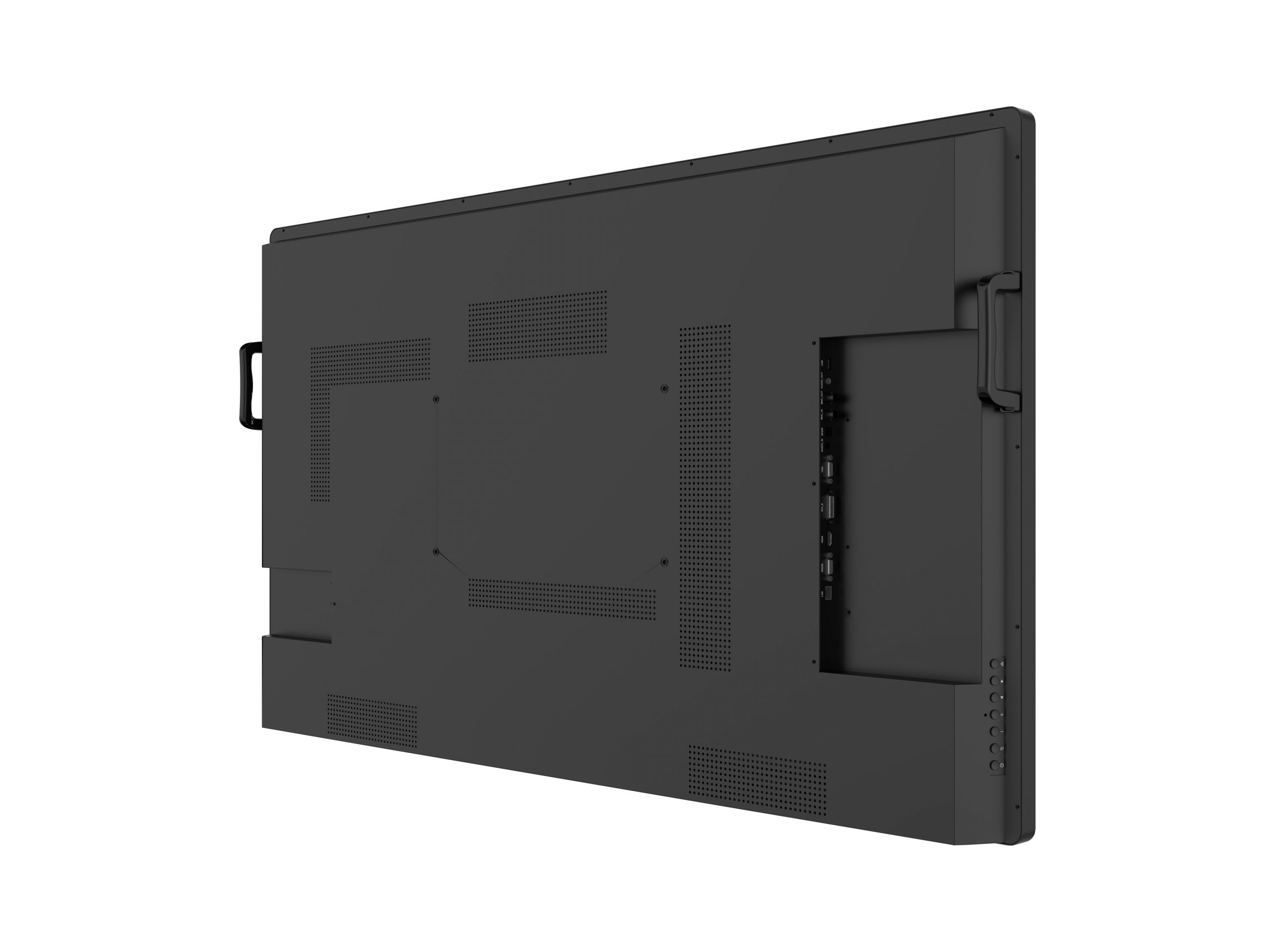

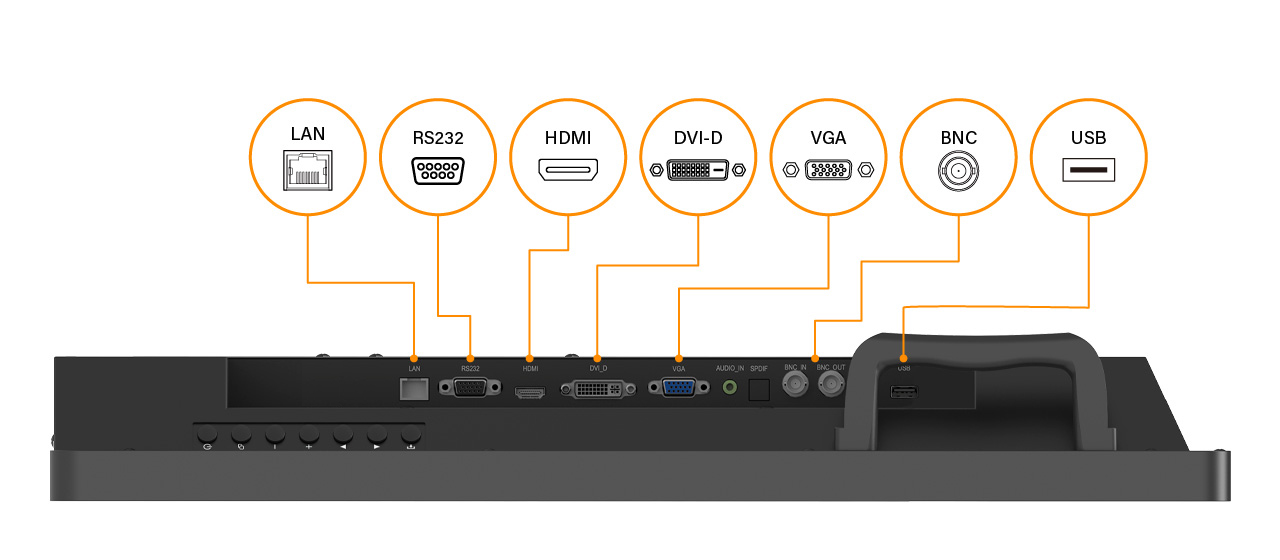

Connectivity supports legacy and modern sources with HDMI 2.0, 24-pin DVI-D, 15-pin VGA, and Composite BNC inputs plus BNC loop-through output for multi-screen scaling. Control and automation are available via RS232 and LAN, and a USB 2.0 service/media port is provided. Audio includes stereo input, S/PDIF output, and two 12W internal speakers.

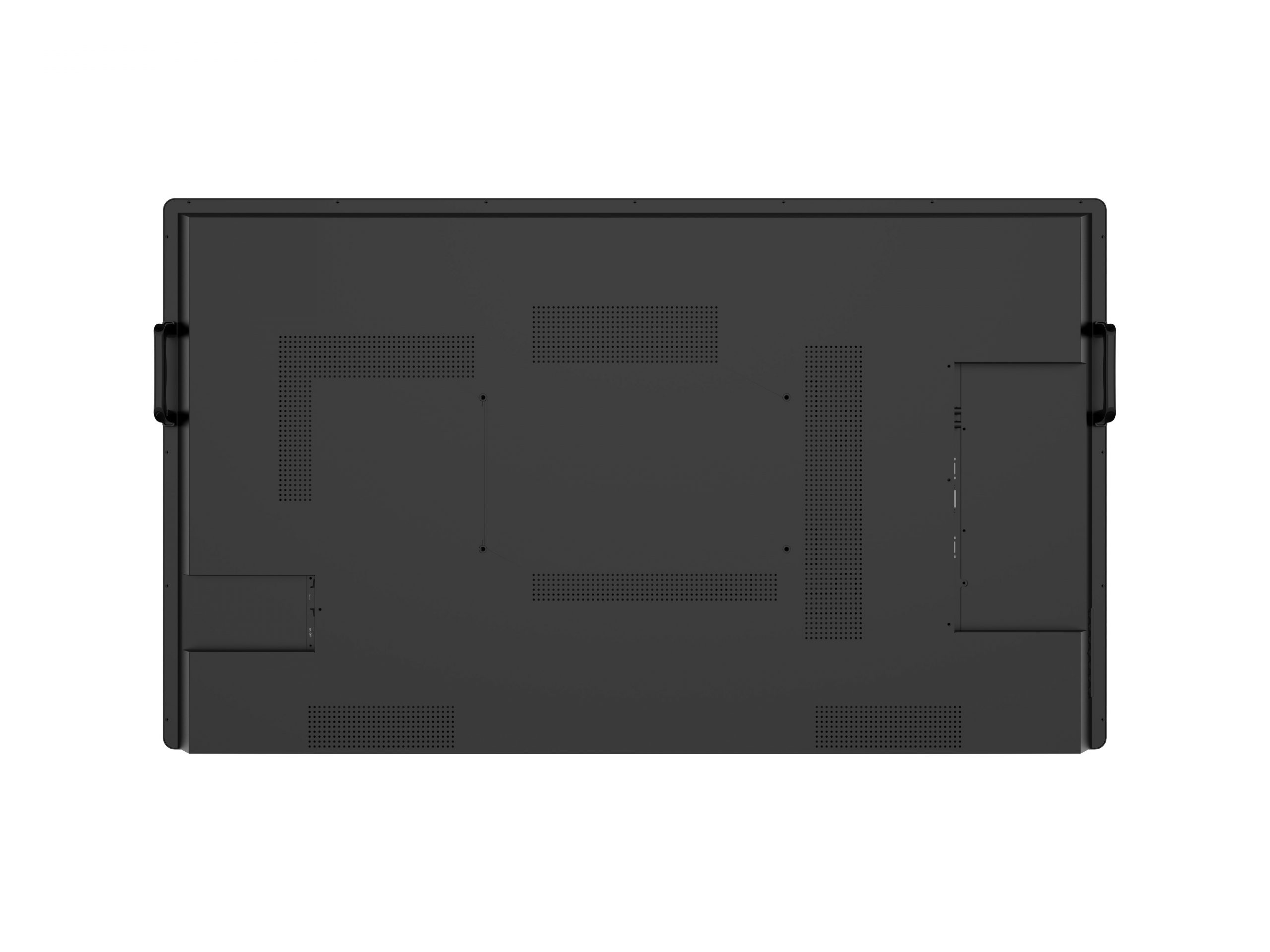

The TTN-5501 is suitable for security operations, command centers, and continuous public signage where uptime and image stability are essential. It enhances night surveillance footage and sharpness for improved recognition of text and objects in monitoring applications. VESA 400 x 200 mm support and landscape/portrait orientation options enable flexible mounting in structured installations.

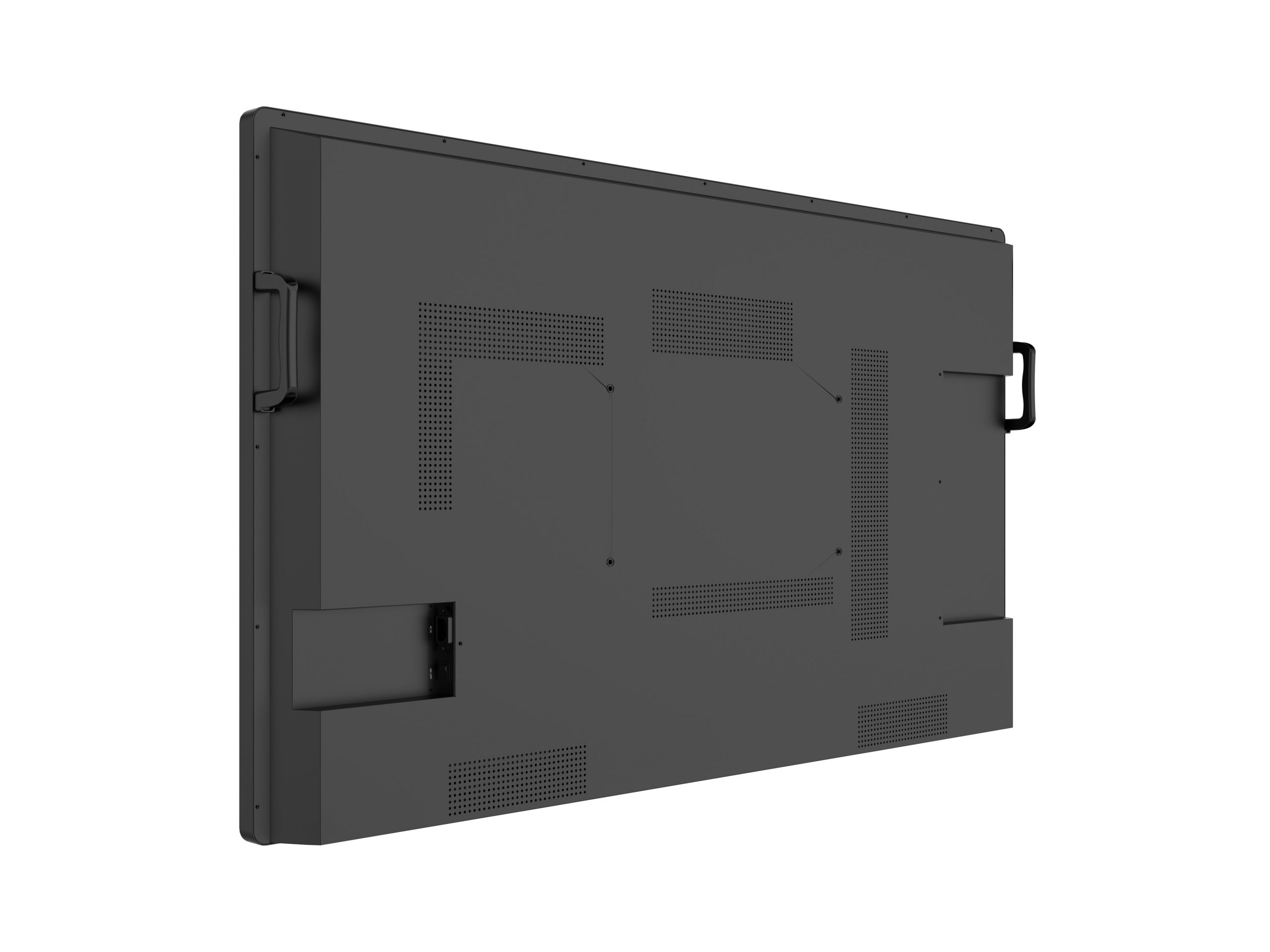

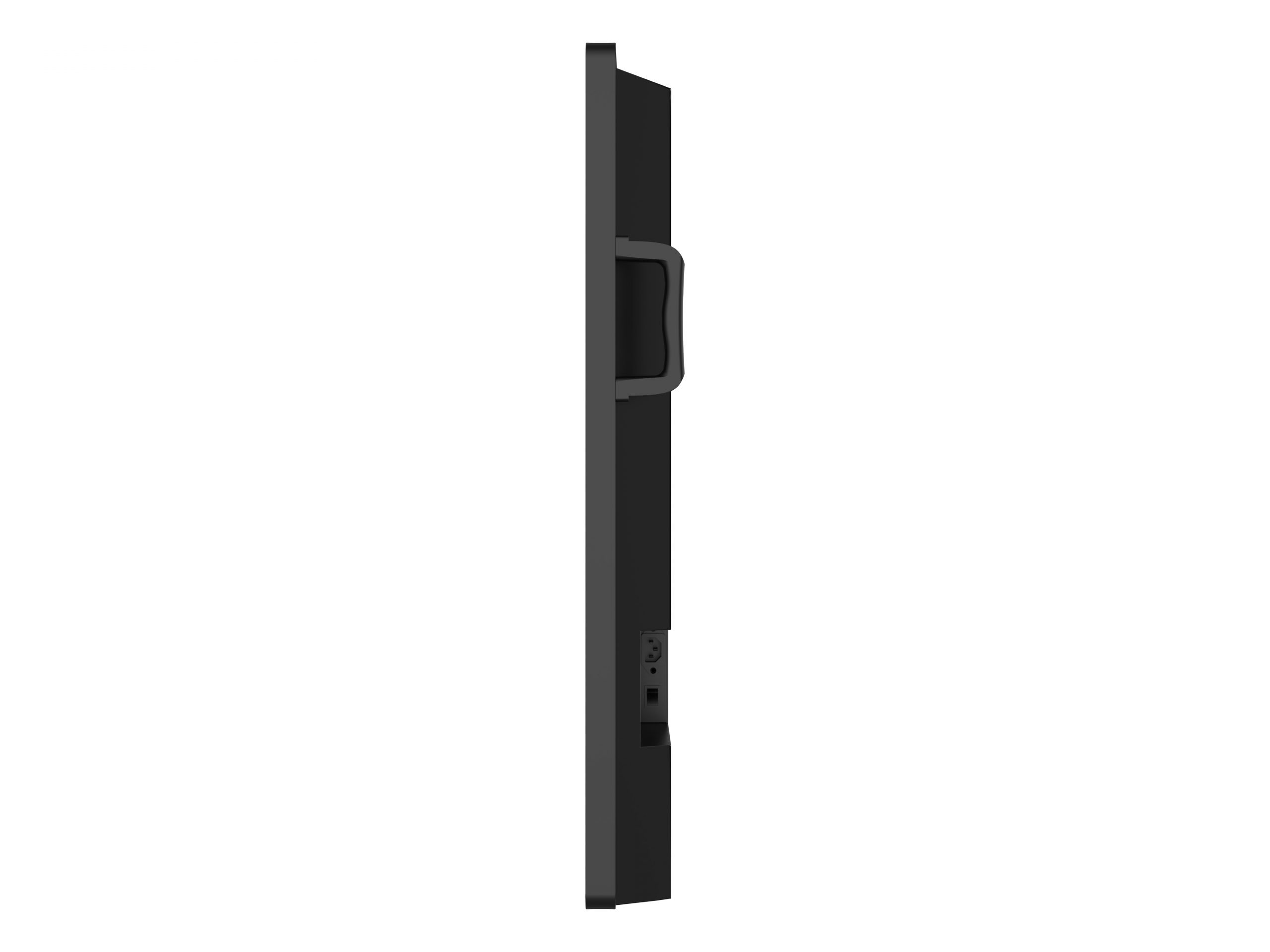

Assembly in Taiwan and compliance with TAA and NDAA requirements support regulated procurements and government deployments. The reinforced metal rear enclosure and durable glass front combine to extend service life in fixed installations. Installation, network control, and centralized management are simplified when integrated into larger display arrays or signage networks.
