Description

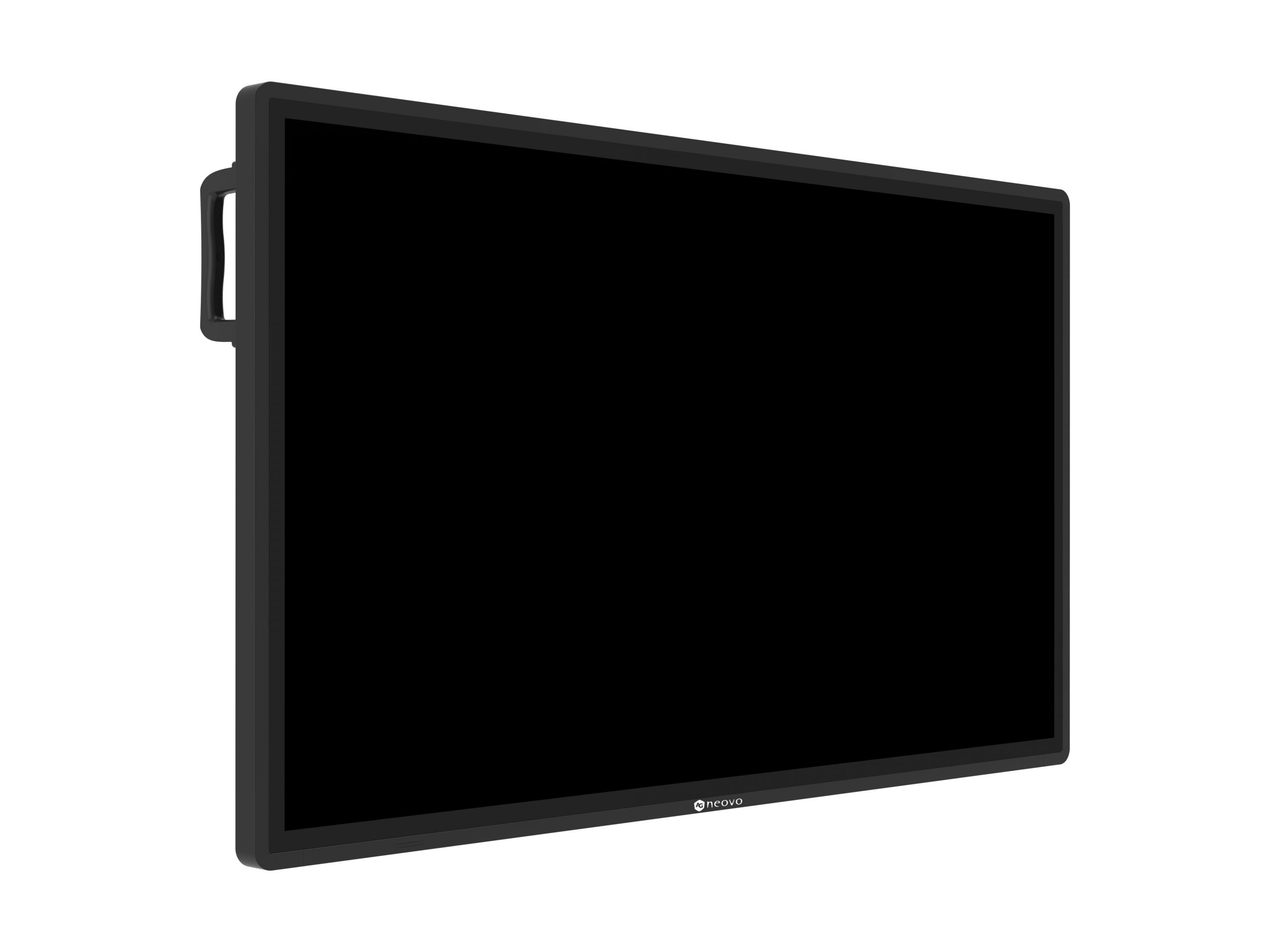

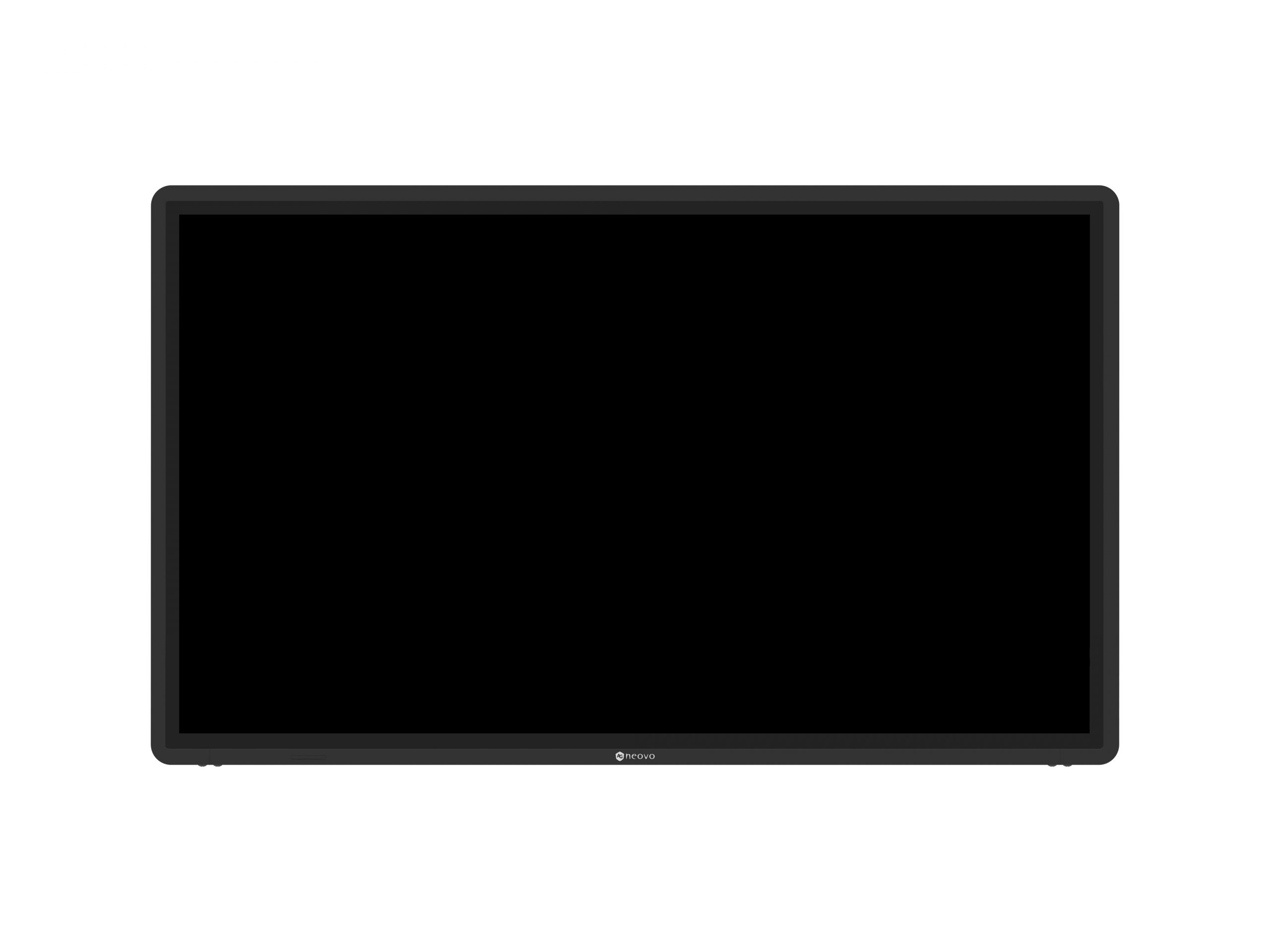

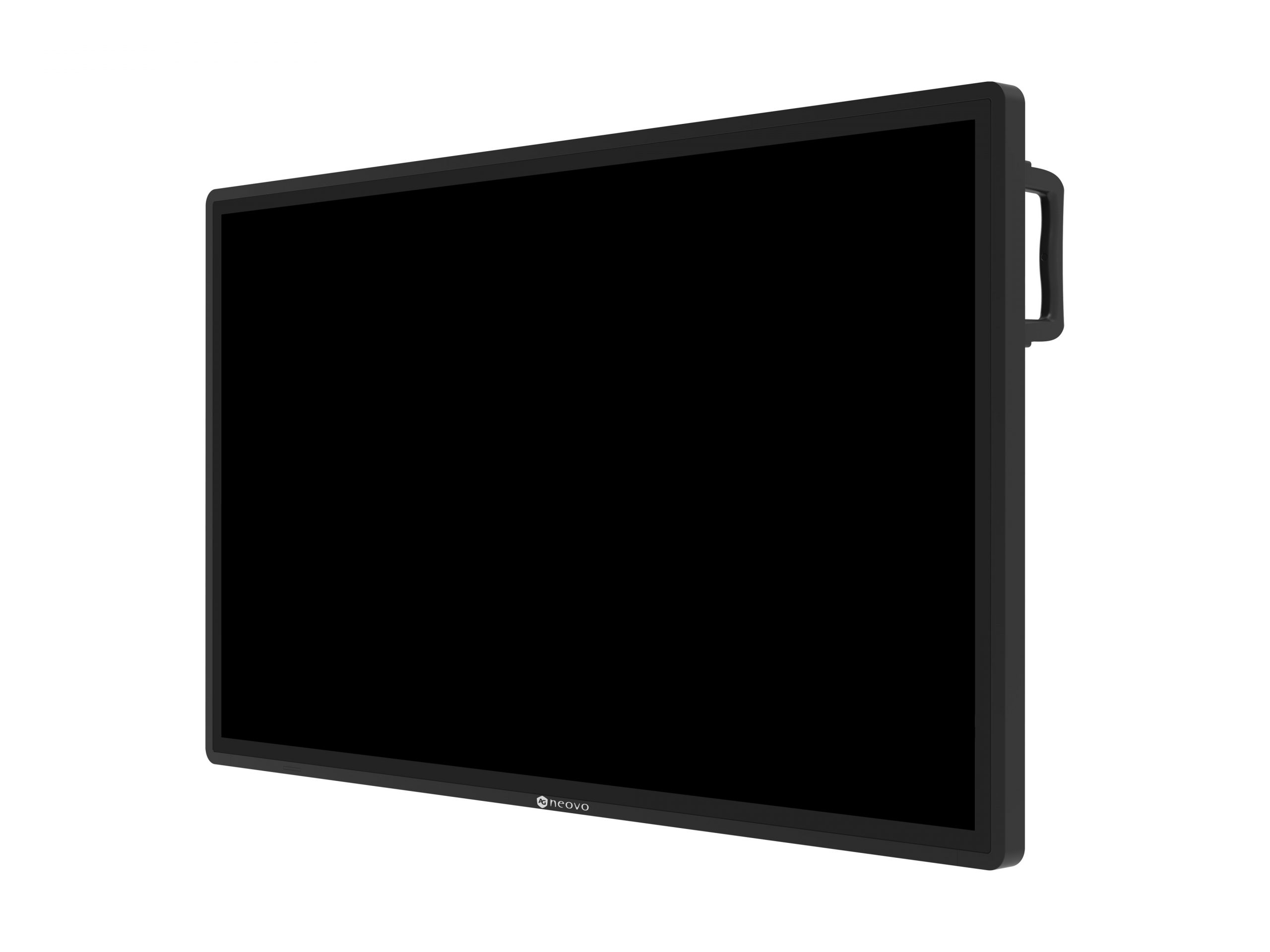

The TTN-4301 is a 43in 4K UHD professional display engineered for continuous operation in control rooms and monitoring environments. It delivers a 3840 x 2160 resolution on an IPS panel for wide viewing angles and consistent colour reproduction. The design prioritizes long-hour reliability and stable visual performance for mission-critical applications.
Key features include 24/7 operation rating, Anti-Burn-in technology to mitigate image retention, and NeoV Optical Glass providing IK08 hardness and IP22 front protection. The display integrates active thermal management with a heat control sensor and fan-assisted cooling to preserve uptime. EcoSmart backlight management reduces power draw by an estimated 30-50% depending on ambient lighting.
Technically the TTN-4301 offers 450 cd/m2 brightness, 1200:1 contrast ratio, 5 ms response time and 1.07 billion display colours for detailed imagery. The IPS panel provides 178°/178° viewing angles and a pixel pitch of 0.245 mm to keep dense information legible. Frequency support covers horizontal 31 kHz-92 kHz and vertical 48 Hz-76 Hz to accommodate varied source equipment.

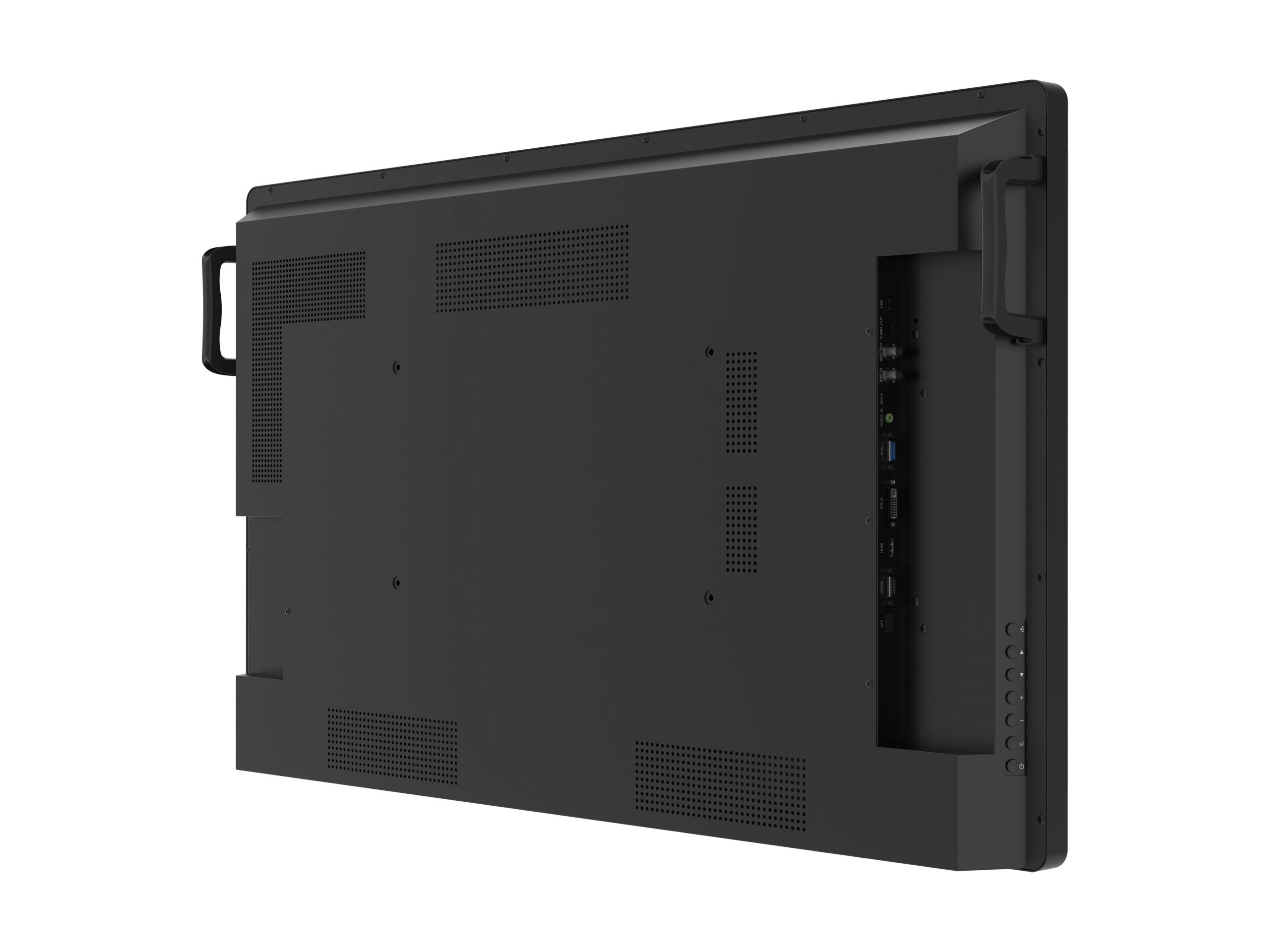

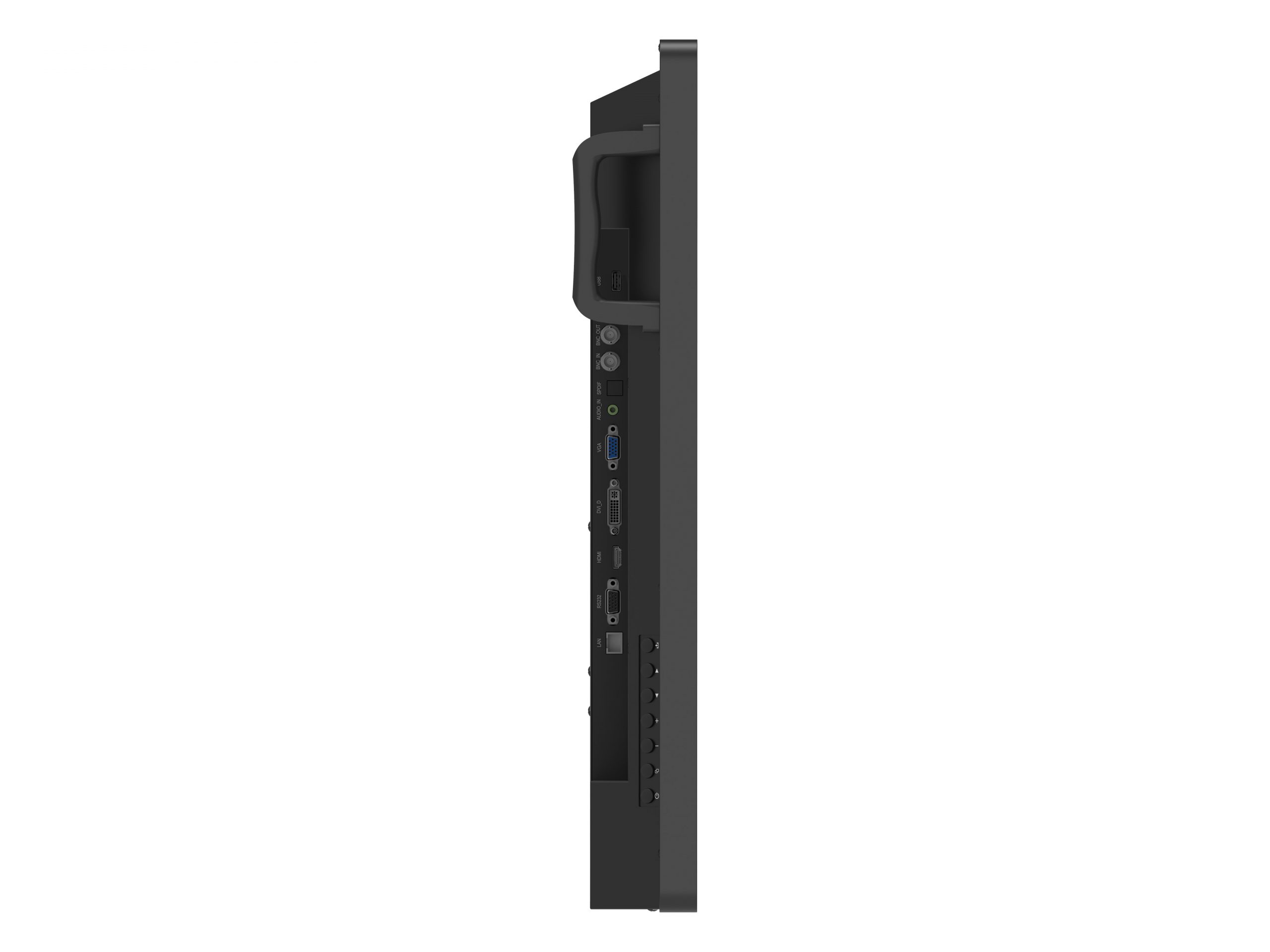

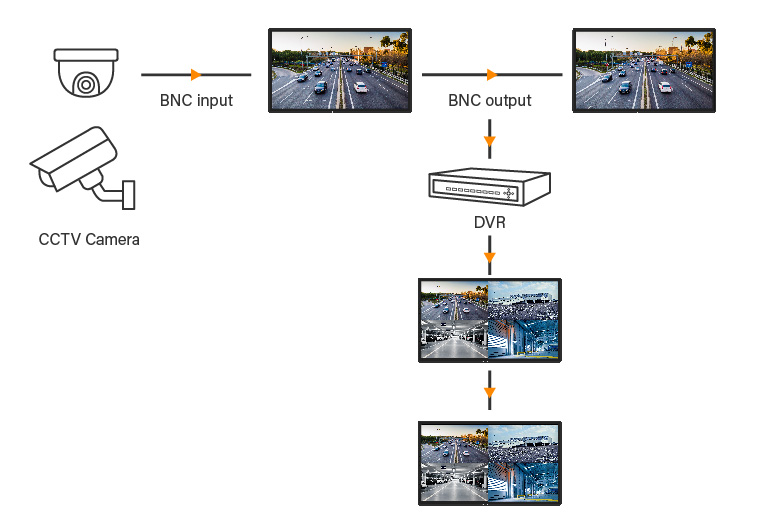

Connectivity is broad and includes HDMI 2.0, DVI-D, VGA, Composite BNC input and BNC output for loop-through to additional displays. Control interfaces include RS232 (9-pin D-Sub) and LAN (RJ45) for centralized management through Neovo Controller. A USB 2.0 service/media port and S/PDIF plus 3.5 mm audio I/O complete the I/O offering.
Typical applications include security monitoring, command and control centers, broadcast monitoring and information displays where continuous operation and image stability matter. The unit supports landscape and portrait mounting and VESA 400 x 200 mm compatibility for fixed installations and video wall setups. Compliance with TAA and NDAA requirements supports public sector and regulated deployments.

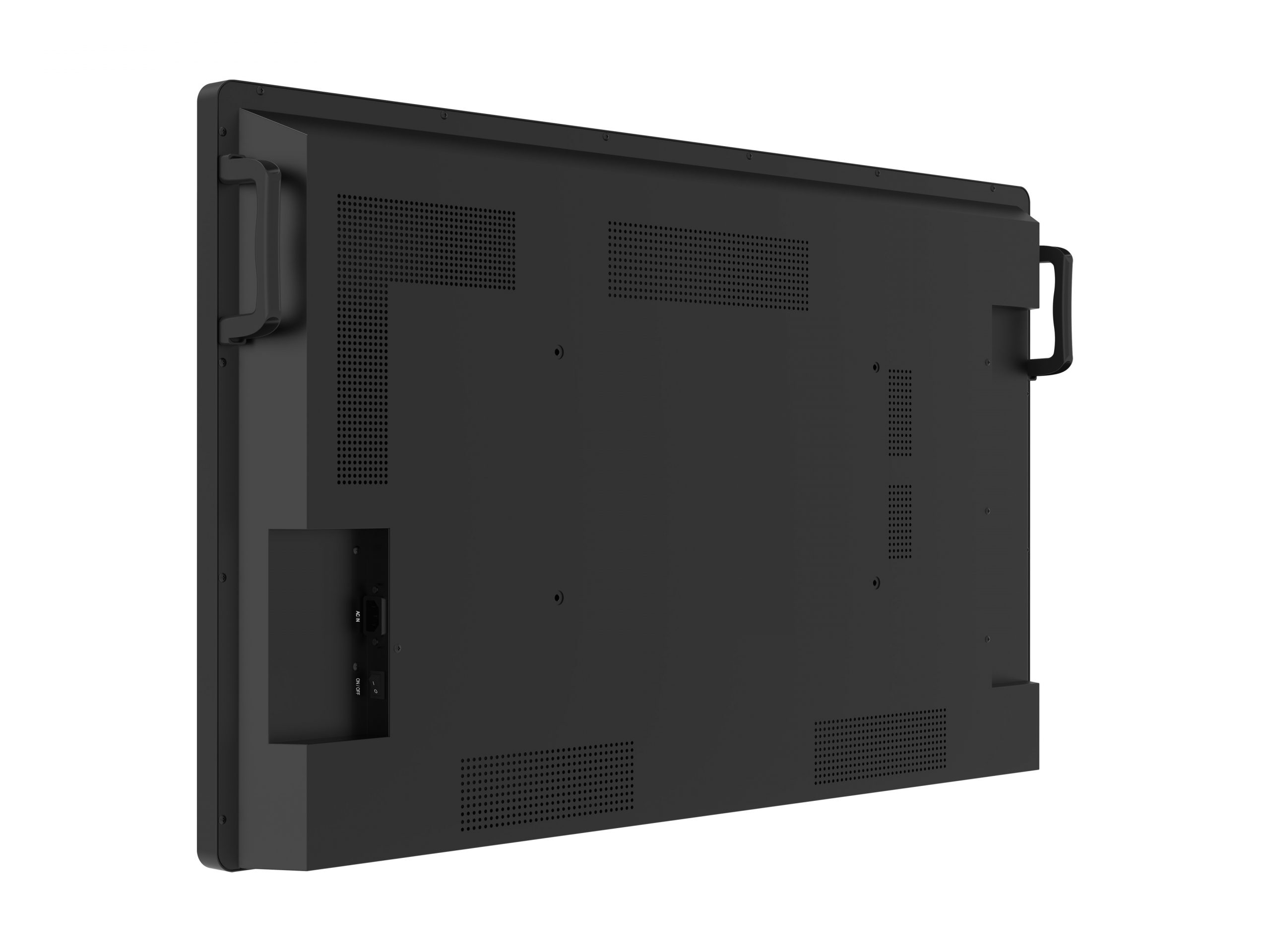

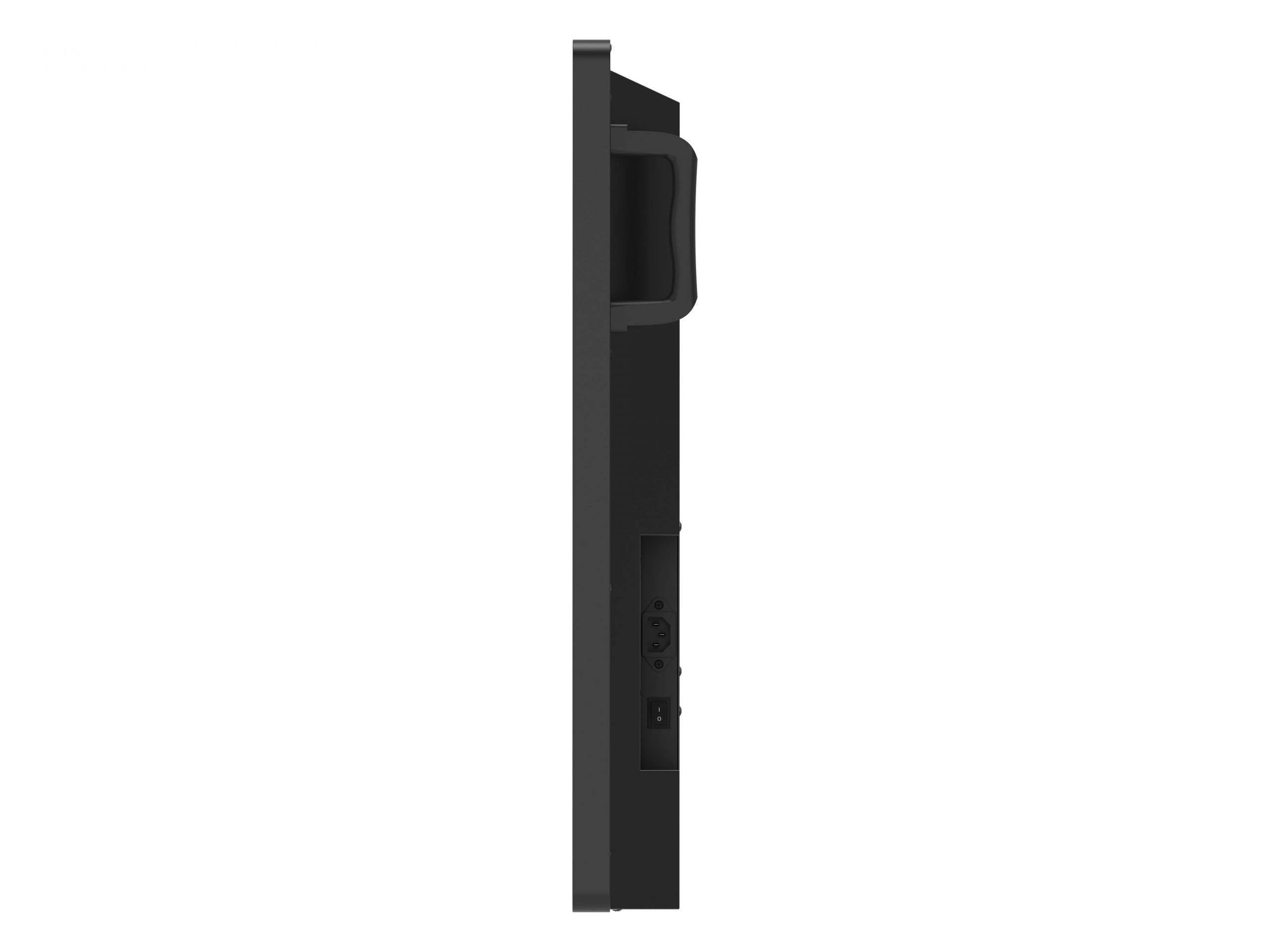

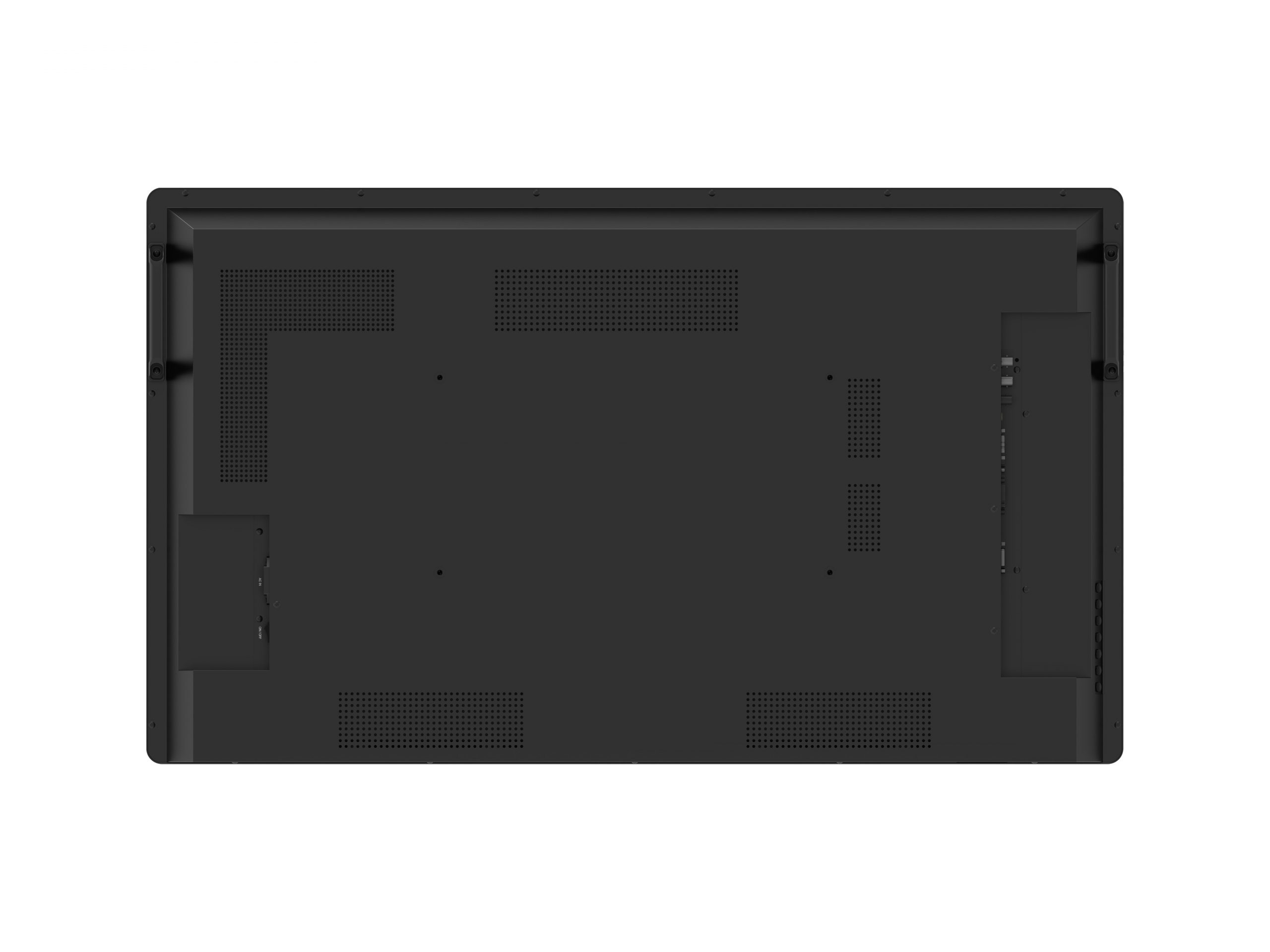

Installation is simplified by a reinforced metal rear enclosure that improves structural stability during extended duty cycles and by a 3.2 mm NeoV Optical Glass front that resists impact and abrasion. Power options include an internal supply supporting AC 100-240V 50/60 Hz and low standby power under 0.5W. The TTN-4301 balances build quality, energy efficiency and centralized control to deliver dependable long-term operation for professional AV environments.
