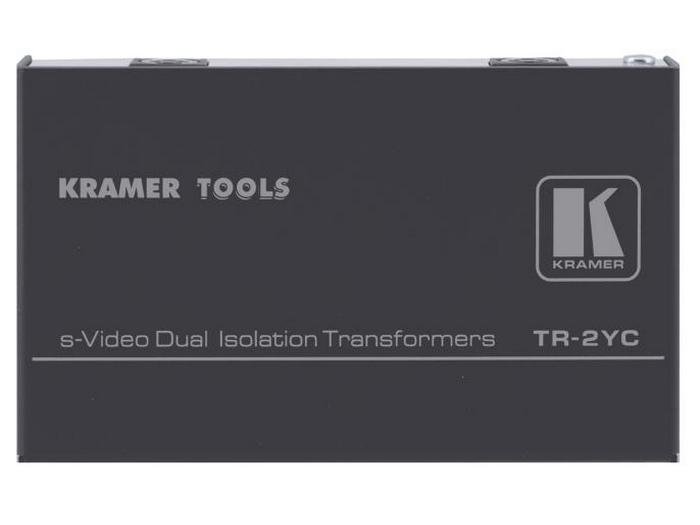

Kramer TR-2YC s-Video Dual Isolation Transformer

Description

DESCRIPTION

The TR-2YC is a high-performance isolation transformer for s-Video (Y/C) signals. It provides complete isolation between devices to eliminate hum, ground loops and DC offsets, which can degrade the video quality.
- Bandwidth – <10Hz to 5.8MHz (-3dB).
- Coupling – Luminance (Y) & Chrominance (C) transformer.
- External Ground Terminal.
- Video Grounding Options – DIP-switch selectable.
- Passive – No power required.
- Compact Kramer TOOLS™ – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3TR rack adapter.
Rack Adapters: 19″ (1U): RK-3TR This product replaces the TR-1YC

SPECIFICATIONS

INPUT:	1 s-Video on a 4-pin connector.
OUTPUT:	1 s-Video on a 4-pin connector.
INSERTION LOSS:	0.8dB.
BANDWIDTH (-3dB):	10Hz to 5.8MHz.
DIFF. GAIN:	0.12%.
DIFF. PHASE:	0.13Deg.
K-FACTOR:	0.8% to 0.9%.
S/N RATIO:	77.7dB.
CONTROLS:	DIP-switches for grounding control.
VIDEO TILT:	0.1%.
VIDEO NON LINEARITY:	0.1%.
COUPLING:	AC.
DIMENSIONS:	12.1cm x 7.2cm x 3cm (4.77″ x 2.85″ x 1.2″) W, D, H.
WEIGHT:	0.34kg (0.75lbs) approx.
ACCESSORIES:	Mounting brackets.
OPTIONS:	RK-3TR 19″ rack adapter.

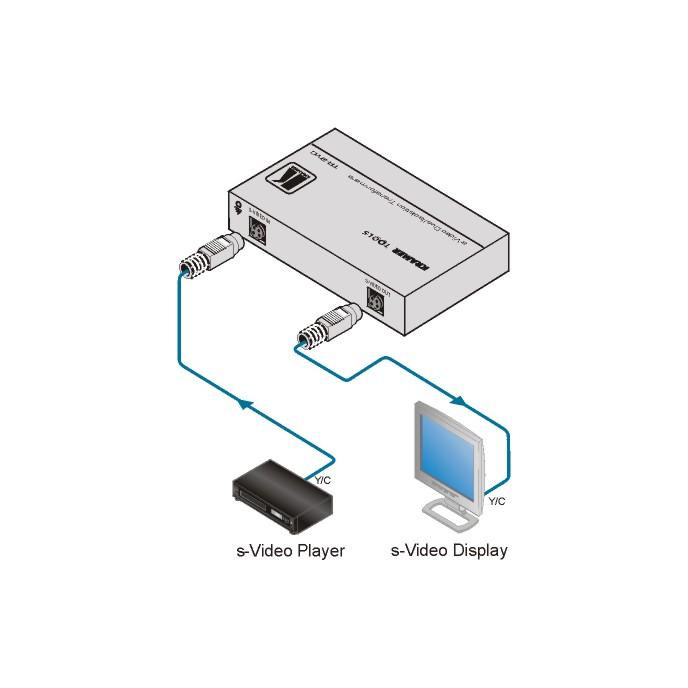

Product Diagrams

View Diagrams

Specifications

Weight	1.00 lbs
