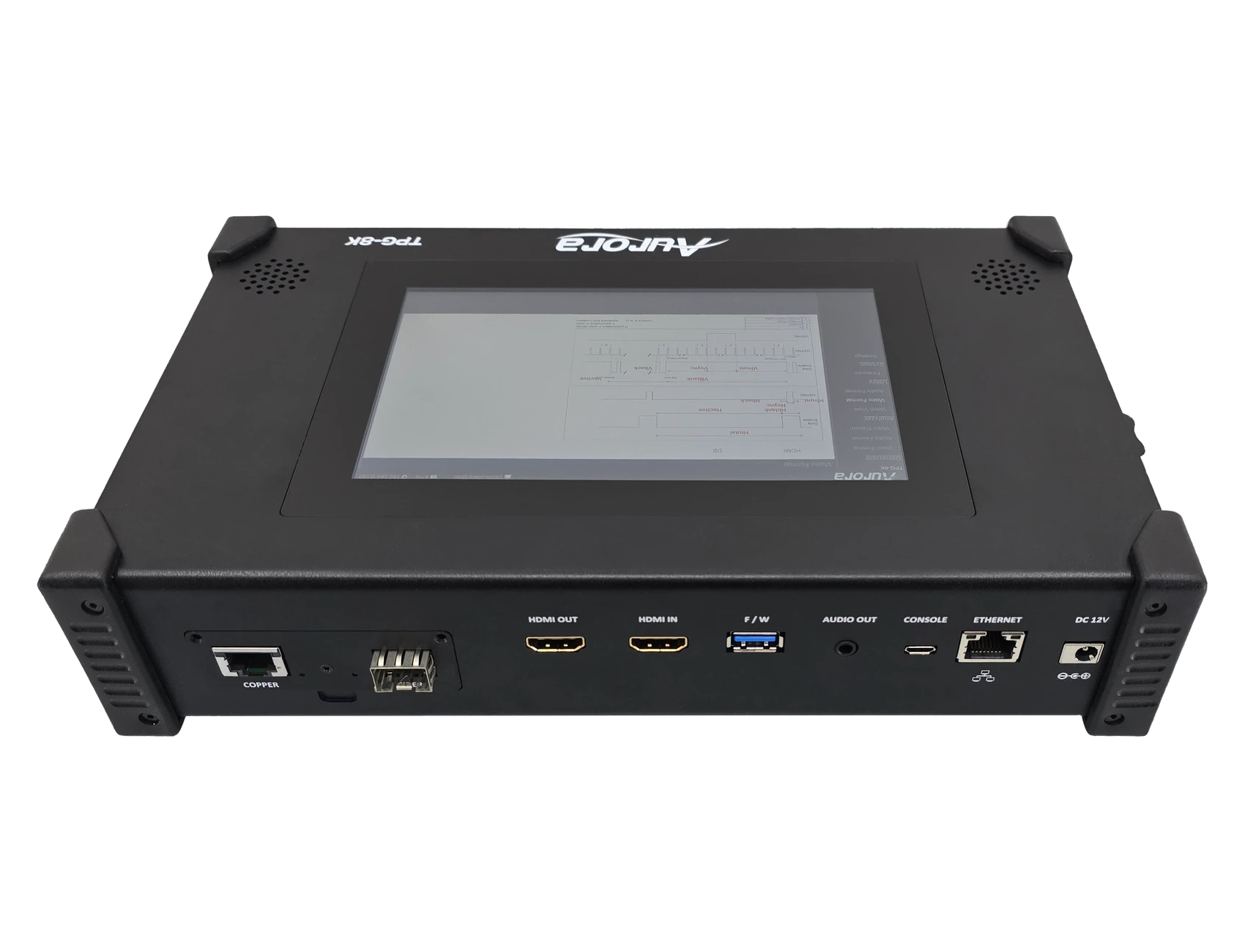

Aurora Multimedia TPG-8K 8K HDMI 2.1 Test Pattern Generator & Analyzer with SDVoE Option and AVoIP Tests

Description

The TPG-8K is the first test 8K test pattern generator with analyzer to focus on AV over IP in addition to HDMI. AVoIP has quickly become the leading distribution for our industry which is why we built a device to properly test the image quality from end to end. The latency performance of the stream is just as important which is why we added the ability to measure end to end latency including the network switch latency. Along with HDMI, HDCP, and EDID analyzing assures an install or lab testing goes smooth and quickly. We even made it rack mountable for use at a headend to send patterns or view content of the HDMI or SDVoE with optional expansion card.

Features

Supports video resolution outputs up to 8K60 4:2:0 10-bit, 8K30 4:4:4 & 4K2K @120Hz
Supports HDR: 4K2K @60Hz 4:2:0 10-bit / 12-bit

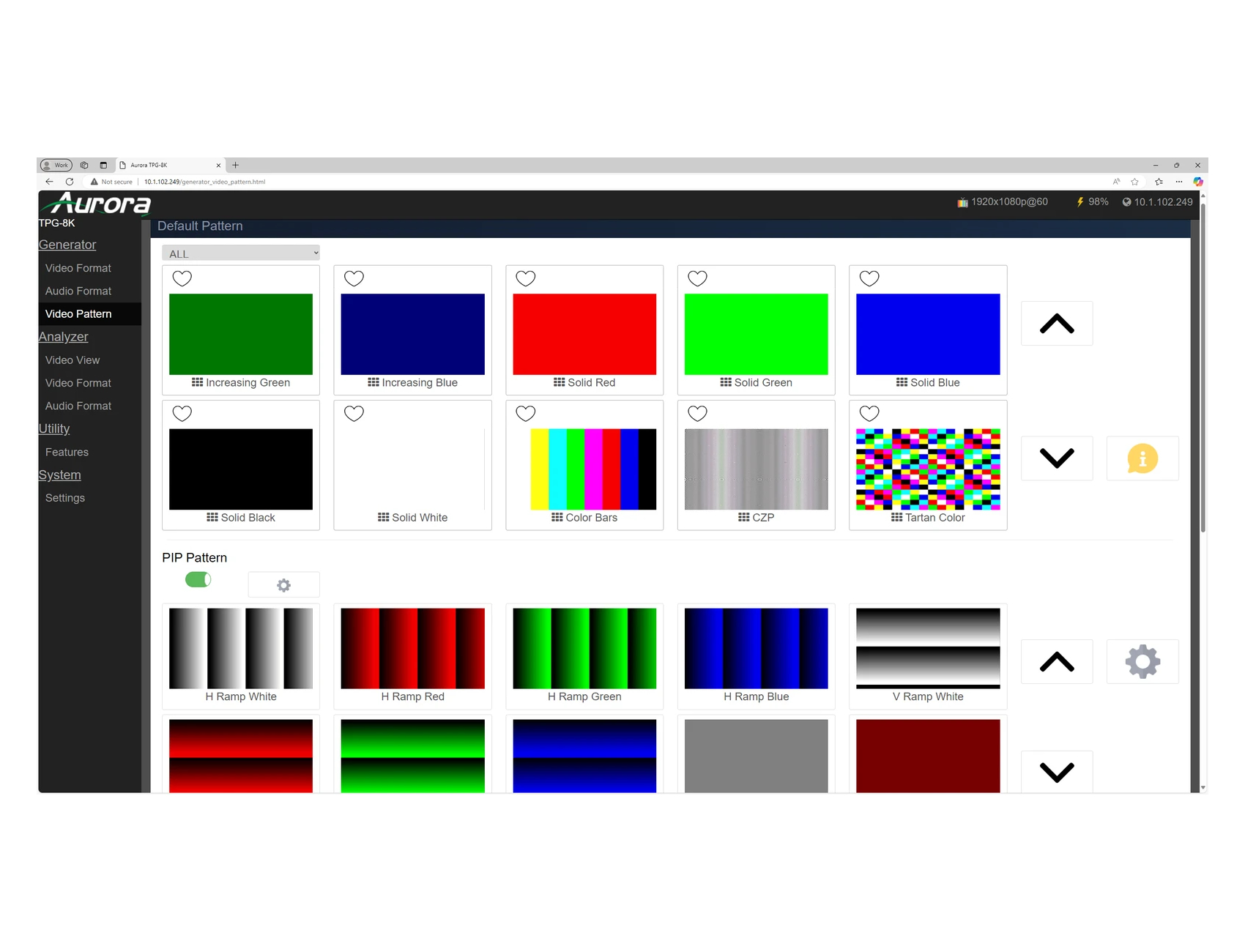

Built-in motion video patterns
HDMI input and output support up to HDMI 2.1 & HDCP 1.4 / 2.3
Fundamental HDMI feature analysis up to 8K4K @60Hz 4:2:0 8-bit HDMI 2.1 input

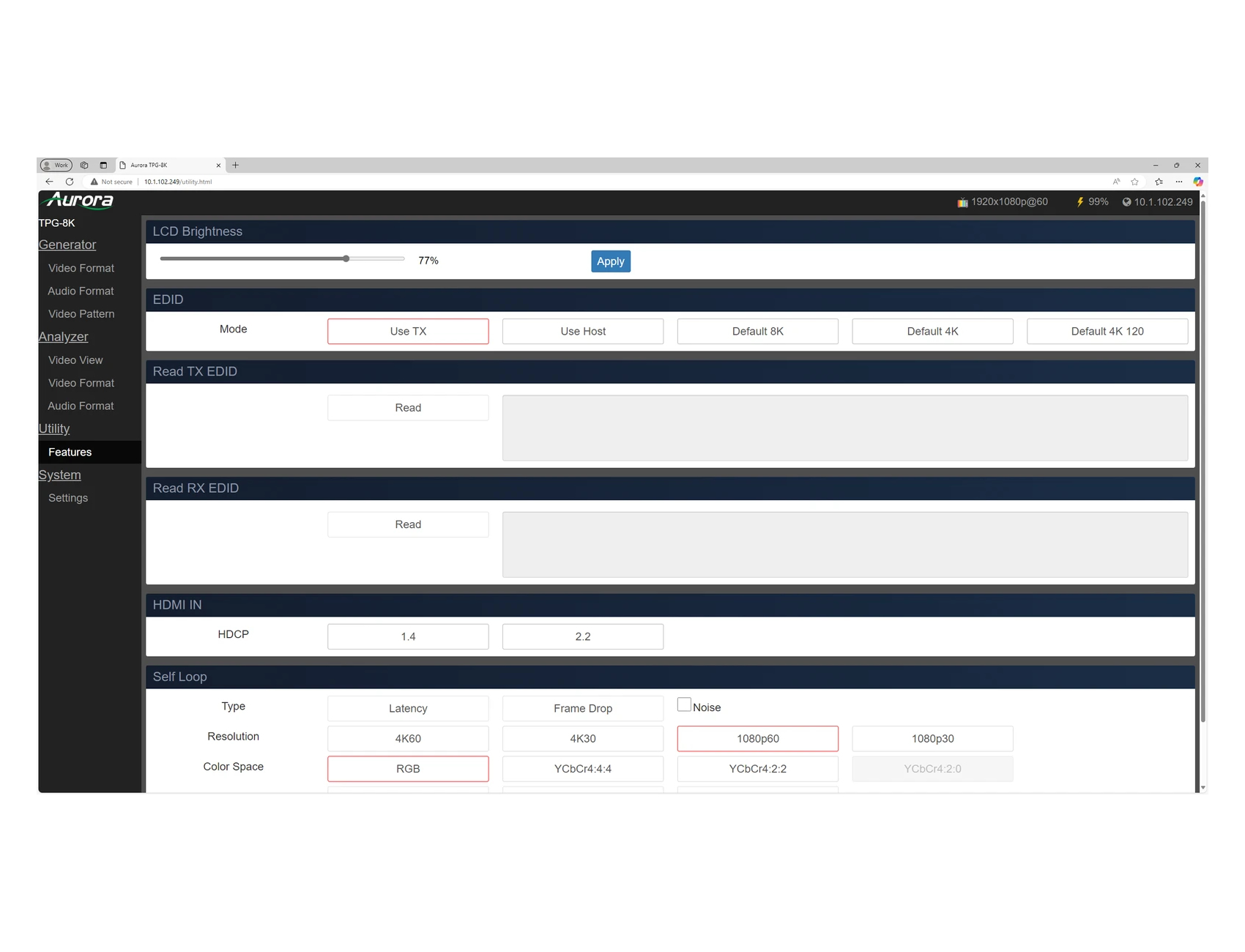

HDCP & EDID analysis
AV over IP test patterns and latency analyzer
SDVoE option card for simultaneous transmit and receive of 10G AV over IP
Wide frequency range: 25MHz–1188MHz
40G input & 48G output video bandwidth

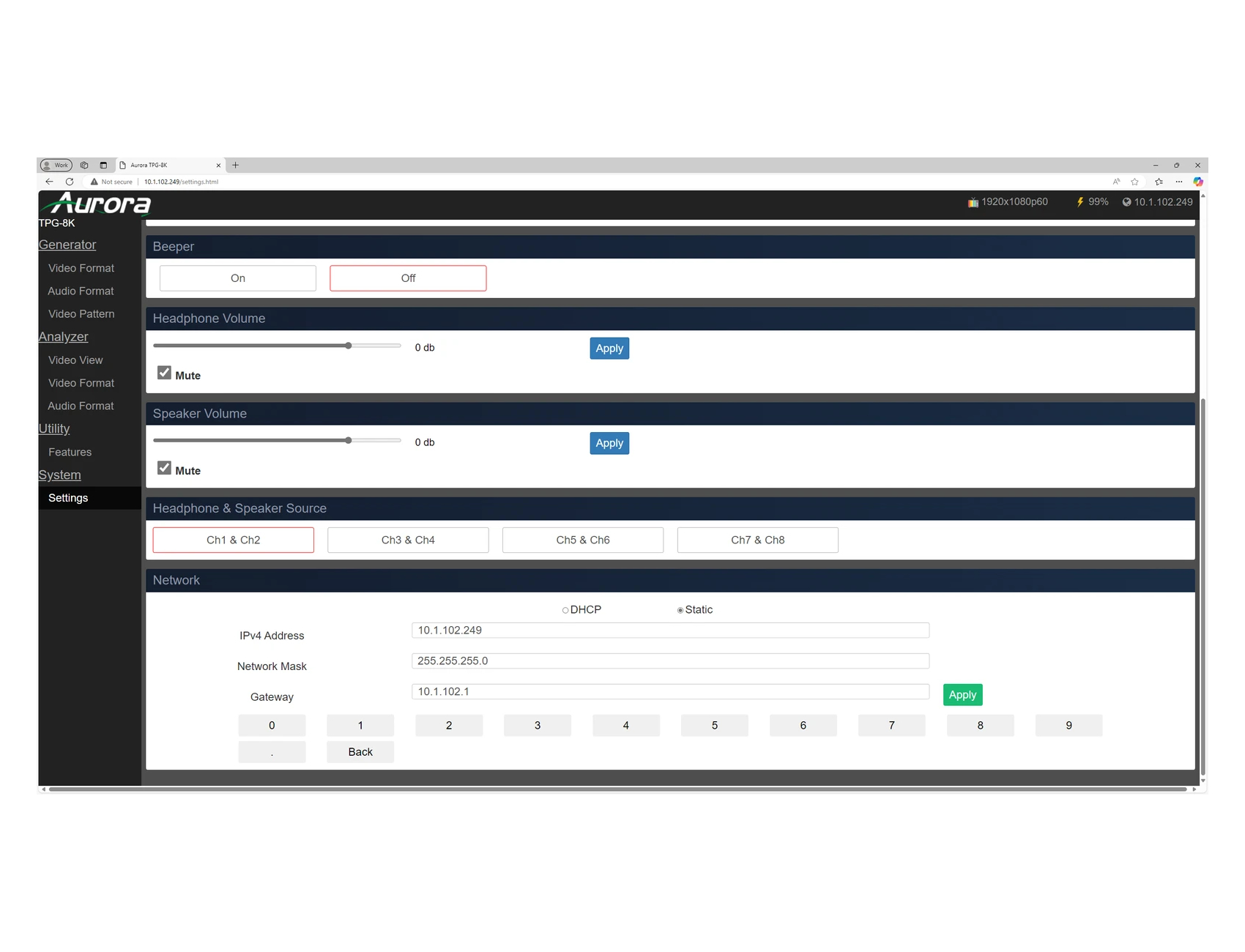

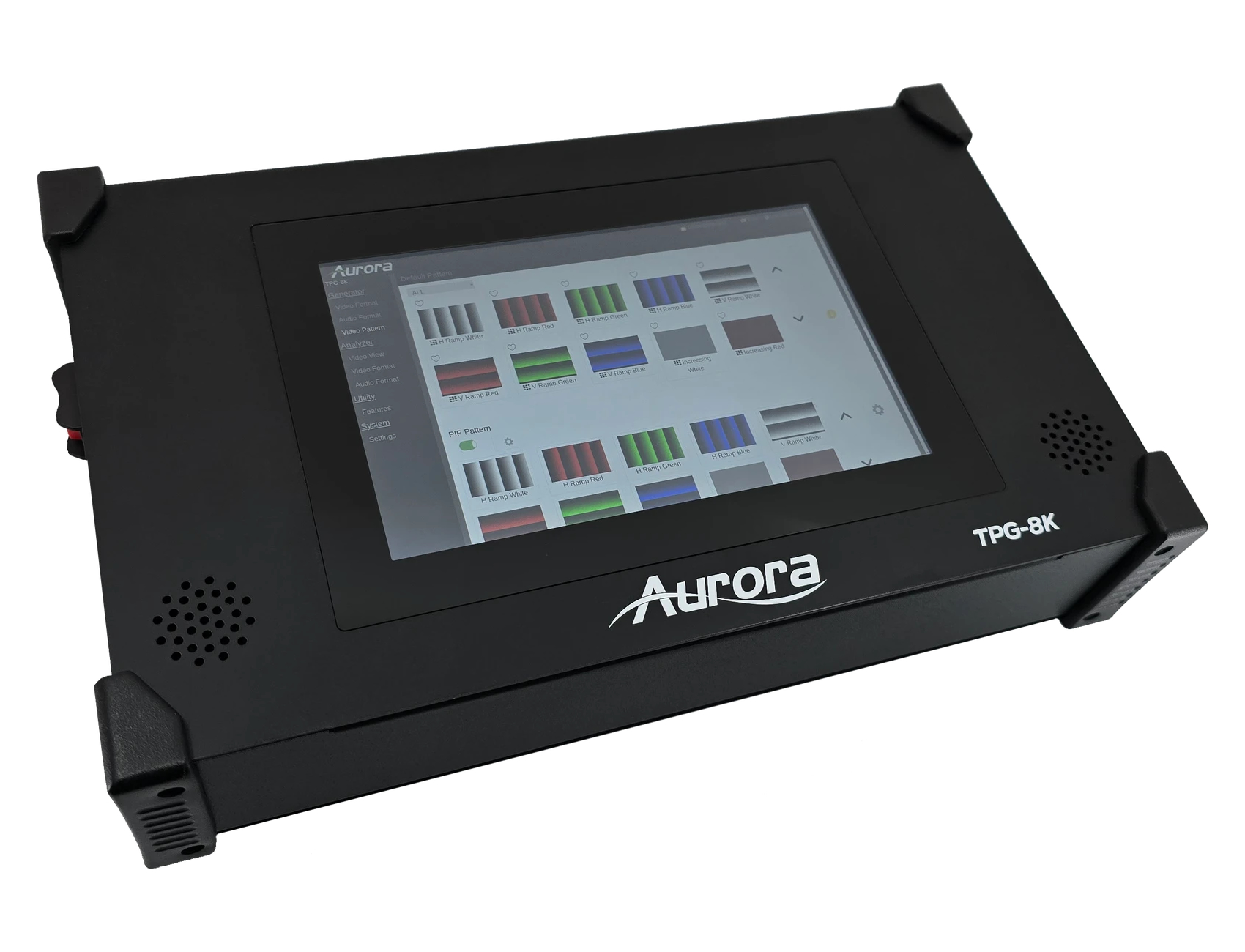

7” capacitive touch screen & web server for remote control
Stereo speakers for audio verification
Battery powered for portability; up to 3 hours operation at full load
PoE+ power support
Plastic protective case included
Rack mount option
2-year warranty

Specifications

Technical
Role of Usage	HDMI 2.1 Installation Gear
Video Bandwidth	Input: up to FRL 5 (48G) Output: up to FRL 5 (48G)
HDMI Compliance	HDMI 2.1 and below
HDCP Compliance	HDCP 2.3 and below
Video Support	Up to 8K60 4:2:0 10-bit, 8K30 4:4:4, 4K2K @120Hz
ESD Protection	Human Body Model: ±15kV (air-gap discharge), ±8kV (contact discharge)
Video Format Support	HDMI & SDVoE
Audio	2 Internal Speakers

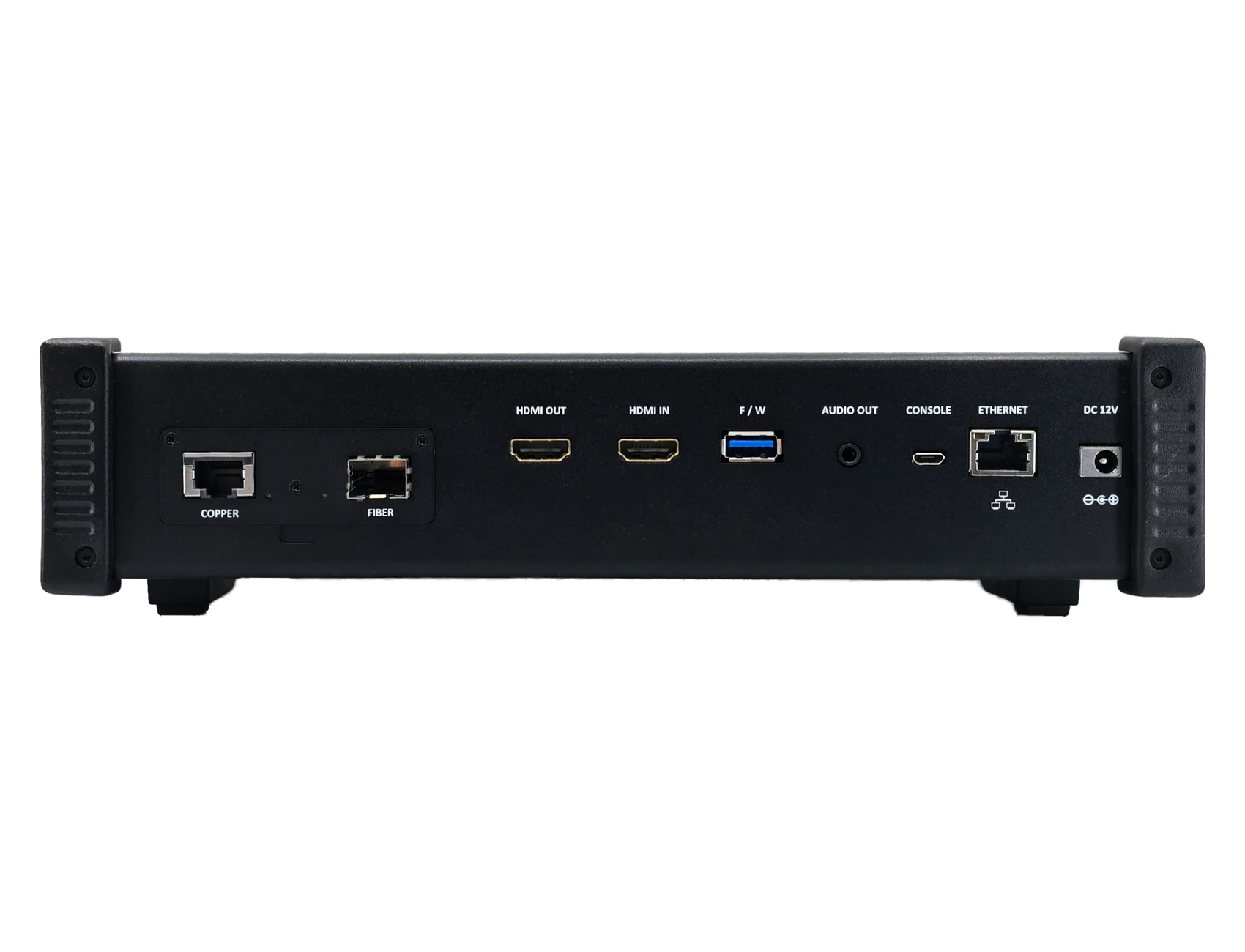

Input	1 × HDMI 2.1
Output	1 × HDMI 2.1
Control	7” Capacitive Touch Screen (1280 × 800) & Mouse Control
HDMI Connector	Type A (19-pin female)
USB Support	Firmware Update
USB Connector	USB Type-A (Firmware Update), USB Micro (Console)
Option Card Slot	SDVoE Option Card Slot (TPG-SDVoE)
Mechanical
Housing	Metal Case
Dimensions (L × W × H)	11.25” × 7” × 3” (285.75 × 177.8 × 76.2 mm)
Weight	4.6 lbs (2.087 kg)
Power Supply	12V DC, PoE+, & Battery
Power Consumption	23 W with Option Card
Operating Temperature	0–40°C (32–104°F)
Storage Temperature	-20–60°C (-4–140°F)
Relative Humidity	20–90% RH (No Condensation)
Warranty	2 Years
Package Contents	1 × TPG-8K, 1 × Plastic Protective Case
