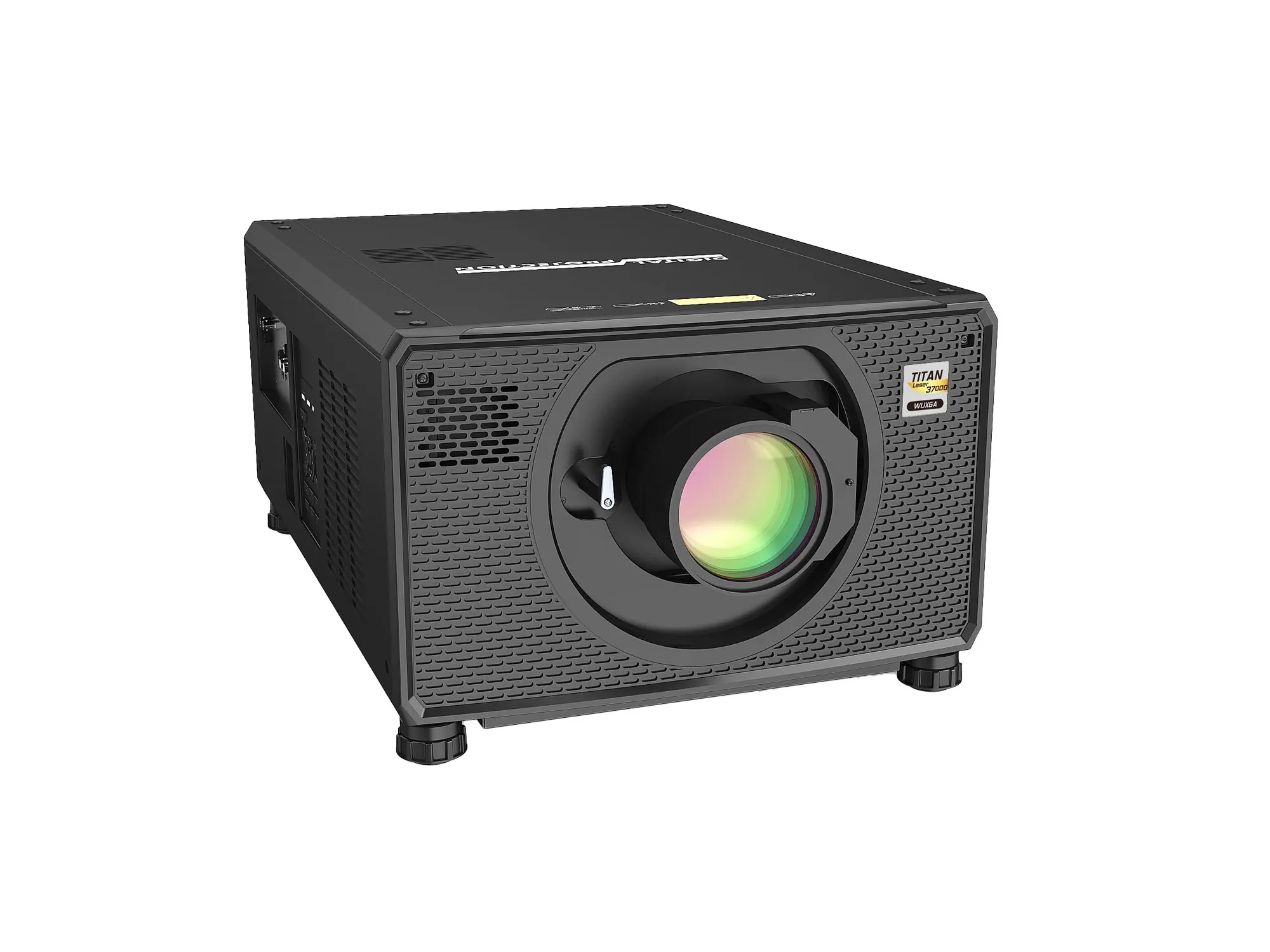

TITAN Luma 37000 WU Projector 4K-UHD HDBaseT

Description

The TITAN Luma 37000 WU is a compact high-brightness 3-chip DLP projector designed for demanding commercial and rental applications. It delivers laser illumination and advanced imaging in a chassis that is significantly smaller than previous TITAN models. The unit supports WUXGA and native 4K-UHD workflows and adheres to REC.709 color fidelity.

Key features include an industry-grade laser light source, multi-resolution processing for 4K-UHD and WUXGA, and support for HDR processing. The projector offers HDR processing and both sequential and dual-pipe 3D workflows via HDMI 1.4b inputs. It also provides DMX Art-Net and DICOM simulation for specialized visual applications.

Performance specifications include selectable contrast up to 2000:1, constant brightness control, and a laser light source rated for 20,000 hours. Video processing supports DisplayPort 1.2, HDMI 2.0b with HDCP 2.2 and HDMI 1.4b for dual-pipe 3D. The system is capable of handling 4K-UHD 3840 x 2160 at 60Hz and WUXGA at up to 120Hz in supported modes.

Connectivity is extensive with DisplayPort, multiple HDMI inputs, 3G-SDI I/O with loop-through, and an HDBaseT interface for transmission over CAT5e/6 up to 100m. Control options include LAN, RS-232, Crestron RoomView, AMX discovery and served web pages for status and configuration. The projector also supports edge blending, geometry correction and lens memory for precise multi-projector installations.

This projector is suited to large-venue presentation, simulation, immersive installations and fixed-install cinema where high brightness and color fidelity are required. It supports Picture-in-Picture and side-by-side inputs for multi-source presentations and offers professional-grade 3D modes for simulation or themed environments. The compact footprint and drop-in lens compatibility make it a straightforward upgrade for aging high-lumen systems.

Installation and serviceability are simplified by motorised lens shift, zoom and focus and intelligent lens memory with 10 user-definable presets. The chassis supports multiple mounting orientations and selectable EDID and startup logo options for system integration. Overall build quality emphasizes long-term operation with network monitoring, scheduled automation and email alerts for proactive maintenance.

Specifications

Starting at 31,000 Lumens	31000 lumens
Stunning clarity with WUXGA or true 4K-UHD	WUXGA / 4K-UHD
REC.709 color fidelity	REC.709
Drop-in lens compatibility with original TITAN models	Yes
At just 125 lbs	125 lbs
Starting at 31,000 Lumens	31000 lumens
4K-UHD & WUXGA Resolution	4K-UHD / WUXGA
Up to 2000:1 Contrast	2000:1
New, compact design	Compact design
DisplayPort 1.2	Supported
2 x HDMI 2.0b HDCP 2.2	2 x HDMI 2.0b HDCP 2.2
HDR processing	Supported
2 x HDMI 1.4b HDCP 1.4 for Dual Pipe processing and Frame Sequential 3D Format	2 x HDMI 1.4b HDCP 1.4
Sequential Processing	3D via single HDMI 1.4b
Dual Pipe Processing	3D Left/Right via two HDMI1.4b
Syncronisation of active glasses	Active glasses sync
3G-SDI with loop-through	3G-SDI loop-through
DICOM simulation mode	DICOM simulation
DMX Art-Net	DMX Art-Net
Constant Brightness control	Constant Brightness
Multi-Projector Brightness control	Multi-projector control
Compatible with selected competitor lenses via lens converter	Lens converter compatible
Selectable EDID	Selectable EDID
Custom Start-up Logo	Custom logo
Geometry Correction	Geometry Correction
4-Cornerstone Vertical & Horizontal Keystone Pincushion & Barrel Arc and Image Rotation	4-Cornerstone / Keystone / Pincushion / Barrel / Arc / Rotation
Non-linear warp	Non-linear warp
Digital Zoom Pan and Scan	Digital Zoom / Pan / Scan
Blanking control for custom input window sizing	Blanking control
Scaling available for fixed aspect ratio screens	Scaling for fixed aspect ratio
Unscaled processing for pixel mapped display	Unscaled processing
Edge Blending	Edge Blending
Blending control available for all sides with width control	Blending control all sides
Correction for non-active pixels at the edge of the display	Edge pixel correction
Picture in Picture	PIP
Two sources can be displayed simultaneously using 2D inputs either picture in picture PIP or side by side PBP with the original aspect ratios maintained	PIP / PBP two 2D sources
HDBaseT Interface	HDBaseT
Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable	Uncompressed HD over CAT5e/6
Allows projector to be placed up to 100m from source with low cost cabling	Up to 100m
Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:2:2	3840x2160@60Hz 4:2:0 or @30Hz 4:2:2
Four colour modes available	4 modes
Powerful seven point colour correction for accurate colour matching with presets	7-point colour correction
Easy colour temperature selection	Colour temperature selection
Manual seven point colour adjustment	Manual 7-point
Traditional lifts and gains	Lifts and gains
Projector Controller Software	Network control software
Intuitive user interface for network control	Intuitive UI
Simultaneous control of user-defined groups of projectors	Group control
At-a-glance monitoring of projector status	Status monitoring
Real-time clock provides daily on/off automation	Daily on/off automation
E-mail alerts for system status	E-mail alerts
2D Graphics standards up to 4K-UHD 3840x2160 resolution at 60Hz via HDMI 2.0 HDBaseT DisplayPort inputs	2D up to 3840x2160@60Hz
3D Graphics standards up to dual-pipe WUXGA 120Hz via HDMI 1.4b inputs	3D dual-pipe WUXGA 120Hz
3G-SDI is SMPTE 292M SMPTE 259M-C and SMPTE 424M compliant	SMPTE 292M / 259M-C / 424M
2D sources up to WUXGA 120Hz and 4K-UHD 60Hz can be displayed scaled to fit WUXGA	2D scaled to WUXGA
3D sources up to WUXGA 120Hz can be displayed scaled to fit WUXGA	3D scaled to WUXGA
Sources greater than WUXGA will be displayed scaled to fit 4K-UHD	>WUXGA scaled to 4K-UHD
Sources up to WUXGA will be displayed scaled to fit WUXGA	<=WUXGA scaled to WUXGA
DisplayPort 1.2	1
HDMI 1.4b	2
HDMI 2.0b	2
3G-SDI in	1
3G-SDI out	1
HDBaseT LAN	1
3D Sync In	BNC 1
3D Sync Out	BNC 1
LAN	RJ45 2
RS-232	9-pin D-Sub 1
Wired Remote	3.5mm Stereo Jack 1
12V Trigger	3.5mm Stereo Jack 2
3D Sync IR Out	BNC 1
3D Formats Supported	Sequential 1080p@100Hz, Sequential 1080p@120Hz, Sequential WUXGA@100Hz, Dual-Pipe 1080p@50Hz, Dual-Pipe 1080p@60Hz, Dual-Pipe WUXGA@50Hz, Dual-Pipe WUXGA@60Hz
HDTV Formats Supported	1080p 24/25/30/50/60Hz, 1080i 50/60Hz, 720p 50/60Hz, 2K 24/25/30/50/60Hz, 4K-UHD 24/25/30/50/60Hz
Computer Compatibility Bandwidth	498 Mpixels/sec via DisplayPort and HDMI2.0
Remote Control	Addressable IR wireless wired onboard keypad
Automation Control	Crestron RoomView connected LAN RS-232 AMX DMX Art-Net
Served web pages	Status control network settings alert mail time error log OSD
Colour Temperature	3200K to 9300K
Lamp Type Typical Lamp Life	Laser 20,000 hours
Lens Part No Focus Range Lens Shift	105-607 0.67:1 fixed HB 1.1m-10m Vert 0.108U 0.108D Hor 0.044L 0.044R
Lens Part No	105-608 1.12:1 fixed HB 3m-15m Vert 0.567U 0.45D Hor 0.188L 0.188R
Lens Part No	109-236 1.16-1.49:1 zoom HB 3m-15m Vert 0.408U 0.408D Hor 0.188L 0.188R
Lens Part No	105-610 1.39-1.87:1 zoom HB 4m-24m Vert 0.567U 0.45D Hor 0.188L 0.188R
Lens Part No	105-611 1.87-2.56:1 zoom HB 4m-24m Vert 0.567U 0.45D Hor 0.188L 0.188R
Lens Part No	105-612 2.56-4.16:1 zoom HB 9.1m-45m Vert 0.567U 0.45D Hor 0.188L 0.188R
Lens Part No	105-613 4.16-6.96:1 zoom HB 12m-80m Vert 0.567U 0.45D Hor 0.188L 0.188R
Lens Part No	109-235 6.92-10.36:1 zoom HB 12m-80m Vert 0.567U 0.45D Hor 0.188L 0.188R
Lens Mount	Motorised shift zoom focus
Intelligent Lens Memory	10 user-definable presets
Mechanical Mounting Orientation	Front Rear table ceiling adjustable feet tabletop inverted pointing up down roll portrait
Power Requirements	110VAC & 230VAC selectable 50/60Hz single phase
Power Consumption	110V Typical TBD W Maximum TBD W 230V Typical 3400W Maximum TBD W
Thermal Dissipation	Max TBD BTU/Hour @110VAC Max 11600 BTU/Hour @230VAC
Fan Noise	Typ 50dBA High Altitude 52dBA Eco Typ 47dBA
Operating Temperature	0C to 35C full power ECO up to 40C
Storage Temperature	-20C to 60C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	10% to 90% non-condensing
Weight Chassis Only	99 kg 218 lb
Dimensions	L 930mm W 650mm H 350mm
