Digital Projection TITAN 47000 WU 47000 Lumens Laser Phosphor Projector / 4K-UHD / WUXGA / 18000:1 Contrast / Sealed Optics

SKU: TITAN 47000 WU
Brand: Digital Projection
$76,079.00
Brand Digital Projection
SKU TITAN 47000 WU
Weight 194.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The TITAN Laser 47000 WU is a high-output laser phosphor projector designed for large-venue projection where brightness and image integrity are essential. It delivers up to 47000 lumens and supports native WUXGA display with 4K-UHD input scaling. The sealed, filterless light engine and extended illumination life make it suitable for continuous operation.

Key features include Laser Phosphor illumination with ColorBoost plus Red Laser, up to 18000:1 contrast, and a sealed optics path to reduce maintenance. The engine supports 10-bit colour processing and HDR, while dual-pipe processing enables robust 3D workflows. Multiple geometry and warp tools plus edge blending accommodate complex projection surfaces.

Technically the projector uses 3 x 0.96″ WUXGA DMD devices with an aspect ratio of 16:10 and an 87% fill factor. It accepts 4K 4096 x 2160 inputs which are scaled to WUXGA, supports HDMI 2.0 and DisplayPort 1.2 with HDCP 2.2, and provides a measured illumination lifetime of 20,000 hours in normal mode and 40,000 hours in ECO mode. Colour temperature is adjustable from 3200K to 9300K and contrast is specified at 18000:1.

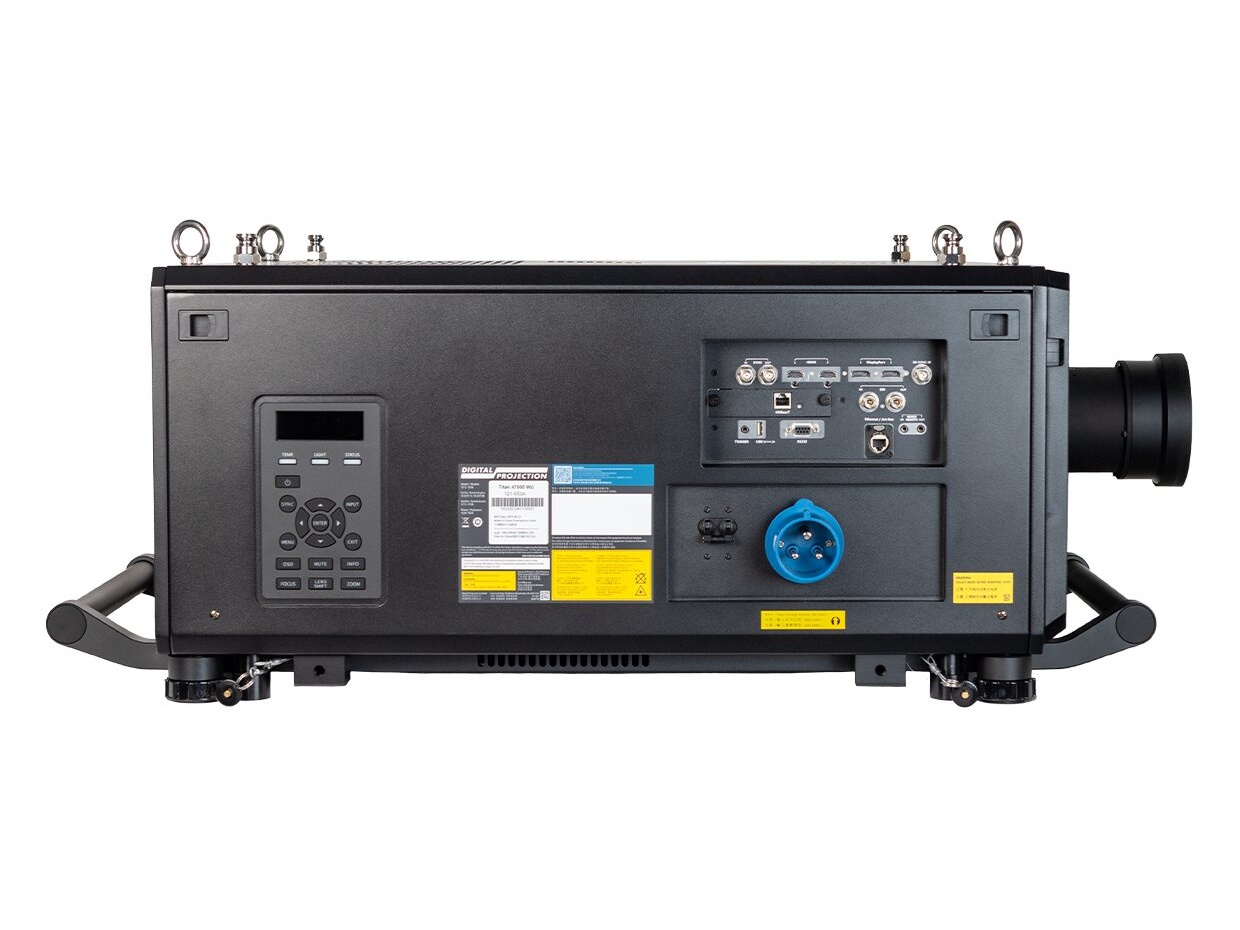

Connectivity is comprehensive with dual DisplayPort 1.2a, dual HDMI 2.0b, 12G-SDI in/out, HDBaseT/LAN, Ethernet 100BaseT, RS-232 and wired remote options. Control and automation features include web-based control, scheduled on/off, e-mail alerts, Crestron and PJLink compatibility, and DMX Art-Net support. The projector also includes 3D sync BNC ports and USB 5V 2A for accessories.

Typical applications include large auditoria, performing arts centres, visitor attractions, houses of worship and rental and staging where sustained brightness and low maintenance are priorities. The sealed light engine and extended life reduce downtime and service costs, while lens memory and extensive geometry tools simplify alignment across multiple installations. HDR support and precise colour controls deliver improved image realism for both live events and fixed installations.

Installation is simplified by motorised lens shift, zoom and focus, intelligent lens memory for up to 10 presets, four eyebolts for rigging and top stacking mounts. The chassis is compact for its class and includes thermal and noise optimizations to reduce operational impact. Overall the TITAN Laser 47000 WU combines high lumen output, sealed optics and broad connectivity to deliver dependable projection performance in demanding AV environments.

Specifications

Colour SystemLaser Phosphor with ColorBoost+Red Laser
Display Type3 x 0.96" WUXGA DMD
DMD SpecificationDisplay capability up to WUXGA
Fast transit pixelsFast transit pixels smooth greyscale improved contrast
Aspect Ratio16:10
Fill Factor87%
Key FeaturesVideo & Graphics Processing
HDMI ComplianceHDMI 2.0 side by side frame packing frame sequential topbottom 3D
DisplayPortDisplayPort 1.2 HDCP 2.2
Colour Depth10-bit colour processing 30-bits per pixel
1080p Support1080p 24Hz native display
4K Support4K 4096 x 2160 input scaled to WUXGA
HDR SupportHDR support
Input DetectionInput source automatically detected
Input RedundancyInput redundancy auto switching
Dual Pipe ProcessingTwo sources in parallel left and right eyes
3D SynchronisationSynchronization active 3D glasses polarising switcher
DICOM ModeDICOM simulation mode
Sealed Light EngineSealed light engine
Constant BrightnessConstant Brightness control
Multi Projector ControlMulti Projector brightness and colour control
Lens CompatibilityCompatible with selected 3rd party lenses via lens converter
Selectable EDIDSelectable EDID
Custom Start-up LogoCustom Start-up Logo
Smear ReductionSmear Reduction fast frame 2D only
Electronic PIC MUTEElectronic PIC MUTE selectable fade in out timers
On-board DisplayOn board 4-line LCD display
Geometry CorrectionVertical Horizontal Keystone Four Corner Rotation Pin Barrel Wall Corner Centre Shift Custom Warp upload maps
Aspect Ratios5:4, 4:3, 16:10, 16:9, 1.88, 2.35, TheaterScope, Source, Unscaled
Edge BlendingBlending control all sides width control electronic black level compensation upload blend maps
HDBaseT InterfaceUncompressed HD video over CAT5e/6 up to 100m supports 4K 4096x2160@60Hz 4:2:0 or 4096x2160@30Hz 4:2:2 Ethernet 100BaseT RS232 IR
Colour ProcessingFour colour modes seven point colour correction manual adjustment lifts and gains
Projector Controller SoftwareNetwork control intuitive UI group control status monitoring
Projector AutomationReal-time clock scheduled on off email alerts

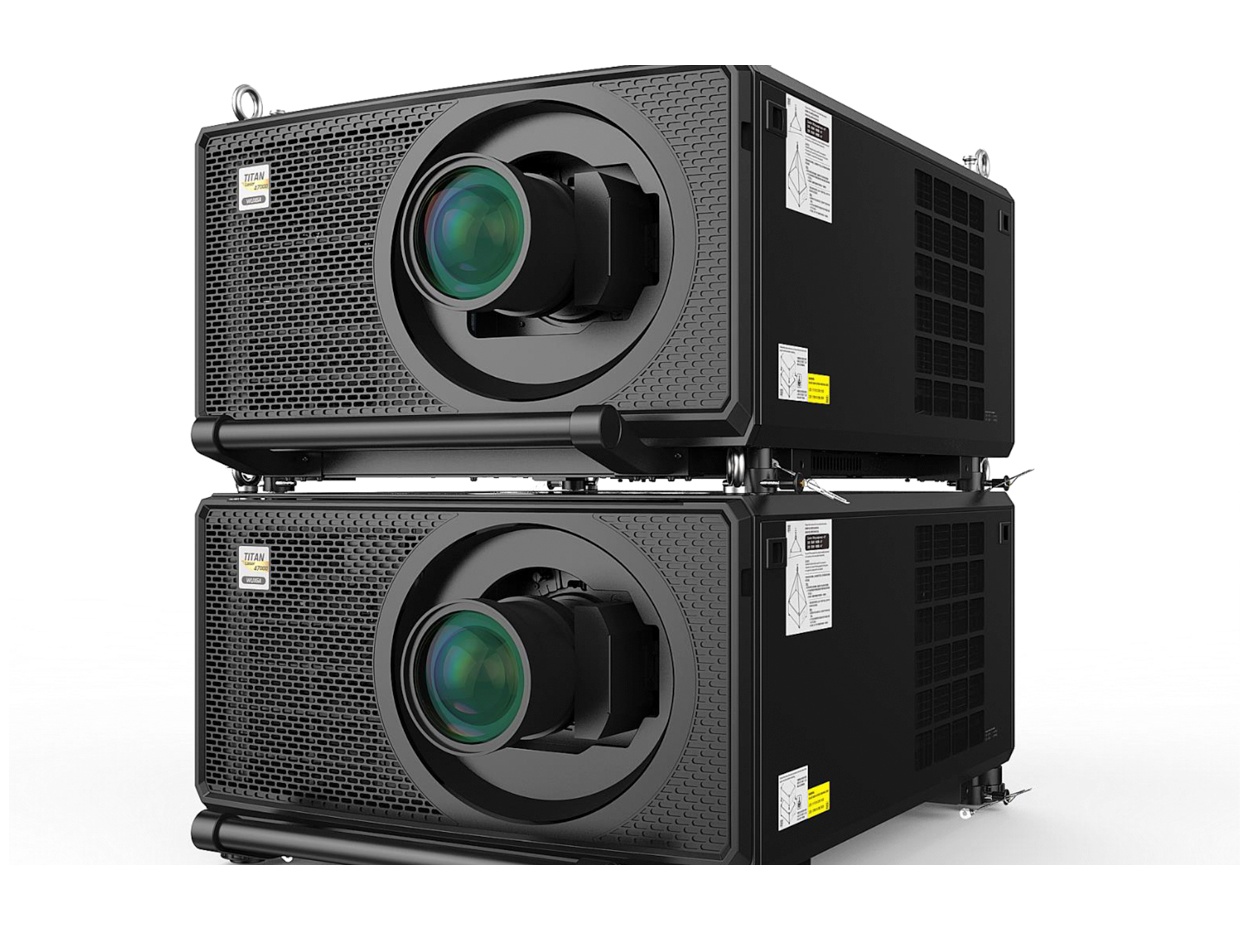

Installation4 x eye bolts 4 x top stacking mounts securing pins
Source Compatibility2D up to 4K-UHD 3840x2160@60Hz HDMI 2.0b HDBaseT 4:2:0 DisplayPort inputs 3D dual-pipe WUXGA 60Hz
WUXGA Mode2D up to WUXGA 60Hz 4K-UHD 60Hz scaled to WUXGA 3D up to WUXGA 60Hz input 120Hz output scaled
Auto ModeSources greater than WUXGA displayed scaled to fit WUXGA
DisplayPort InputsDisplayPort 1.2a Qty 2
HDMI InputsHDMI 2.0b Qty 2
12G-SDI In12G-SDI in Qty 1 SMPTE 259M 292M 424M ST-2082
12G-SDI Out12G-SDI out Qty 1
HDBaseT/LANRJ45 Qty 1
3D SYNC INBNC Qty 1
3D Sync OutBNC Qty 1
LANRJ45 Qty 1
RS-2329-pin D-Sub Qty 1
Wired Remote3.5mm stereo jack Qty 1
12V Trigger3.5mm stereo jack Qty 1
3D Sync IR OutBNC Qty 1
USBUSB Type A 5V 2A Qty 1
3D Formats SupportedSequential 1080p@100Hz 1080p@120Hz Dual-Pipe 1080p 50Hz 60Hz Dual-Pipe WUXGA@60Hz side by side top bottom frame packing
HDTV Formats Supported1080p 23.98 24 25 29.97 30 50 59.94 60Hz 1080i 50 59.94 60Hz 720p 50 59.94 60Hz 4K-UHD 23.97 24 25 29.97 30 50 60Hz
Computer Compatibility2D 4K-UHD up to 60Hz output scaled to WUXGA 3D up to WUXGA
Bandwidth18Gb/s 600MHz clock rate on HDMI
Remote ControlAddressable IR wireless wired on-board keypad
Automation ControlLAN RS-232 email alerts web OSD Crestron Roomview eControl PJLink AMX SSDP DMX Art-Net
Colour Temperature3200K to 9300K
Illumination TypeLaser Light Source
Typical Illumination Life20000 Hours Normal 40000 Hours ECO
Lens OptionsMultiple lenses 0.37:1 0.65-0.85:1 0.8-1.16:1 0.67:1 1.12:1 1.16-1.49:1 1.39-1.87:1 1.87-2.56:1 2.56-4.16:1 4.16-6.96:1 6.92-10.36:1
Lens MountMotorised shift zoom focus intelligent lens memory 10 presets
Mechanical MountingFront rear table front rear ceiling adjustable feet
OrientationTable top inverted pointing up pointing down roll portrait
Power Requirements110-130Vac 50-60Hz 180-240Vac 50-60Hz single phase
Power Consumption230V Typical 3650W Maximum 4000W
Thermal DissipationMax 14160.38 BTU/hr @ 200VAC Max 3685 BTU/hr @ 110VAC
Fan NoiseMax 53 dBA Eco Typ 50 dBA
Operating TemperatureOperating Full Power 0°C to 35°C ECO up to 40°C
Storage Temperature-20°C to 60°C
Operating Humidity10% to 90% non-condensing
Storage Humidity10% to 90% non-condensing
Weight88 kg 194 lbs without lens
DimensionsL 840mm W 650mm H 381mm excl handles
Safety & EMC RegulationsTBC
AccessoriesInfrared Remote Control replacement 118-678
DownloadsPDF CAD Drawings AUTOCAD Drawings STEP IGS Drawings User Guide Laser Risk Group Document Important Information Ultra Short Throw Lens Installation Guide
