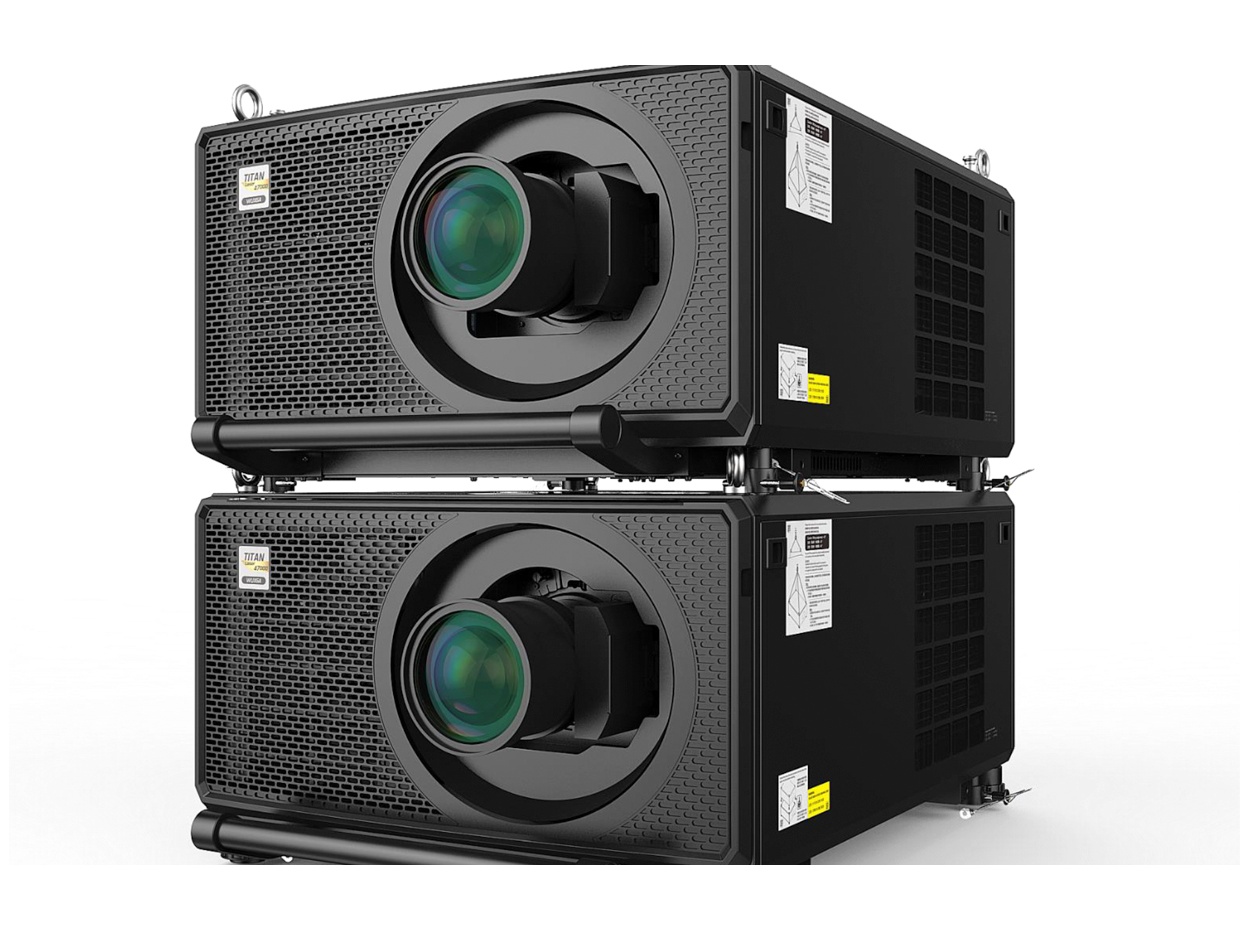

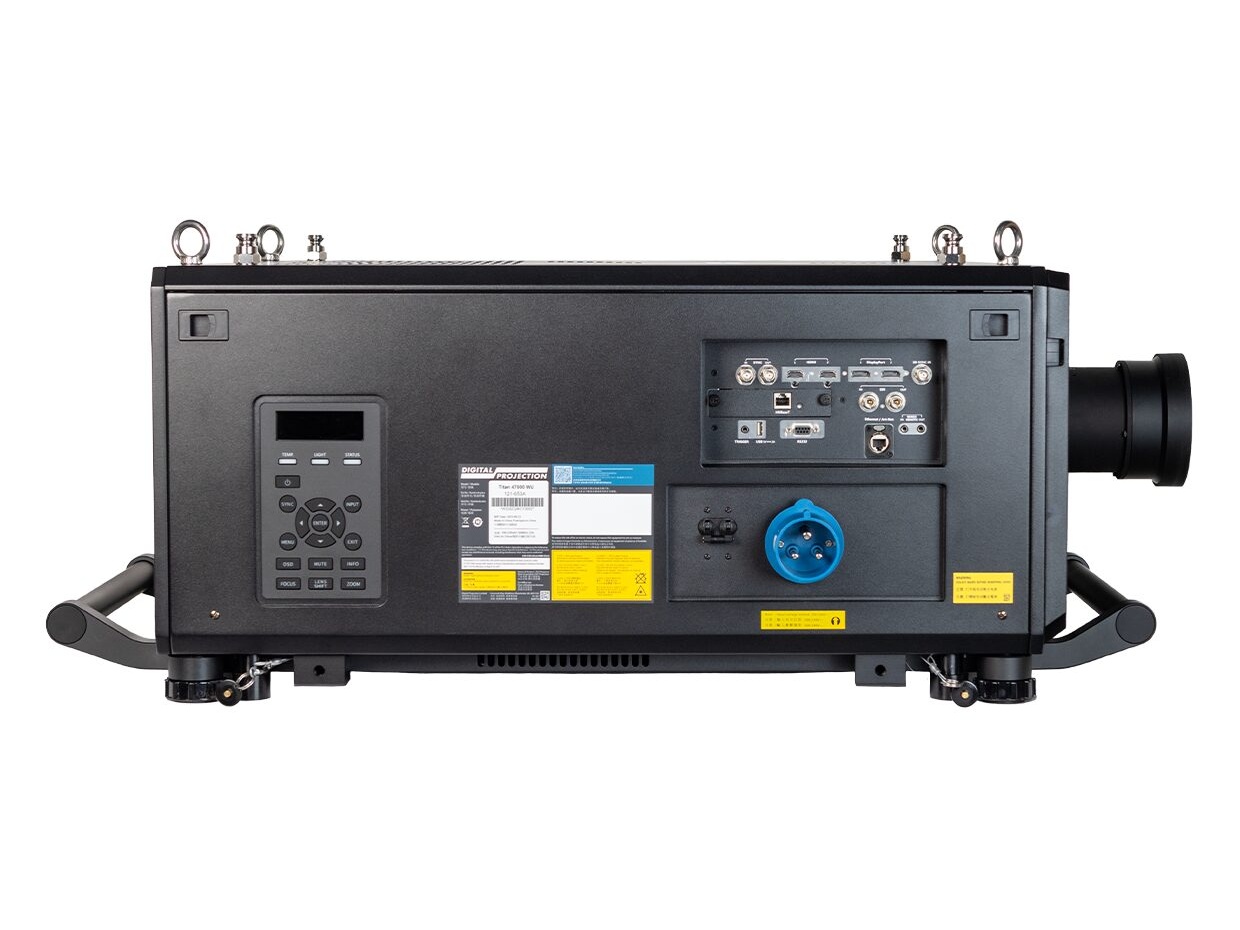

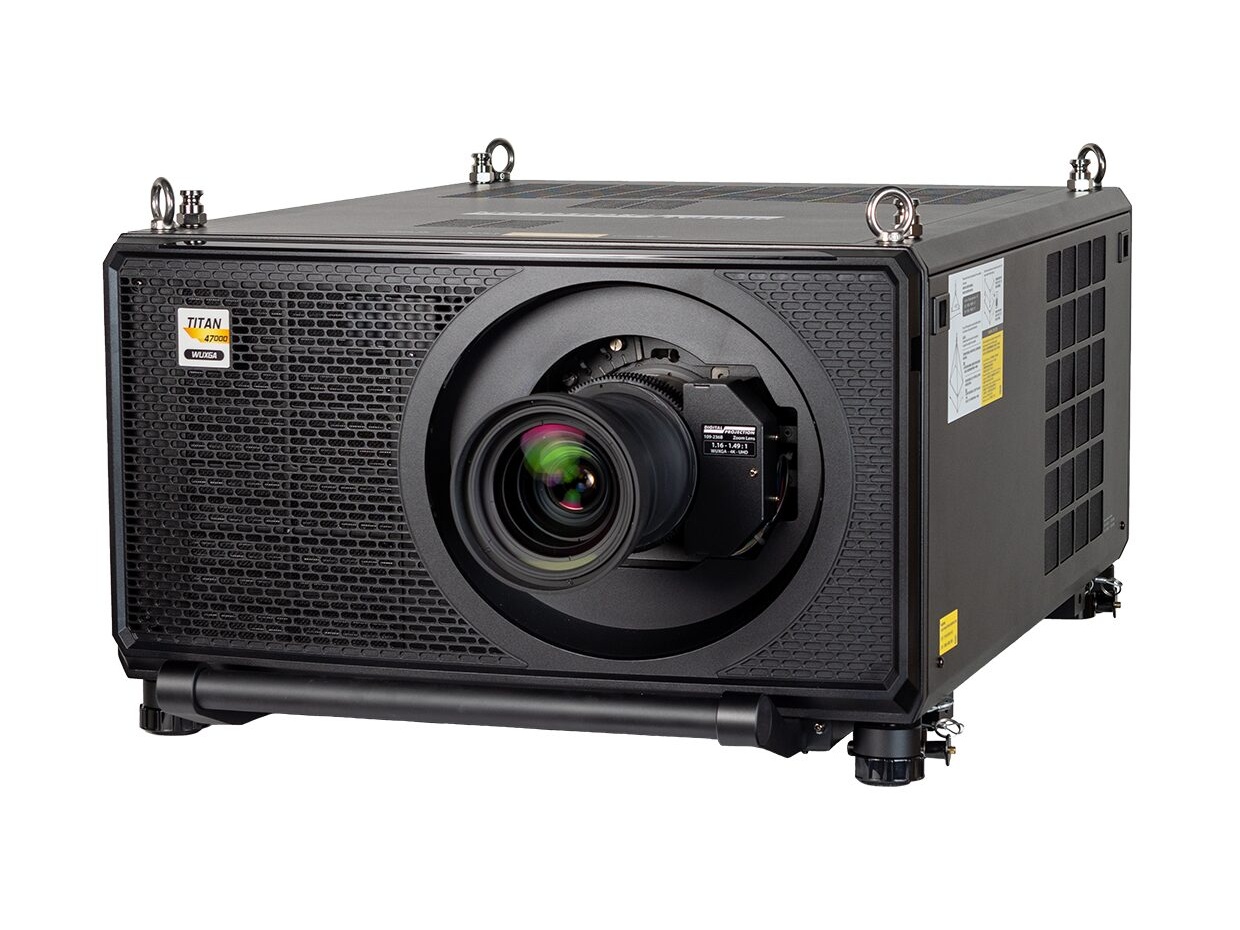

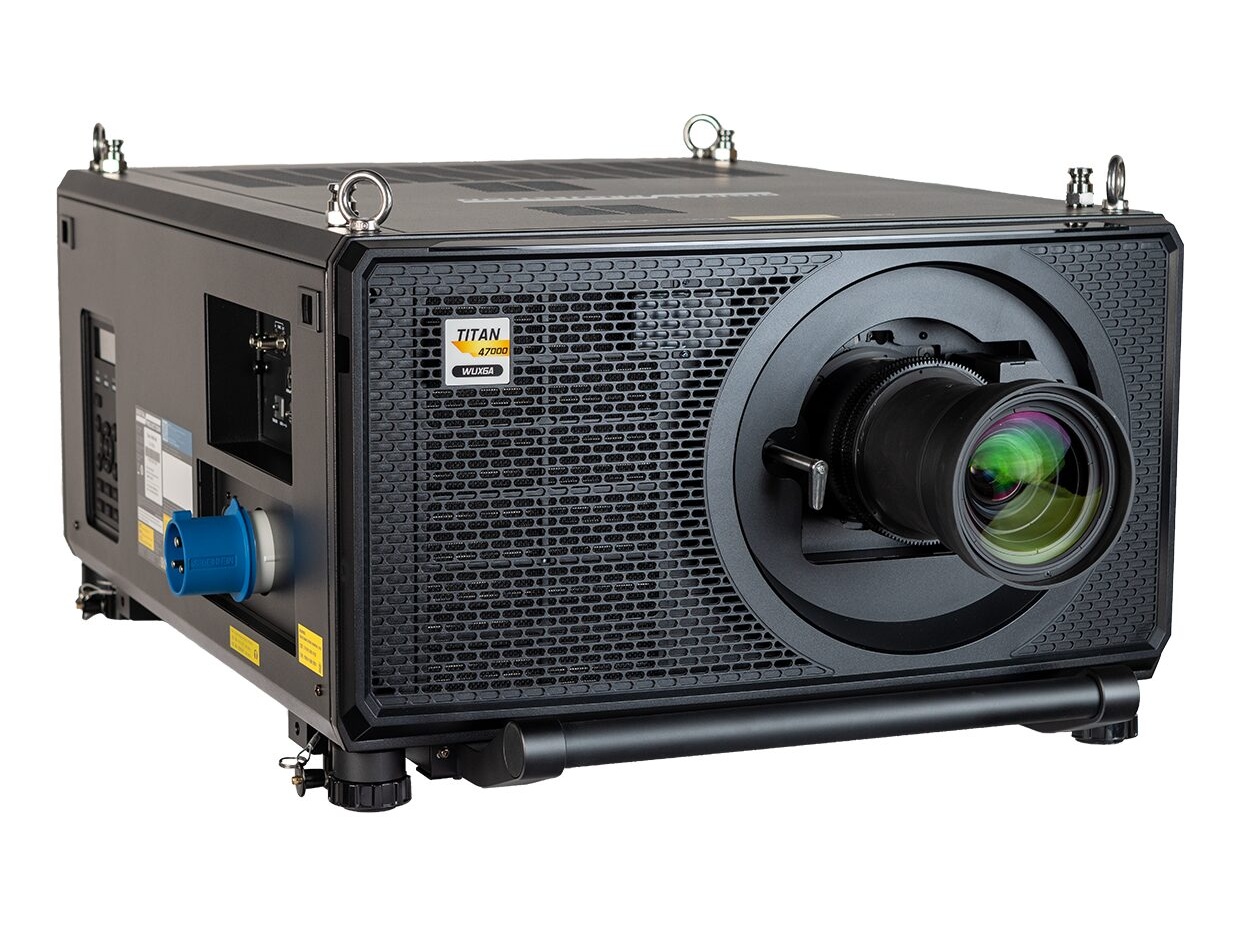

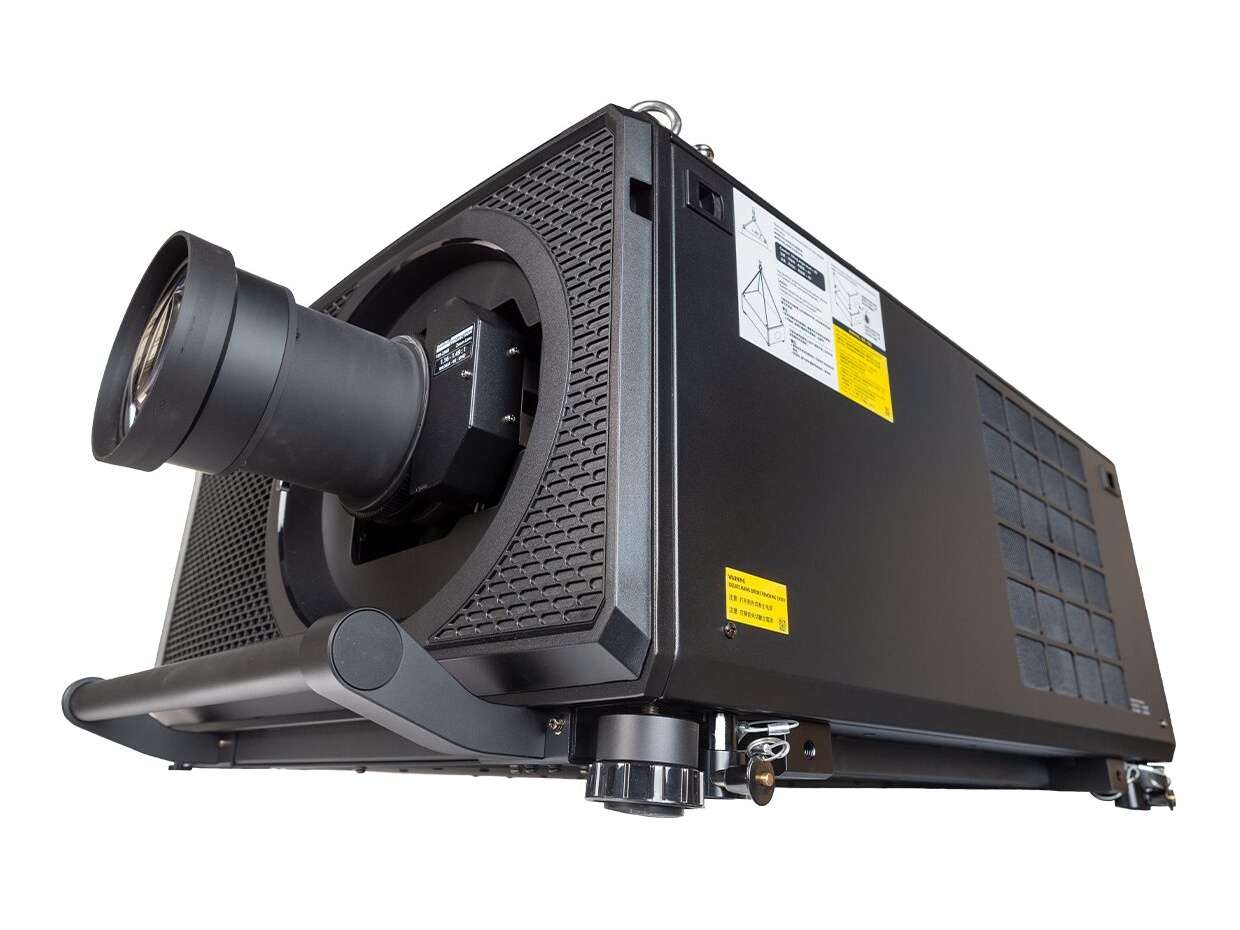

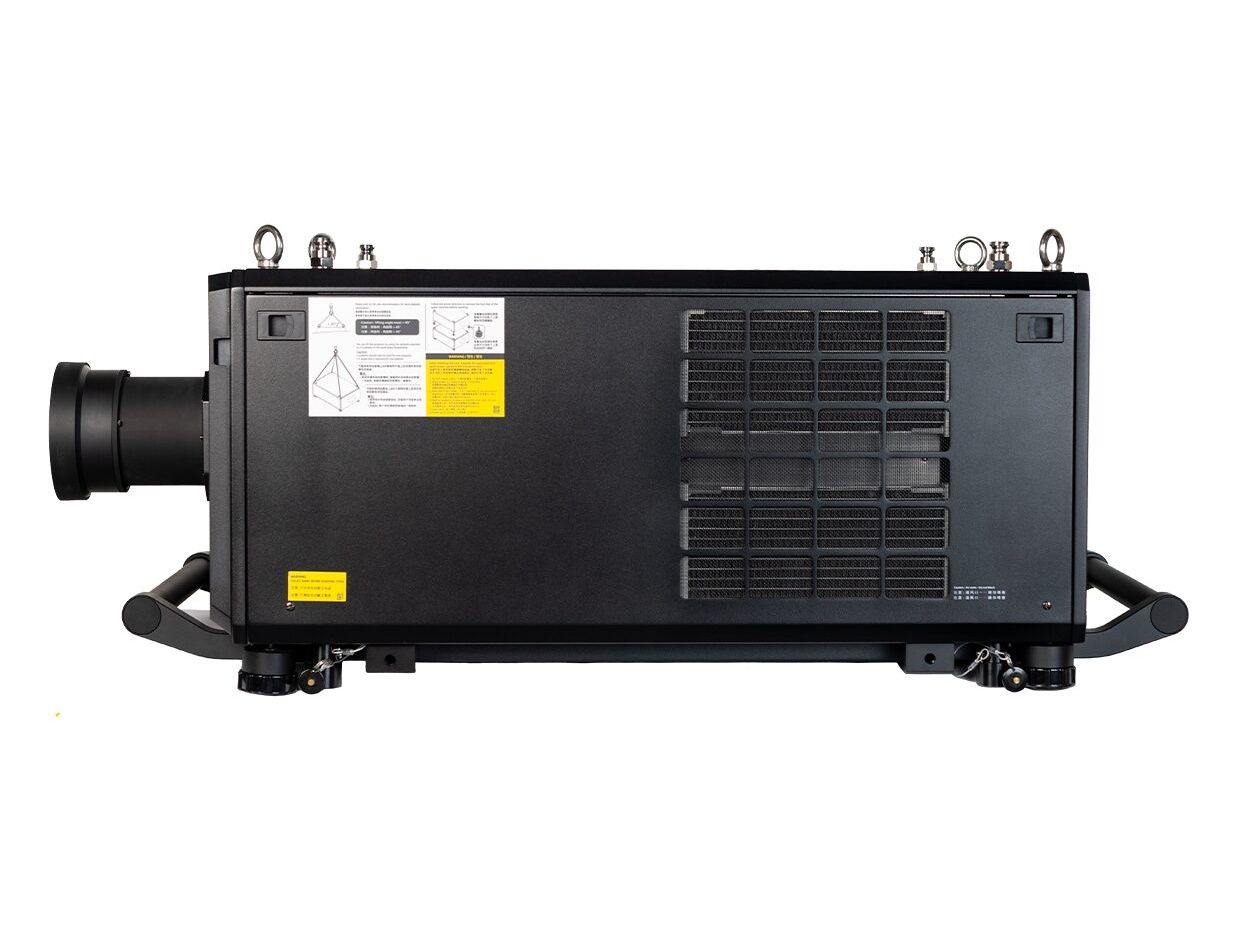

Digital Projection TITAN 41000 4K-UHD Laser Phosphor Projector / 4K-UHD / 41000 Lumens / Sealed Optics / 18000:1

SKU: TITAN 41000 4K-UHD
Brand: Digital Projection
$78,002.00
Brand Digital Projection
SKU TITAN 41000 4K-UHD
Weight 194.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The TITAN 41000 4K-UHD is a laser phosphor large-venue projector engineered for high-brightness fixed installations. It delivers native 4K-UHD capability and WUXGA compatibility to render detailed imagery across expansive screens. The sealed, filterless optical engine is designed for long runtime and low maintenance.

Key features include a laser phosphor illumination system augmented by ColorBoost+Red laser, a 3 x 0.96″ WUXGA DMD array with 4K-UHD display capability, and up to 41,000 lumens of calibrated output. The projector offers an 18000:1 contrast specification and multi-pipe processing for 3D workflows. The sealed light engine and dust-proof enclosure extend operational reliability in continuous-use environments.

Performance highlights include support for 4K-UHD 3840×2160 sources, 10-bit colour processing, HDR support, and a fast pixel transit DMD for improved greyscale and contrast. Typical laser life is 20,000 hours in Normal mode and up to 40,000 hours in ECO mode. The TITAN also provides motorised lens shift, zoom and focus with intelligent lens memory for repeatable presets.

Connectivity is comprehensive with DisplayPort 1.2, HDMI 2.0b, 12G-SDI in/out, HDBaseT/LAN and USB. Control and automation interfaces include RS-232, Ethernet, wired remote, 12V trigger and BNC 3D sync lines. The unit supports HDBaseT transmission up to 100m and HDCP 2.2 compliance on appropriate inputs.

The TITAN 41000 is suited to auditoria, performing arts venues, large houses of worship, visitor attractions and rental/staging applications where sustained brightness and colour fidelity are required. It supports edge blending, warp and custom masking tools for projection mapping and complex screen geometries. Dual-pipe processing enables independent left/right eye 3D or simultaneous source workflows.

Installation and service are simplified by a compact chassis that is lighter and quieter than previous models, four eyebolts for rigging, multiple ceiling and table mounting options, and on-board status reporting via a 4-line LCD. Networked projector management and scheduled automation reduce onsite intervention and help maintain consistent performance over time.

Specifications

Colour SystemLaser Phosphor with ColorBoost+Red Laser
Display Type3 x 0.96" WUXGA DMD
DMD SpecificationDisplay capability up to 4K-UHD 8.3 megapixels on screen fast transit pixels
Aspect Ratio16:9
Fill FactorN/A as Smooth Picture DMD
HDMI 2.0 complianceSide by Side / Frame Packing / Frame Sequential / TopBottom 3D
DisplayPort1.2 with HDCP 2.2
Colour Processing10-bit colour processing 30-bits per pixel
Frame Rate Support1080p 24Hz native 4K 4096x2160 support
HDRHDR support
Input Source DetectionAutomatic
Input RedundancyAuto switching
Dual Pipe ProcessingTwo sources parallel for Left and Right eyes
3D SynchronisationActive 3D glasses or polarising switcher
DICOMSimulation mode
Sealed Light EngineYes
Constant BrightnessControl enabled
Multi Projector ControlBrightness and colour control
Lens CompatibilitySelected 3rd party lenses via lens converter
Selectable EDIDYes
Custom Start-up LogoYes
Smear ReductionFast frame 2D only
Electronic PIC MUTESelectable fade in/out timers
On-board Display4-line LCD
Geometry CorrectionKeystone / Four Corner / Rotation / Pin/Barrel / Wall Corner / Centre Shift / Custom Warp
Aspect Ratios5:4 / 4:3 / 16:10 / 16:9 / 1.88 / 2.35 / TheaterScope / Source / Unscaled
Edge BlendingAll sides width control upload blend maps
HDBaseT InterfaceUncompressed HD video over CAT5e/6 up to 100m
HDBaseT ResolutionsUp to 4K 4096x2160@60Hz 4:2:0 or 4K@30Hz 4:2:2
Colour ModesFour modes seven point colour correction
Projector Controller SoftwareNetwork control user groups status monitoring
Projector AutomationReal-time clock on/off automation email alerts
Rigging4 eye bolts top stacking mounts securing pins
Source Compatibility2D up to 4K-UHD 3840x2160@60Hz HDMI2.0b HDBaseT 4:2:0 DisplayPort
WUXGA Mode2D up to WUXGA60Hz and 4K-UHD60Hz scaled to fit WUXGA
4K-UHD Mode2D up to 4K 4096x2160 displayed scaled to 4K-UHD
Auto ModeSources greater than WUXGA scaled to 4K-UHD
Inputs DisplayPort2
Inputs HDMI2
12G-SDI In1
12G-SDI Out1
HDBaseT/LAN1 RJ45
3D SYNC INBNC 1
3D SYNC OUTBNC 1
LANRJ45 1
RS-2329-pin D-Sub 1
Wired Remote3.5mm Stereo Jack 1
12V Trigger3.5mm Stereo Jack 1
3D Sync IR OutBNC 1
USBType A 5V 2A 1
3D Formats SupportedSequential 1080P/WUXGA@100Hz 120Hz Dual-Pipe 1080P/WUXGA@60Hz per eye
HDTV Formats Supported1080p/1080i/720p 4K-UHD various frame rates
Computer Compatibility2D 4K-UHD up to 60Hz
Bandwidth18Gb/s HDMI
Remote ControlAddressable IR wireless wired on-board keypad
Automation ControlLAN RS-232 email alerts web control Crestron PJ Link AMX SSDP
Colour Temperature3200K to 9300K
Illumination TypeLaser Light Source
Typical Illumination Life20000 Hours Normal 40000 Hours ECO
Lens OptionsMultiple zoom and fixed lenses part numbers listed
Lens MountMotorised Shift Zoom Focus intelligent lens memory
Mechanical MountingFront/Rear Table Front/Rear Ceiling adjustable feet
OrientationTable Top Inverted Pointing Up Pointing Down Roll Portrait
Power Requirements110-130Vac 50-60Hz 180-240Vac 50-60Hz single phase
Power Consumption230V Typical 3650W Maximum 4000W
Thermal DissipationMax 14160.38 BTU/hr @200VAC Max 3685 BTU/hr @110VAC
Fan NoiseMax 54 dBA Eco Typ 53 dBA
Operating TemperatureFull Power 0C to 35C ECO up to 40C
Storage Temperature-20C to 60C
Operating Humidity10% to 90% non-condensing
Weight88 kg without lens / 194 lbs without lens
DimensionsL 840mm W 650mm H 381mm
Safety & EMC RegulationsTBC
AccessoriesInfrared Remote Control replacement 118-678
