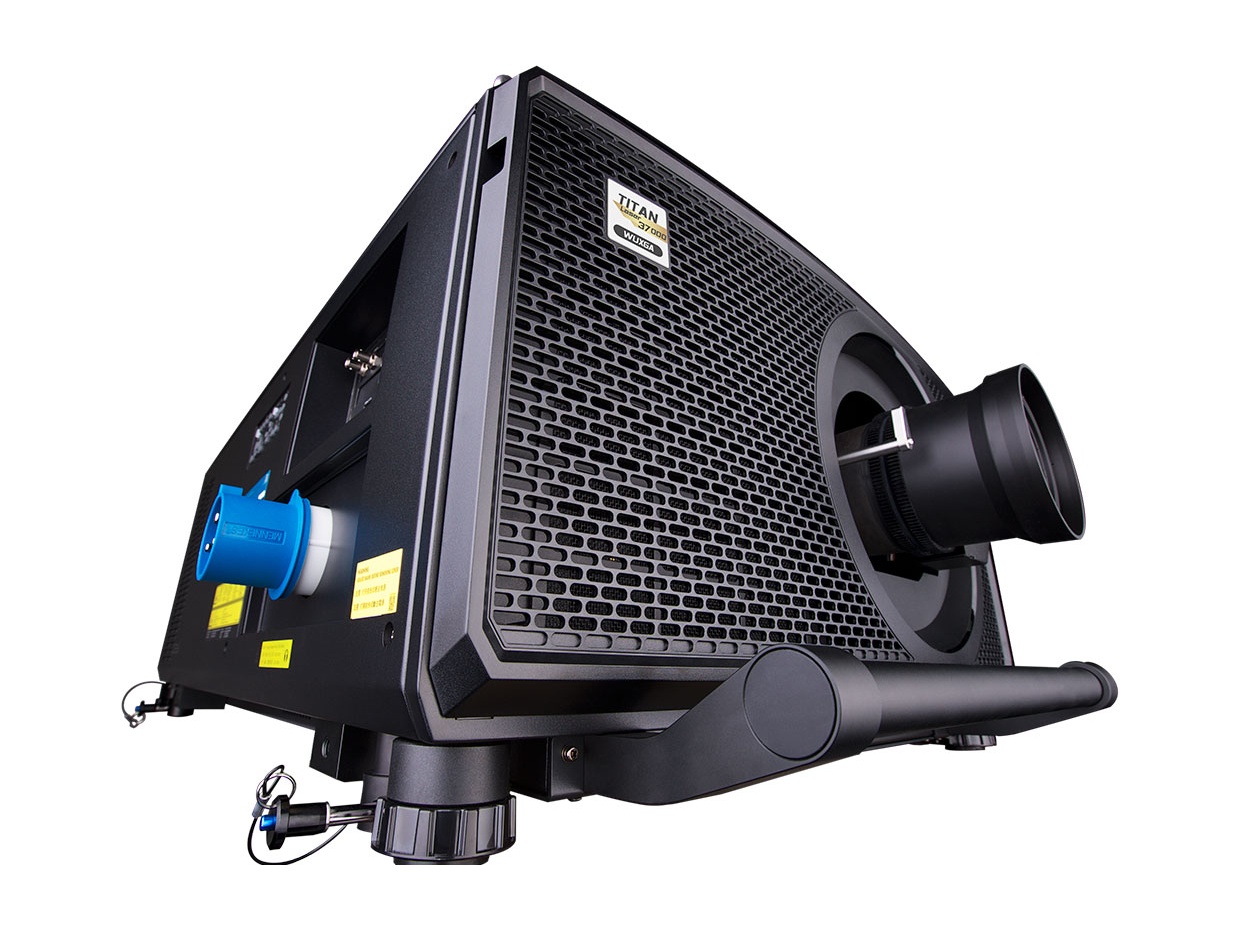

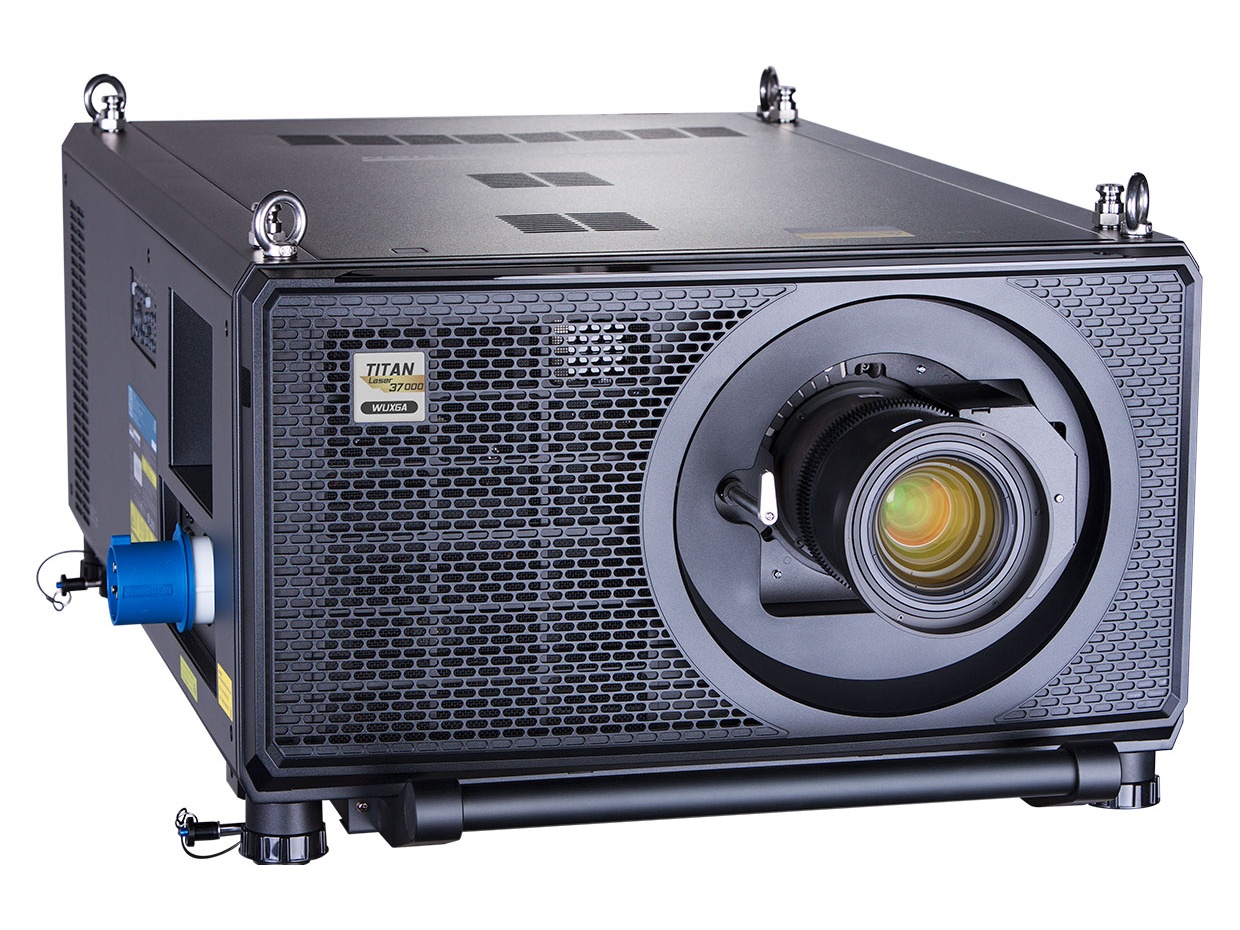

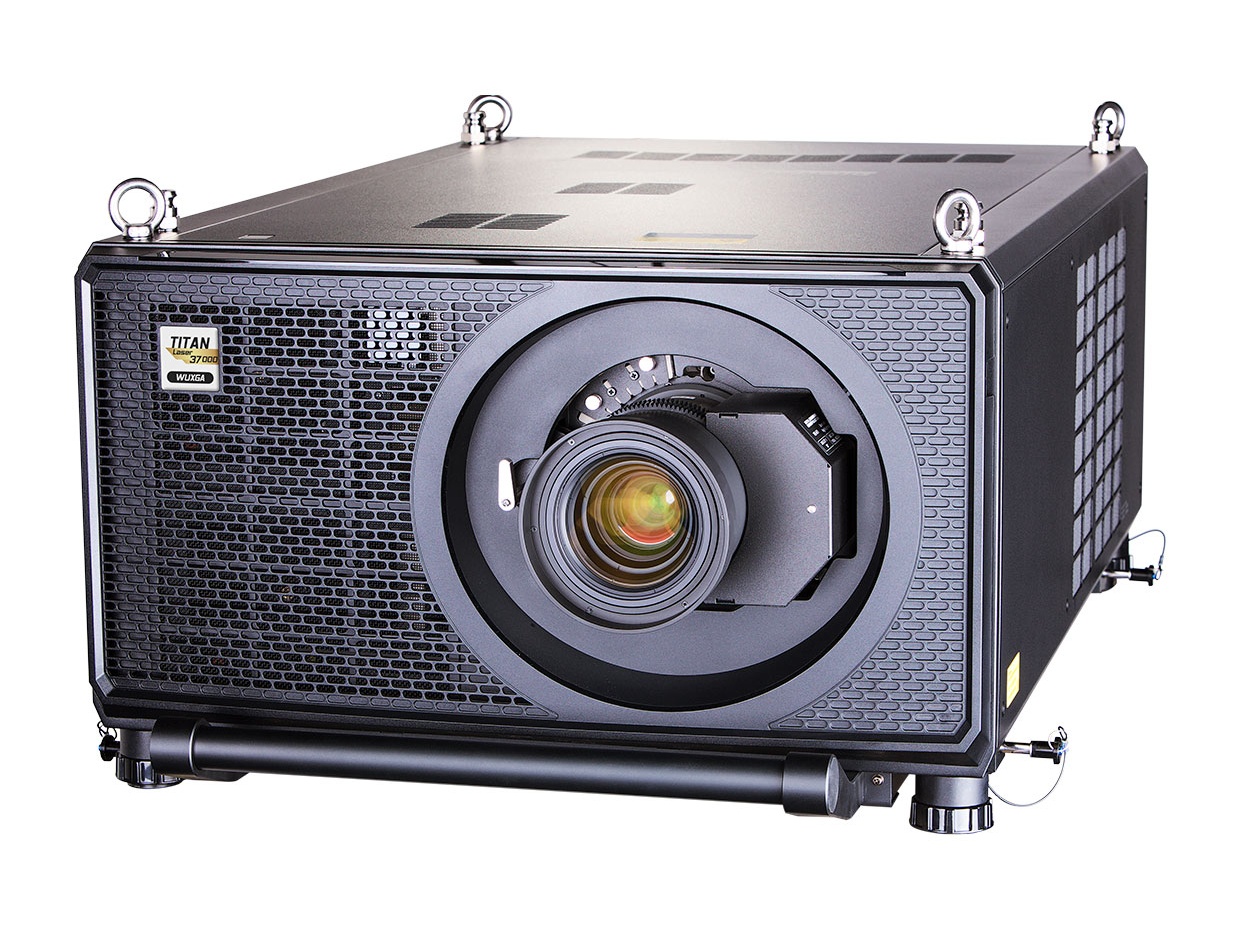

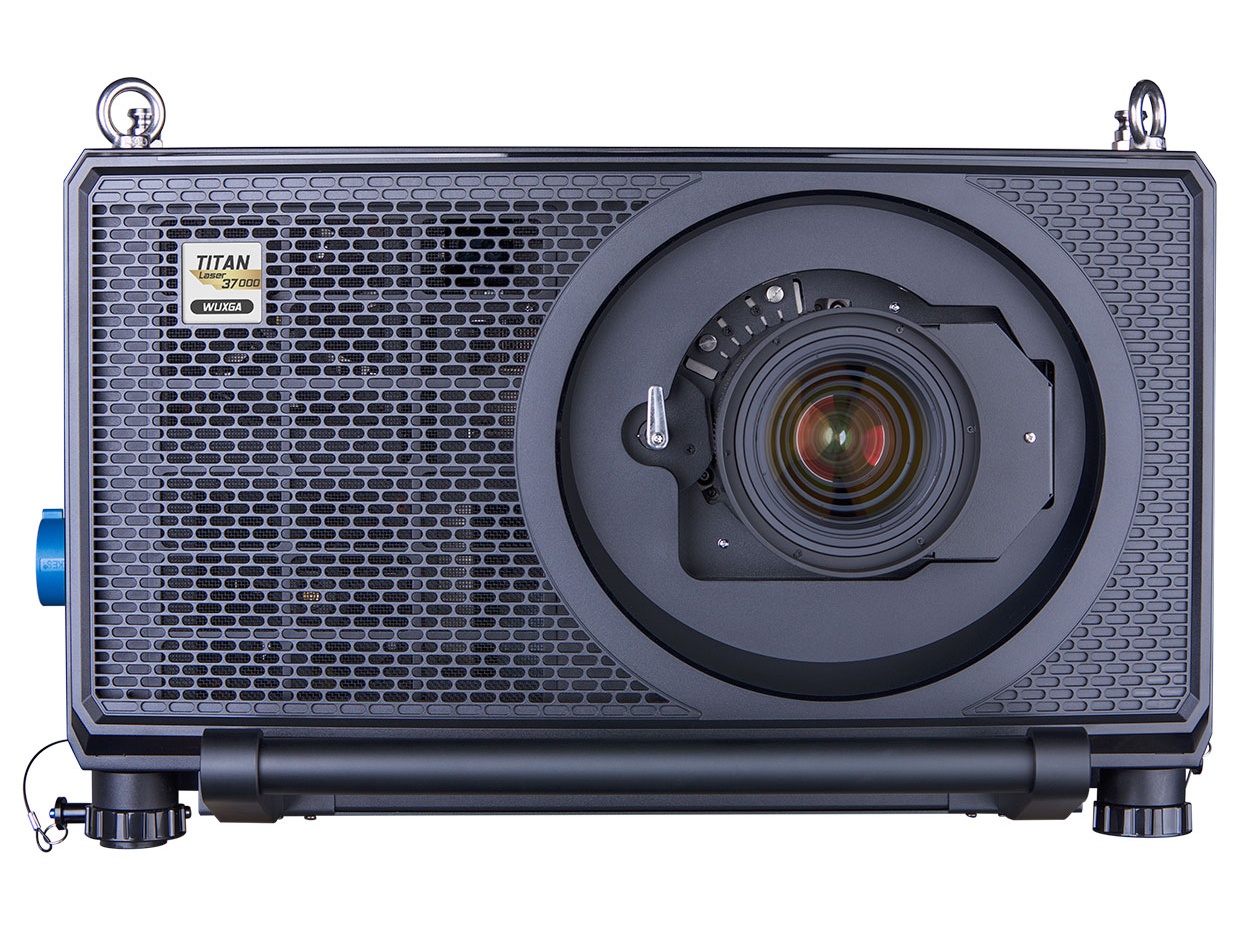

Digital Projection TITAN 37000 4K-UHD HDBaseT / Laser Phosphor 4K-UHD Projector / 37000 Lumens / 3-Chip DLP / HDR

SKU: TITAN 37000 4K-UHD
Brand: Digital Projection
$71,456.00
Brand Digital Projection
SKU TITAN 37000 4K-UHD
Weight 209.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The TITAN Laser 37000 is a high-output large-venue projector designed to deliver extremely bright and colour-stable images. It is a 3-chip DLP laser-phosphor system built for demanding events and fixed installations. The projector supports both WUXGA and 4K-UHD content while maintaining consistent brightness and colour performance.

Key features include an IP60 sealed optical engine, laser phosphor illumination, and advanced image processing such as HDR handling and geometry correction. The system provides up to 37000 lumens in WUXGA mode and up to 31000 lumens in 4K-UHD mode while retaining a high contrast ratio. It also supports Constant Brightness Control and DMX Art-Net for event integration.

Technically the display uses three 0.96 inch WUXGA DMDs with 2.3 megapixels visible at WUXGA and an 87% fill factor for sharp imagery. The projector offers 18,000:1 contrast, a typical laser life of 20,000 hours and a sealed, filterless optical path to minimise maintenance. Multiple motorised lens options and intelligent lens memory allow precise optical alignment across long throw distances.

Connectivity covers DisplayPort 1.2, dual HDMI 2.0b, HDMI 1.4b for dual-pipe 3D, 3G-SDI in/out, and HDBaseT over CAT5e/6 supporting up to 4K-UHD 3840×2160@60Hz 4:2:0. Control and automation features include LAN, RS-232, DMX Art-Net, Crestron RoomView compatibility and email alerting. The unit supports Picture-in-Picture, Edge Blending, Non-linear Warp and a real-time clock for scheduled operation.

Typical applications include large auditoriums, live event staging, command and control rooms and simulation environments where sustained high brightness and low maintenance are required. The sealed optics and liquid-cooled radiator heat exchanger minimise dust ingress and remove the need for air filters. HDR processing, precise colour control and seven-point colour adjustment make it suitable for colour-critical presentations.

Installation is supported by multiple lens options with motorised shift, zoom and focus on most lenses and an optional lens adaptor for selected third-party optics. The projector supports flexible mounting orientations including front/rear table and ceiling installation and includes comprehensive network control software for group management. Overall, the TITAN Laser 37000 balances extreme brightness, professional connectivity and long-term operational reliability for demanding AV deployments.

Specifications

Colour SystemLaser Phosphor
Display Type3 x 0.96" WUXGA DMD
DMD SpecificationDisplay capability upto WUXGA
2.3 megapixels pixels on screen at WUXGA2.3 megapixels
Fast transit pixels for smooth greyscale and improved contrastYes
Display resolutionsWUXGA 1920 x 1200
Aspect Ratio16x10
Fill Factor87%
Video & Graphics ProcessingDisplayPort 1.2, HDMI 2.0b, HDMI 1.4b, HDR processing
HDMI Ports2 x HDMI 2.0b HDCP 2.2, 2 x HDMI 1.4b HDCP 1.4
3D ProcessingSequential via HDMI 1.4b, Dual Pipe via two HDMI1.4b
3G-SDI3G-SDI with loop-through
DICOM simulation modeYes
DMX Art-NetYes
Constant Brightness controlYes
Multi-Projector Brightness controlYes
Selectable EDIDYes
Custom Start-up LogoYes
Geometry Correction4-Cornerstone Vertical / Horizontal Keystone Pincushion Barrel Arc Image Rotation
Non-linear warpYes
Digital Zoom Pan and ScanYes
Blanking controlYes
Edge BlendingBlending control all sides width control
Picture in PicturePIP or PBP two 2D sources
HDBaseT InterfaceBuilt-in support up to 100m 4K-UHD 3840x2160@60Hz 4:2:0
Colour ProcessingFour colour modes seven point colour correction manual adjustment
Projector Controller SoftwareNetwork control user-defined groups status monitoring
Projector AutomationReal-time clock on/off automation e-mail alerts
Source Compatibility2D up to 4K-UHD 3840x2160@60Hz via HDMI2.0 HDBaseT DisplayPort
3D Graphics standardsDual-pipe WUXGA 120Hz via HDMI1.4b
3G-SDI complianceSMPTE 292M SMPTE 259M-C SMPTE 424M
Inputs Video & ComputerDisplayPort 1.2 HDMI 1.4b HDMI 2.0b 3G-SDI in 3G-SDI out HDBaseT RJ45
Connector QuantitiesDisplayPort 1, HDMI 1.4b 2, HDMI 2.0b 2, 3G-SDI in 1, 3G-SDI out 1, HDBaseT 1
Communication & Control3D Sync In 1 3D Sync Out 1 LAN 2 RS-232 1 Wired Remote 1 12V Trigger 2 3D Sync IR Out 1
3D Formats SupportedSequential 1080p@100Hz 1080p@120Hz WUXGA@100Hz Dual-Pipe 1080p@50Hz 1080p@60Hz WUXGA@50Hz WUXGA@60Hz
HDTV Formats Supported1080p 24Hz 25Hz 30Hz 50Hz 60Hz 1080i 50Hz 60Hz 720p 50Hz 60Hz 2K 24Hz 25Hz 30Hz 50Hz 60Hz 4K-UHD 24Hz 25Hz 30Hz 50Hz 60Hz
Computer Compatibility2D 4K-UHD upto 60Hz
Bandwidth498 Mpixels/sec via DisplayPort and HDMI2.0
Remote ControlAddressable IR wireless wired On-Board keypad
Automation ControlCrestron RoomView LAN RS-232 AMX DMX Art-Net served web pages
Colour Temperature3200K to 9300K
Illumination TypeLaser Light Source
Typical illumination Life20,000 hours
Lens MountMotorised Shift Zoom Focus intelligent lens memory
Lens OptionsMultiple zoom and fixed lenses list available
Mechanical MountingFront Rear Table Front Rear Ceiling Adjustable Feet
OrientationTable Top Inverted Pointing Up Pointing Down Roll Portrait
Power Requirements200VAC to 230VAC 50/60Hz single phase
Power ConsumptionTypical 3100W Maximum 3400W
Thermal DissipationMax 11430 BTU/Hour @ 200VAC
Fan NoiseNormal 50dBA Max 52dBA Eco Typ 47dBA
Operating TemperatureFull Power 0°C to 35°C ECO upto 40°C
Storage Temperature-20°C to 60°C
Operating Humidity10% to 90% non-condensing
Weight95 kg 209 lbs
DimensionsL 969.3mm W 650mm H 397.3mm
Safety & EMC RegulationsUL CB CCC KC RoHS CN FCC Class A FDA CE IEC EN 60825-1 Class 3R IEC EN 62471-5 Risk Group 3 WEEE UK
AccessoriesInfrared Remote 118-678 Optional lens mount insert 119-729
Core TechnologiesIP60 Sealed Optics filterless liquid-cooled radiator
