Description

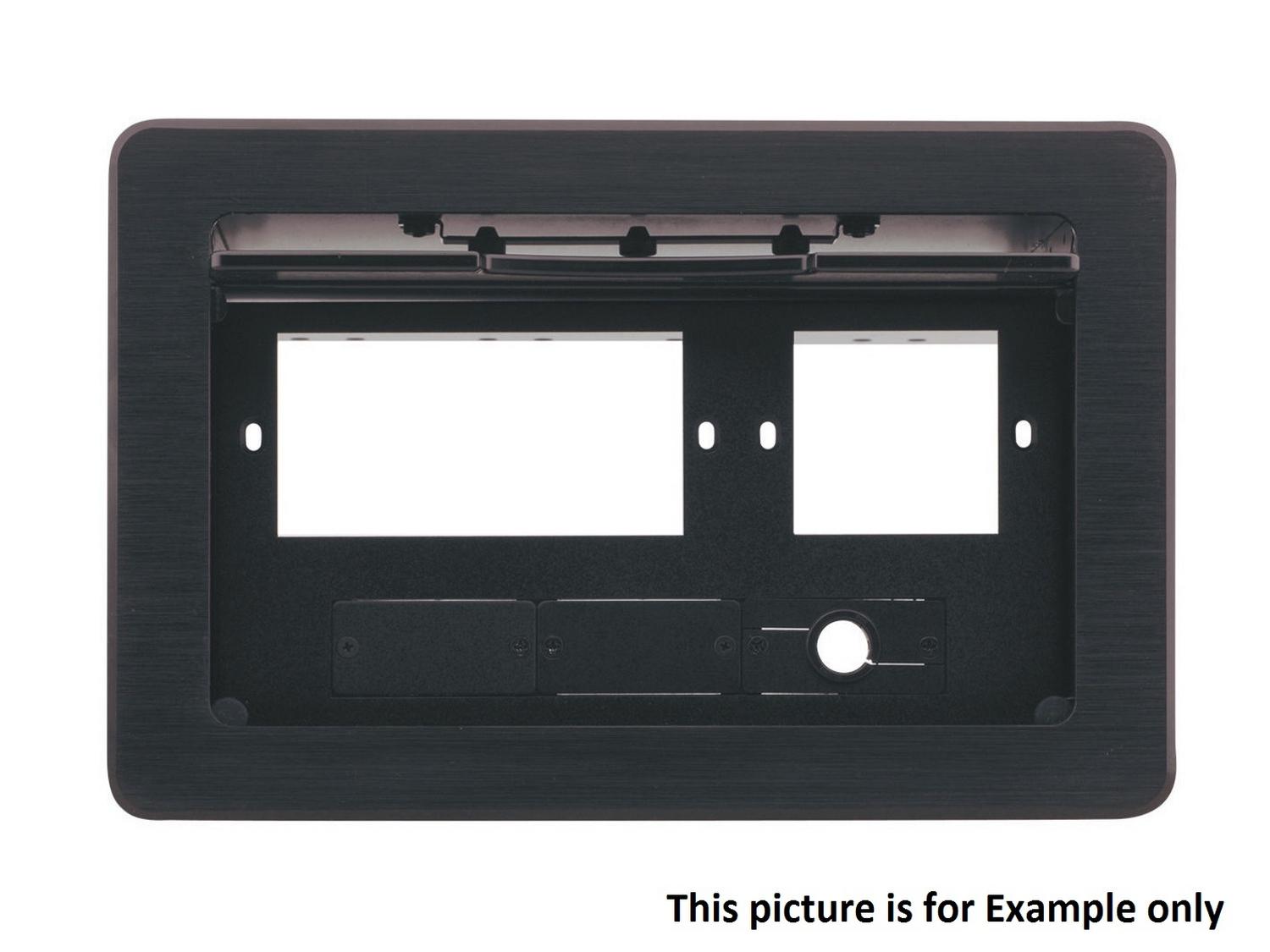

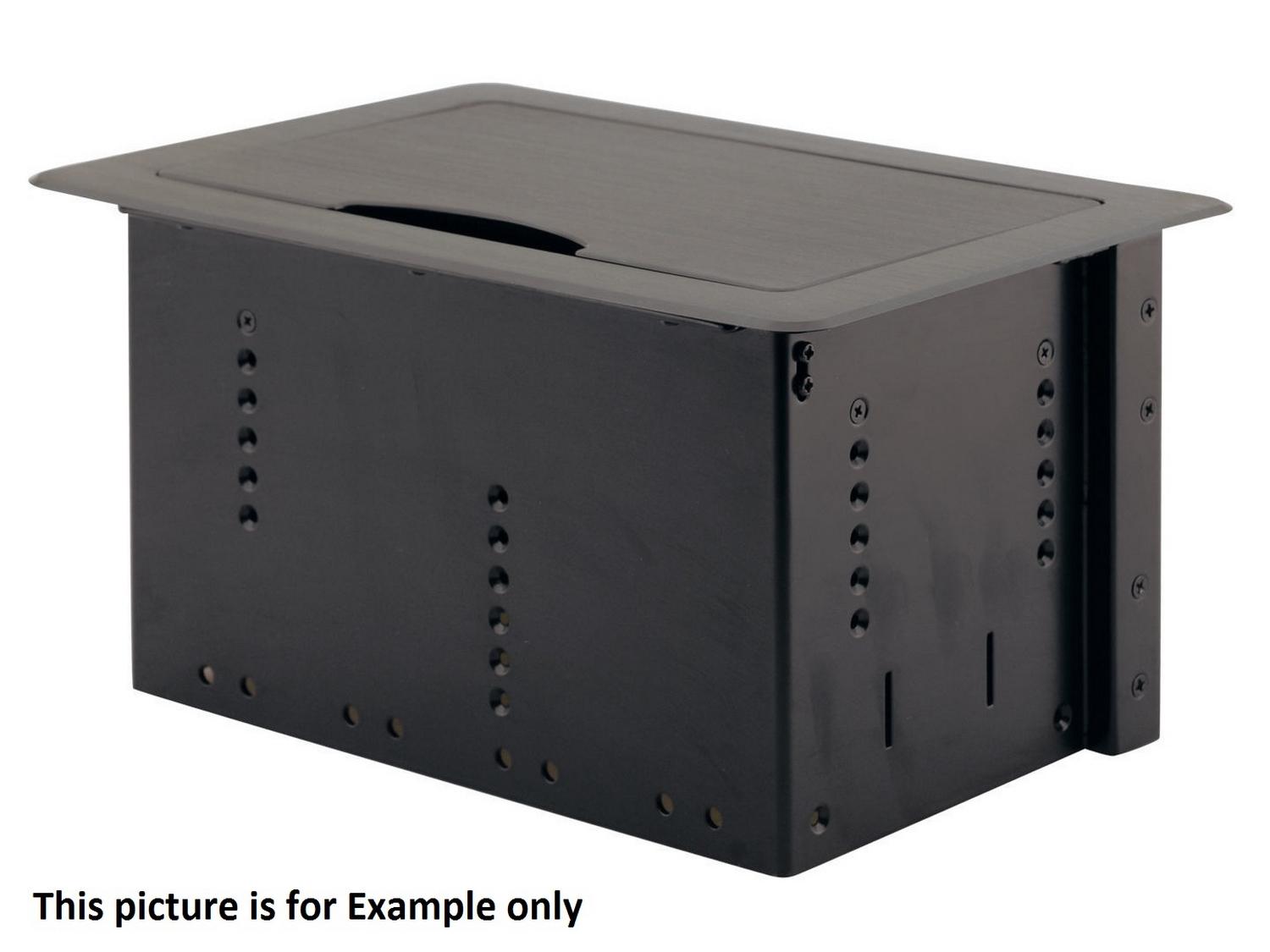

The TBUS-10xl is a table-mounted enclosure designed to provide a modular multi-connection solution for meeting rooms and workspaces. It serves as the outer housing for configurable power and connector modules and features a manually retracting lid for a clean tabletop appearance. The enclosure is sold separately from inner frames, power sockets, power cords and inserts.
Key features include a manually opening and closing cover and a range of inner frame options that accept multiple combinations of power sockets and connector inserts. The inner T10F frames support up to 2 power sockets, up to 6 cable pass-through or connector inserts, and a single long insert for a Kramer MegaTOOL. Power options are broad with single and dual TS socket choices and a selection of certified power cords.
Technical specifications include a required table cutout of 245mm x 154mm and a top plate dimension of 171.6mm x 261mm. Connector depth is adjustable to accommodate a range of connector types and cable profiles. The enclosure weight is modest and table clamps are included to secure the unit to thicker desktops.
Connectivity is modular and user-selectable via inner frames and inserts, enabling combinations of power sockets, cable pass-throughs and interface modules. Power cord options cover international needs with UL and CE qualified C-AC cords and Y power cords for split configurations. The TBUS system accepts additional Kramer interface kits and accessory modules to extend functionality.

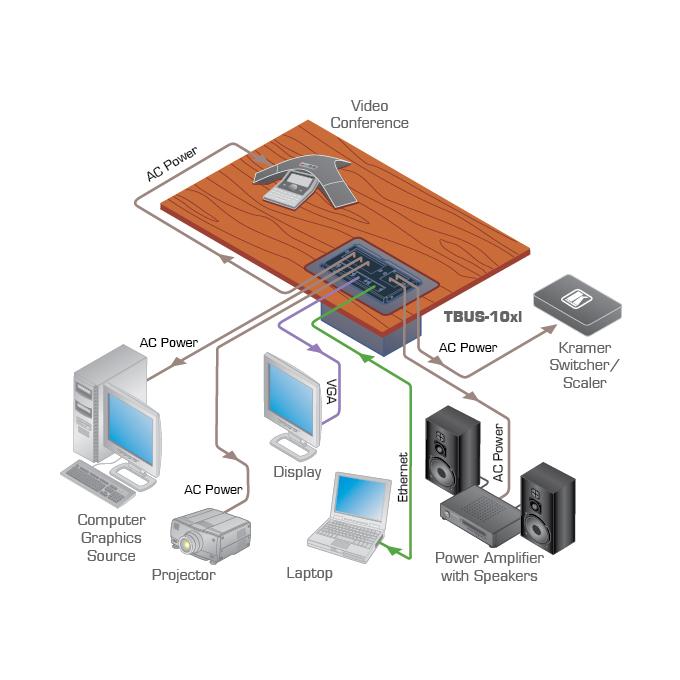

Common applications include boardrooms, training rooms and executive desks where a tidy, professional tabletop is required. The TBUS-10xl provides a discreet recessed solution for routing power and AV connectors while preserving table aesthetics. System integrators can mix and match inserts to meet specific connectivity requirements without changing furniture cutouts.
Installation is straightforward using the supplied cut-out template and TBUS clamps for secure mounting. The enclosure is constructed in brushed clear aluminum for durability and a refined finish. Adjustability of connector depth and the modular inner frame concept simplify service and future upgrades.
