Description

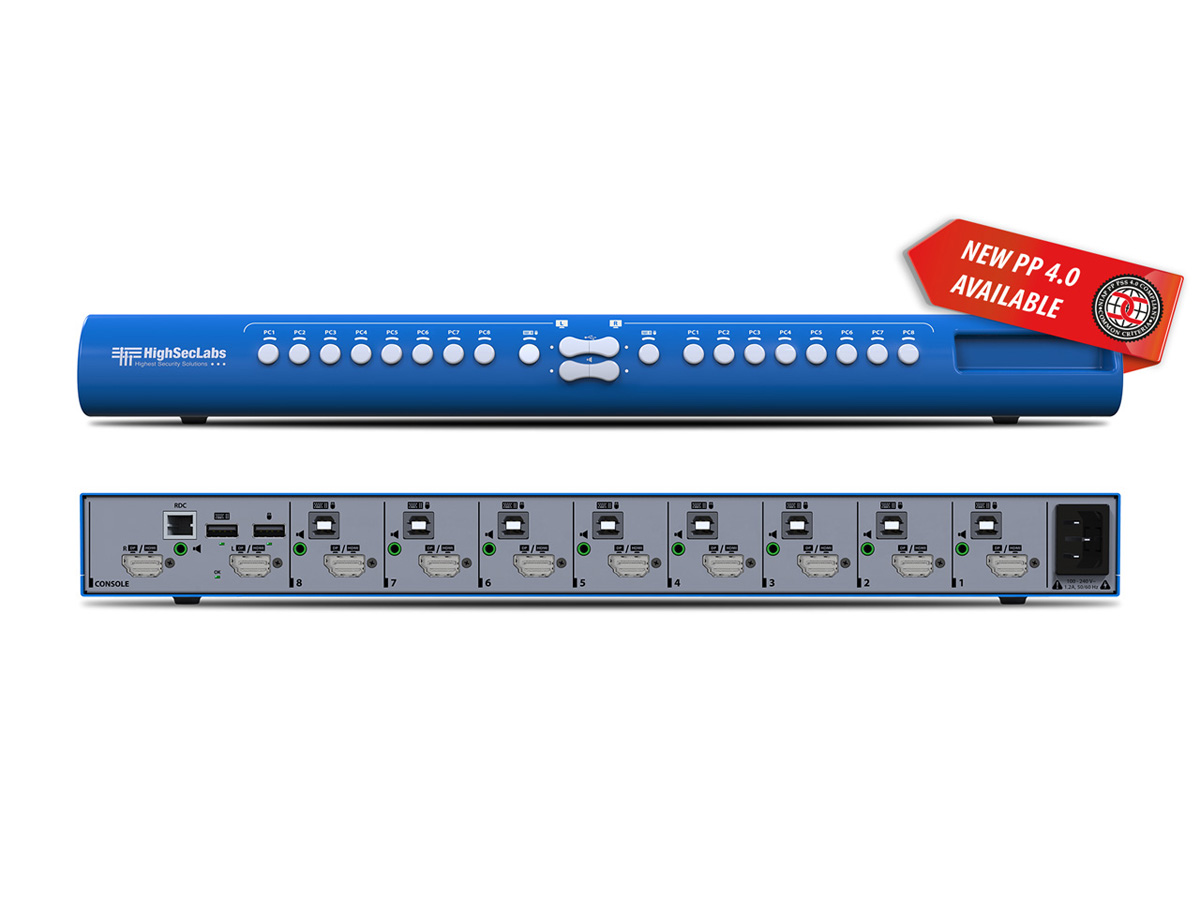

The SX82PH-4 is an 8×2 mini-matrix KVM switcher designed to provide secure, simultaneous access to multiple computers while maintaining strong isolation between systems. It enables operators to view and interact with up to eight sources across two displays using seamless mouse-driven switching. The unit is certified to NIAP Common Criteria PP4.0 for Protection of Trusted Path and Peripheral Separation.
Key features include support for DisplayPort 1.2 and HDMI 2.0 on dual console outputs, 4K 3840×2160 at 60 Hz video capability, and USB keyboard and mouse switching. The device uses a unique dual DP/HDMI connector per source to avoid external converters and preserve signal integrity. Local audio support is provided via 3.5 mm jacks on console and computer ports.
Technical performance delivers UHD 4K at 60 Hz on both input and output paths when using compatible sources and displays. The switcher consumes up to 35W and uses an internal power supply accepting 100 to 240V AC. Environmental ratings cover 32 to 104 F operating temperature and 0-80% relative humidity non-condensing, ensuring reliable operation in control room environments.
Connectivity is flexible with two console display outputs using DP/HDMI, one DP/HDMI per computer source, USB Type A console ports for keyboard and mouse, and USB Type B computer ports. Audio I/O is via 3.5 mm jacks on all console and computer ports. Control options include local mouse switching and RS232 remote control compatibility as documented in the product quick setup guide.
The SX82PH-4 is suited to meeting rooms, control centers, and presentation environments where multiple computers must be viewed or controlled simultaneously. Typical applications include multi-source monitoring, live presentations showing host and guest systems, and situations that require high isolation between networks. The NIAP PP4.0 certification adds assurance for security-conscious deployments.
Installation is rack-friendly and compact at 440 x 192 x 48 mm with a weight of 2.6 kg, and the internal power supply simplifies cabling. The unit supports common operating systems including Windows, Linux, and Mac, and carries CE FCC and TUV certifications. Two-year warranty and a 10-year product life-cycle provide predictable long-term support.
