Description
The SW-130-TX-US is an in-wall HDBaseT transmitter switcher designed to centralize source switching and extend A/V over a single CAT cable. This compact 2-gang module accepts two HDMI and one USB-C input and sends selected A/V plus USB data to a compatible HDBaseT receiver. It supports encrypted 4K content and common HDR formats for modern presentation environments.
This transmitter provides automatic or manual switching between inputs and supports USB-C alt-mode for A/V plus native USB data routing. HDBaseT2.0 enables USB 2.0 pass-through for KVM and peripheral connectivity back to the source. The unit also supports CEC trigger control and can send power triggers to compatible displays.
Video performance includes 4K/30 4:4:4 RGB or 4K/60 4:2:0 8-bit transmission depending on source and cable conditions. HDR standards supported include HDR-10 and Dolby Vision at 30Hz. HDCP 2.2 compatibility ensures protected 4K content will pass through when required.
Connectivity options include two HDMI inputs, one USB-C input supporting alt-mode, a USB 2.0 host port for far-end devices, and a 2-channel analogue audio input. The unit accepts PoH power from compatible receivers and has a rear DC 12V 1A input shared with the RS-232 port for local power or control. The removable white 2-gang decora fascia fits standard wall plate installations.

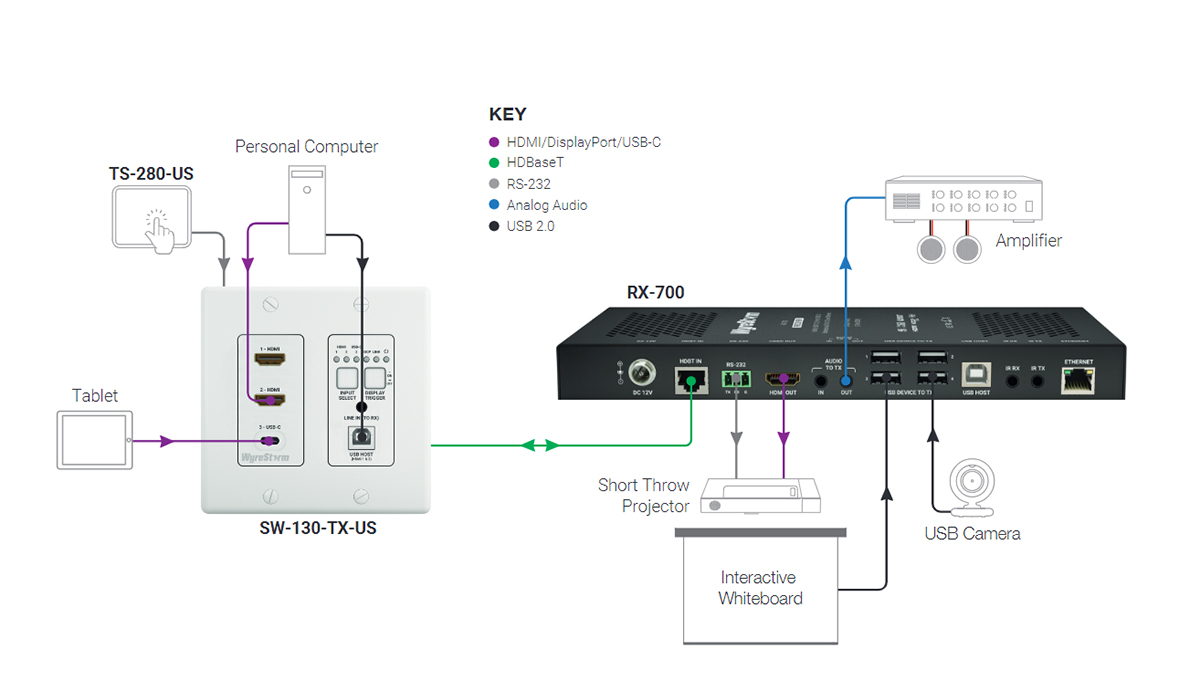

Typical use cases include conference rooms, huddle spaces, and classrooms where centralized switching and peripheral extension matter. The SW-130-TX-US routes webcams, touchscreens, and other USB devices back to the source while delivering 4K video to a display up to the HDBaseT distance limits. CEC and RS-232 control options simplify display power and input selection workflows.
Installation is optimized for in-wall wiring and integration with WyreStorm receivers supporting PoH and USB device inputs. The unit is compatible with recommended RX-700 receivers for full 4K HDR 4:4:4 60Hz performance at specified distances. The SW-130-TX-US combines compact wall-plate styling with professional switching and extension features to streamline AV deployments.
