Description

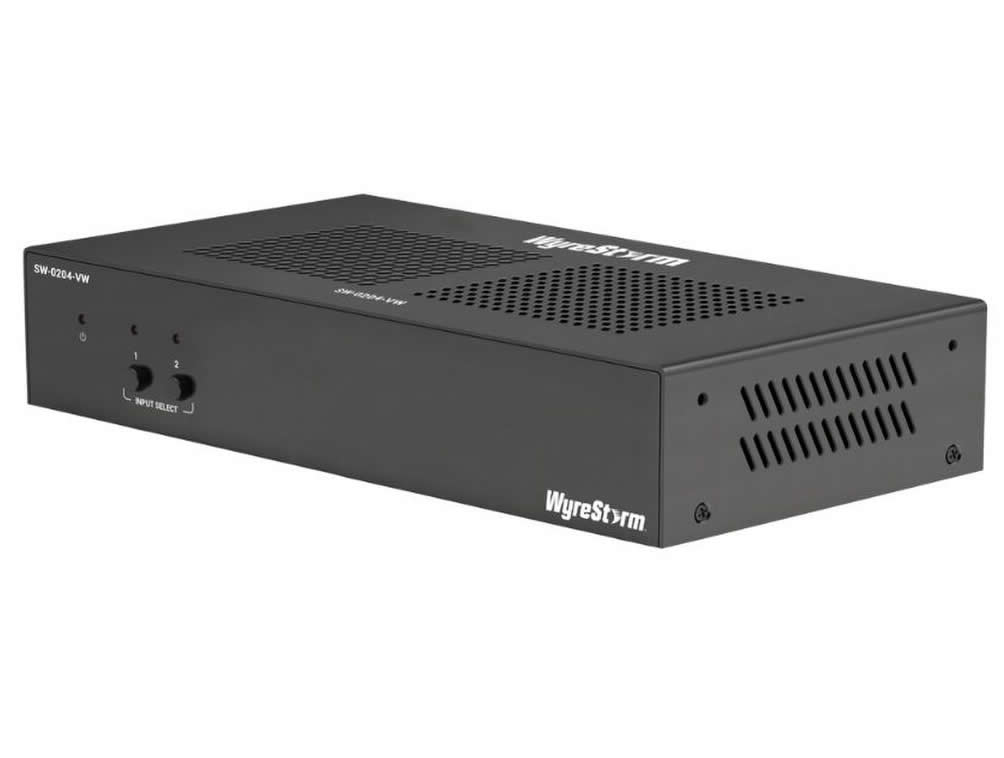

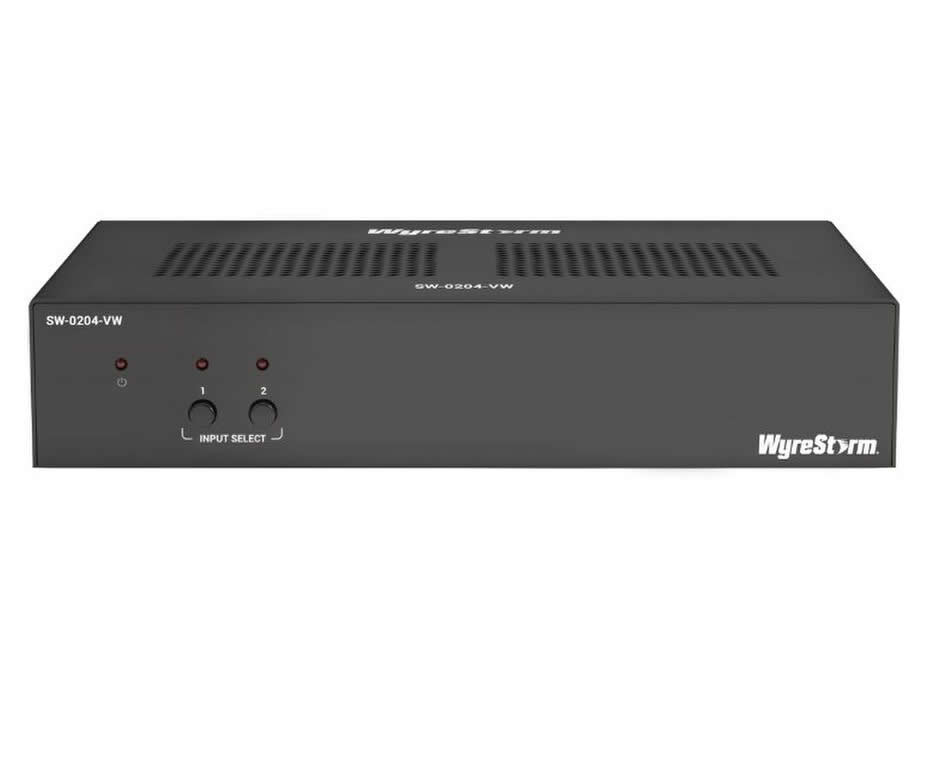

The SW-0204-VW is a 4K60 video wall processor designed to drive multi-screen video walls in 1×4 and 2×2 layouts. It accepts two HDMI inputs and outputs to four HDMI displays while providing image scaling and bezel correction. This processor is engineered to preserve image fidelity while simplifying multi-display deployments.
Key features include selectable video wall layouts, bezel correction, video wall flip and flexible layout adjustments that enable precise multi-screen alignment. The internal scaler supports upscaling and downscaling to resolutions up to 4K@60Hz 4:4:4 8bit for accurate color and detail. EDID management and image scaling tools ensure connected displays present a seamless combined image.
Technically the unit adheres to HDMI 2.0 and HDCP 2.3 standards and supports DCI 4K and HDR formats such as HDR10, Dolby Vision and HLG. Supported output resolutions include 1920x1080p@60Hz, 3840x2160p@60Hz and 4096x2160p@60Hz at 4:4:4 8bit. The processor also supports ultra wide output formats including 3840×600 for landscape-oriented signage.
Connectivity covers 2 HDMI inputs and 4 HDMI outputs plus a balanced analogue audio connector and HDMI audio de-embedding. Control options include a WebUI for browser-based management, RS232 and Telnet command support for integration into control systems. Networked control and firmware upgrade via the WebUI enable remote configuration and maintenance.
This product suits digital signage, corporate presentation suites, command and control rooms and large-scale event displays where multi-screen synchronization is required. The selectable layouts and image correction tools let integrators match physical display seams and orientations for a uniform presentation. The support for HDR and wide color spaces makes it suitable for high-impact visual content.
The SW-0204-VW is housed in a compact <1RU chassis and includes locking DC power jacks for secure installation. Rack ears and mounting hardware support standard AV racks and cabinets while operating across a typical AV equipment temperature and humidity range. The combination of WebUI control, RS232/Telnet and EDID management simplifies commissioning and long-term operation.
