Description
The STM-DA3 is a compact 1×3 microphone-level distribution amplifier designed for broadcast, studio and commercial sound installations. It accepts a balanced low-impedance microphone input and provides three electrically and acoustically isolated balanced outputs. The module preserves audio integrity while allowing a single mic feed to be distributed to multiple mic inputs without interaction.
Key features include a 1.2 kO balanced input, three isolated balanced outputs, and a 17 dB adjustable gain range via a 25-turn trimmer. The unit supplies 24 V phantom power to the input when the PHM terminal is used and provides near-total output isolation so loading one output does not alter the others. A Dual-LED VU meter gives immediate visual indication of operating level for quick setup.
Performance is engineered to studio standards with a frequency response of 30 Hz to 20 kHz ±0.2 dB, THD+N and IMD below 0.1%, and headroom greater than 20 dB under specified conditions. Noise performance is rated below 80 dB relative to specified reference levels and common-mode rejection exceeds 60 dB across the midband. Output isolation measures better than 135 dB balanced and 150 dB common mode, ensuring negligible crosstalk between outputs.

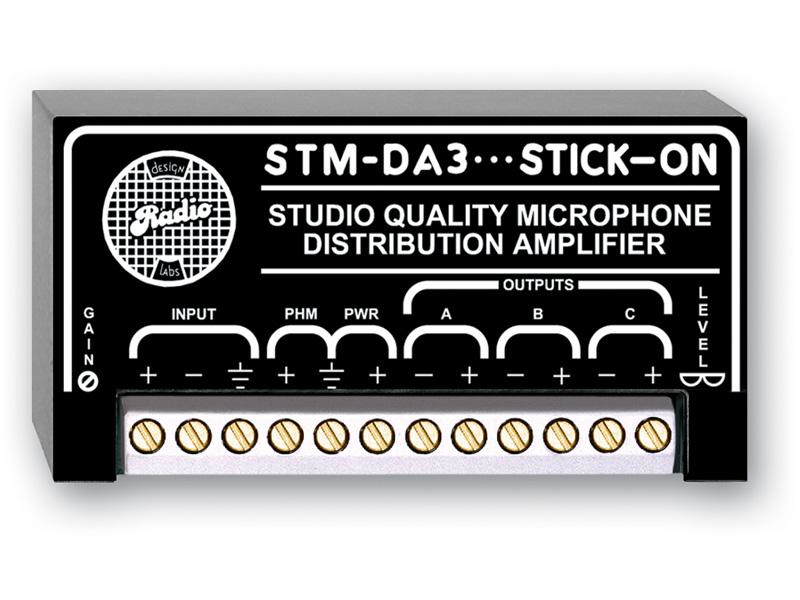

Connectivity is straightforward – one balanced microphone input and three balanced outputs with a PHM terminal for phantom power. The unit uses RDL’s compact STICK-ON form factor for unobtrusive placement and includes the Dual-LED VU adjacent to the terminal block for level monitoring. Power is supplied as a ground-referenced 24 Vdc source drawing approximately 40 mA.

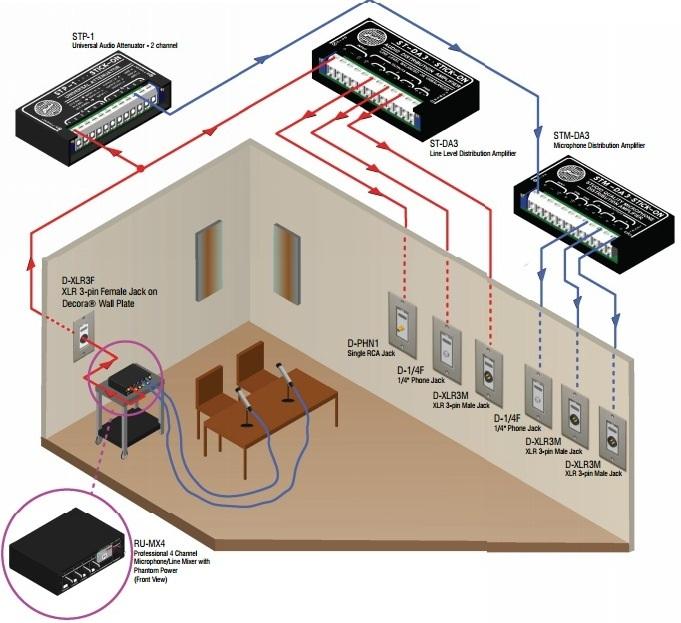

Typical applications include broadcast splitting, recording feed distribution, house-of-worship setups, and distributed audio systems where multiple mic inputs must receive the same mic feed without interference. The STM-DA3 is suitable for dynamic and condenser microphones and integrates into existing mic-level routing schemes. Its electrical and audio isolation make it a reliable choice for mission-critical audio paths.
Installation and operation are simplified by the multi-turn gain trimmer and the integrated VU indication, enabling precise level matching to facility standards without external test gear. The module operates in ambient environments from 0 C to 55 C and ships in a compact cardboard package. Built on RDL’s low-noise preamplifier architecture, the STM-DA3 combines compact mounting, clear level control and professional audio quality.
