Description

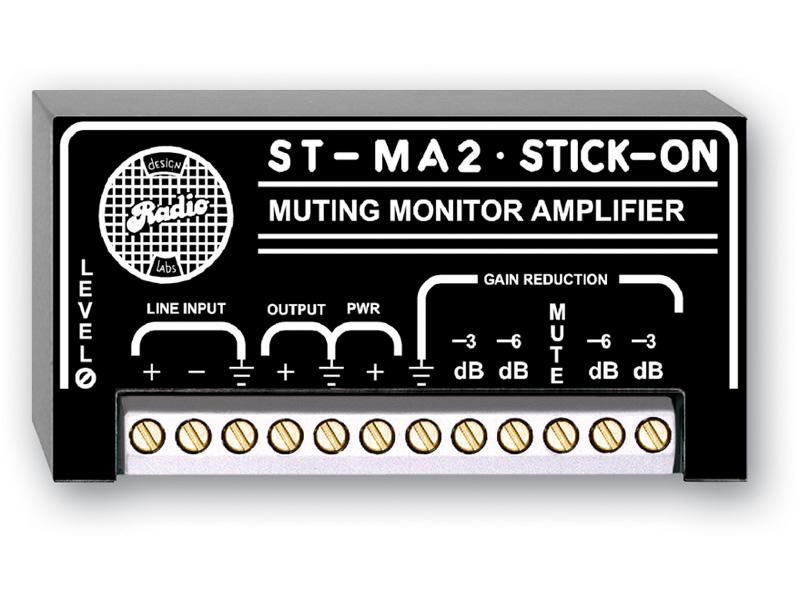

The ST-MA2 is a compact muting monitor amplifier designed to provide a simple local speaker drive solution while offering external control over output level. It supplies up to 2 Watts RMS peak output and accepts line-level inputs that may be wired balanced or unbalanced. The module is optimized for single-speaker monitoring in small AV installations and systems that require fast silent switching.
Key features include a presettable gain control, multiple control inputs for mute and selectable attenuation steps, and fast switching time under 50 microseconds. The ST-MA2 offers selectable attenuation steps of 3 dB or 6 dB via independent control inputs that activate when grounded. Muted attenuation exceeds 90 dB at 1 kHz for reliable silence when required.
Performance specifications support clear speech reproduction with a bandwidth of 45 Hz to 14 kHz and THD+N under 0.5 percent. Residual noise is specified below -80 dB at operating levels under 2 Watts RMS, and common-mode rejection exceeds 60 dB in the 50 Hz to 120 Hz band. Output impedance is nominally 8 Ω and the amplifier will drive 4 Ω loads when needed.
Connectivity includes a line-level input that may be wired balanced or unbalanced and control inputs for mute and attenuation that activate when tied to ground. The unit requires a ground-referenced 24 Vdc supply at approximately 200 mA for rated output and 220 mA at 2 Watts RMS. A front-panel or internal trimmer provides gain adjustment to match speaker sensitivity and room acoustics.

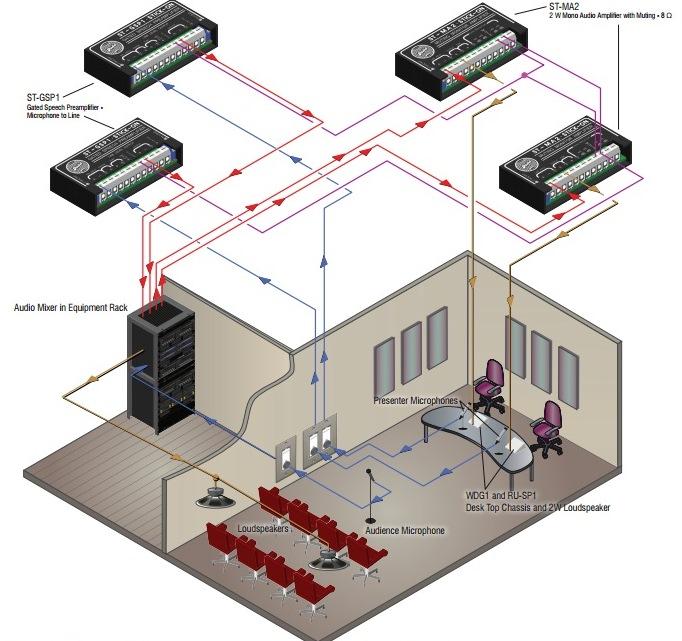

This monitor amplifier is commonly used to drive small tabletop or overhead speakers in conference rooms, boardrooms, courtrooms and public-panel forums. It integrates well into automatic mixing systems where externally actuated muting and attenuation improve intelligibility and prevent feedback. The compact form factor makes it suitable for discreet placements near the monitored speaker.
Installation is straightforward and requires basic audio wiring and a regulated 24 V DC source. The gain trimmer allows quick level setting during system commissioning and the fast, silent switching simplifies automated control logic. For tabletop installations the ST-MA2 can be paired with RDL mounting accessories for neat integration.
Overall, the ST-MA2 provides a small, controllable monitor amplifier solution with precise mute behavior and selectable attenuation steps. Its low noise and adequate bandwidth make it well suited to speech-centric monitoring applications. The module balances small size with useful control features for professional AV deployments.
