Description
The ST-ACR2 is a compact line-level audio controlled relay module designed to switch audio sources based on signal presence. It uses adjustable sensitivity to detect line-level signals and drives a DPDT relay for external switching. The unit is optimized for installations that require silence-sensing control and a configurable release delay.

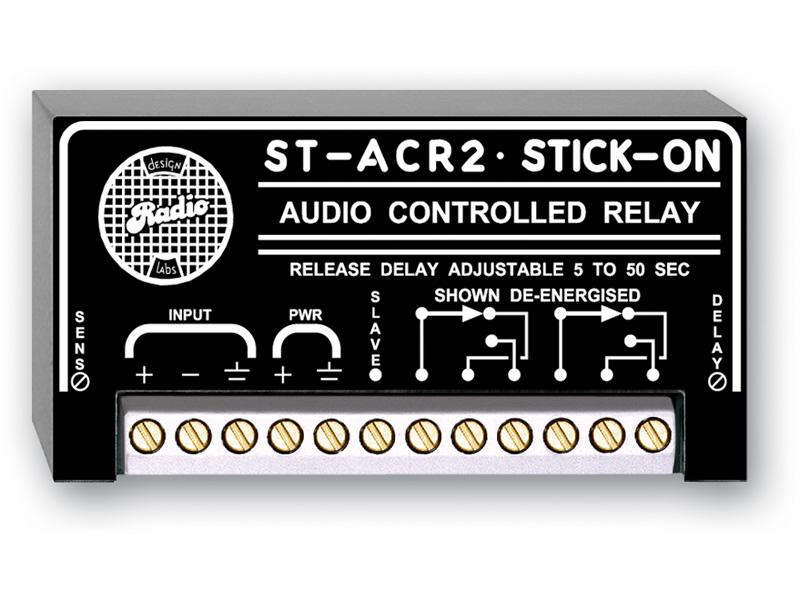

The module includes two multiturn trimmers for precise setup – a SENS control for input sensitivity and a DELAY control for relay release time. A front-panel threshold LED provides visual feedback to set the trigger point between -30 dBu and 0 dBu. The DPDT contacts and an open-collector SLAVE output expand the device’s control options.
Performance specifications include a 25 ms activation response time and a 250 ms retrigger delay for stable switching behavior. Relay switching ratings are 60 W or 125 VA maximum and 2 A maximum current, with maximum switching voltages of 220 Vdc and 250 Vac. The relay release delay is adjustable from 5 seconds to 50 seconds to accommodate different hold times.
Connectivity supports balanced or unbalanced connections and a 10 kO balanced bridging audio input. Control outputs include an open-collector SLAVE output rated at 25 mA for driving indicators or a slave relay. Power is ground-referenced 24 Vdc at 50 mA assuming typical SLAVE loads, enabling simple integration with existing control power systems.

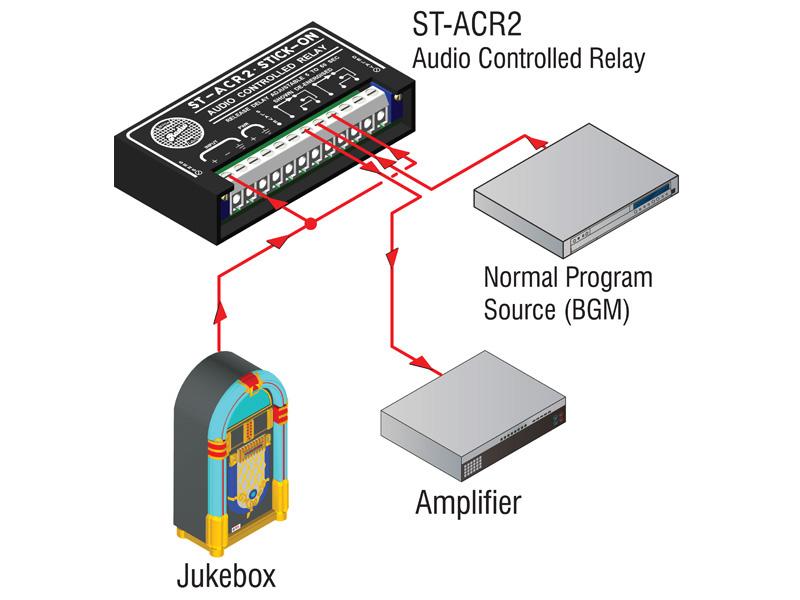

Typical applications include cue-controlled switching, silence-sensing mute control, and automated source switching in broadcast or installed-audio systems. The ST-ACR2 is suitable for rack or equipment-room installations where line-level sensing and reliable relay control are required. It provides consistent performance for live sound, broadcast, and signage control tasks.
Installation is straightforward using the STICK-ON series form factor and standard wiring practices. The unit operates from 0 C to 55 C and ships in a compact cardboard box for convenient handling. Its compact footprint and clear front-panel controls make setup and maintenance quick and predictable for technicians.
