Description
The SP-0108-SCL is a compact 1×8 HDMI splitter designed to distribute a single HDMI source to multiple displays while preserving advanced HDR and color metadata. It supports native 4K60 signals and includes per-output downscalers so mixed-resolution displays can be used simultaneously. The unit provides audio extraction and flexible EDID control to ensure reliable interoperability across diverse AV systems.
The splitter features per-output 4K to 1080p downscalers configurable via dipswitch or API, allowing each output to deliver the resolution required by the connected display. It also offers analog and digital S/PDIF audio de-embed for easy integration with amplifiers or DSPs. Advanced EDID management includes 16 pre-loaded EDIDs and a custom EDID upload option for precise handshake control.
Performance-wise the SP-0108-SCL passes uncompressed 18 Gbps HDMI signals and supports a wide range of resolutions including 4K60 in multiple chroma and bit-depth modes. Supported video formats include HDR10, HDR10+, Dolby Vision, HLG and BT.2020 colorimetry. The device reports no added end-to-end latency and supports HDCP 2.2 compliance for protected content delivery.

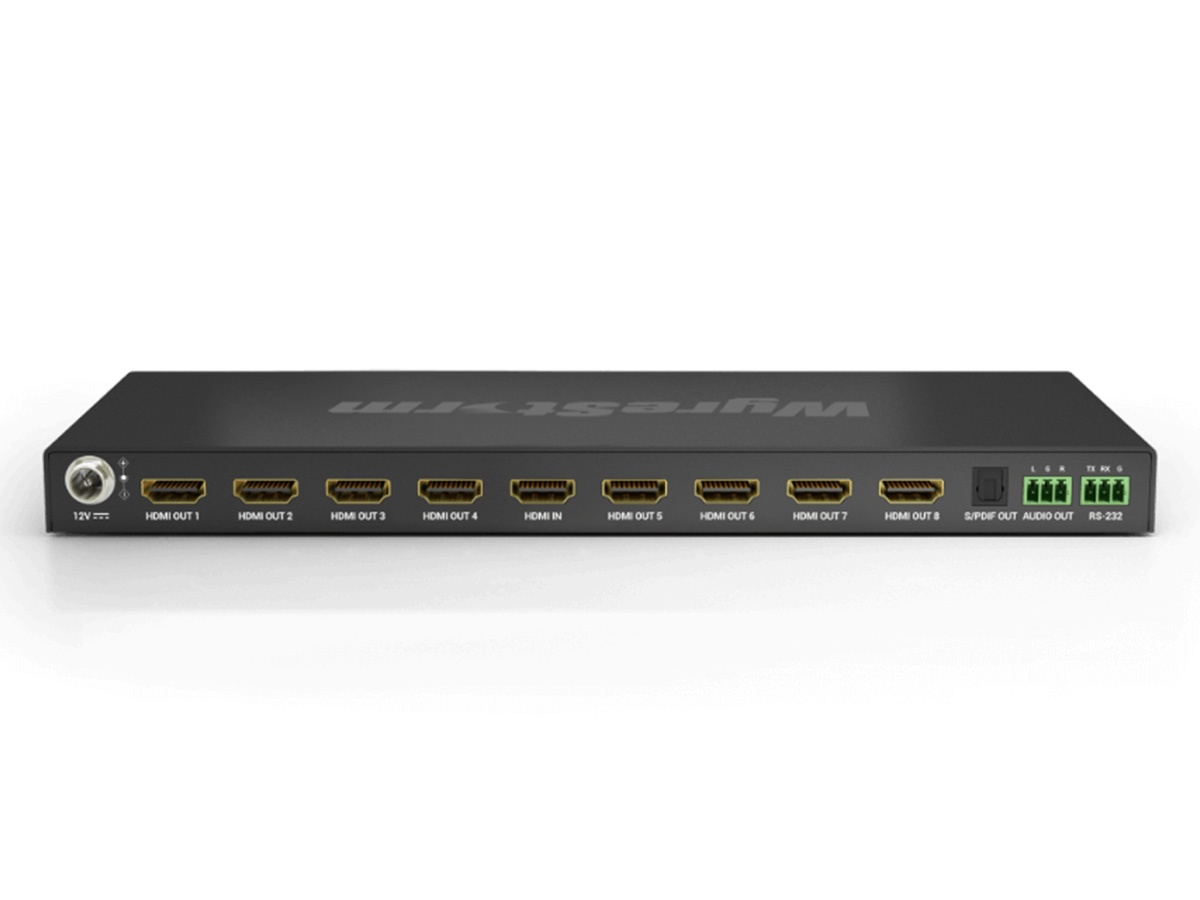

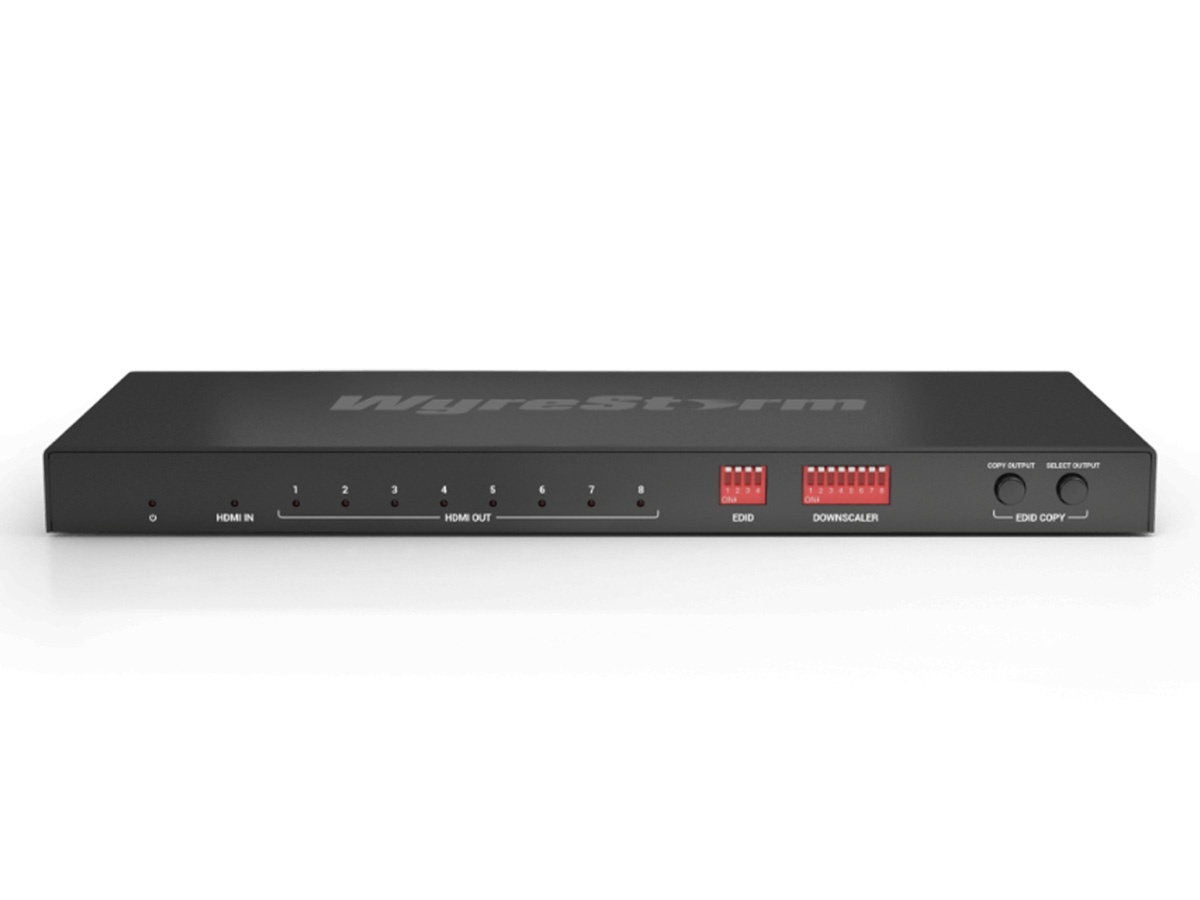

Connectivity includes one HDMI input and eight HDMI outputs using 19-pin Type A connectors plus a 3-pin Phoenix and S/PDIF for audio output. Control options include RS-232 via a 3-pin Phoenix connection, API control and front-panel buttons for EDID copy and selection. CEC triggering is supported for automated power commands to compatible displays, with adjustable power-off delay on sink loss.
Typical applications for the SP-0108-SCL include digital signage networks, classrooms or lecture halls, retail display banks and hospitality installations where mixed-resolution displays are present. The per-output scaler and EDID features reduce configuration time and eliminate common compatibility issues when distributing HDR and legacy signals together. Audio de-embedding simplifies integration into existing audio DSPs or amplifier systems.
Installation is straightforward thanks to the compact chassis and included mounting brackets, allowing local discreet placement close to source or displays. Control can be performed locally via dipswitches or remotely via RS-232 and API, enabling simple integration into control systems. The SP-0108-SCL is built to fit into professional AV deployments where predictable signal distribution and easy control are required.
