Description

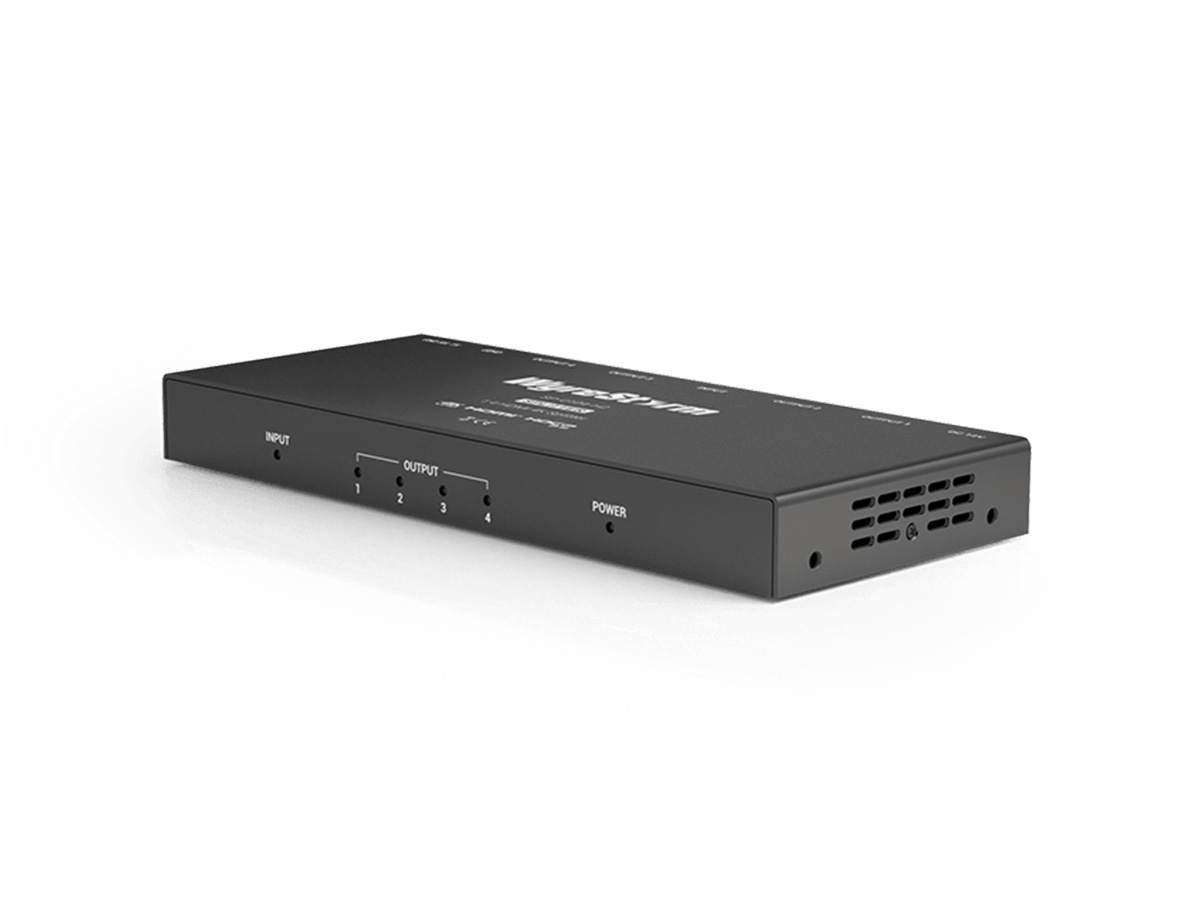

The SP-0104-H2 is a compact 1×4 HDMI splitter designed to duplicate a single HDMI source to four displays while retaining full 4K/HDR capability. It supports 4K@60Hz 4:4:4 and key HDR formats including Dolby Vision and HDR10. The unit is built for installations where a slim profile and reliable signal management are essential.
This splitter provides a fully loaded 18 Gbps backplane to ensure every output receives the same high-bandwidth signal. It supports HDCP 2.2 so encrypted 4K content can be distributed to multiple sinks without issues. Extensive EDID options let you select predefined timings or copy EDID from port 1 to optimise source-to-display communication.
Performance specifications include support for 3840×2160 and 4096×2160 resolutions plus 1080p@60Hz. Color depth handling includes 24-bit for 4K sources and up to higher bit depths on HD content, and 3D formats are supported up to 1080p. Multichannel audio formats including Dolby and DTS HD are passed through to mirror the source up to 7.1 channels.
Connectivity comprises one HDMI input and four HDMI outputs using 19-pin Type A connectors. The front panel provides LED confirmation of I/O and power status, while a locking 12 V DC power port and a 3-pin Phoenix connector are provided for firmware updates. Standard high speed HDMI cables can be used for distances up to 10 m for 4K and 15 m for 1080p outputs.
Typical applications include digital signage distribution, conference room AV, retail displays and small control rooms where a single source needs to be shown on multiple screens. The splitter is cascadable to create larger systems and is appropriate wherever identical content must be presented on several displays. Its support for HDCP 2.2 and EDID management ensures compatibility with modern content sources and displays.
Installation is straightforward thanks to the ultra-slim 18 mm chassis and included mounting brackets for wall or surface mounting. The unit ships with a 12 V DC 1 A power supply and requires minimal rack or shelf space. Durable construction and regulatory compliance provide a dependable platform for commercial AV deployments.
