Description

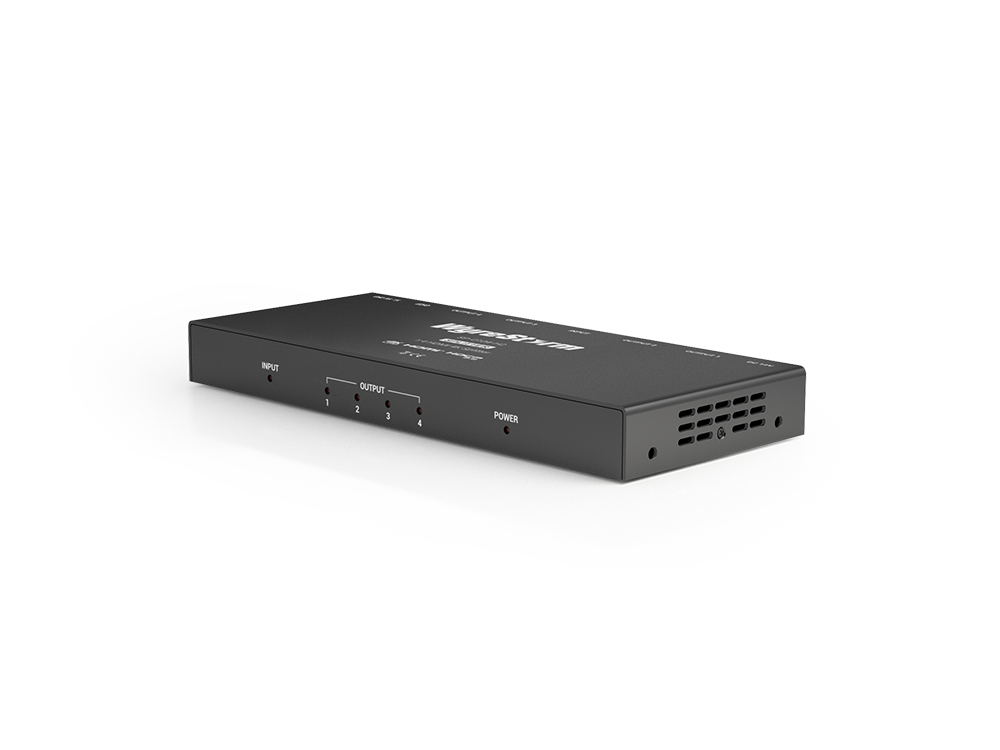

The SP-0104-H2 is a compact 1×4 HDMI splitter engineered to distribute one HDMI source to four identical displays. It supports 4K HDR resolutions and modern HDCP encryption to ensure reliable playback of protected content. The slim form factor and included mounting brackets allow discreet placement in AV racks or behind displays.
This splitter supports 4K@60Hz 4:4:4 throughput and a fully loaded 18Gbps backplane to preserve pixel integrity across all outputs. HDCP 2.2 compliance allows multi-point distribution of protected 4K UHD content. Extensive EDID management options enable precise sink-source communication and the ability to adopt timing from the display on port 1.
Color depth is preserved up to 24-bit at 4K and up to 36-bit for 1080p signals, and the unit remains 3D compatible up to 1080p. Multichannel Dolby and DTS-HD audio pass-through mirrors the source up to 7.1 channels. DVI signals are supported up to 1920×1200, maintaining broad device compatibility.
Connectivity is simple and reliable with one HDMI input and four HDMI outputs using standard high-speed HDMI cables. The unit features front-panel LEDs for quick verification of I/O and power status. A locking DC 12V power port and a 3-pin Phoenix connector for firmware updates secure the installation and future-proof system maintenance.
Typical applications include digital signage arrays, multi-room distribution, retail displays, and conference room systems where identical content must be shown across multiple screens. The unit is cascadable to expand distribution beyond four displays when required. Its HDCP 2.2 support makes it appropriate for modern source devices including streaming boxes, UHD Blu-ray players, and set-top receivers.
Installation is straightforward – the 18mm ultra-slim chassis fits into tight spaces and can be surface or wall mounted using the supplied brackets. The SP-0104-H2 ships with a 12V DC 1A power supply and is designed for reliable 24/7 operation in professional AV environments. Overall build quality focuses on a compact footprint, secure power connection, and easy serviceability.
