Datavideo Single Camera Streaming Package 30x PTZ Camera Package 1080p60 / PoE / Dual-Lens Auto-Tracking / Joystick Controller

SKU: Single Camera Streaming Package
Brand: Datavideo
$2,399.00
Brand Datavideo
SKU Single Camera Streaming Package
Weight 1.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The Single Camera Streaming Package pairs a Datavideo PTC-155 PTZ camera with an RMC-2P joystick controller to deliver smooth motorized pan, tilt and zoom control and full-HD 1080p60 video. This kit is designed to simplify live streaming and recording workflows by combining long-range optics, precise camera movement and intuitive control in a compact package. The system supports PoE power to reduce cabling and streamline installation.

The package highlights include a 30x optical zoom lens plus 16x digital zoom for detailed close-ups at distance and a dual-lens arrangement that provides wide coverage and reliable subject tracking. The RMC-2P controller supplies a 3-axis precision joystick, camera presets and Datavideo DVIP control for coordinated multi-device operation. Together the camera motors and controller joystick produce fluid, professional camera moves.

Technical performance includes 1080p60 and 720p formats, a Sony 1/2.8″ CMOS sensor and a minimum illumination of 0.5 lux (F1.8, AGC ON) for low-light capture. The PTC-155 offers wide dynamic range processing and 2D/3D noise reduction to preserve image detail. Preset support and pan/tilt speed ranges provide flexible framing and repeatable shots for live productions.

Connectivity covers HDMI 1.3, 3G-SDI and UVC output plus 10/100M RJ45 with PoE support and multiple streaming protocols including RTSP, RTMP(S), SRT and NDI|Hx3. Control options include RS-422/RS-232, VISCA over IP, Pelco and Datavideo DVIP for integration into larger control systems. The RMC-2P adds USB 2.0 and Ethernet control with firmware updates via USB.

This Single Camera Streaming Package is suited to houses of worship, lecture capture, corporate streaming and small broadcast environments where one operator needs high-quality, reliable PTZ performance. It enables clean wide shots and tight close-ups without repositioning the camera and supports multi-protocol streaming for platform flexibility. The tally LED, tripod mount and broad preset capacity streamline live switching and remote operation.

Installation and daily operation are straightforward – PoE reduces power cabling and the RMC-2P controller is plug-and-play with an ergonomic joystick for instant control. The camera and controller are built to operate in standard studio and venue environments with operating temperature ranges specified for reliable performance. Overall this package delivers repeatable framing, robust connectivity and simplified setup for consistent live video production.

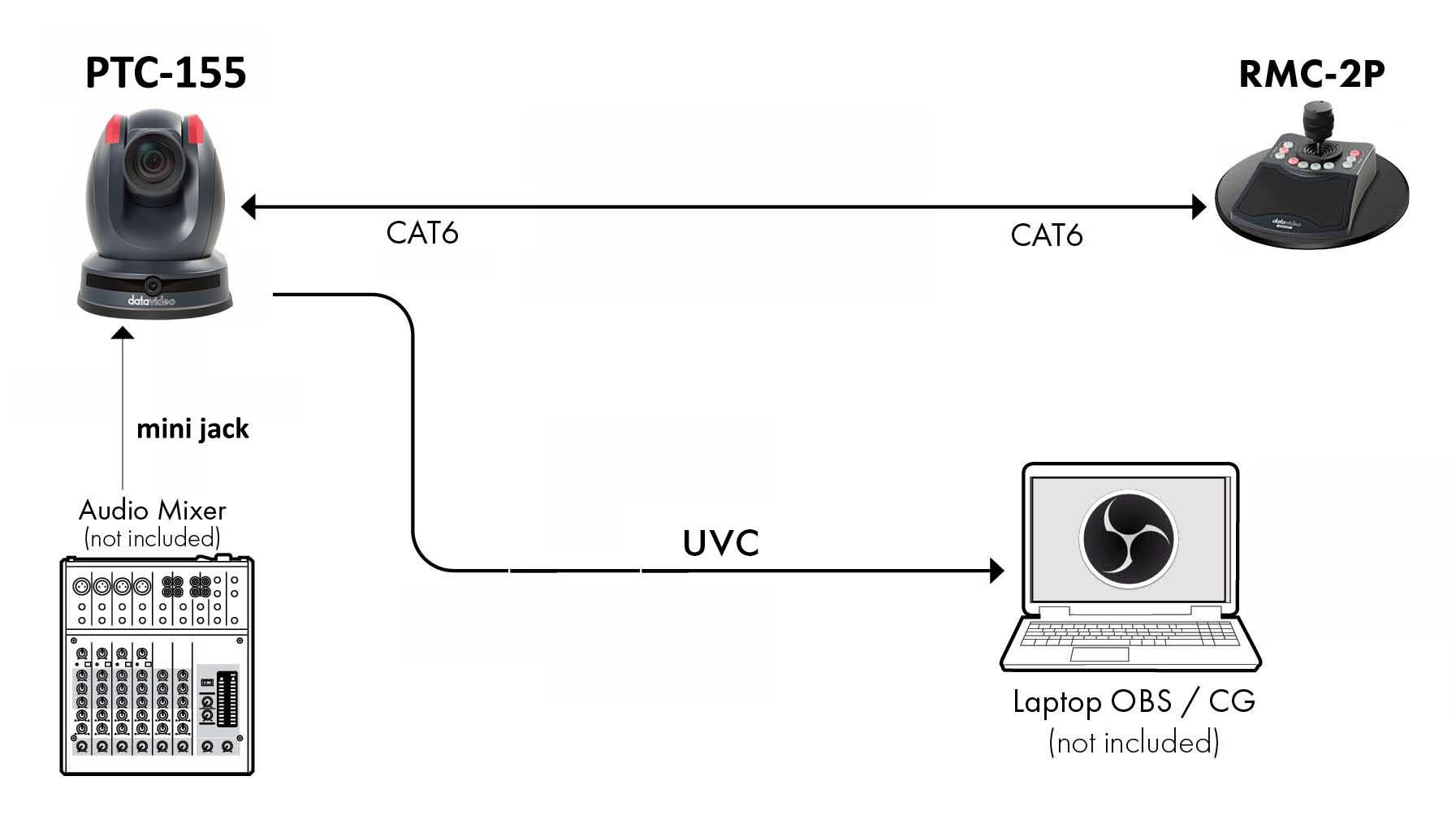

Product Diagrams

View Diagrams

Specifications

Model NumberRMC-2P
Maximum Camera Control3
Preset (Position)4 for each camera
Control ProtocolDatavideo DVIP
Connection to CamerasEthernet
Input/OutputUSB 2.0 x1, 10/100Mbps Ethernet (RJ-45 connector) x1
Build-in Control Panel---
Firmware UpgradeVia USB
Dimension134x169x97mm
Weight0.36 kg
Operating Temp. Range0°C ~ 40°C (32°F~104°F)
Storage Temperature- 10°C ~ 60°C (14°F~140°F)
Operating Humidity10 % to 80 % (non-condensing)
PowerDC 5V, 8W or IEEE 802.3af
Model NumberPTC-155
Video format/Resolution1080p60/59.94/50/30/29.97/25, 720p60/59.94/50
Image SensorSony 1/2.8" CMOS
Effective Pixels (approx.)2.14 Mega pixels
S/N Ratio?50dB
Min. Illumination0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter1/25s ~ 1/10000s
Zoom Ratio30x Optical Zoom, 16x Digital Zoom
Effective Zoom Ratio27.35x
Gamma ControlN/A
Iris ControlAuto / Manual
Digital Noise Reductions2D/3D
On-Screen Display (OSD)English/Simplified Chinese/Traditional Chinese
White BalanceAuto, OnePush, Manual
AGC / Gain ControlYes
HDR/WDRWDR
Mirror / Flip ImageYes
Focus ModeAuto / Manual
Panning / Tilting RangePan: 300° Tilt: +130° to -15°
Panning / Tilting SpeedPan: 0.1~ 60°/Sec Tilt: 0.1° to 30°/sec
Preset255 Positions
Focal Lengthf = 5.5mm (wide) to 150.43 mm (tele)
F1.66(Wide) ? F4.99 (Tele)F1.66(Wide) ? F4.99 (Tele)
Field of View (Horizontal, Wide)Main: 54°, Panorama: 86°
Image CompensationBacklight Compensation
Video OutputHDMI 1.3 x1, 3G-SDI x1, UVC output x1, 10/100M RJ45 (PoE) x1
Audio Input3.5mm x1 (line in/mic in)
Tally LEDYes
Lens Filter----
Control ProtocolPelco-D, Pelco-P, VISCA, VISCA over IP, NDI, DVIP, ONVIF
Remote Control InterfaceIR
Web UIRS-422/RS-232 (RJ-45)
DVIPDVIP
NDINDI
Video Compression FormatH.264/H.265/MJPEG
Audio Compression FormatAAC, G711
Audio Bitrate96Kbps, 128Kbps
HD IP Interface----
Streaming ProtocolsRTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3
First Stream Supported Resolution1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
Second Stream Supported Resolution720x480, 640x360, 640x480, 320x240
Video Bitrate32Kbps ~ 20Mbps (First Stream), 32Kbps ~ 5Mbps (Second Stream)
Video Bitrate ModeVBR, CBR
Encoding Frame rate50Hz: 1-50fps, 60Hz: 1-60fps
POEIEEE 802.3at
F/W UpdateVia Web UI
IR ControlYes
Camera Control UnitRMC-2P, RMC-180 series, RMC-300 series
Tripod Mount1/4-20 UNC
Optional AccessoriesWM-1/ WM-10/ WM-11
ColorDark Blue/White
Dimension (LxWxH)184(W) x 228.5(H) x 194(D)
Weight2.7 kg
Operating Temp. Range0~40 °C
PowerDC 12V 19W
