Kramer SID-X1N 4Input Multi Format Video over DGKat Extender (Transmitter) and Step In Commander

Description

The SID−X1N is a DGKat™ twisted pair transmitter and step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step−In” button that allows the local source to be routed as the active source on the main display through the main switcher.

Max. Data Rate – 4.95Gbps (1.65Gbps per graphics channel).
Compatible Switcher – VP−81SIDN.
HDTV Compatible.
HDCP Compliant. – Works with sources that support HDCP repeater mode.
HDMI Support – x.v.Color™ and 3D.
I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Data Equalization and Reclocking.
Input Signal Detection – Based on video clock presence.
Automatic Input Selection – Based on manual selection or last connected input.
Automatic Analog Audio Detection and Embedding.

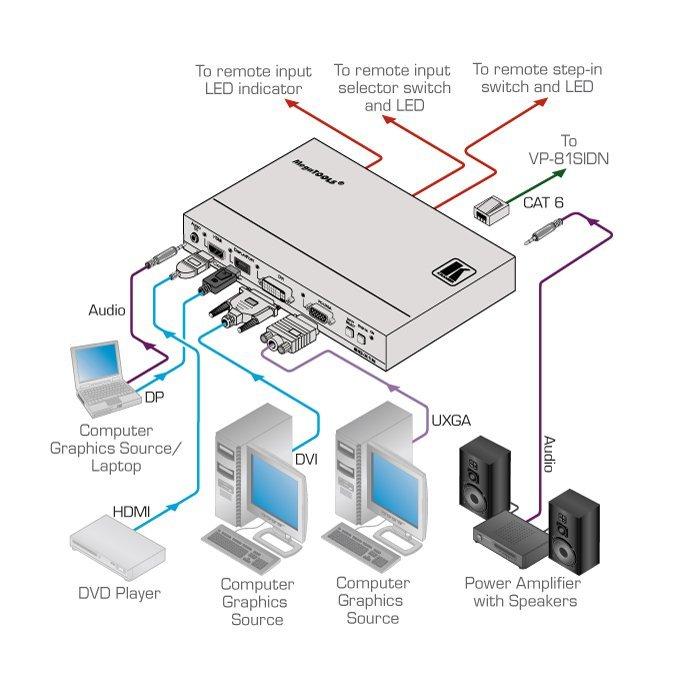

Product Diagrams

View Diagrams

Specifications

INPUTS

1 HDMI on an HDMI connector, 1 DP on a DisplayPort connector, 1 DVI−D on a DVI−I connector
1 VGA on a 15−pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack

OUTPUTS

1 twisted pair on an RJ−45
1 unbalanced stereo audio in a 3.5mm mini jack

PORTS

1 RS−232 3−pin terminal block for programming

CONTROLS

Front panel buttons
remote step−in switch
remote input selection switches
RS−232

ANALOG AUDIO INPUT

Maximum level − 3Vpp

REMOTE LED IMPEDANCE

5V
300Ω approx

STANDARDS

HDMI with x.v.Color™ and 3D
HDCP: works with sources that support HDCP repeater mode

MAXIMUM DATA RATE

4.95Gbps (1.65Gb per graphics channel)

MAXIMUM STEP-IN DISTANCE

50m (164ft) up to 1080p @60Hz @24bpp

POWER CONSUMPTION

12V DC
1.1A

COMPLIANCE STANDARDS

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)

HUMIDITY

10% to 90%
RHL non−condensing

COOLING

Convection
vents

ENCLOSURE TYPE

Aluminium

INCLUDED ACCESSORIES

Power adapter

OPTIONS

RK−T2B 19" rack adapter
RTBUS−12
RTBUS−22
SID−X1NBP Kit (substitute black top plate for the SID−X1N to blend in with the color of the modular TBUS−10xl)

PRODUCT DIMENSION

18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H

PRODUCT WEIGHT

0.5kg (1.0lbs) approx

SHIPING DIMENSION

35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPING WEIGHT

1.4kg (3.1lbs) approx
