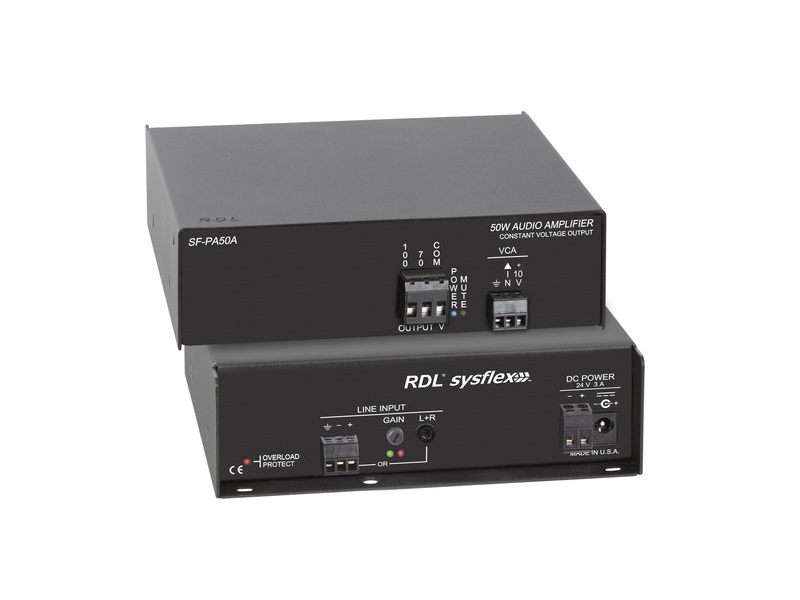

RDL SF-PA50AX 50W 70/100V Audio Amplifier (Export Model/No Power Cord)

Description

The RDL SF-PA50AX is a SysFlex series 50W 70/100V mono audio amplifier designed to convert one analog input to a constant voltage amplified output for A/V technicians, system installers, and audio engineers in office buildings, retail environments, and educational facilities. Its Class-D output stage delivers 50W of RMS power at 70 or 100V from a balanced or unbalanced analog input, which offers adjustable gain via a rear-panel, single-turn potentiometer.

Connect a balanced analog source to the mono terminal block input, or utilize the unbalanced 3.5mm stereo mini jack to route signal from a mobile device. The terminal block output accommodates connection to 70 or 100V speakers, and a detachable terminal block is provided for hookup of remote control of the internal VCA. Thermal and short-circuit protection guard against electrical damage and unintended shutdown.

The SF-PA50AX supports powering via the included 24 VDC external power supply (power cord available separately), or from proper wiring to the terminal block power input. Engineered and manufactured in the USA, it boasts a durable metal enclosure for reliable toughness.

Features:

Analog Input to Constant Voltage Output
50W Class-D RMS Power at 70 or 100V
Adjustable Input Gain
Terminal Block & 3.5mm Inputs
Terminal Block Output
Supports VCA Control
Thermal & Short-Circuit Protection
Power via Included 24 VDC Power Supply
Durable Metal Enclosure
Made in the USA

Specifications

Number of Channels	1
Power Rating	70 V / 100 V: 50 W RMS
Amplifier Class	Class-D

Performance

Frequency Response	50 Hz to 20 kHz +0/-3 dB
Input Impedance	>10 Kilohms (Balanced) >5 Kilohms (Unbalanced)
SNR	< -90 dB
THD+N	< 1% (1 kHz)
CMRR	> 60 dB

Connectivity

Analog Audio I/O

1 x 1/8" / 3.5 mm TRS Unbalanced Input
1 x Block Balanced Input
1 x Block Output
1 x Block Control/VCA Input

Power

AC Input Power	100 to 240 VAC, 50 / 60 Hz
AC Power Connector	IEC Screw Terminal
Current Consumption	2700 mA

Physical

Display & Indicators	Front Panel: Blue LED (Power) Yellow LED (Mute) Rear Panel: Red LED (Protect) 2 x Multi-Segment LED Meter
Certifications	UL *as per Manufacturer
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	5.8 x 1.7 x 6.4" / 14.8 x 4.3 x 16.4 cm
Weight	5.9 lb / 2.7 kg
