Datavideo SEB-1200 SE-1200MU 6 Input Switcher with RMC-260 Controller Bundle

Description

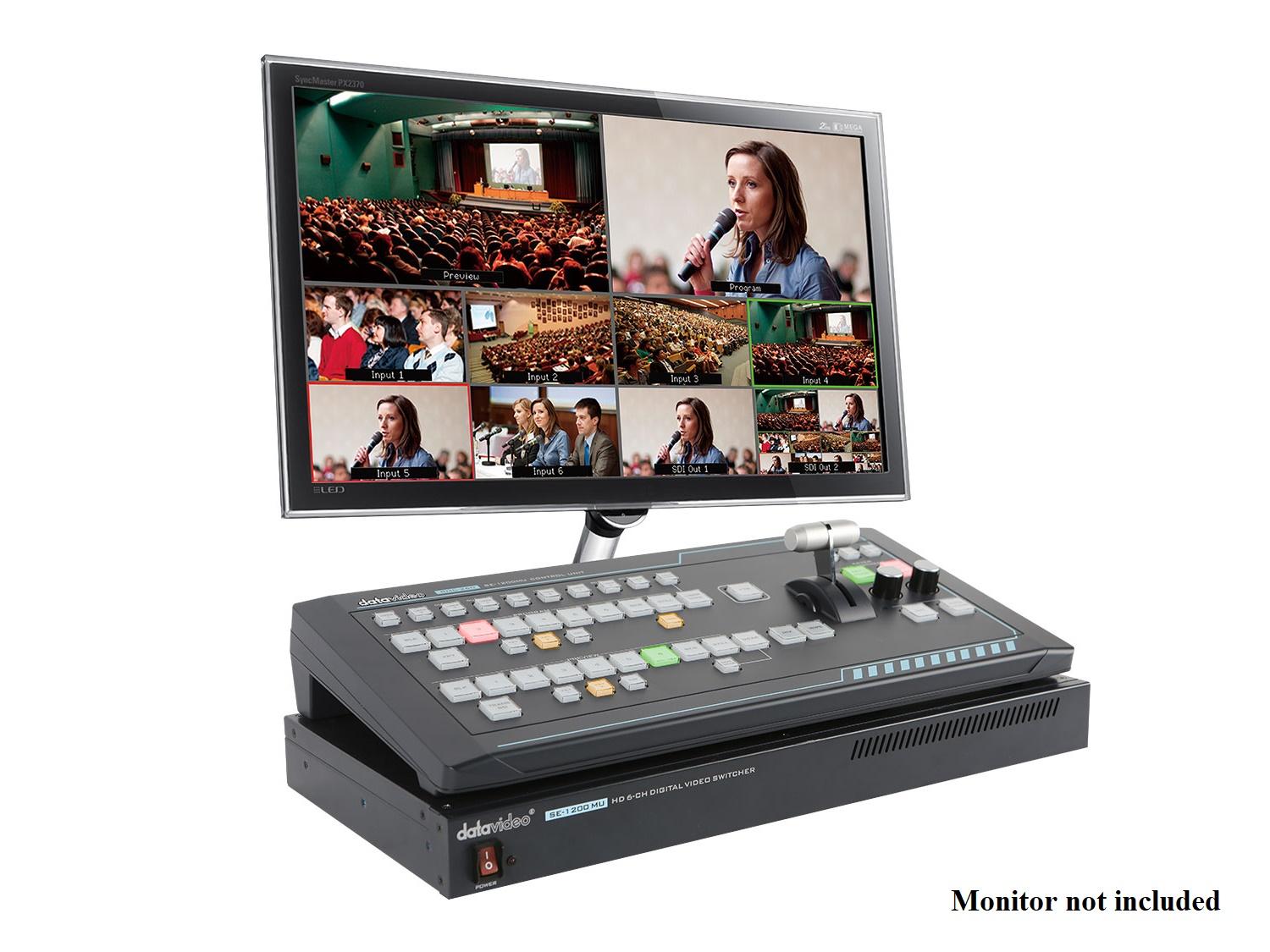

The SEB-1200 Bundle combines the Datavideo SE-1200MU Switcher and the RMC-260 Controller into a powerful, ergonomic switching package.

SE-1200MU

Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly. Read More

RMC-260

The RMC-260 is a switcher-style controller, an alternative to the PC Controller software of SE-1200MU, all keys on the unit are clearly defined for quick and easy operation.

Features:

SE-1200

6 video inputs ( HD-SDI x 4 + HDMI x 2)

Frame Sync on each input

Flexible Mix/Effects Processor with

2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
2 DSK, supporting Linear & Luma Key Modes
1 PIP (assignable to any of the 4 keyers
Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
Wipe, Mix & Cut Transitions
Full M/E Preview function

Any Input (1-6) can be used as a Frame store
Assignable Outputs

Each HD-SDI output can be switched in the Menu as:
– PROGRAM (w/ DSK)
– Clean PROGRAM (w/o DSK)
– Clean PREVIEW (w/o DSK)
– MULTISCREEN
– Input 1-6

XPT (Cross Point Assignment)
PC control
Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
Tally output
GPI output
1U rack mount (with rack ears)

RMC-260

A switcher style keyboard for SE-1200MU operation
Clear key definitions
Support Keyers enable and function assignment quickly
Save user behavior to user memory keys and load them quickly
Two keyers with two corresponding knobs for assignment of Keyer 1/2 sources
XPT (Cross Point Assignment)
Take button to switch between PVW and PGM views
FTB button fades the PGM view to a black screen
Cross Dissolve button applies cross-dissolve transition effect to switching between PGM and PVW views
Still Grab function captures the instantaneous video image
RS-232 interface for communication between RMC-260 and SE-1200MU
Bright LED lighting

Specifications

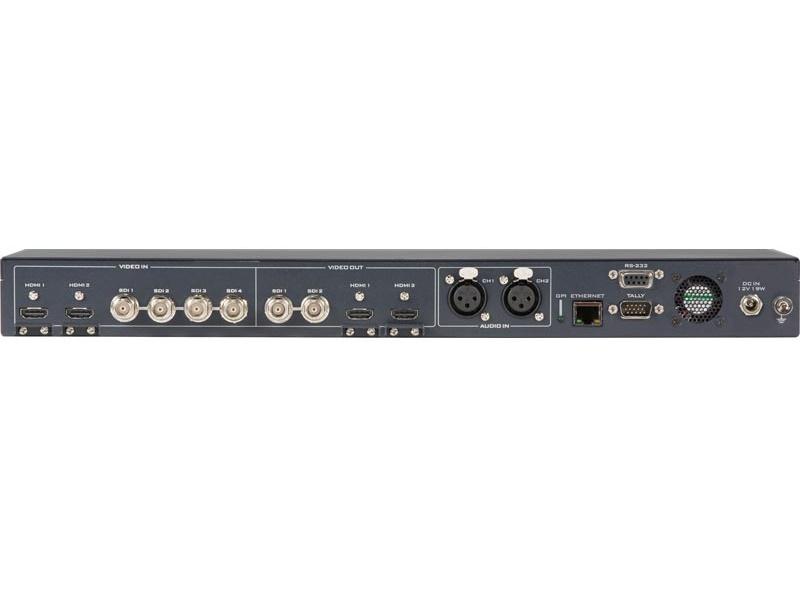

Connections
Total Video Inputs	2 HDMI + 4 SDI
Total Outputs	1 HDMI + 2 SDI
SDI Video Input	4 (1080i / 720p)
HDMI Video Input	2 HDMI (RGB/YUV) 1080i / 720p
SDI Audio Output (PGM)	2CH
Analog Audio Input	2CH XLR
Embedded Audio	HDMI & SDI
Internal Frame Synchronizers	6 All Inputs
PGM Out	HDMI / SDI
Multi-view Out	HDMI (720p->720p ; 1080i->1080p) SDI (720p->720p ; 1080i->1080i)
Output can select any of input source	PROGRAM (w/ DSK) Clean PROGRAM PREVIEW (w/o DSK) MULTISCREEN Input 1~4
Audio Indicator on Multi view	Yes (output 2CH)
Tally Out	Yes
GPI	Yes (Level / Pulse Trigger selectable)
Software Updates	Ethernet
Standards
HD Format Support	1080i/50, 1080i/59.94, 1080i/60, 720p/50, 720p/59.94, 720p/60
SDI Compliance	SMPTE 292M (SDI output / PGM out)
Video Sampling	4:2:2 10-bit
Color Precision	4:2:2 10-bit
Color Space	4:2:2 YUV
HDMI Input Resolutions for Computers	1280x720 59.94Hz 50Hz (720p) 1920x1080 59.94Hz 50Hz (1080p & 1080i)
Processing
Colorspace Conversion	Hardware based real time
Processing Delay	Less than 1 frame
Audio Mixer	selectable audio follow video, master gain control
Extras
Downstream Keyers	1
Linear/Luma Keyers	3 (M/E Keyer, PIP, DSK)
Chroma Keyers	2 (M/E Keyer & PIP)
Pattern Generators	Colour Bar
PIP	1
XPT	Yes
Frame store	Total 24 stills on internal SD card; One dedicated still buffer, one dedicated freeze buffer; Also, any input can be used as Frame store; 3 Still frames stored in local frame buffers for instant access
Control Panel Compatibility	Use PC via Ethernet; Control panel
Input Voltage	12V
Power consumption	23W
Operating Temperature	0-50 deg. Celsius at 10%-80% Humidity
Control Protocol	DVIP
Multi View Monitoring
Number of Windows	2 (PGM, PVW) +6 (Inputs 1-4, Stills & Freeze) +2 Output windows (SDI1, SDI2)
Routable Windows	Yes (Follow XPT)
Tally	Yes
Windows Source Labels	Yes
