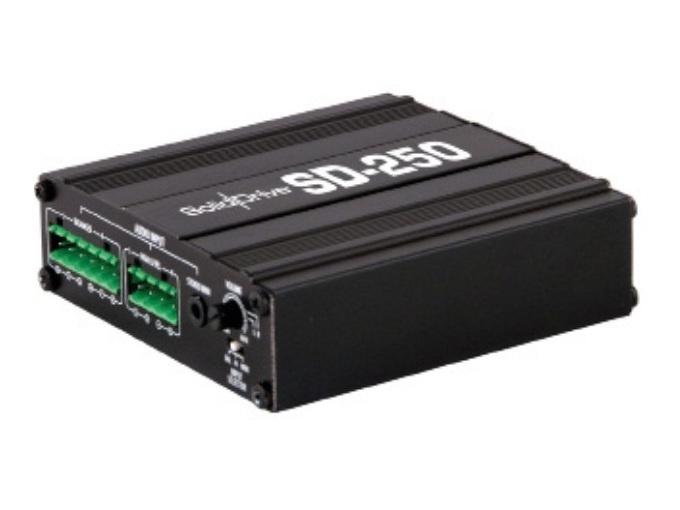

Soliddrive SD250 2-Channel Class D Mini Amplifier with Built-In EQ

Description

34 dB maximum gain with 2 x 50 watt output. Three operating modes: stereo, mono or bridged mono. Three SolidDrive EQ settings for drywall, wood and glass, plus a full-range flat option (no EQ). Three user selectable inputs: balanced stereo euroblock, stereo unbalanced mini jack, or high level euroblock.

External 12-32 V trigger. Signal detecting auto standby to conserve energy. Dual concentric gain controls for independent channel control. 20 Hz- 20 kHz frequency response. Rugged aluminum housing.

Small size: 1.2? x 3.9? x 4?
Optional Accessories: rack mount adapter kit (AC-SD-250-RMA)

Features a 3-year warranty.

Features

34 dB maximum gain with 2 x 50 watt output.
Three operating modes: stereo, mono or bridged mono
Three SolidDrive EQ settings for drywall, wood and glass, plus a full-range flat option (no EQ).
Three user selectable inputs: balanced stereo euroblock, stereo unbalanced mini jack, or high level euroblock.
External 12-32 V trigger
Signal detecting auto standby to conserve energy
Dual concentric gain controls for independent channel control
20 Hz- 20 kHz frequency response
Small size- 1.2″ x 3.9″ x 4″
Rugged aluminum housing
Optional Accessories: rack mount adapter kit (AC-SD-250-RMA)

Specifications

System Type	50 w per channel (8 ohm) class D amplifier
Frequency Response	20 Hz-20 kHz
Max gain	34 dB (8 ohm)
Power per channel @< 1 %THD	50 watts (8 ohms) 65 watts (4 ohms)
Bridged mono power@< 1 %THD	90 watts (4 ohms)
Power supply requirement	32vDC,3.75A
Signal to noise ratio	> 83 dB (50 watts)
Input impedance	47 kohm
Height	30.5 mm (1.2 in.)
Width	99.1 mm (3.9 in.)
Depth	101.6 mm (40 in.)
Weight-amp only	0.26 kg (0.56 lbs)
Packaging	One per box
Included accessories	Power supply stereo RCA female to mini male adapter, pole/ surface mount adapter, two male 4 pin euroblock connectors and two 3-pin euroblock connectors.
Optional accessory (SD-250)	Rack mount adapter (AC-SD-250-RMA)
Regulatory-CE	Approved
RoHS	Approved
