Description

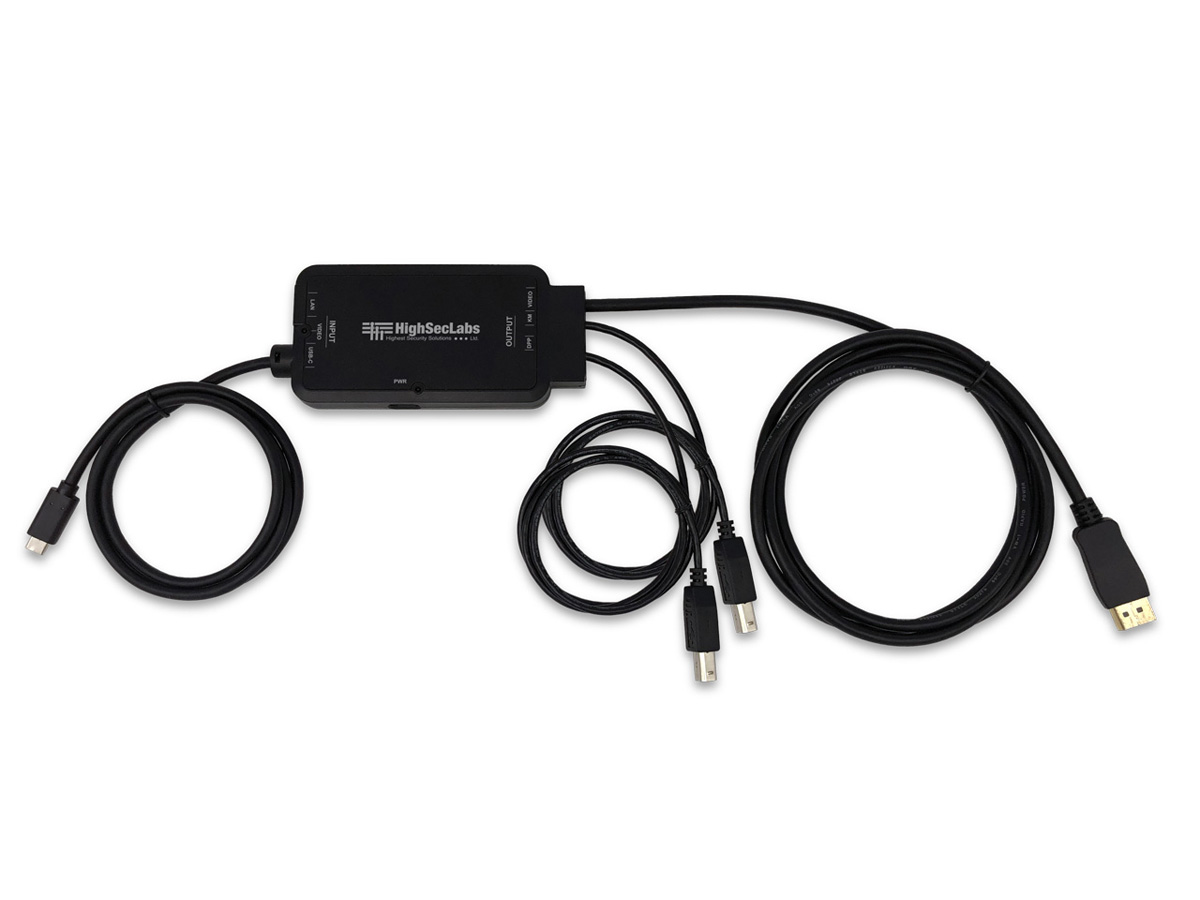

The SCBLN11CCL is a USB-C adaptor cable designed to consolidate video, network, power and peripheral I/O into a single connection. It connects USB-C hosts that support DisplayPort Alt Mode and PD2.0 to a single DisplayPort output, while carrying LAN and USB device signals. The product simplifies KVM integration and reduces cable clutter in professional AV and control-room environments.
This adaptor integrates a DisplayPort single-head video path capable of 4K resolution at 60Hz, Power Distribution compliant with PD2.0 up to 100W and a USB 2.0 data channel for keyboard and mouse connectivity. It also provides a 100MB Ethernet interface to extend network access over the same cable assembly. The adaptor supports standard USB HID devices and common USB peripherals used with KVM receivers.
Technically the SCBLN11CCL provides a 4K60 DisplayPort output, PD2.0 power handling to 100W and USB 2.0 data connectivity. Network throughput is specified at 100MB and the cable assembly includes a 3ft USB-C lead, a 6ft DisplayPort lead and two 6ft USB leads for downstream peripherals. The adaptor housing measures 142.5 x 65.4 x 17 mm and operates in ambient temperatures from 0C to 40C.
Connectivity on the host side is LAN plus Type-C and the video output is a single DisplayPort connector supporting 4K at 60Hz. USB is provided as USB 2.0 for keyboard, mouse and peripheral signals. The adaptor is compatible with USB-C systems that implement DisplayPort Alt Mode and PD2.0 power delivery, and it interoperates with HSL KVM receivers that accept the corresponding DisplayPort and USB inputs.
Typical applications include control rooms, broadcast racks, secure workstations and meeting-room KVM integrations where a single consolidated cable simplifies installation. The compact adaptor reduces rack and desk cabling while maintaining network connectivity and peripheral support. It is suitable for deployments where a single DisplayPort output and USB HID support are required alongside power and network distribution.
Installation is plug-and-play with no drivers required for basic keyboard and mouse operation on supported hosts. The unit is manufactured to HSL life-cycle standards and carries a 2 year warranty for support in professional installations. The build quality and cable lengths are intended to facilitate clean routing in standard AV and IT installations.
