Description
The SC-2402 is a 23.8-inch Full HD surveillance monitor designed for continuous 24/7 operation and multi-screen control room environments. This monitor delivers 1920 x 1080 resolution on an LED-backlit TFT LCD panel and a 3-sided bezel-less form factor to reduce visual gaps between displays. It is built to present CCTV footage with clearer detail and consistent performance under extended duty cycles.
Key features include a dedicated CCTV Mode, enhanced gamma selection, black-level adjustment and a contrast enhancer to improve low-light and low-contrast footage. The monitor includes passive composite loop-through via BNC and native HDMI and VGA inputs for direct camera connections and simple signal routing. Anti-Burn-in technology and commercial-grade components support long-term reliability for continuous monitoring.
Technical performance covers a 250 cd/m2 brightness rating, a 5 ms response time, and a 20,000,000:1 dynamic contrast ratio for improved perceived contrast. The wide 178 degree horizontal and vertical viewing angles preserve image fidelity at off-axis positions. Surface treatments include anti-glare haze and a 3H hard coating for reduced reflections and surface durability.

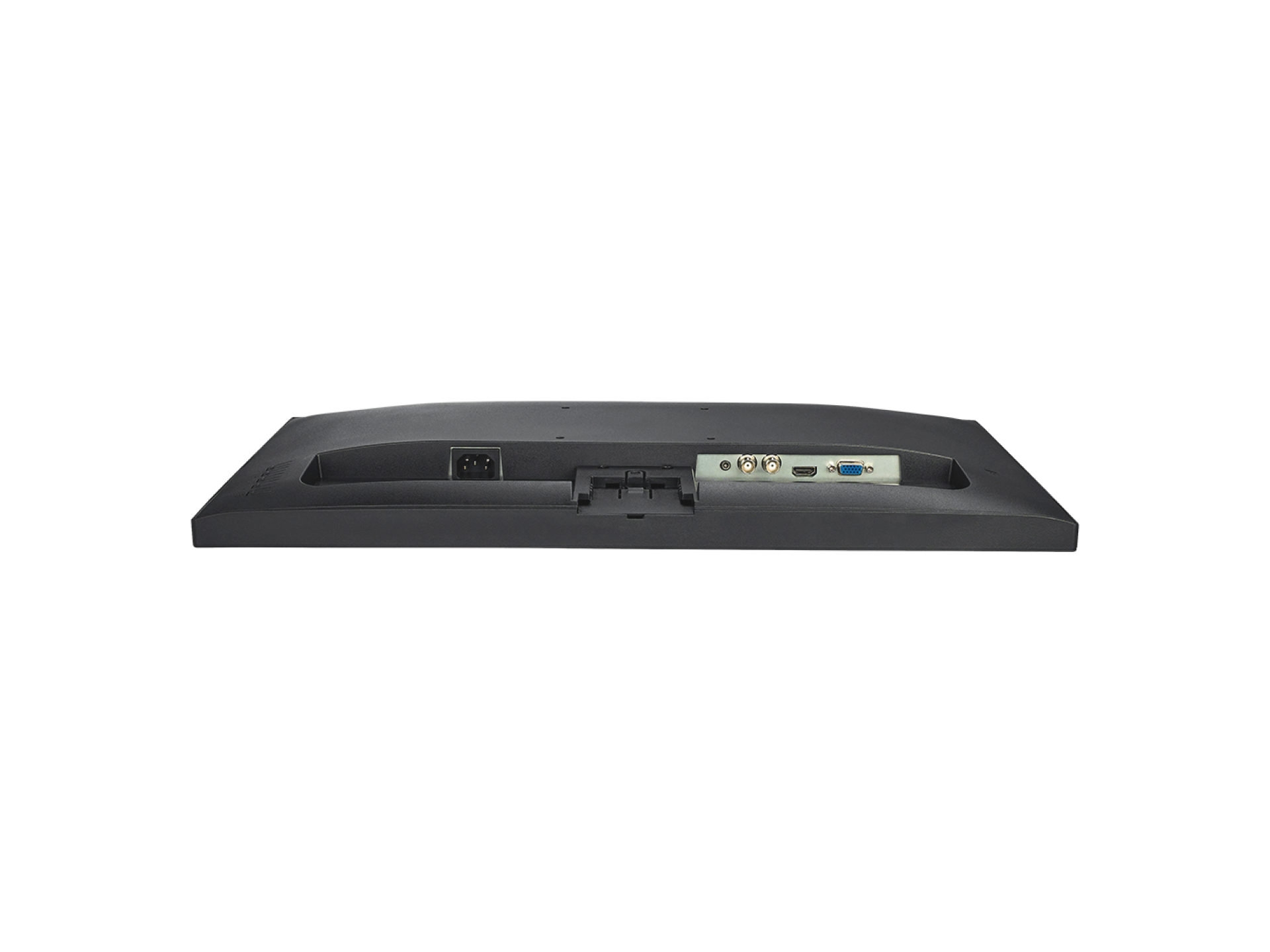

Connectivity is comprehensive for security deployments: HDMI 1.4, 15-pin D-Sub VGA, composite BNC input and BNC passive loop-through output, plus a stereo audio in jack and 2W x 2 internal speakers. Power requirements accept AC 100-240V at 50/60 Hz and the monitor consumes 15W in normal operation while employing low-power standby modes.
Typical use cases include command-and-control workstations, CCTV operator consoles and multi-monitor walls where quick scene assessment is critical. The 3-sided bezel-less design improves situational awareness by minimizing bezel gap while VESA 100 x 100 mm compatibility simplifies mounting in stacked or tiled arrays. Built-in image presets reduce setup time when connecting different camera sources.
Installation is straightforward with a tilt-adjustable base (-5 degrees to 20 degrees), Kensington security slot and support for a variety of AG Neovo mounting accessories. The monitor is engineered for continuous operation and reduced maintenance overhead for 24/7 environments, delivering consistent image settings and long panel life for professional surveillance installations.
