Description

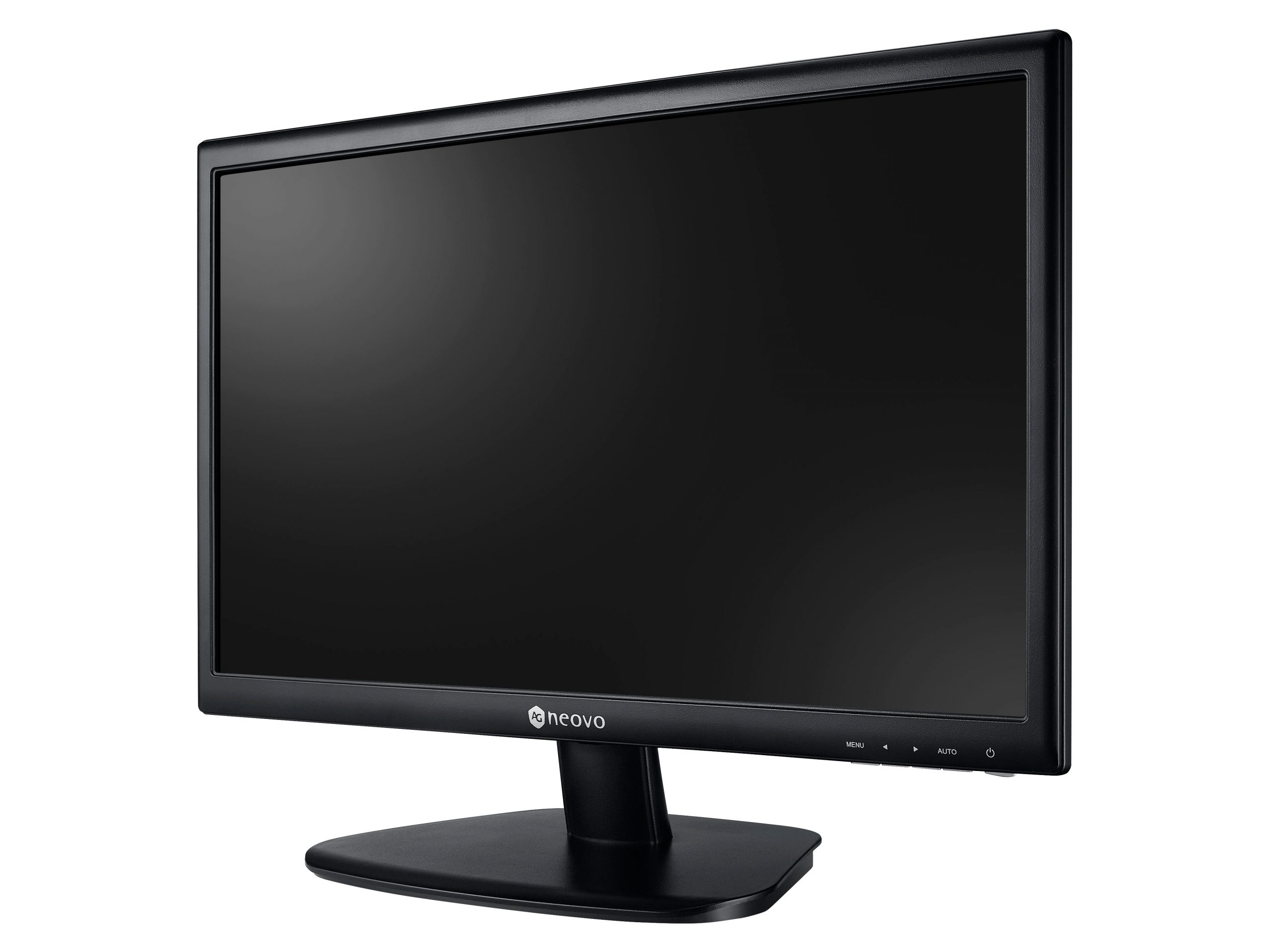

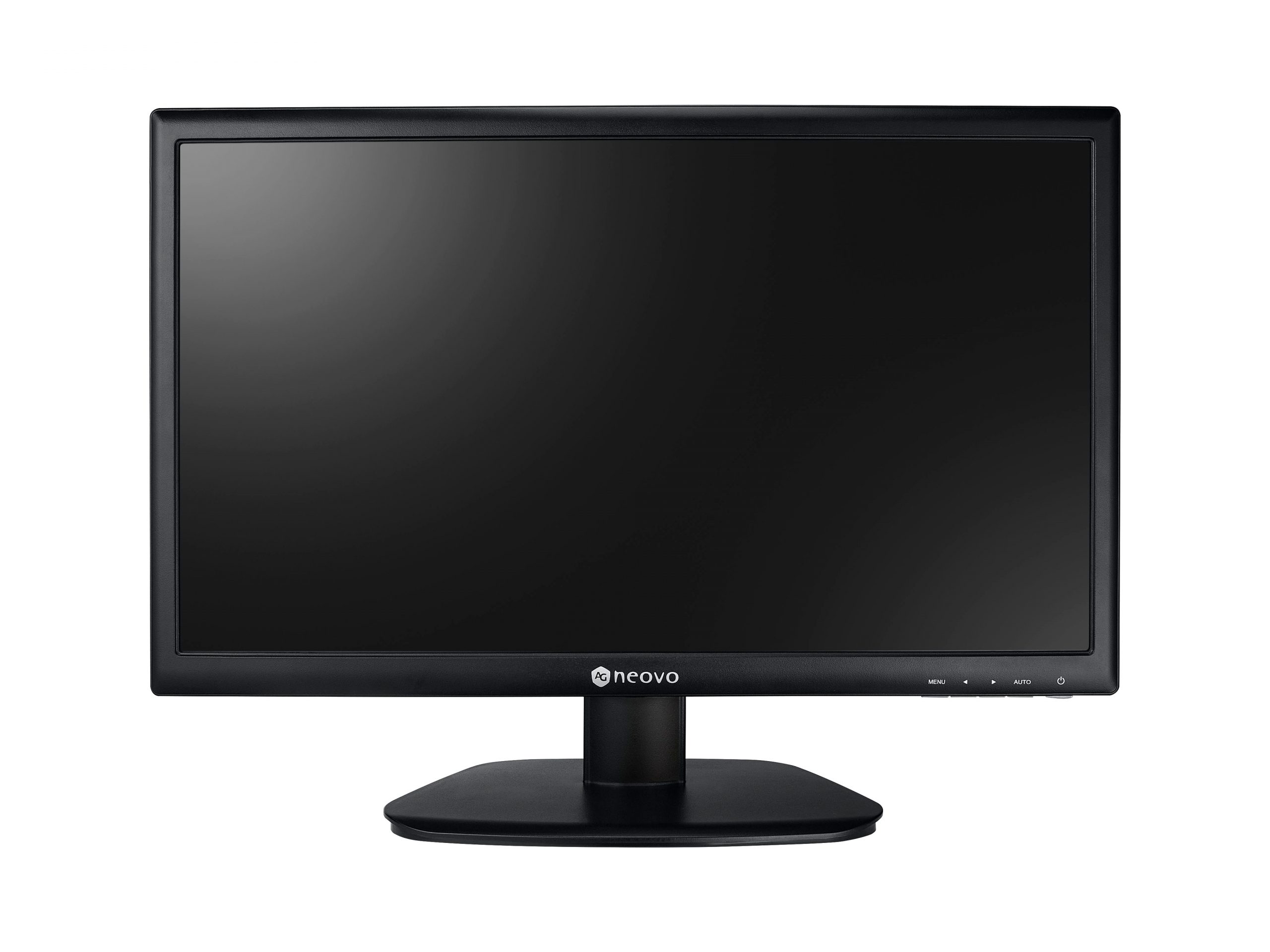

The SC-2202 is a 22-inch Full HD surveillance monitor designed for continuous 24/7 video monitoring. It delivers 1920 x 1080 resolution and a 21.5 inch TN panel optimized for CCTV and security operator environments. Built-in image enhancement and anti-burn-in technology support long-duration use and reliable image rendering.
The monitor includes quick image settings such as CCTV Mode, gamma selection, black-level adjustment and contrast enhancer for fast optimization of low-light footage. It offers dedicated video enhancement controls to improve detail and clarity in critical scenes. These controls reduce the need for repeated manual tuning across multiple cameras.
Technically the SC-2202 provides a 3 ms response time, 250 cd/m2 brightness, 16.7M colors and a dynamic contrast ratio of 20,000,000:1 (DCR). Horizontal and vertical viewing angles are 170° and 160° respectively, and frequency ranges cover 30 kHz-85 kHz horizontal and 48 Hz-75 Hz vertical. The panel uses a 0.248 mm pixel pitch to maintain image sharpness at close viewing distances.

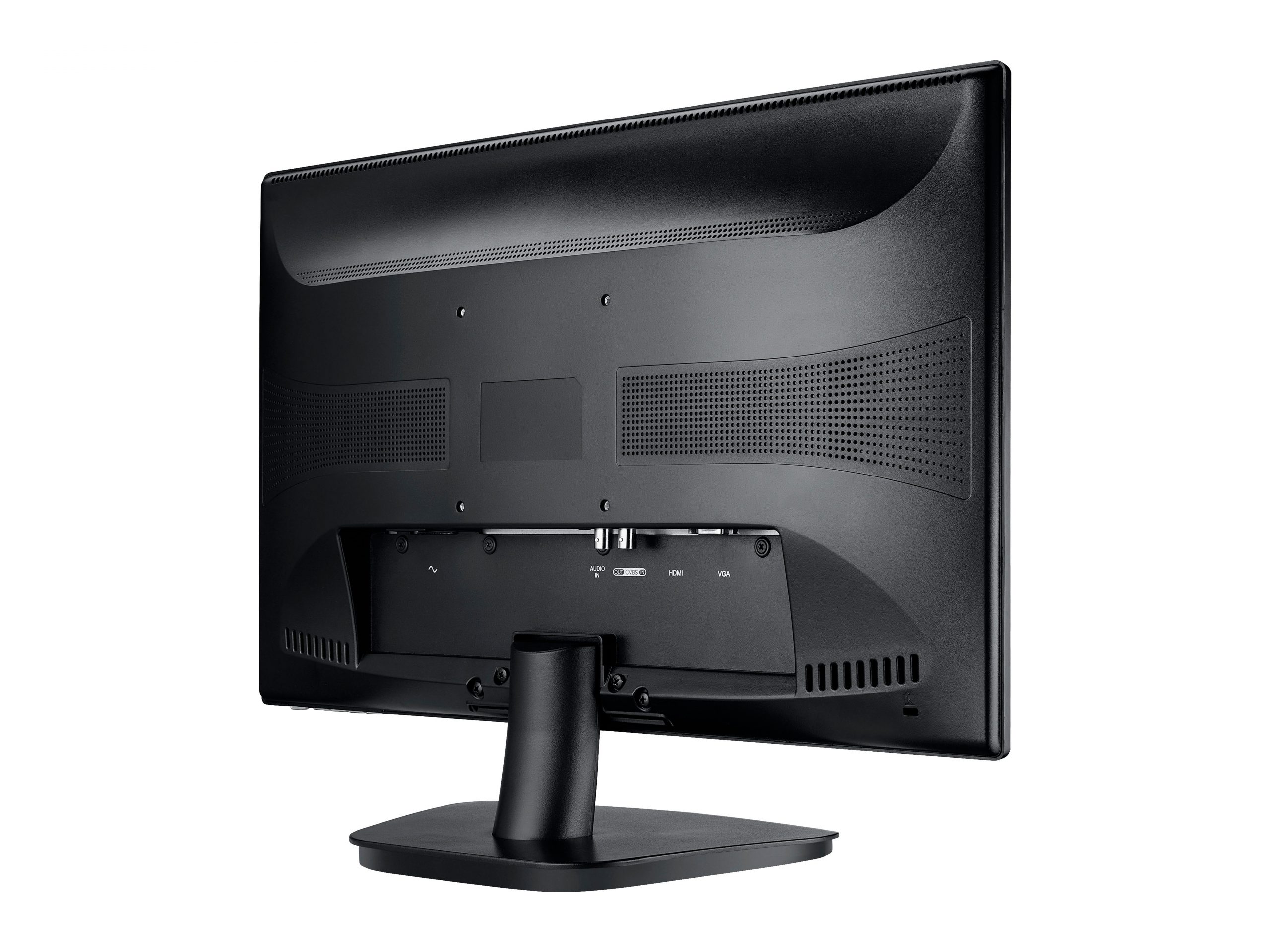

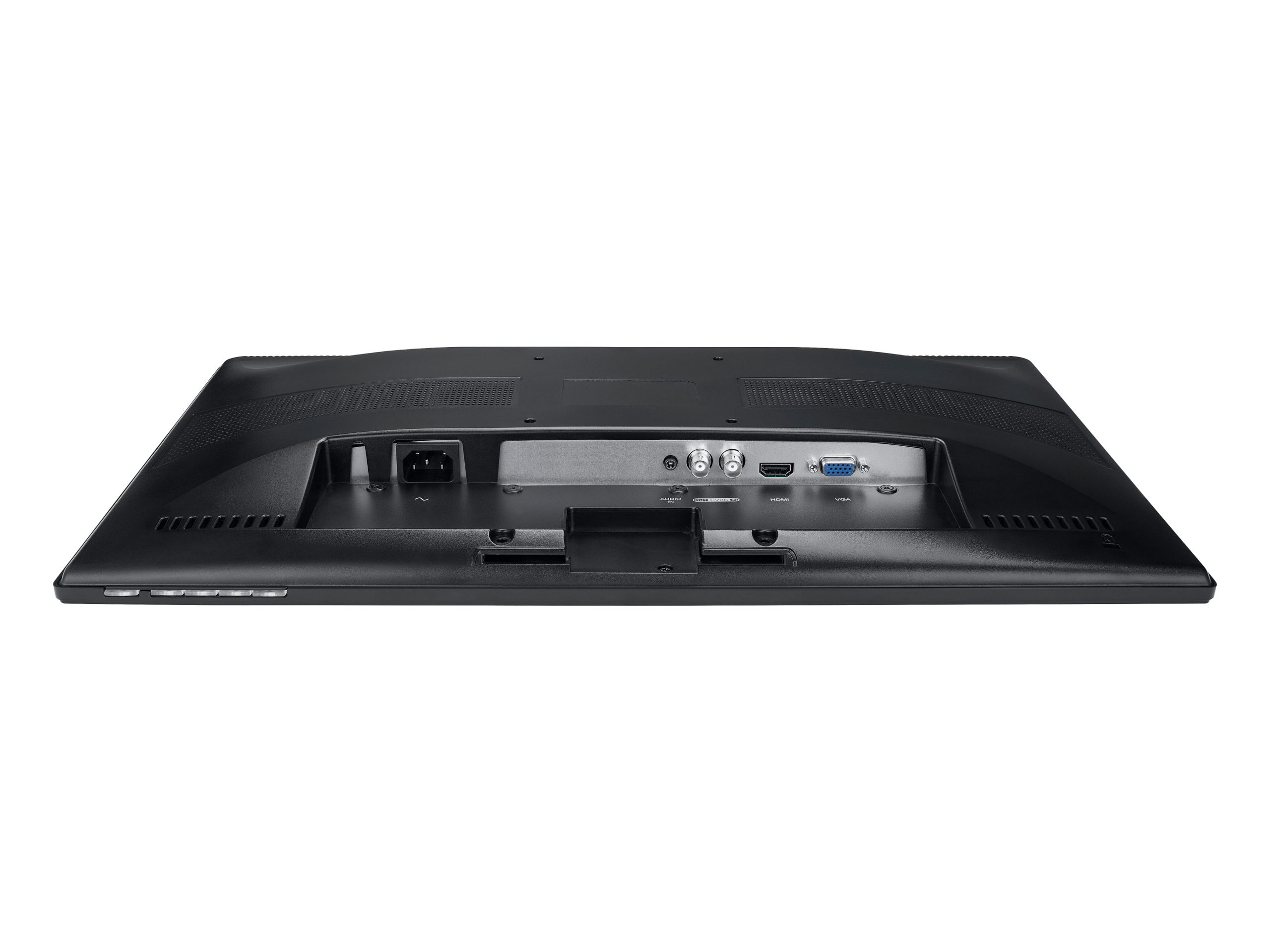

Connectivity includes HDMI 1.4, 15-pin VGA and composite BNC input plus a passive composite BNC loop-through output for direct camera monitoring. Stereo audio input and internal 2W x 2 speakers are provided for basic audio monitoring. Power is supplied internally via AC 100-240V 50/60 Hz and the unit consumes 16W in on mode with standby power under 0.5W.

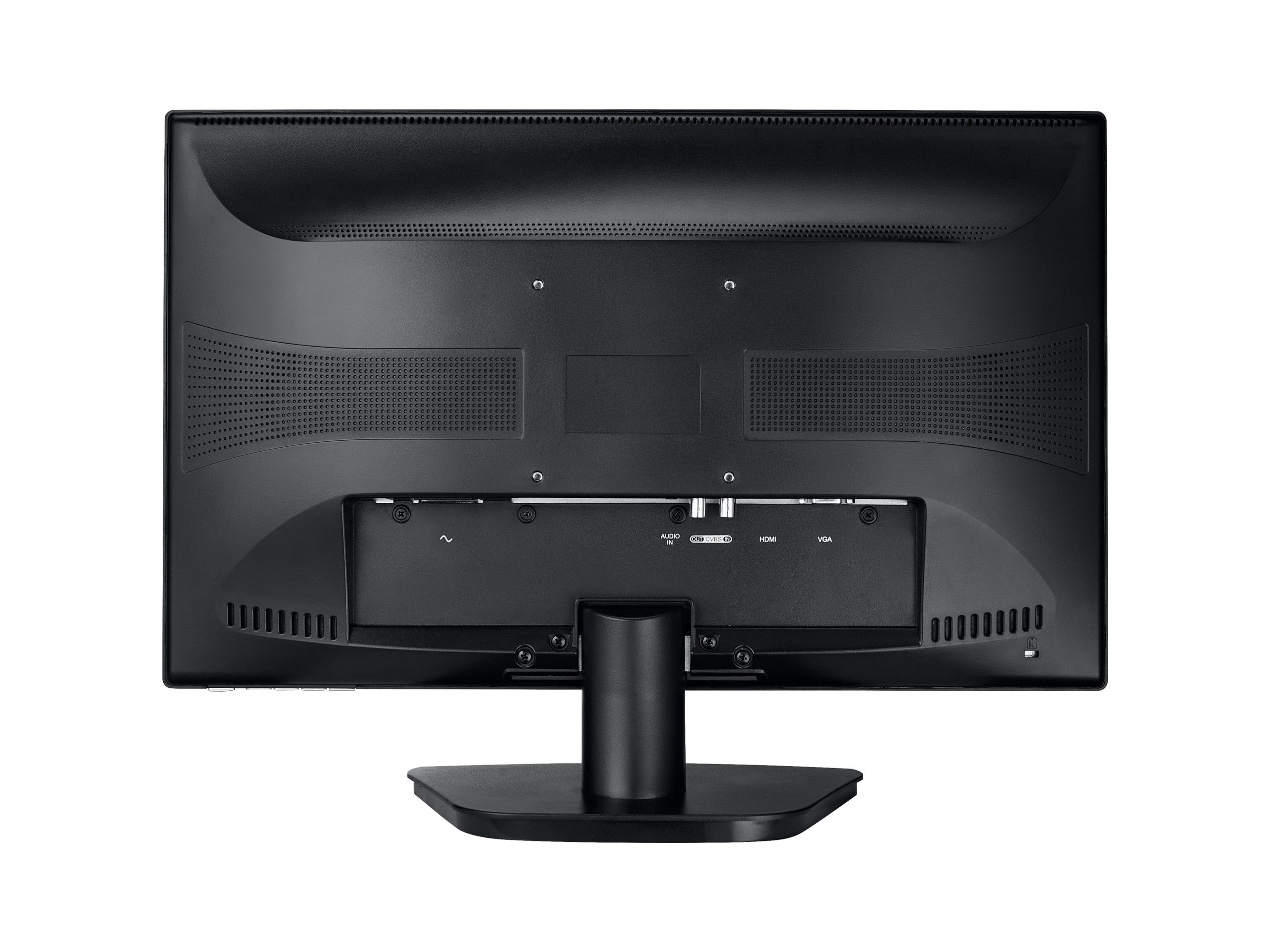

Typical use cases include control room operator workstations, security desks, and multi-monitor surveillance arrays where consistent day/night monitoring is required. The monitor is VESA 100 x 100 mm compatible to support desk, wall and multi-monitor mounts. Its image modes and black-level adjustments make it well suited to scenes with low illumination and high dynamic range.

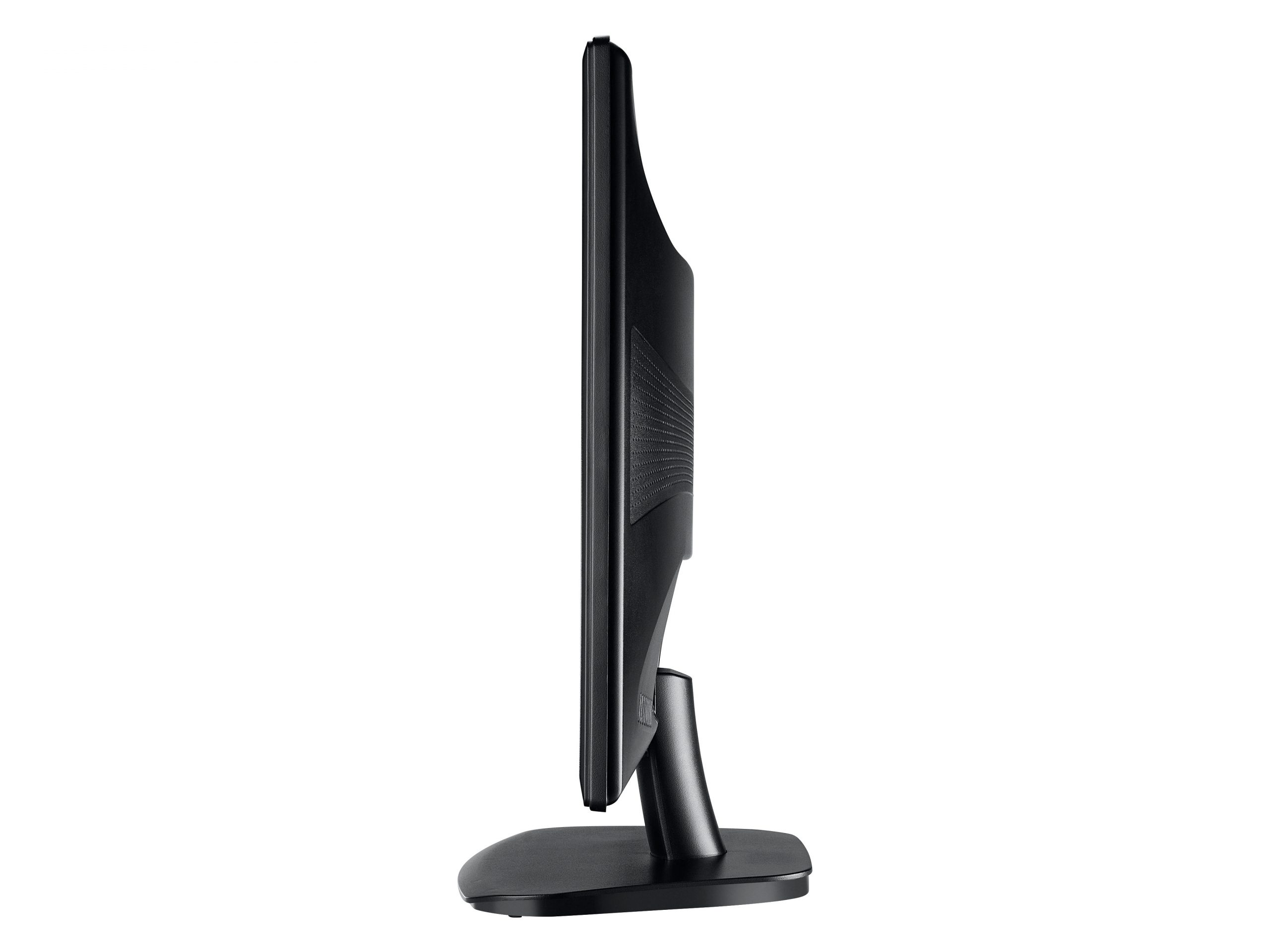

Installation and daily operation are straightforward thanks to a tilt-adjustable stand (-5° to 15°), Kensington security slot and compact dimensions. The bezel-minimized design helps create tiled monitor arrays while the AG Neovo Anti-Burn-in technology reduces the risk of image retention. The SC-2202 is built for extended uptime and simplified integration into CCTV workflows.
