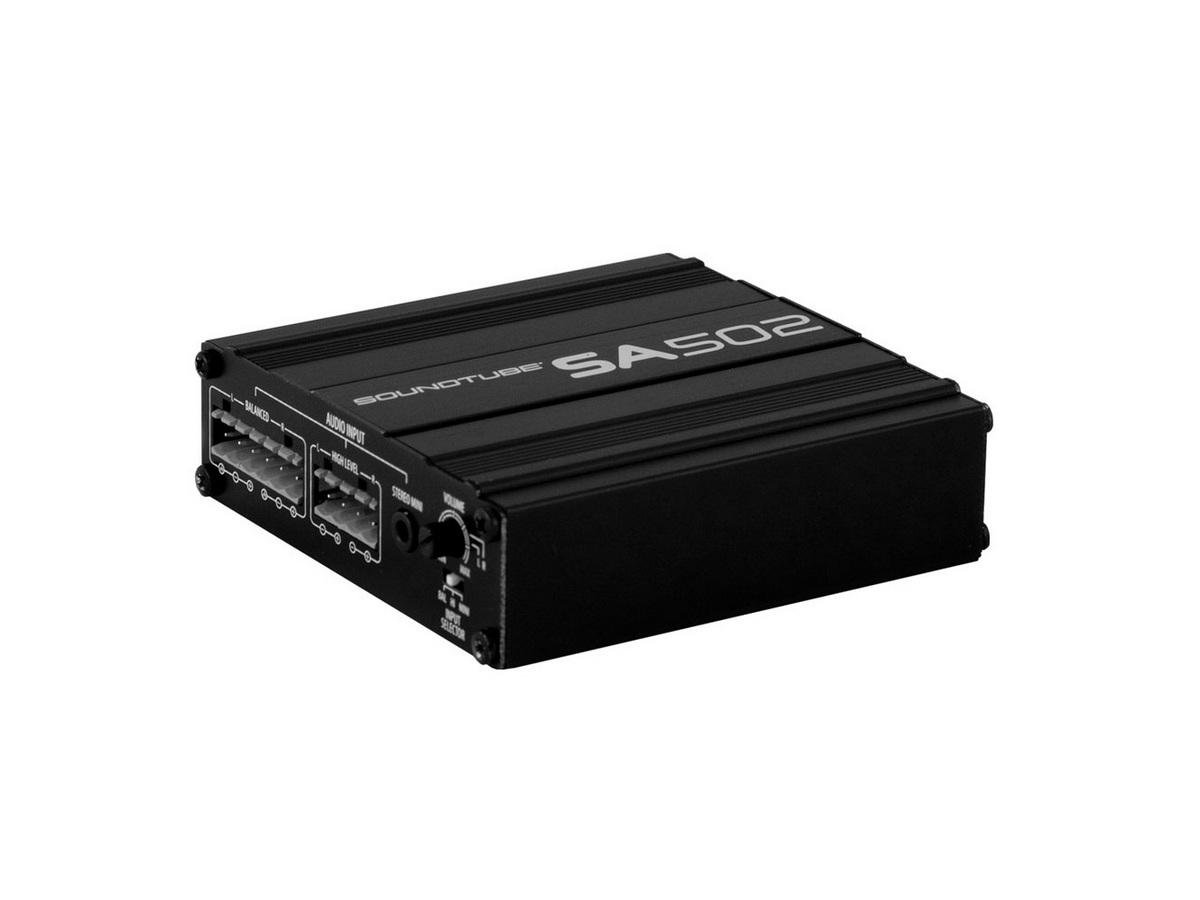

Soundtube SA502 50-Watt Per Channel Class D Amplifier

Description

The SA502 is 50-watt per channel (4 ohm) Class D amplifier with maximum gain of 34 dB. Input options include balanced stereo euroblock, unbalanced line level mini jack, and a stereo speaker level (amplified) euroblock input for applications with low wattage speaker outputs. The SA502 has three operating modes: stereo, dual mono, or bridged mono. In stereo, each input channel flows directly to its corresponding output channel. In dual mono, the left input is fed to both output channels. In bridged mono, the left input is fed to the bridged output. System includes selectable 12-32 v external trigger input or auto standby to conserve energy

Features

34 dB maximum gain with 2 x 50 watt output.
Three operating modes: stereo, mono or bridged mono
Three user selectable inputs: balanced stereo (euroblock), stereo unbalanced mini jack, or high level euroblock.
External 12-32 V trigger
Signal detecting auto standby to con- serve energy
Bi-color LED on front panel indicates when unit has power (red) and when signal is sensed (blue).
Dual concentric gain controls for inde- pendent channel control
20 Hz- 20 kHz frequency response
120 Hz high pass switch (defeatable)
Small size- 1.2″ x 3.9″ x 4″
Rugged aluminum housing
Optional Accessories: rack mount adapter kit (AC-SA502-RMA)

Specifications

System Type	50 w per channel (8 ohm) class D amplifier
Frequency Response	20Hz-20kHz
Max gain	34 dB (8 ohm)
Power per channel @ < 10 % THD	55 watts (8 ohm) 2 x 70 watts (4 ohms)
Power per channel @ < 1 % THD	50 watts (8 ohm) 65 watt (4 ohm)
Bridged mono power @ < 1 % THD	90 watts (4 ohm)
Power supply requirement	32 v DC, 3.75A
Signal to noise ratio	> 83 dB (50 watts)
Input impedance	47 kohm line level, 600 ohm balanced
Input sensitivity	0.5 v line input
High-pass filter (F^)	120 Hz (12 dB per octave) selectable
Height	30.5 mm (1.2 in.)
Width	99.1 mm (3.9 in.)
Depth	101.6 mm (4.0 in.)
Weight-amp only	0.26 kg (0.56 lbs)
Packaging	One per box
Included accessories	Power supply, stereo RCA female to mini male adapter, pole/surface mount adapter, two male 4 pin euroblock connectors and two 3 pin Euroblock connector.
Optional accessory (SA502)	Rack mount adapter (AC-SA502-RMA)
Regulatory-UL	Planned
Regulatory-CE	Approved
RoHS	Approved
