Description

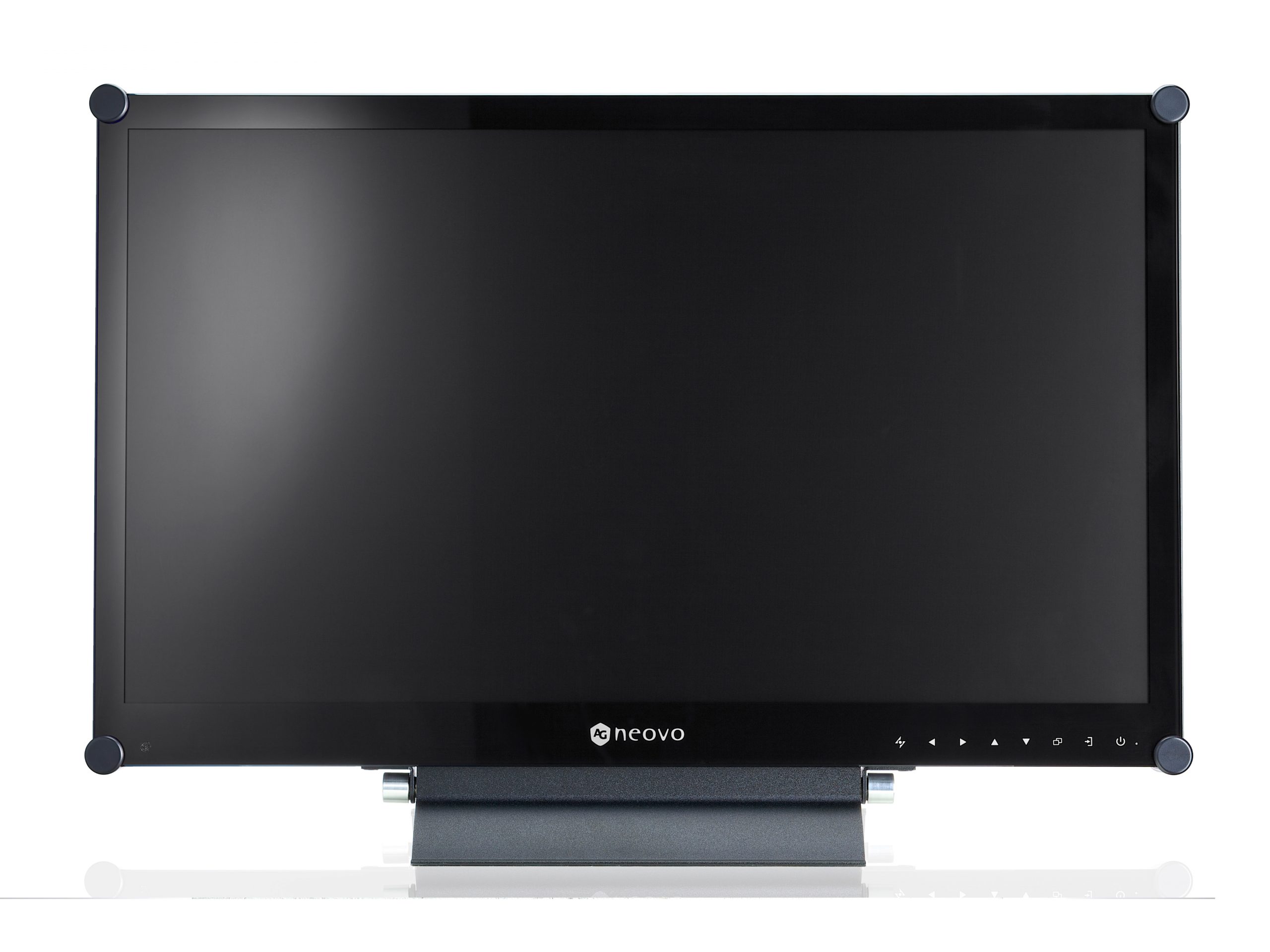

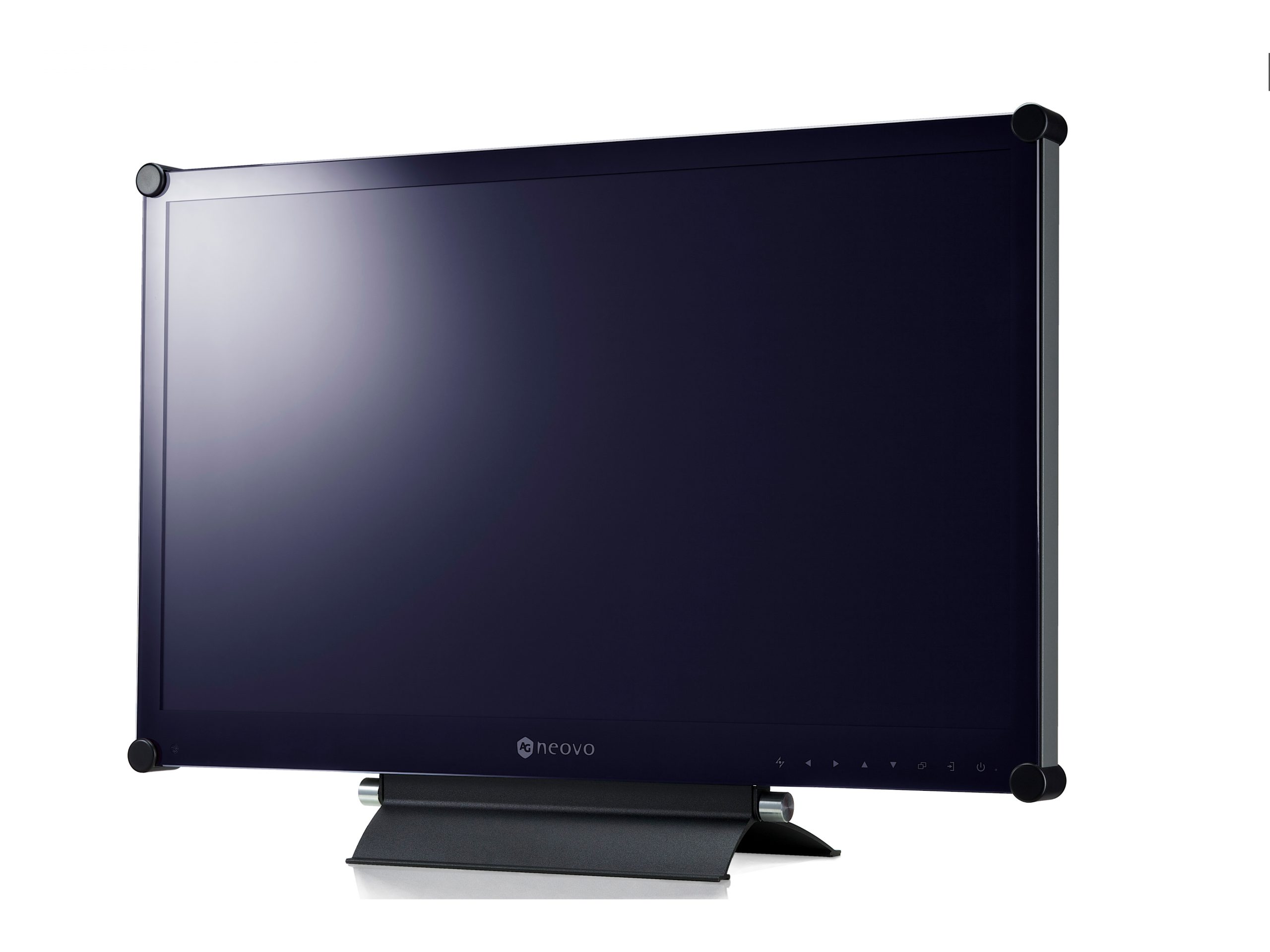

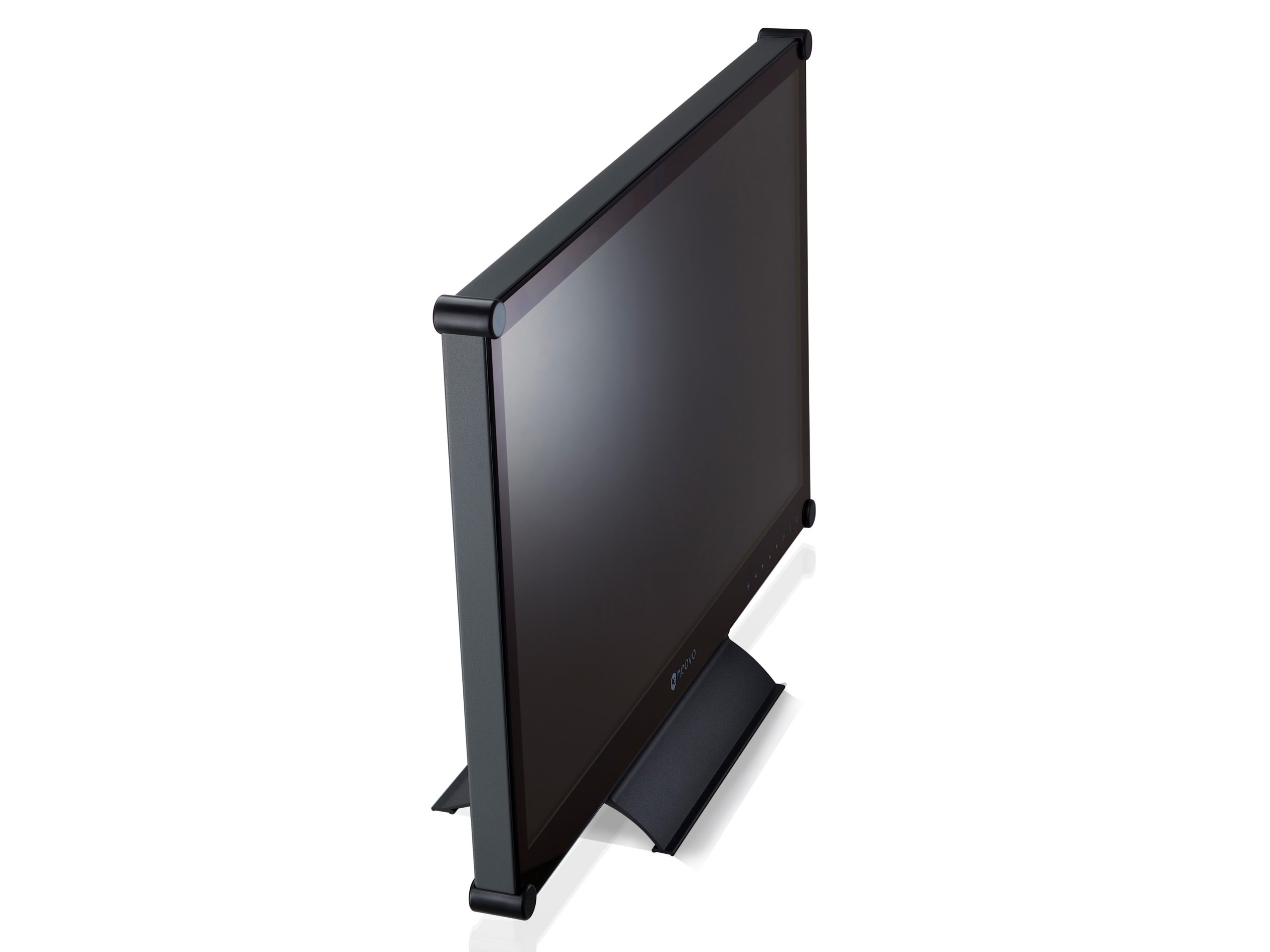

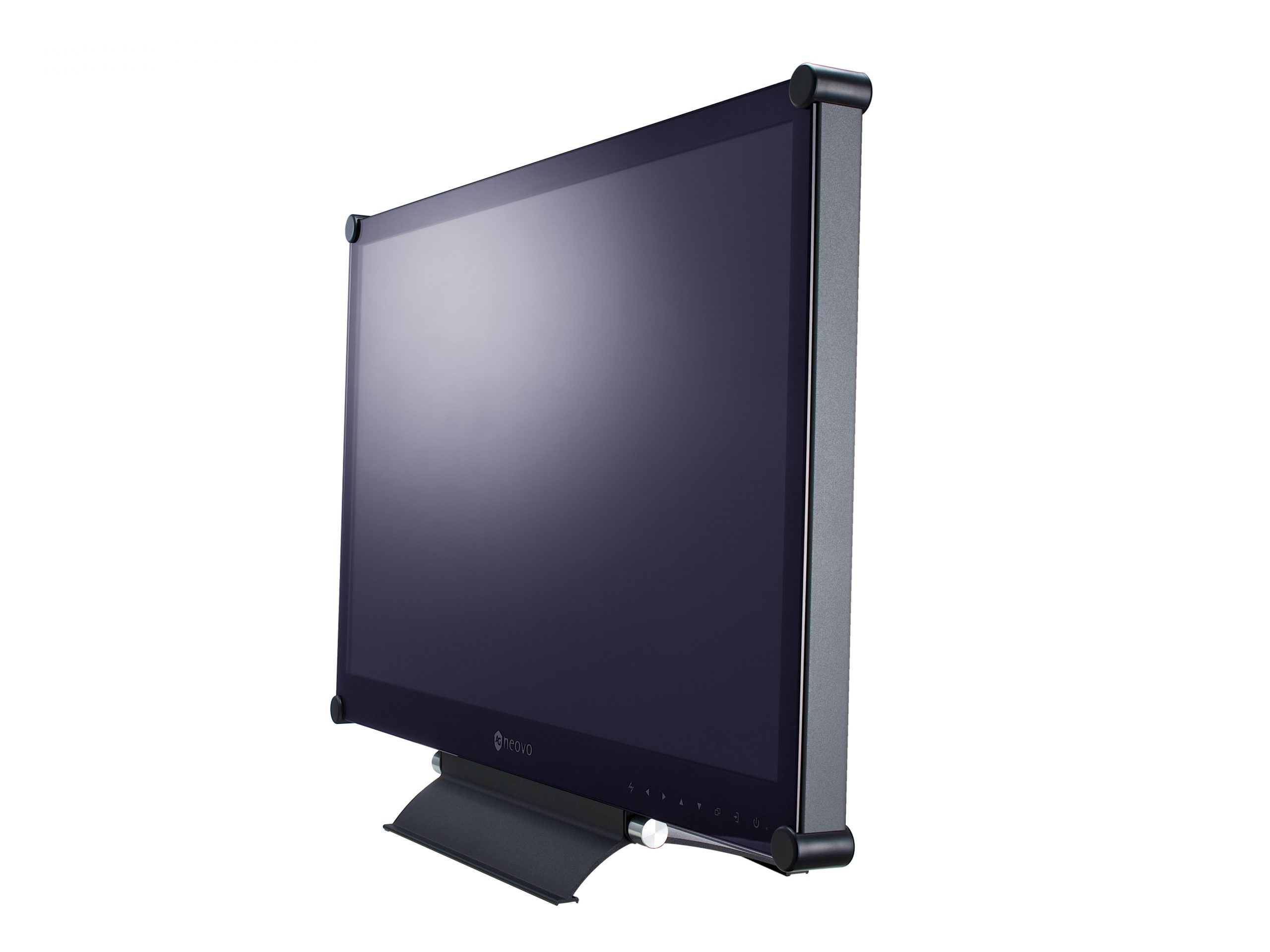

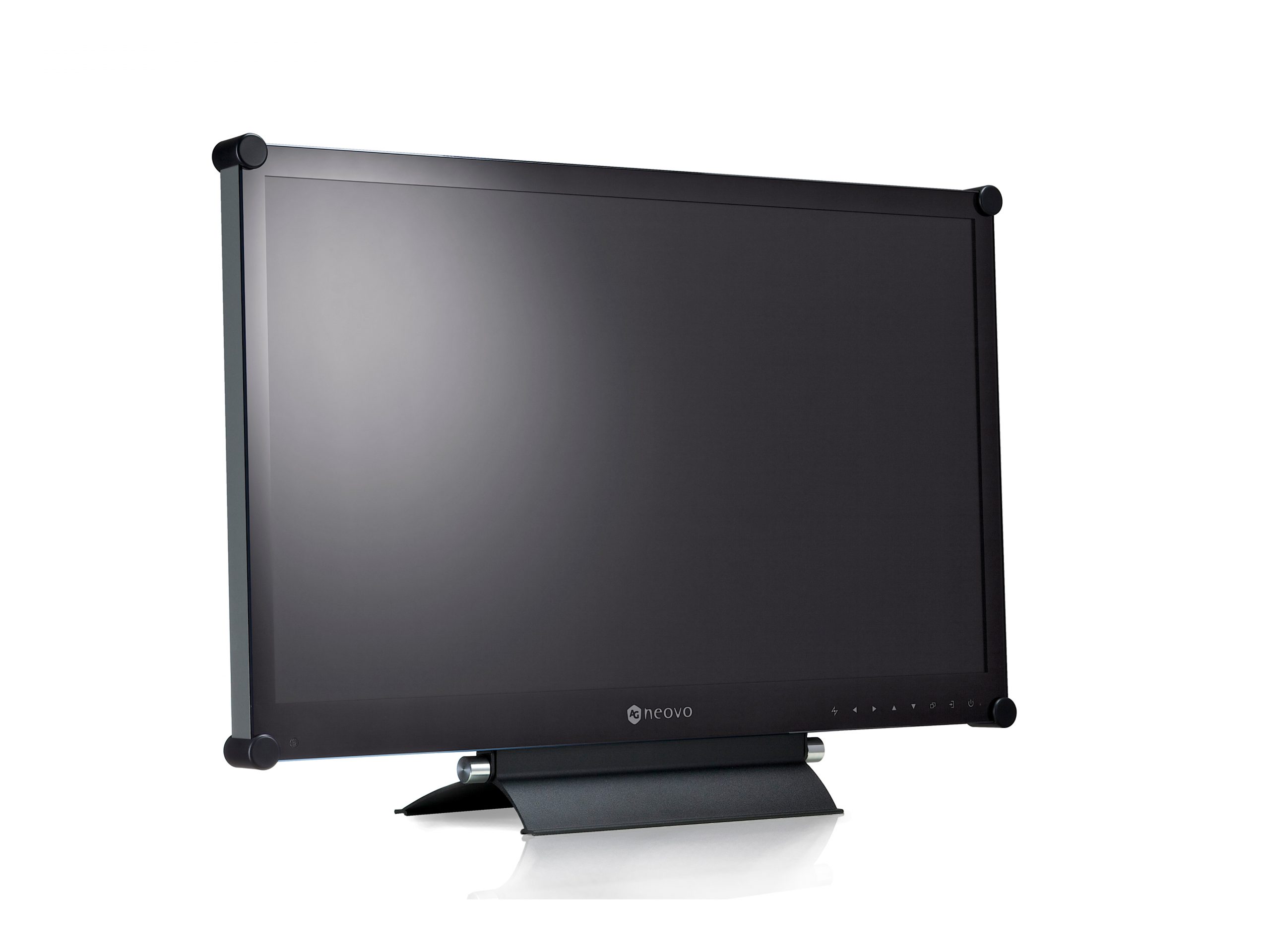

The RX-2402 is a 24in Full HD surveillance monitor engineered for continuous security operations and centralized monitoring stations. It combines a VA panel and NeoV Optical Glass to protect the screen surface while delivering clear 1920 x 1080 imagery. The design supports long-term use in controlled and light industrial environments.
Key features include NeoV Optical Glass with IP65 and IK07 front protection, Anti-Burn-in Technology to prevent image ghosting, and Super Resolution mode to enhance detail for identification tasks. The monitor also includes Night Mode and a dedicated CCTV Mode to optimise low-light and night-time camera images. EcoSmart backlighting reduces power draw by 30-50% under typical operating conditions.
Technical performance is driven by a 23.8in VA panel, 300 cd/m2 brightness, 5ms response time and a 20,000,000:1 dynamic contrast ratio. The panel supports 16.7M colours and a 178°/178° viewing angle for reliable image consistency across monitoring positions. Anti-glare surface treatment (Haze 25%) and a 3H hard coating improve visibility and reduce reflections in mixed lighting.

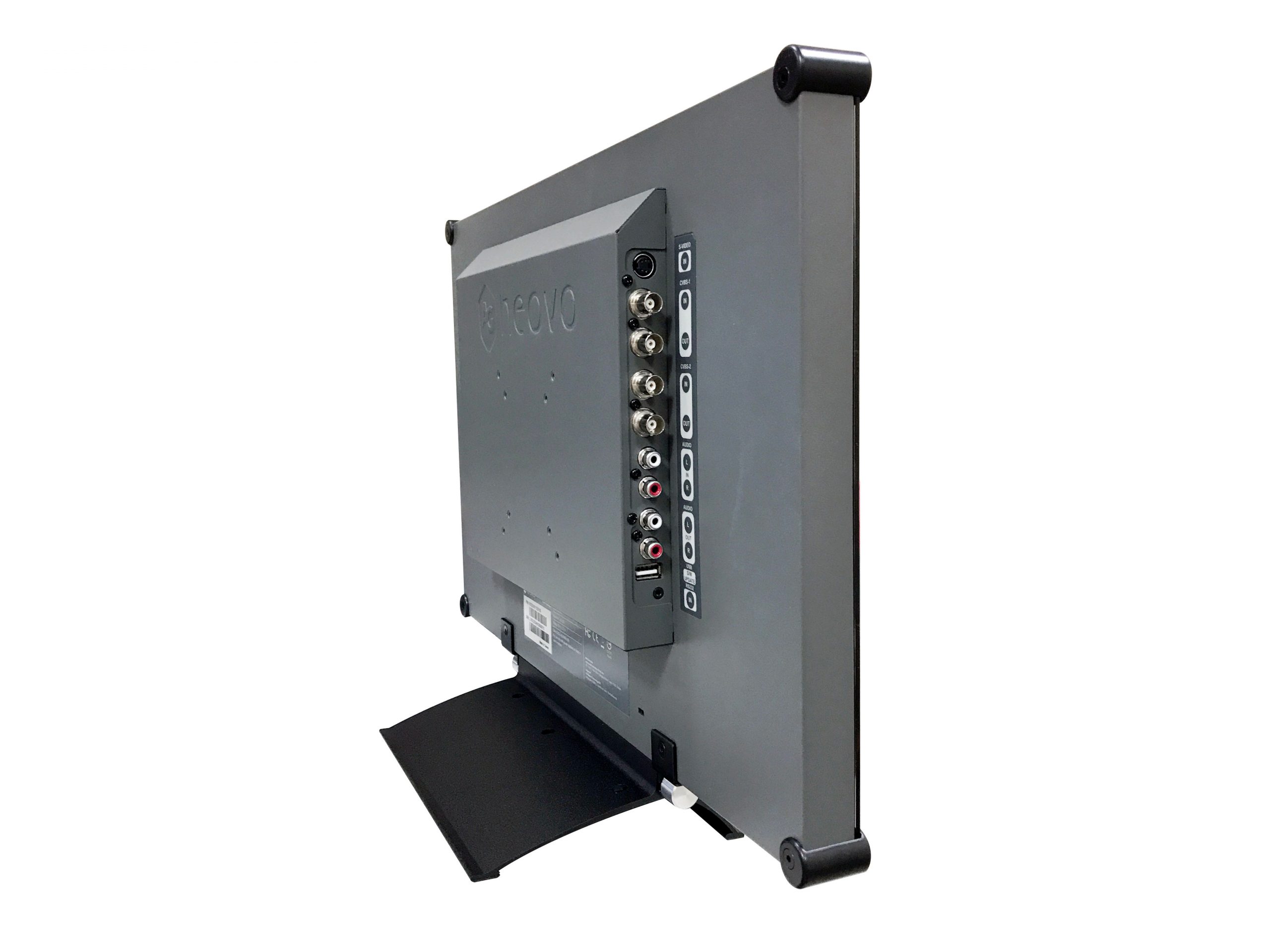

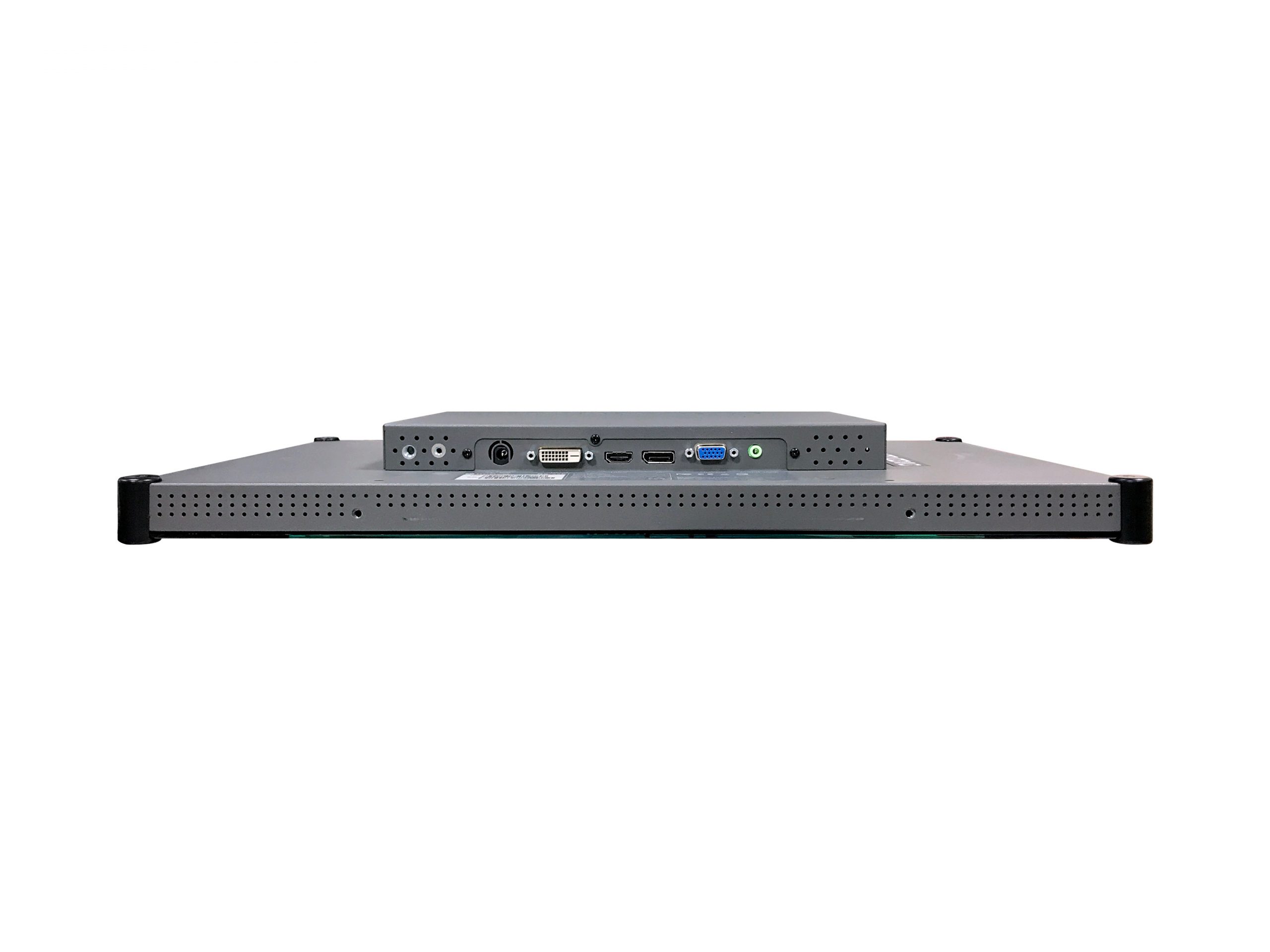

Connectivity is comprehensive for surveillance systems: DisplayPort, HDMI 1.4, DVI-D, VGA, Composite BNC inputs and S-Video, plus BNC loop-through output for daisy-chaining feeds. Audio I/O, RS232 control and a USB service port are also provided to integrate with DVRs, NVRs and remote control systems. VESA 100 x 100 mm and 75 x 75 mm mounting support allows wall, ceiling and desk installation.
The RX-2402 addresses practical monitoring needs across control rooms, security desks and remote monitoring hubs. Night Mode reduces eye strain during extended low-light viewing and CCTV Mode fine-tunes colour handling for camera feeds. Picture-in-Picture (PIP) and Picture-by-Picture (PBP) let operators view multiple sources simultaneously for faster incident assessment.
Installation and maintenance are straightforward thanks to front-facing touch controls and an image rotate function for ceiling mounting. The metal casing and IK10-rated rear protection ensure long-term durability in demanding setups. Certified to EN50130-4 and EN IEC 61000-6 standards, the monitor delivers stable performance in environments prone to electromagnetic disturbance.
