Description

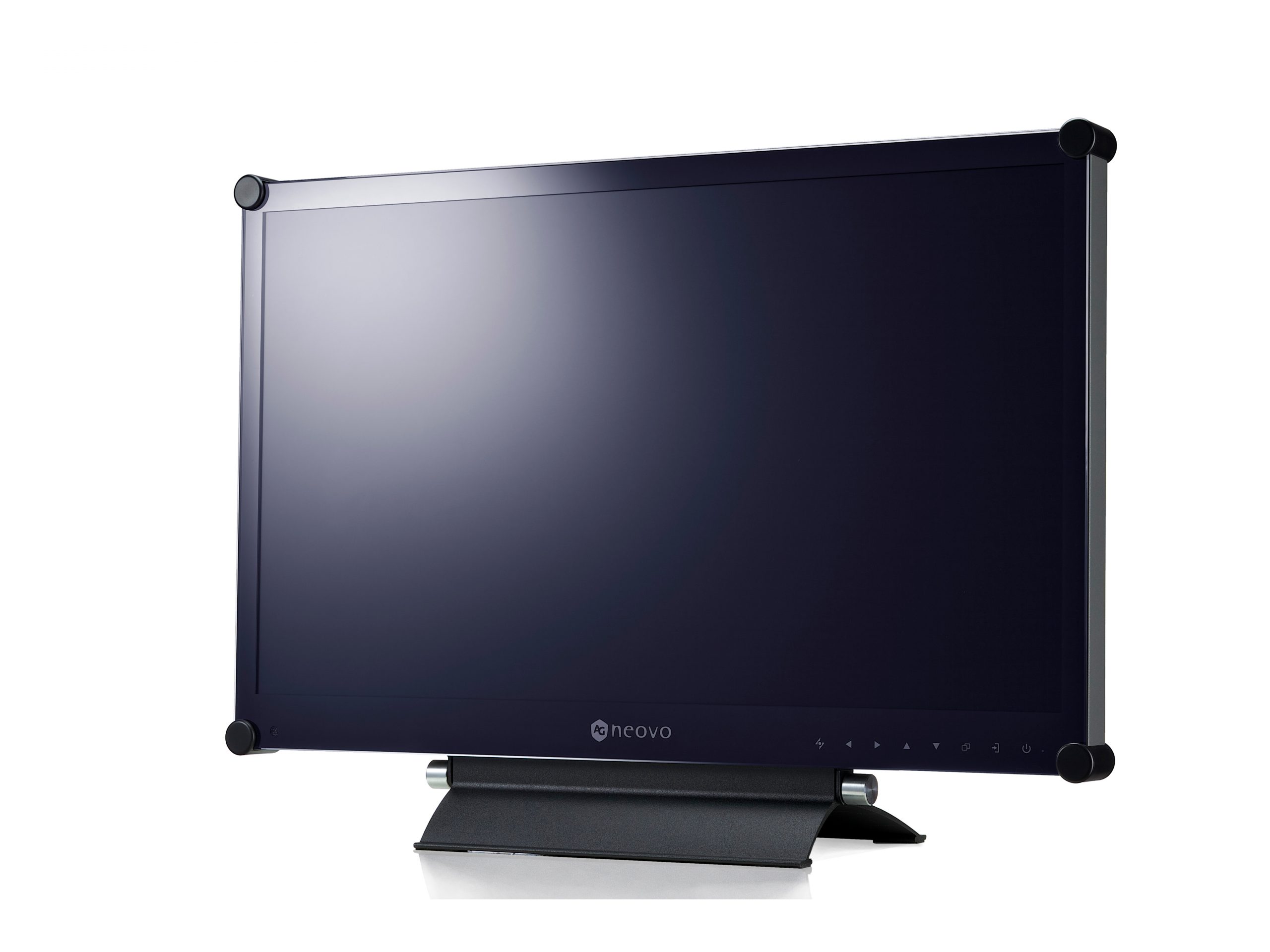

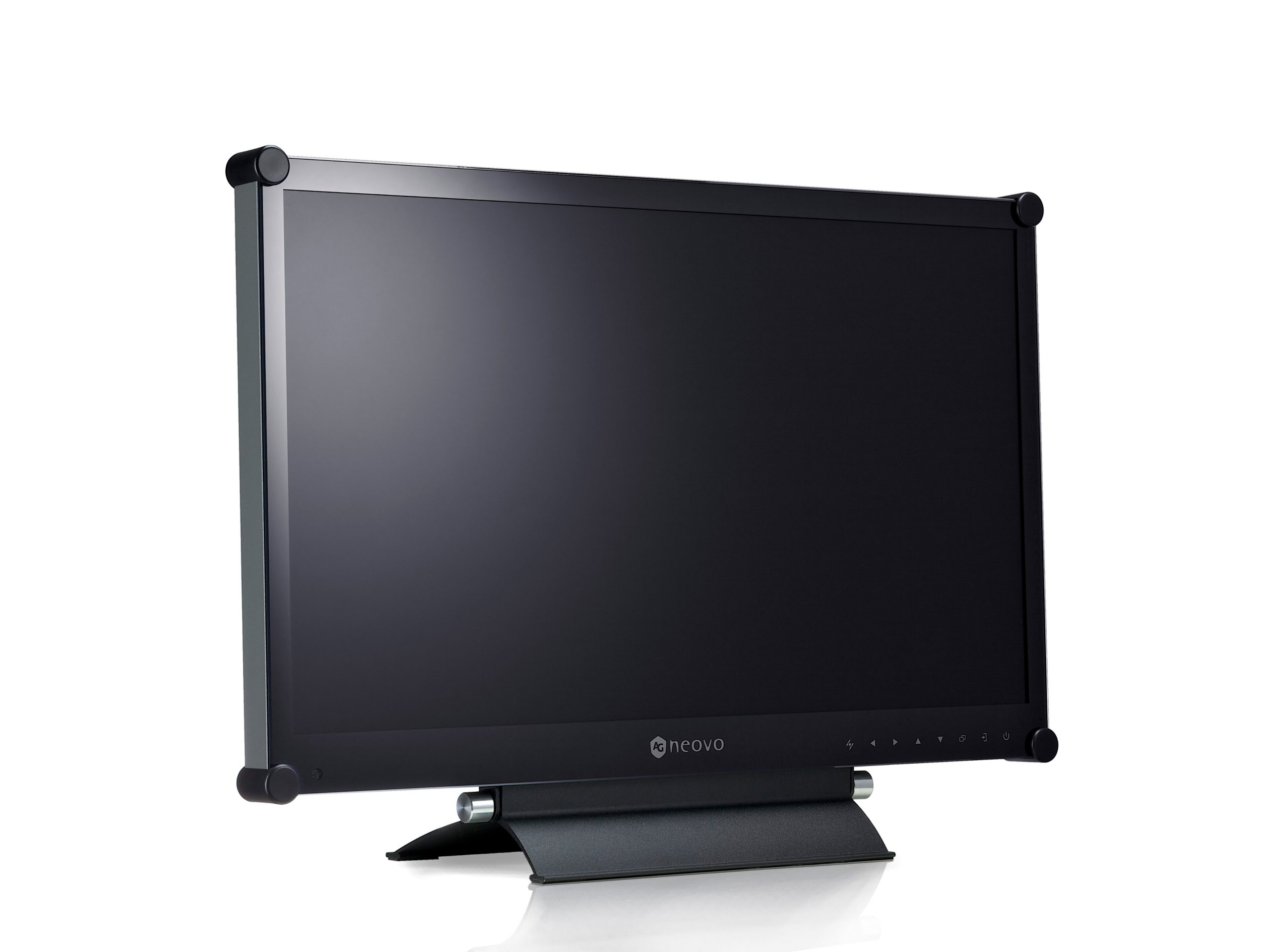

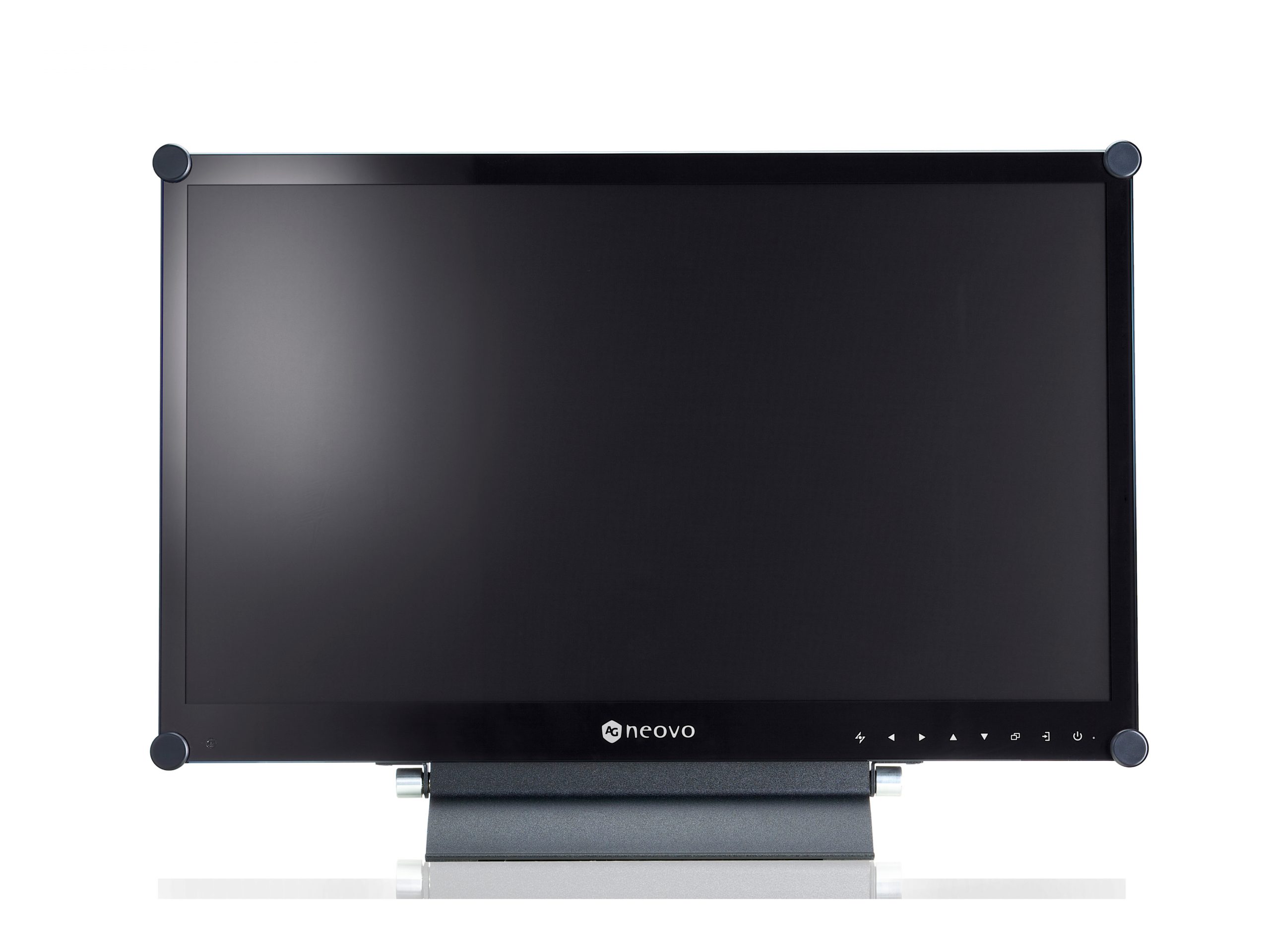

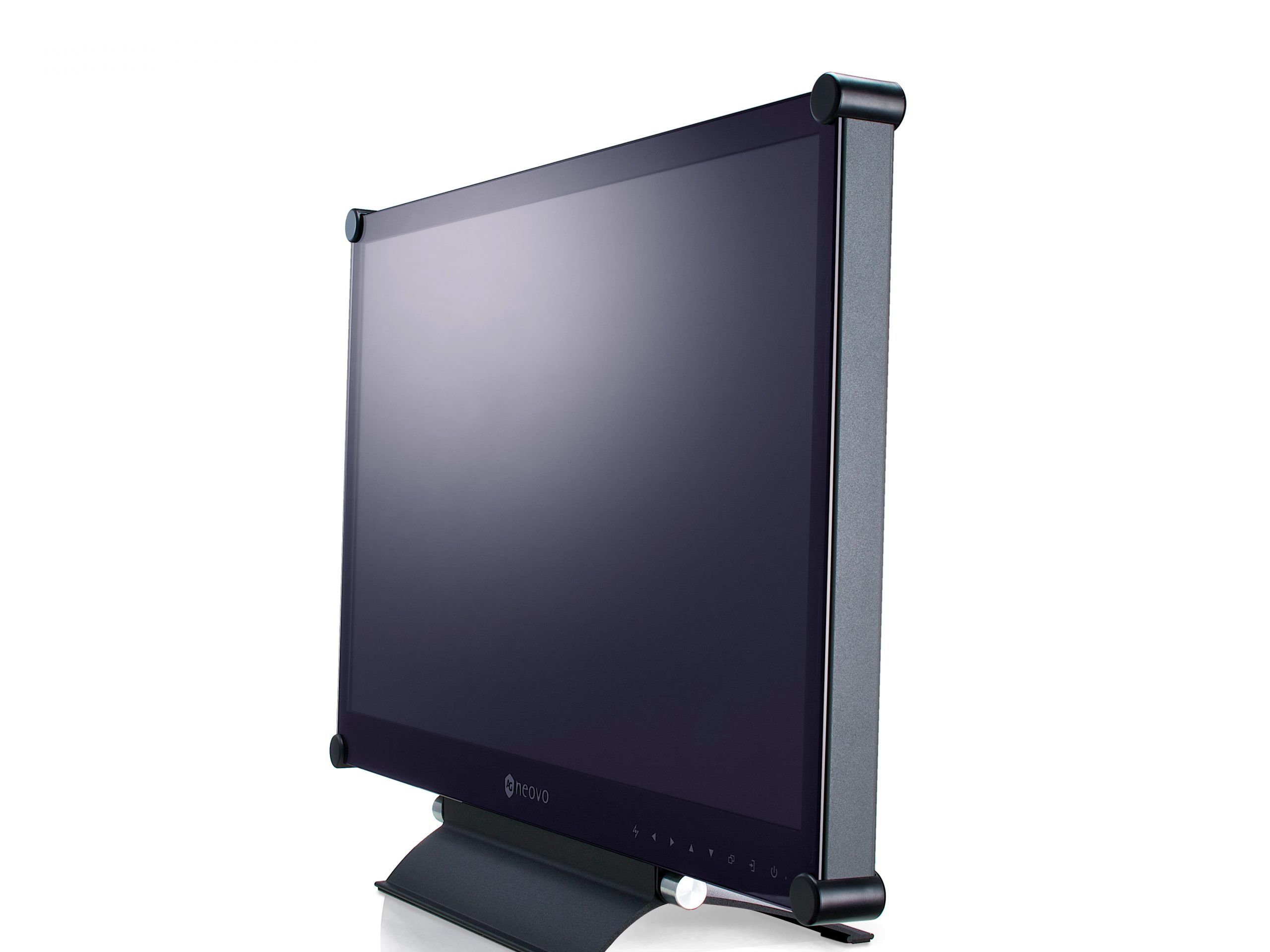

The RX-2202 is a 21.5 inch FHD surveillance monitor designed to deliver continuous, reliable video monitoring in challenging environments. It combines an IPS panel and NeoV Optical Glass to preserve image clarity while providing physical protection. The monitor is engineered for long-term operation and clear evidence review.
Key features include NeoV Optical Glass with IP65 and IK07 protection on the front and an IK10-rated metal housing at the rear. Anti-Burn-in Technology reduces static image retention and Super Resolution enhances image clarity for better recognition of details. The display also offers Night Mode and a dedicated CCTV Mode to optimise low-light imagery.
Performance specifications include a 1920 x 1080 FHD resolution, 5 ms response time, 250 cd/m2 brightness and a 20,000,000:1 dynamic contrast ratio. The IPS panel gives wide 178°/178° viewing angles and supports 16.7 million colours. Frequency ranges cover 24 kHz-83 kHz horizontal and 50 Hz-75 Hz vertical refresh ranges for stable video playback.

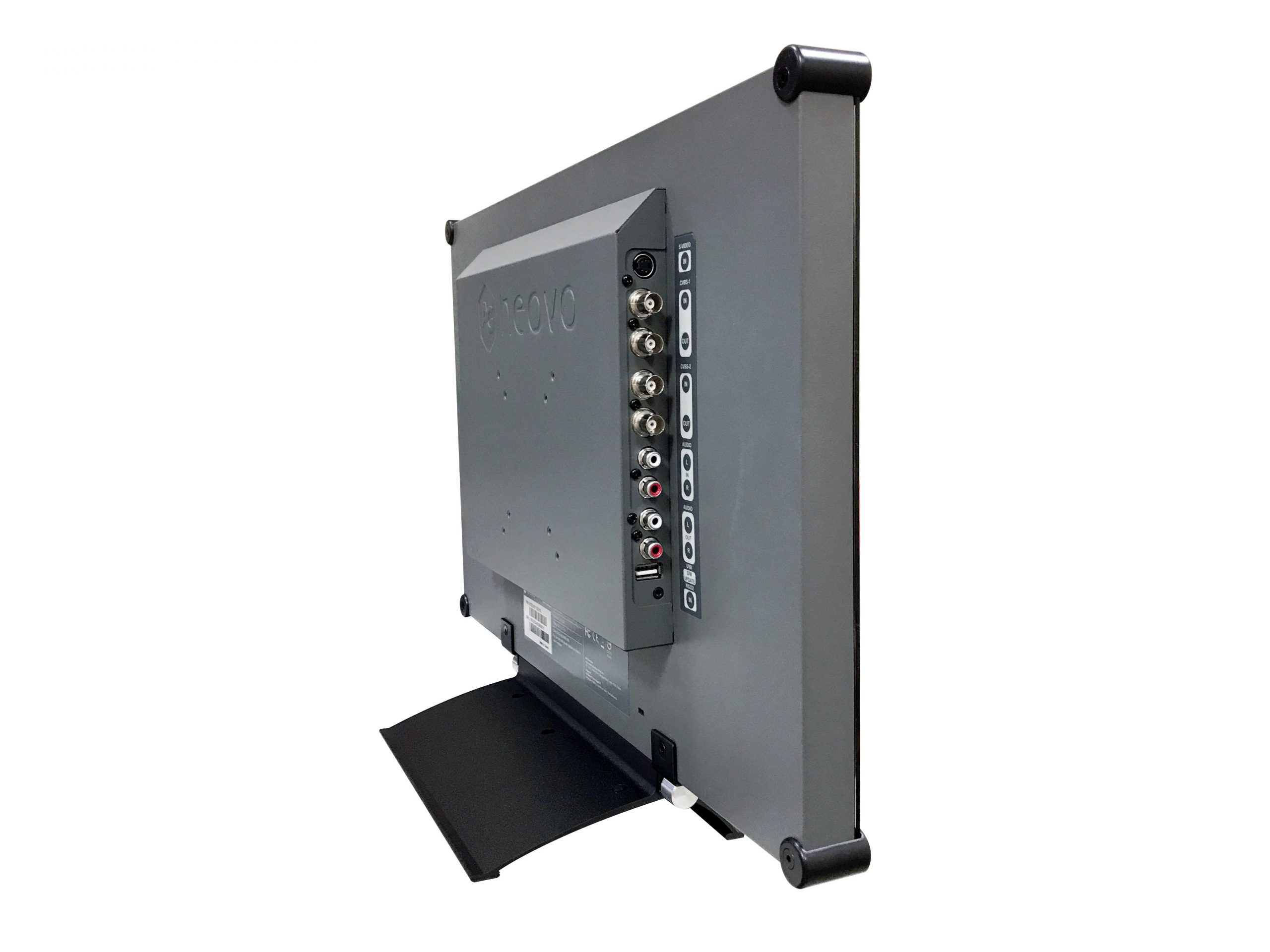

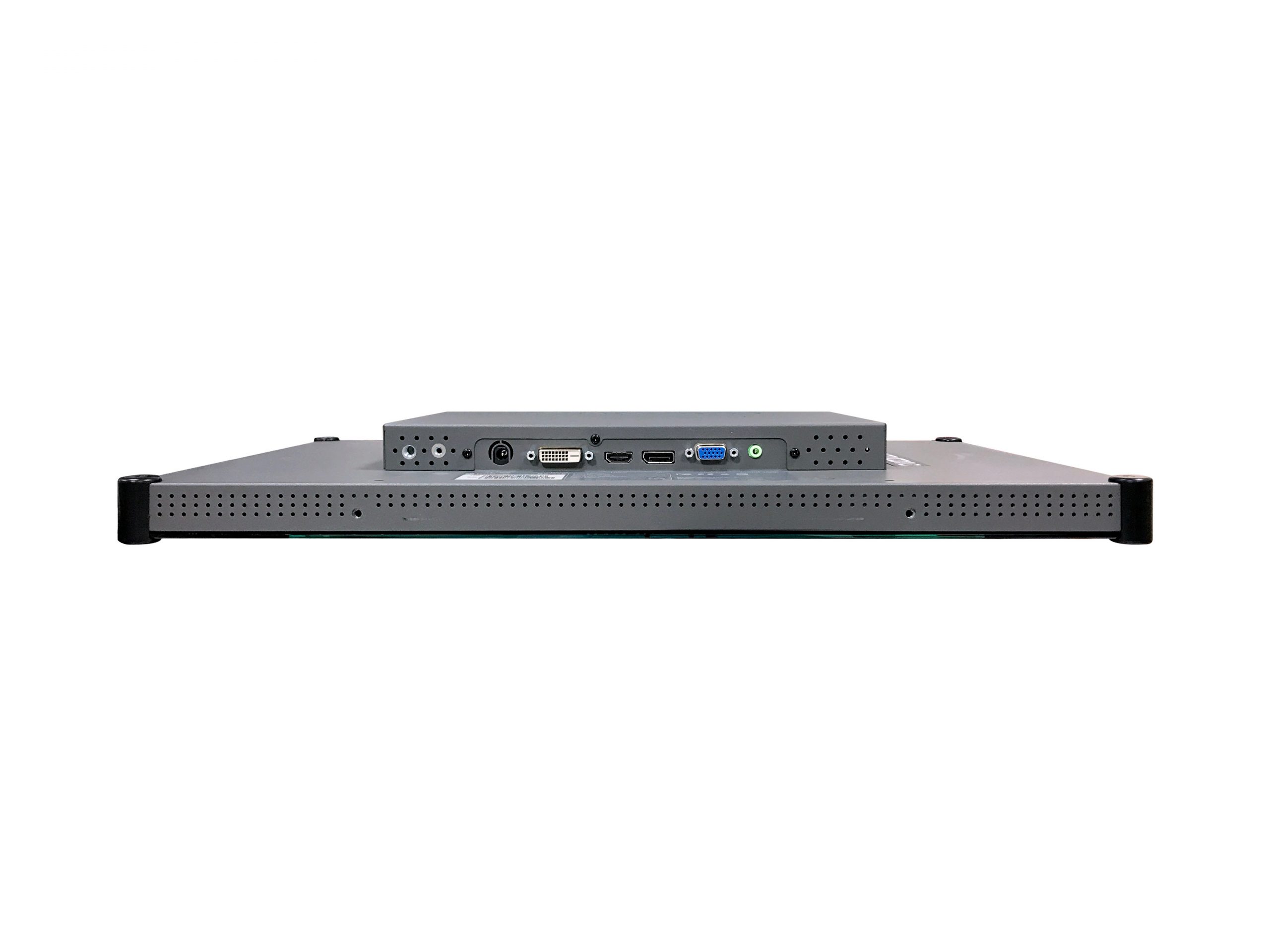

Connectivity is comprehensive and includes DisplayPort, HDMI 1.4, DVI-D, VGA, composite BNC inputs, S-Video and composite BNC outputs for loop-through. External control options include RS232 and a USB service port, plus analogue audio in/out and built-in 2W x 2 speakers. BNC loop-through simplifies signal distribution to additional displays without complex routing.
The RX-2202 is suitable for centralised control rooms, remote monitoring stations and distributed surveillance installations. VESA 75 x 75 mm and 100 x 100 mm mounting support allows desk, wall or ceiling placements and an image rotate function enables correct orientation for ceiling mounts. EcoSmart backlight control reduces power use by an estimated 30-50% for continuous operation.
Installation and day-to-day operation are streamlined with front touch controls for easy OSD access in confined or mounted setups. The robust glass surface is easy to clean and the metal casing offers long-term durability. Certifications for EMC and security immunity ensure dependable operation in industrial and commercial environments.
