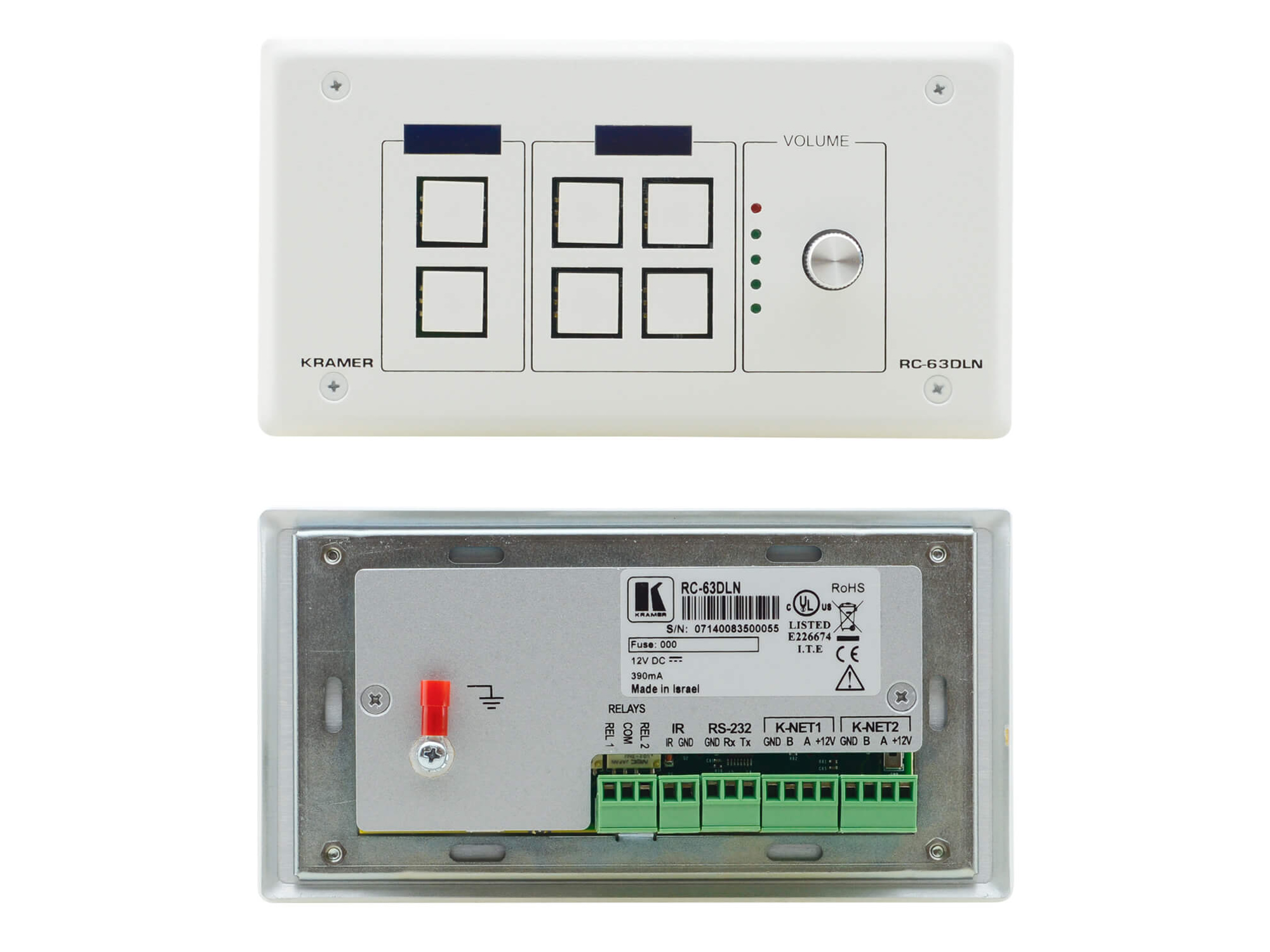

Kramer RC-63DLN 6–button KNET™ Control Keypad with Knob with Displays

Description

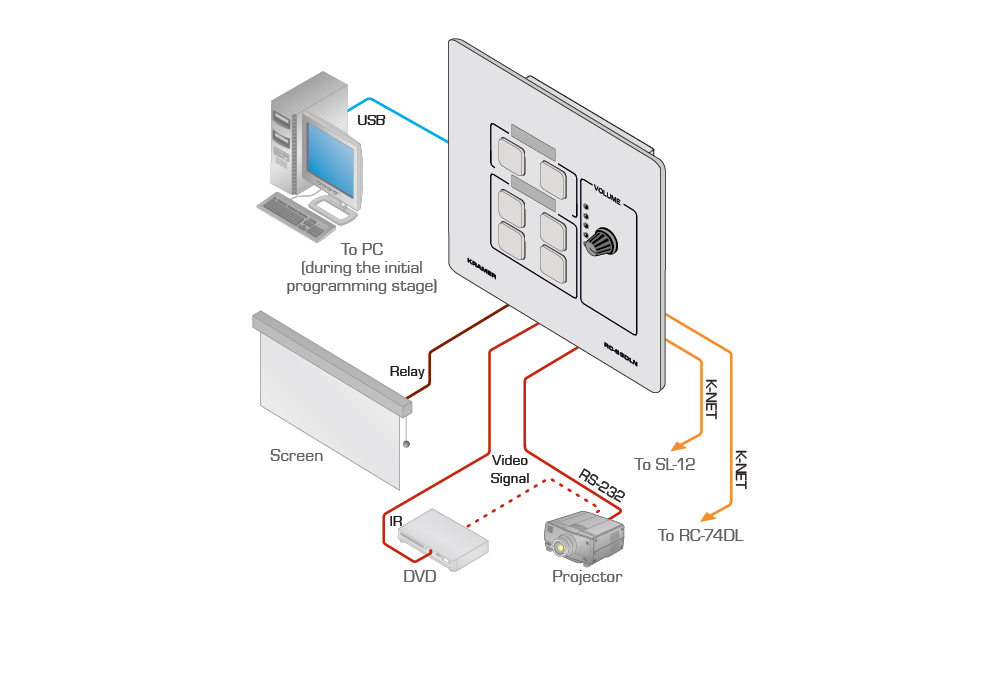

The RC−63DLN is a 6−button control keypad with knob and LCD displays. Connected over KNET™ to master room controller and auxiliary keypads for remote keypad control, it can serve either as a standalone room controller or part of a multi−unit KNET™ system. The RC−63DLN is ideal for classrooms and meeting rooms, for convenient control of their multimedia devices and other room facilities such as screens and shades.

Features

Back Lit & Label Capable Buttons — 6 RGB-color, tactile feedback, backlit buttons. Buttons are grouped into 2 sections: 4 buttons in the “SOURCES” group and 2 buttons in the “DISPLAY” group.
Custom Labeled, Removable Button Caps
Volume Control Knob with LEDs — Bi-directional rotary digital knob for volume control, with a 5-LED bar for visual volume level feedback.
2 K–NET™ Connectors — Connects to a master room controller and auxiliary keypads for remote keypad control.
K–NET™ Single Link Connection — Provides a single keypad link cable carrying both power and keypad control communication.
RS–232 Control Port — Controls a device via serial control protocols.
IR Emitter Control Port — Controls a device via IR control protocols.
Relay Control Port — Controls a device via relay contact closure.
IR Sensor Port — Learns commands from IR remotes.
Program Control — Configuration via Kramer K–Config software.
Keypad Lock–Out — Option for tampering prevention by locking and unlocking the keypad buttons.
Mini USB Port — Upload configuration files, set the K–NET™ ID number, and power the device during configuration.
Mounting — In-wall installation in standard 2-gang EU, UK, and US wall junction boxes.
Easy Installation — Fits standard in-wall boxes for simple and cost-reducing installation.

Specifications

Category	Specification
PORTS	1 RS–232 on terminal block connectors, 2 K–NET on terminal block connectors, 1 mini USB for programming
OUTPUT	2 Relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non-inductive load), 1 IR emitter on terminal block connectors
POWER CONSUMPTION	12V DC, 100mA
FUSE	500mA, FSMD 2920
ADAPTER	12V, 500mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non-condensing
INCLUDED ACCESSORIES	Power supply, label set, screwdriver
PRODUCT DIMENSIONS	EU: 15.10cm x 2.30cm x 8.00cm (5.94" x 0.91" x 3.15") W, D, H US: 11.43cm x 2.50cm x 11.43cm (4.50" x 0.98" x 4.50") W, D, H UK: 15.10cm x 2.30cm x 8.60cm (5.94" x 0.91" x 3.39") W, D, H
PRODUCT WEIGHT	EU: 0.1kg (0.2lbs) approx. US: 0.1kg (0.2lbs) approx. UK: 0.1kg (0.2lbs) approx.
SHIPPING DIMENSIONS	EU: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94") W, D, H US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94") W, D, H UK: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94") W, D, H
SHIPPING WEIGHT	EU: 0.4kg (0.9lbs) approx. US: 0.4kg (0.9lbs) approx. UK: 0.4kg (0.9lbs) approx.
