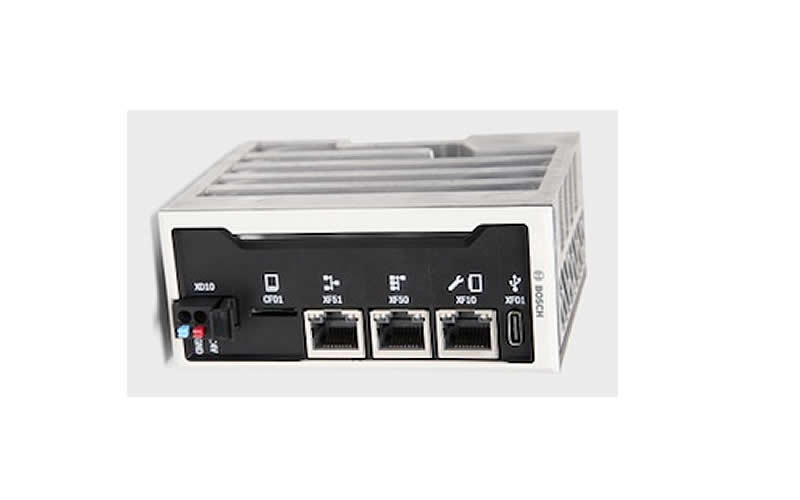

Bosch PXI-CORE Edge controller

Description

The PXI-CORE Edge controller is the HW base unit for smart integration. It consists of a compact DIN-rail mountable hardware unit, Linux operating system and firmware. Smart integration stands for integration between Bosch Building Technology systems and devices. Next to this HW base unit the dedicated Intelligent control SW App for the PXI-CORE Edge controller is required which is sold separately. Information of the Intelligent control App will reveal the features and supported systems and devices.

This smart integration solution connects to IP based systems and devices utilizing the available IP interface. The Intelligent control App is running on the PXI-CORE Edge controller. Installation, updates and configuration of this App can be done remotely from any location via the web-GUI. The PXI-CORE Edge controller is equipped with a Trusted Platform Module (TPM) 2.0, has a full secure boot support, secured HTTPS web interface connection and supporting CA signed certificates for authentication. All to ensure a high level of cyber security.

Main Features

Compact yet powerful integration platform

App-based on Linux Ubuntu Core

Multicore CPU performance

High level cyber security in place

Specifications

Nominal voltage	24 VDC SELV/PELV
Maximum voltage range of the supply voltage allowed	18 VDC to 31.2 VDC (incl. all tolerances and ripple)
Max. current consumption at a nominal voltage of 24 V	320 mA
Max. power consumption at a nominal voltage of 24 V	7.68 W
Fuse protection	eFuse, 2.0 A
Secure model	TPM 2.0
Processor	Zync Ultrascale+, 64 bit, 4 × ARM A53
RAM	2 GB DRAM
Communication interfaces RJ45	2 × Ethernet connection (10 MB, 100 MB, 1 GB)
USB	1 × USB host, TYPE C (USB2.0), maximum cable length of 3 m.
SD card	Slot for microSD cardMax. 32GB. FAT32
Battery	CR1025
