Bosch PVA-CSK PAVIRO Matrix Call Station Kit

Description

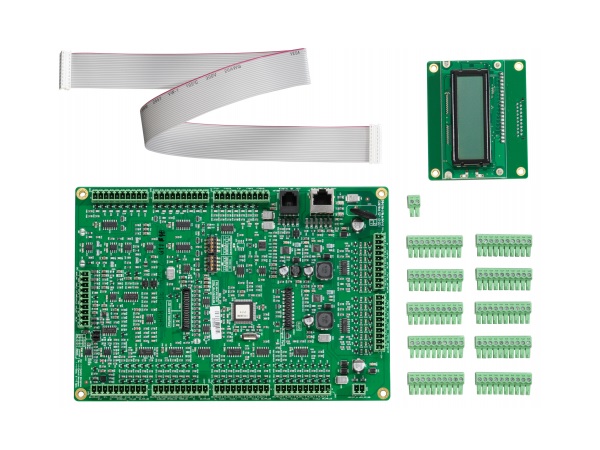

The PVA-CSK call station kit is a call station printed circuit board (PCB) for the PAVIRO system. The circuit board allows an application-specific call station to be installed, such as a fire department call station. The call station kit is based on the call station, but has been optimized so that it is easy to adapt to different application areas. In addition to the stem microphone familiar from the PVA-15CST , a dynamic EMERGENCY microphone such as the LBB9081 can also be connected. The call station kit equipped with an illuminated LC display (122 x 32 pixels).

The call station has the following features:

Possible to connect microphone with pre-amplifier and compressor/limiting switch
Possible to connect five pre-programmed menu/ function buttons
Possible to connect up to 15 function and selection buttons, programmable button assignment
Possible to connect up to three alarm buttons or key switches
Possible to connect an external microphone or audio source
Possible to connect a loudspeaker
High-resolution LC display
Comprehensive parameter settings menu on the actual call station
Microphone and line monitoring
Error message via LED and buzzer, and error text in the LC display
Processor control of all functions
Monitoring of the processor system via watchdog circuit
Non-volatile FLASH memory for configuration data

The call station is processor-controlled, and equipped with extensive monitoring functions. Line monitoring for the CAN bus and for audio transmission allows line interruptions and short-circuits to be detected and indicated to the user. The microphone, PTT button, alarm button and key switch monitoring allows line interruptions and short-circuits to be detected and reported.

The call stations for the PAVIRO system can be configured quickly and easily using IRIS-Net. A graphical and dialog-based user interface allows the user to define all button functions, priorities, options, and other properties.

Key Benefits:

Connectors for 15 free programmable function keys
Connectors for 3 alarm buttons or key switches
Connectors for microphone (integrated preamplifier with compressor/limiter)
Connector for loudspeaker
Extensive monitoring functions

Specifications

Weight	1.00 lbs
