Aida PTZ-NDI3-X20W Full HD NDI HX3 PTZ Camera with 20x Optical Zoom / White

Description

Control the pan, tilt, and zoom functions of your camera and send video out simultaneously via 3G-SDI, HDMI, and IP with NDI|HX3 support using this white Full HD NDI HX3 PTZ Camera with 20x Optical Zoom from AIDA Imaging. Use the included remote control or employ RS-232 serial control to have full reign over the camera’s functions and capture vibrant images at resolutions up to 1080p, with support for up to 120 fps via HDMI and NDI|HX3 over IP. The camera boasts built-in OSD controls, PoE (Power over Ethernet) support, and a 20x optical zoom, and it can store and recall up to 128 presets over network control and 10 presets via remote. A 3.5mm TRS stereo audio port provides an input for external audio sources, such as a microphone or a signal coming from an audio mixer with multiple audio sources already blended together. IP protocol support includes UDP/IP, RTSP/RTMP, SRT, NDI|HX, and NDIHX3.

NDI|HX3 streaming is capable of even lower-latency video streaming and PTZ control over the NDI|HX3 protocol. Full HD progressive scan sensor captures sharp and vivid color under different light conditions.

Full HD up to 120 fps (NDI|HX3, IP, and HDMI) and 60 fps (3G-SDI) simultaneously. Advanced digital image processor provides vivid and detailed images with full access feature sets.

3.5mm line-in for no audio/video delay over IP/NDI protocols.

Features

Simultaneous SDI, HDMI, NDI|HX3 Outputs
20x Optical Zoom
RS-232, VISCA over IP Control
Up to 128 Presets over Serial Control
Built-In OSD Controls
PoE Support

Specifications

Category	Specification	Details
Imaging	Image Sensor	1/3"-Type CMOS
	Horizontal Resolution	1080 TV Lines
	Focus Control	Autofocus, Manual Focus
	Shutter Speed	1 to 1/10000 Second
	Flip / Mirror Support	Image Flip, Mirror (Vertical)
	White Balance	Auto, Indoors, Manual, One Push, Outdoors
Lens	Focal Length	4.9 to 98 mm
	Optical Zoom	20x
	Field of View	60° to 4°
	Maximum Aperture	f/1.5 to f/3
Video Capture	Video Output	RJ45 / HDMI: Up to 1920×1080 (various frame rates) SDI / USB: Up to 1920×1080p and 1080i
	Embedded Audio	HDMI / IP / NDI / SDI
	Internal Recording	No
	Broadcast Output	NTSC / PAL
	IP Streaming	NDI HX, NDI HX3, RTMP, RTSP, SRT, UDP (720p–1080p)
Control	Presets	10 via IR, 128 via IP / RS-232 / VISCA
	Pan / Tilt	Pan: 340° (0–120°/s) Tilt: 120° (-30° to 90°) (0–80°/s)
	Tally Light	No

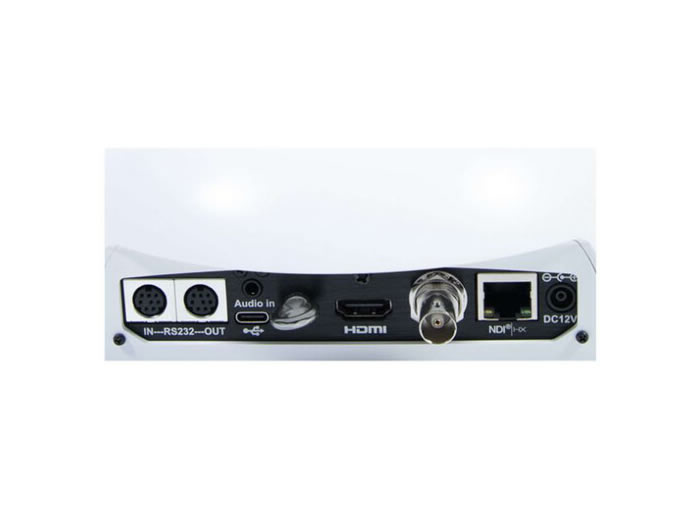

Interface	Audio I/O	1× 3.5 mm TRS Stereo Line Input
	Other I/O	1× RJ45 (LAN / NDI, shared with video) 1× Mini-DIN 8-Pin (RS-232 / VISCA) Input 1× Mini-DIN 8-Pin (RS-232 / VISCA) Output
	Built-In Microphone / Speaker	No / No
Power	PoE Support	Yes (PoE+ 802.3at)
Power	Power Input	1× Barrel (9–15 VDC)
Environmental	Operating Conditions	32 to 104°F / 0 to 40°C
General	Mounting	1× 1/4"-20 Female
	Dimensions	7.75 × 7.48 × 6.95" / 19.68 × 19 × 17.65 cm
	Weight	3.1 lb / 1.4 kg
Packaging Info	Package Weight	7.57 lb
Packaging Info	Box Dimensions	12.3 × 10.8 × 10.5"
