Description
The PT-102VN is a compact 1×2 distribution amplifier designed for composite video and SDI signal distribution. It accepts a single buffered input and provides two isolated, identical outputs for reliable signal routing. The unit is engineered to preserve video integrity across short distribution runs while offering front-accessible adjustments for level and equalization.
Key features include a wide video bandwidth of 430MHz (-3dB) and front-panel trimmers for Gain and EQ adjustments. The amplifier supports 1Vpp/75ohm composite or SDI inputs and delivers up to 2Vpp maximum video output. The ultra-compact Pico TOOLS form factor allows four units to be mounted side-by-side in a single 1U rack space using the RK-4PT rack adapter.
Performance metrics emphasize low distortion and high signal fidelity – differential gain 0.05% differential phase 0.05Deg and K-factor <0.05% with a signal-to-noise ratio of 76.1dB. The manual Gain range is -1.2 to +6dB and EQ provides 0 to +7.5dB peaking at 50MHz. These controls let technicians tailor output level and frequency response to compensate for cable loss or system imbalances.

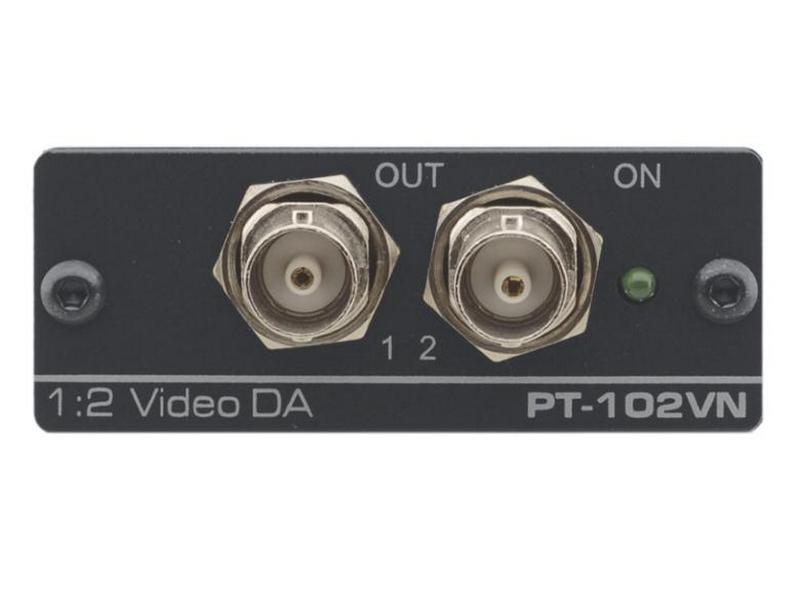

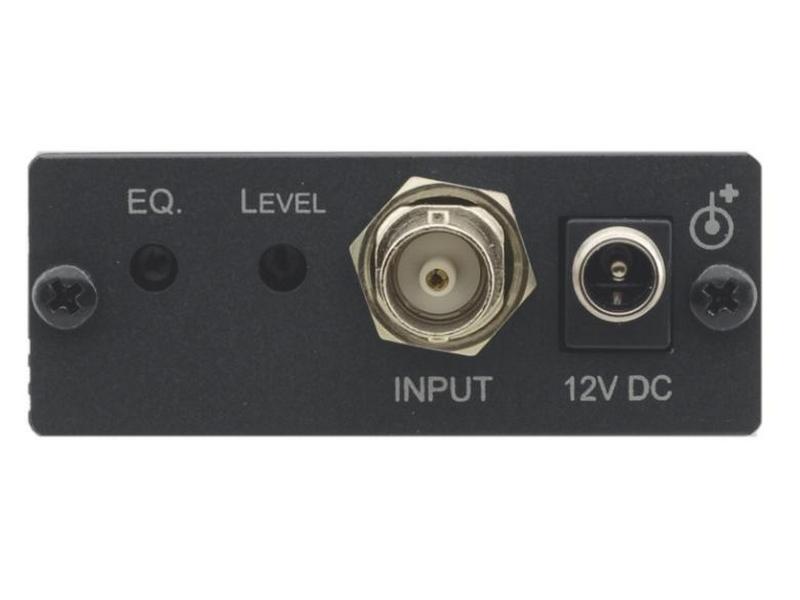

Connectivity is straightforward: one BNC input at 1Vpp/75ohm and two BNC outputs at 1Vpp/75ohm, plus a 12V DC power input drawing 30mA. The unit ships with a power supply and can be fitted into the RK-4PT 19″ rack adapter for rack installations. Its compact footprint and low power consumption simplify integration into monitoring racks, mobile carts, and distributed AV setups.

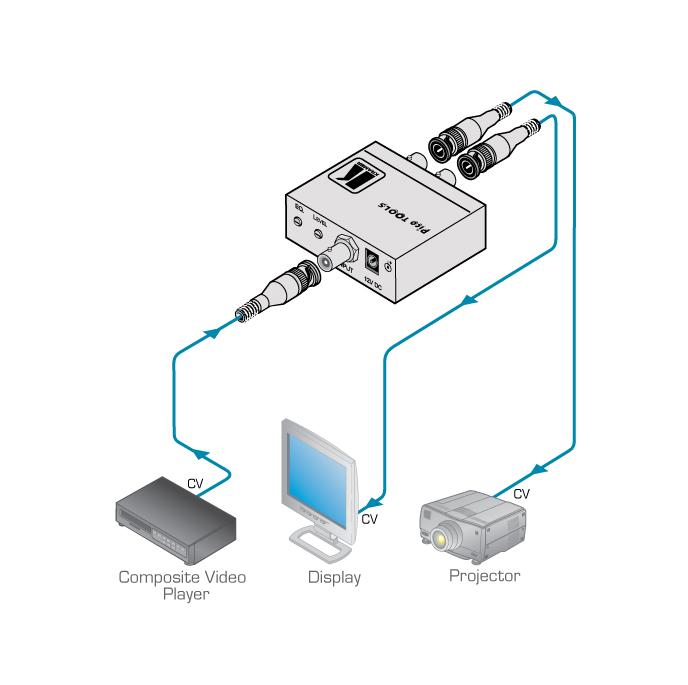

Typical applications include broadcast signal splitting, monitoring feeds in OB vans, video production patching, and AV distribution in control rooms. The PT-102VN is suitable for short-range distribution where signal integrity and low differential distortion are required. It serves as a simple, reliable buffer between sources and multiple monitoring or recording devices.
Installation is quick thanks to front-panel trimmers and standard BNC connectors, and the unit’s small dimensions and low weight make it easy to deploy. The metal enclosure and industry-standard connectors provide dependable mechanical durability in professional environments. Overall the PT-102VN balances compact size with precise control over level and equalization to maintain video quality.
