| Max. Input Data Rate | 3Gbps |
| HDTV Compatible | Yes |
| Re-Clocking Looping Inputs | Yes |
| Multi-Standard Operation | SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M) |
| Multi-Video Output Formats | 3G HD-SDI (SMPTE 424M), HDMI, Composite, scaling, refresh rate conversion, standard conversion |
| Front Panel Preview Screen | 16:9 4.3in color LCD |
| Kramer re-Klocking and Equalization Technology | Yes |
| Flexible Control Options | Front panel 2-row LCD, Ethernet, RS-232 |
| Screen Handling Buttons | Freeze, size, position, 4 pre-programmed, 2 user-definable layouts |
| Worldwide Power Supply | 100-240V AC |
| Standard 19in Rack Mount Size | 2U, rack ears included |

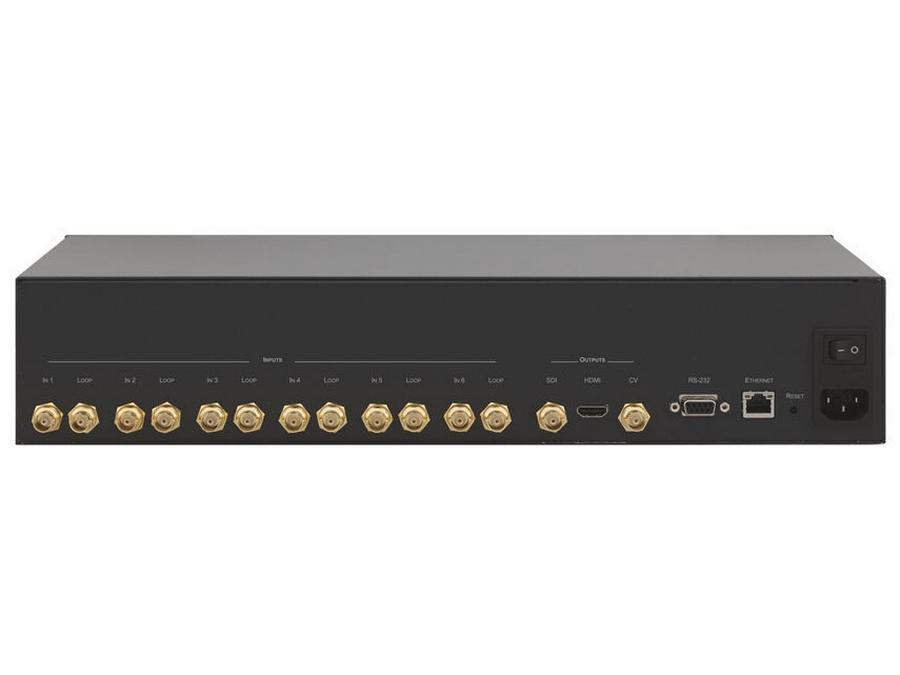

| INPUTS | 6 SDI, HD-SDI, 3G HD-SDI on BNC connectors |
| OUTPUTS | 1 HDMI, 1 CV on BNC connector, 1 SDI/HD-SDI/3G HD-SDI on BNC connector |
| MAX. INPUT LEVEL | 800mVpp/75ohm |
| MAX. OUTPUT LEVEL | 800mVpp/75ohm |
| MAX. DATA RATE | Up to 2.97Gbps |
| CONTROLS | Front-panel, RS-232, Ethernet |
| FRONT PANEL DISPLAY | 4.3in TFT color LCD panel |
| POWER SOURCE | Universal, 100-240V AC, 50/60Hz, 35VA |
| OPERATING TEMPERATURE | 0 to +55C |
| STORAGE TEMPERATURE | -45 to +72C |
| HUMIDITY | 10% to 90% RH non-condensing |
| DIMENSIONS | 19in x 7.4in x 2U (W, D, H) rack mountable |
| WEIGHT | 3.1kg (6.83lbs) approx |
| ACCESSORIES | Power cord, rack ears |
