Bosch LH1-UC30E Music Horn Loudspeaker 30W

Description

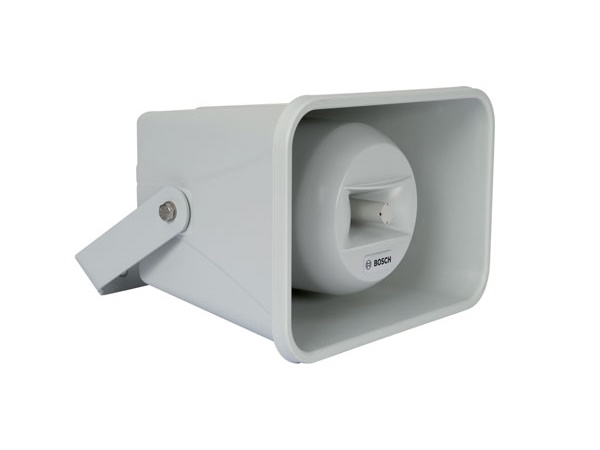

The Bosch LH1-UC30E Music Horn Loudspeaker features a two‑way system, resulting in an extended frequency range and high sensitivity which makes it ideal for high quality speech and music reproduction.

Functions

The rectangular horn features a unique combination of a re‑entrant horn with two transducers, one for low– and the other for high frequencies, resulting in breathtaking sound clarity.

The horn is weather protected and can be used in areas with high humidity. It is therefore suitable for outdoor applications such as sport grounds, sports stadiums, leisure parks, exhibition areas and passenger terminals, as well as for indoor public address.

The ABS horn loudspeaker and aluminum bracket are finished in light grey (RAL 7035). The LH1‑UC30E is designed for use in voice alarm systems and is EN 54‑24 certified and compliant with BS 5839‑8 and EN 60849.

The horn loudspeaker has built‑in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained, ensuring loudspeakers in other areas can still be used to inform people of the situation. The horn loudspeaker has ceramic terminal blocks, thermal fuse and heat resistant high temperature wiring. It has provision for internal mounting of the optional line / loudspeaker supervision boards.

Features:

Excellent speech and music reproduction
Two‑way system
Attractive ABS housing
Provisions for internal mounting of the optional line / loudspeaker supervision board
EN 54‑24 certified

Specifications

Rated power (PHC)	30 W
Power tapping	30 / 15 / 7.5 / 3.75 W
Sound pressure levelat rated power / 1 W (1 kHz, 1 m)	115 / 100 dB (SPL)
Sound pressure levelat rated power / 1 W (1 kHz, 4 m)	100 / 86 dB (SPL)
Effective frequency range(- 10 dB)	212 Hz to 20 kHz
Opening angle at 1 kHz / 4 kHz (‑6 dB)
Horizontal	68° / 68°
Vertical	100° / 120°
Rated input voltageRated impedance	70 V , 100 V
30 W	167 Ohm , 333 Ohm
15 W	333 Ohm , 667 Ohm
7.5 W	667 Ohm , 1334 Ohm
3.75 W	1334 Ohm , 2668 Ohm
Connector	6-pole screw terminal
Dimensions (H x W x D)	255 x 370 x 354 mm (10.04 x 14.56 x 13.93 in)
Weight	5.5 kg (12.45 lb)
Color	Light grey (RAL 7035)
Material (horn / bracket)	ABS / Aluminum
Cable diameter	6 mm to 12 mm (0.24 in to 0.47 in)
Operating temperature	-25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage and transport temperature	-40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity	<95%
