Bosch PRA-APAS-US Advanced public address server (Requires at least one PRA-APAL)

SKU: PRA-APAS-US
Brand: Bosch
$3,739.00
Brand Bosch
SKU PRA-APAS-US
Weight 4.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The Bosch PRA-APAS is an industrial PC with pre-installed software, acting as a server for PRAESENSA. It provides advanced business related public address functions without compromises and does therefore not support emergency functionalities. The PRA-APAS supports connections to two separate local area networks, the PRAESENSA secure network and the public network with access to the Internet, with a firewall in between. On the public network it connects to the Internet and to one or more licensed operator devices, such as a wireless tablet or a regular PC. On the secure PRAESENSA network it interfaces with the system controller for control and transfer of multiple simultaneous audio channels. The operator devices use their own web browser to control background music, streaming from PRA-APAS’ own internal memory or from external music portals and Internet radio stations. It offers announcement creation and control facilities to the operator, including message scheduling, live call recording with pre-monitoring and playback, and even multi-lingual text-to-speech calls, using on-line conversion services.

Main Features
  • Server for the advanced public address software license
  • Interface for third party PCs and tablet devices to the PRAESENSA IP-network
  • IP-networked on existing Local Area Networks
  • Secure internet connection to the Local Area Network (LAN) of the building, internet radio, online music streaming and text-to-speech-service
  • Internal memory for business messages library and music playlists

Specifications

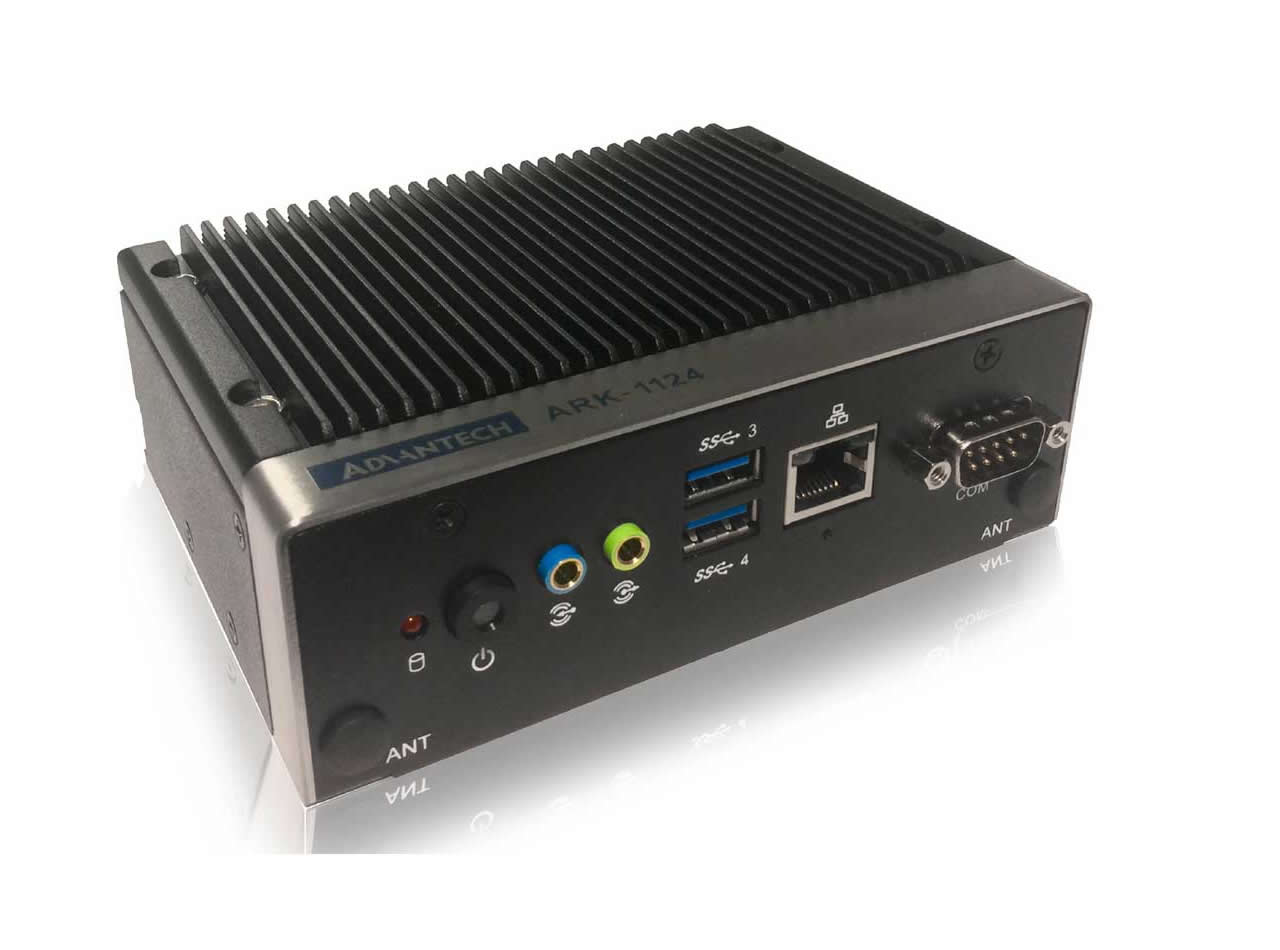

  • Server PC
  • Model: ARK-1124H-S6A1E (OEM Advantech)
  • Processor chipset: Intel Atom E3940 Quad Core SoC
  • Processor speed: 1.6 GHz
  • L2 Cache: 2 MB
  • BIOS: AMI EFI 64 bit
  • Memory: DDR3L 1866 MHz, 8 GB
  • Operating system: Linux
  • Graphics chipset: Intel HD Graphics 500
  • Video interface: HDMI 1.4b, dual display
  • Ethernet chipset: Intel i210 GbE
  • LAN1/2: 100BASE TX, 1000BASE T
  • Audio chipset: Realtek ALC888S
  • Audio in/out (inactive): 2 x analog mini?jack
  • Serial interface: RS-232/422/485
  • USB Interface: 4 x USB 3.0
  • Protection: Watchdog timer
  • Backup battery: CR2032 Lithium cell
  • Power consumption, typical: 6 W
  • Power consumption, maximum: 16 W
  • External power adapter: 12 VDC, 5 A
  • Power connector: Lockable DC jack
  • Cooling: Fanless convection
  • Dimensions (HxWxD): 1.83 x 5.24 x 3.71 In
  • Case Material: Aluminum
  • Case Color: Black
  • Weight: 1.55 lbs
  • Operating Temperature: -4 - 140 °F
  • Storage and Transport Temperature: -40 - 185 °F

    Power Adapter:
  • Model: ADP-60KD B (Delta)
  • Input voltage range: 100 - 240 VAC
  • Input voltage tolerance: 90 - 264 VAC
  • Frequency range: 47 - 63 Hz
  • Socket type input: C14
  • Output voltage: 12 VDC
  • Maximum output current: 5 A
  • Connector type output: Lockable DC jack
  • Efficiency level (DOE): VI
  • Protection: Over voltage over current, over temperature
  • Dimensions (WxHxD): 4.33 x 2.44 x 1.24 In
  • Operating Temperature: 32 °F - 104 °F
  • Storage and Transport Temperature: -22 °F - 140 °F
