Aten PE4102A 2-Outlet Eco PDU Power Controller

Description

Engineered to be an intelligent power distribution solution, the PE4102G Eco PDU Power Controller ships with 2 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize operating costs.

The PE4102G features the remote power control function, allowing you to control devices attached to the PDU at the PDU device level from practically any location via a TCP/IP connection. The power sequence design eliminates the risks of power inrush, guaranteeing reliable operation and protecting the overall system health. With the support for eco DC software, it provides an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and reboot the device in case any equipment lock-up occurs. Additionally, the auto ping and auto reboot functions ensure devices remain responsive by automatically detecting connection issues and rebooting when necessary. Administrators can switch on/off or set a delay time for each power outlet or individual power outlet group whenever, wherever.

The PE4102G boasts a slim, compact form factor and supports desk mount, wall mount, as well as rack mount, ensuring easy installation in confined spaces. It is a smart eco PDU power controller tailored for hospitality or retail applications, such as digital signage and video walls, for edge computing devices, including routers, servers, and cameras, or for any data center environments where there is no need to keep the servers powered on at all times.

Power Distribution

Space-saving slim form factor

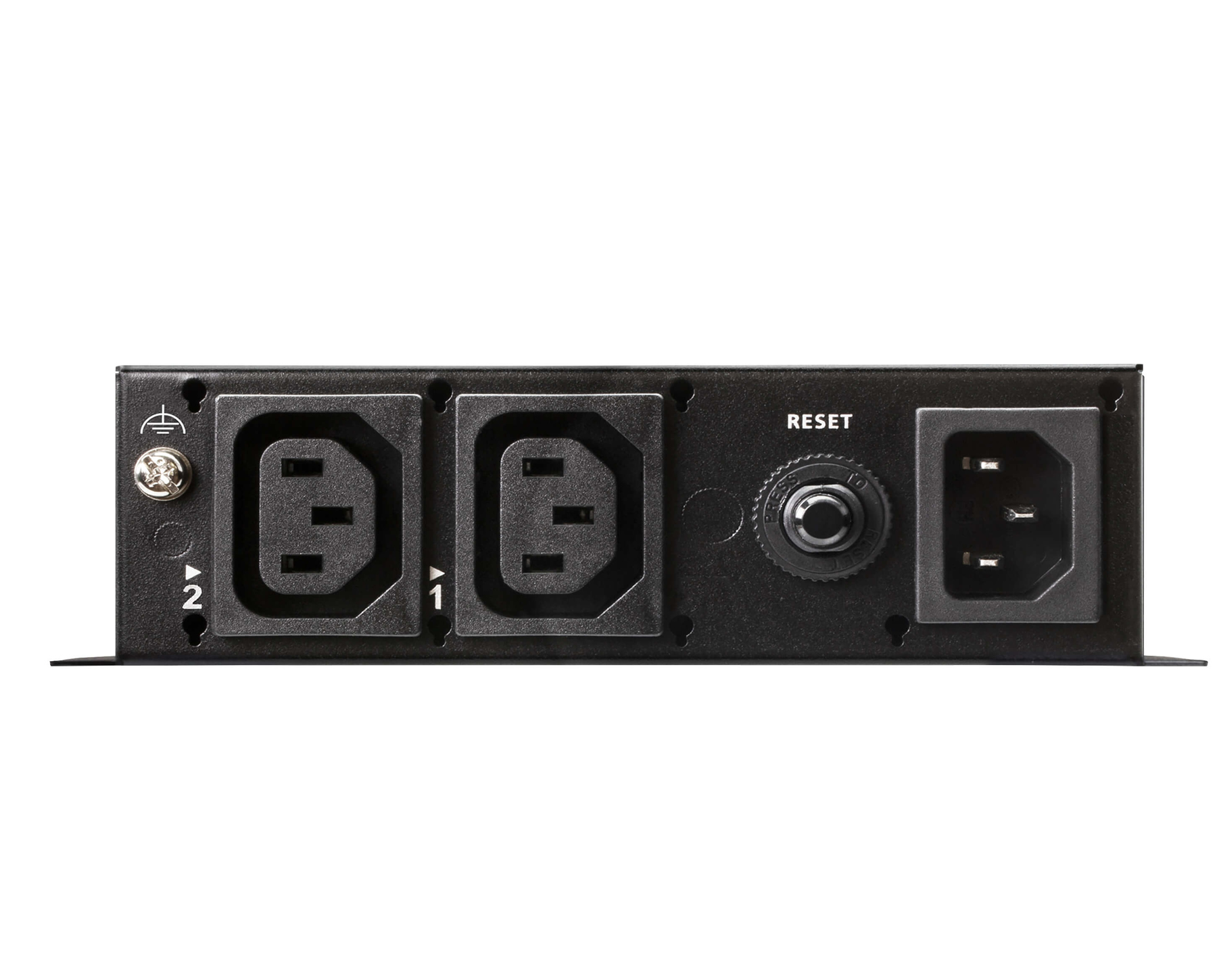

IEC power outlets
Separates power for the unit’s operation and its power outlets – the user interface remains accessible even when an overload condition trips the device’s circuit breaker

Remote Access

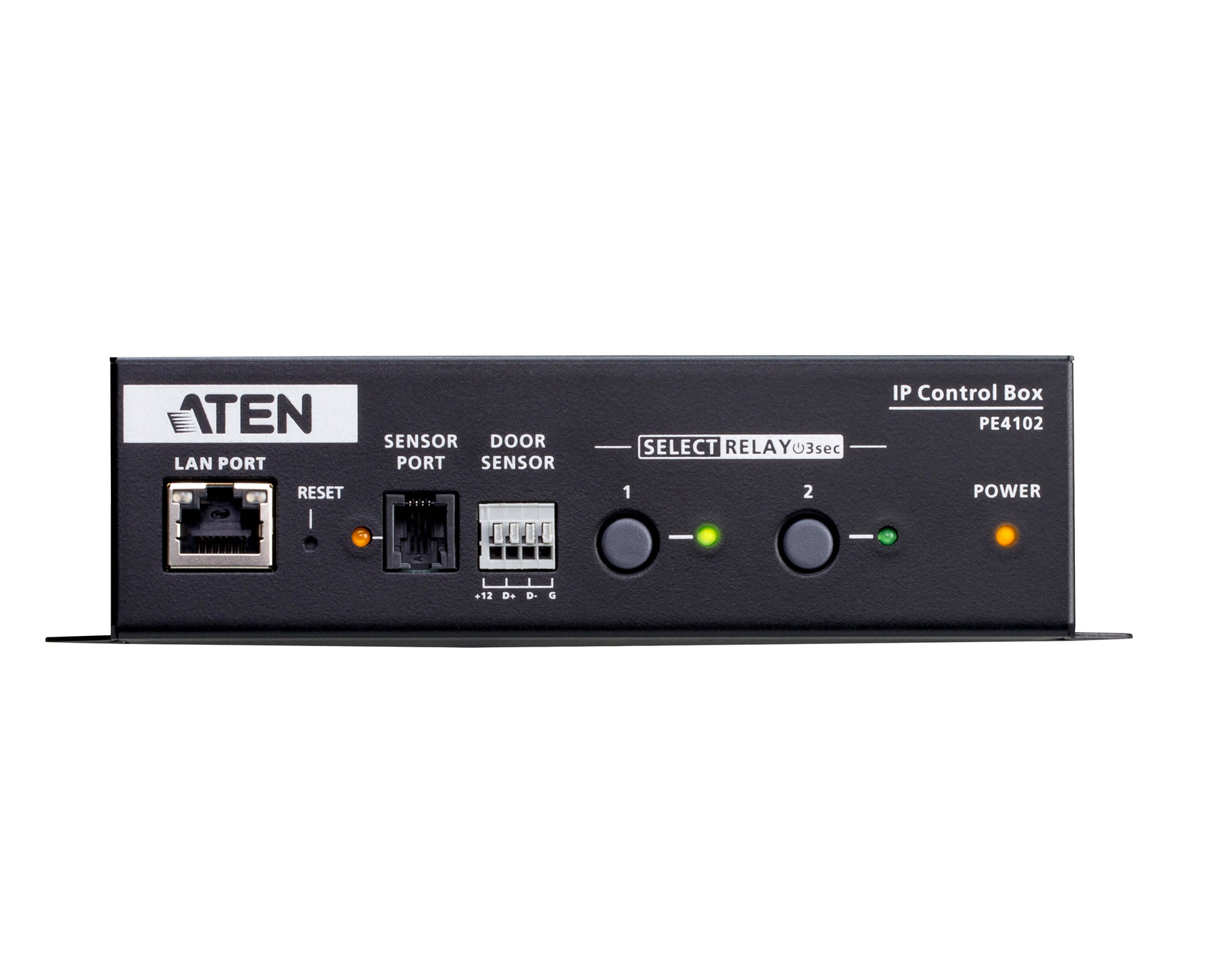

Remote power control via TCP/IP and a built-in 10/100 Ethernet port
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1/V2/V3, auto sense, Ping, Telnet, Modbus (over TCP/IP)
Works with web-based eco DC software
Supports IMAP and POP3 email protocols – allows users to switch outlets on/off via email
Schedule control

Operation

Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing – set power-on order and delay time for each port to allow proper equipment startup
Easy setup and operation via a browser-based user interface
Receives heartbeat signals from connected devices through PMonitor to verify normal operation and automatically reboots them if no signal is received
Outlet lock functionality – front panel Power Control Button can be disabled to prevent inadvertent presses

Security

Two-level password security
Strong security features include password protection and advanced encryption technologies – TLS1.2 & TLS1.3
Remote authentication support: RADIUS

Specifications

Category	Specification
Electrical	Nominal Input Voltage: 100-240V Maximum Input Current: 10A Max Input Frequency: 50-60 Hz Input Connection: IEC C14 Input Power: 2400VA (Max) Outlet Type: 2 x IEC C13 Nominal Output Voltage: 100-240 VAC Maximum Output Current (Outlet): 10A (Max) Maximum Output Current (Bank): 10A (Max) Maximum Output Current (Total): 10A (Max) Breakers: Yes (UL1077) Metering: No Outlet Switching: Yes
Physical Properties	Dimensions (L x W x H): 17.0 x 12.78 x 4.40 cm (with wall mount ear) 15.0 x 12.78 x 4.40 cm (without wall mount ear) Weight: 0.70 kg Power Cord Length: 3M
Environmental	Temperature (Operating / Storage): 0 – 50? / -20 – 60? Humidity (Operating & Storage): 0 – 80% RH, Non-Condensing
Compliance	EMC Verification: CE-EMC Safety Verification: CE-LVD
Notes	For some rack mount products, the standard physical dimensions of WxDxH are expressed using LxWxH format.
