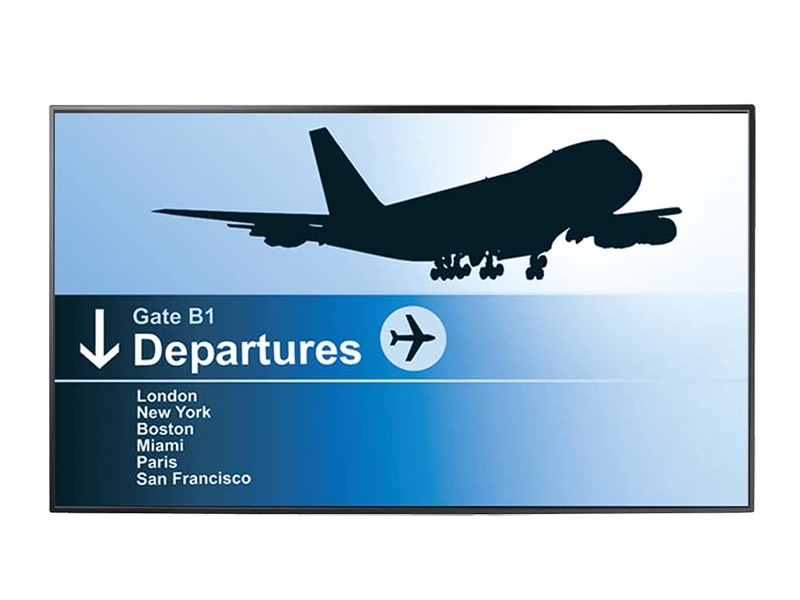

AG Neovo PD-55Q 55-Inch 4K Commercial Display

Description

Reliable and Durable 4K Professional Displays for Digital Signage and Control Rooms

The new PD-Series is a premium professional display featuring 4K resolution and 700 nits brightness used in airport terminals, control rooms, and shopping malls. It integrates different input sources, including an embedded USB playback, various I/O ports, and SDM slot. The PD-Series provides more value-added features, including PID Command & Ctrl, a software for remote management of displays via mobile devices, and patented Anti-Burn-in™ technology to prevent image burn-in when static content runs for a long time.

Features:

4K UHD 3840 x 2160 resolution
700 nits high brightness panel offers clear images in bright areas
Anti-Burn-in technology prevents image ghosting
Intel SDM slot ready for easy media player/IPC integration
IR/ RS232/ RJ45 connection for easy control and management

Specifications

Panel

Panel Type: VA
Panel Size: 54.6"
Max. Resolution: UHD 3840 x 2160
Pixel Pitch: 0.315 mm
Brightness: 700 cd/m²
Viewing Angle (H/V): 178°/178°
Display Colour: 1.07G
Colour Gamut: NTSC 72%
Response Time: 5 ms
Surface Treatment: Anti-glare treatment (Haze< 25%), 3H Hard Coating,Low Reflection 1.5%

Frequency

Frequency (H): 31 kHz-92 kHz
Frequency (V): 48 Hz-85 Hz

Signal Input

DisplayPort: x 1
HDMI: 2.0 x 3
DVI: 29-Pin DVI-I x 1 (VGA)

Signal Output

DisplayPort: 1

External Control

IR In: 3.5 mm Phone Jack
IR Out: 3.5 mm Phone Jack
RS232 In: 2.5 mm Phone Jack
RS232 Out: 2.5 mm Phone Jack LAN: RJ45 x 1

Other Connectivity

USB: 2.0 x 1 (Service Port / Media Playback) / 2.0 x 1 (Media Playback)
Micro SD Card Slot: Yes
SDM Slot: SDM-L

Audio

Audio In: Stereo Audio Jack (3.5 mm)
Audio Out: Stereo Audio Jack (3.5 mm)
Internal Speakers: 10W x 2

Power

Power Supply: Internal
Power Requirements: AC 100-240V, 50/60 Hz
On Mode: 177W (On)
Standby Mode: < 0.5W
Off Mode: 0W

Operating Conditions

Temperature: 0°C-40°C (32°F-104°F)
Humidity: 20%-80% (non-condensing)

Storage Conditions

Temperature: -20°C-60°C (-4°F-140°F)
Humidity: 10%-90%(non-condensing)

Mounting

VESA FPMPMI: Yes (400 x 400 mm)

Security

Kensington Security Slot: Yes

Dimensions

Product w/o Base (W x H x D): 1241.8 x 712.6 x 63.6 mm (48.9" x 28.4" x 2.5")
Packaging (W x H x D): 1350.0 x 860.0 x 160.0 mm (53.2" x 33.9" x 6.3")

Weight

Product w/o Base: 16.6 kg (27.7 lb)
Packaging: 21.8 kg (48.1 lb)

Regulation Approval

Certifications & Compliance: FCC, CE, LVD, ICES-003(Issue 7), WEEE, RoHS, REACH

Accessories

Supplied:

Batteries
HDMI Cable
Power Cord
Quick Start Guide
Remote Control

Optional Accessories

Floor Mount

FMC-02
FMS-01
FMS-02

Video Wall Mount

VWM-01
VWM-02

Wall Mount

LMA-01
LMA-02

Desk Mount

DTS-01

Ceiling Mount (Landscape only)

CMP-01 + LMK-01

Wall Mount (Landscape only)

LMK-01
LMK-03

Floor Mount (Landscape only)

FMC-03 + LMK-04
FMC-04 + LMK-04
FMC-06

Desk mount (Landscape only)

DTS-01
