Kramer OSP-SM10 Optical SM 1310nm 10G SFP+ Transceiver

Description

OSP−SM10 is a fiber optic transceiver for 1310nm single−mode signals. This standard pluggable SFP+ module has two LC connectors for reception and transmission signals over two strands of single−mode optical fiber.

Features:

Certified Transceiver — Kramer certified, hot–pluggable SFP+ optical module, for high–quality transmission of 10.2Gbps signal over single–mode fiber cables, connecting 2 simplex single–mode fiber strands via LC AP/UPC connectors.

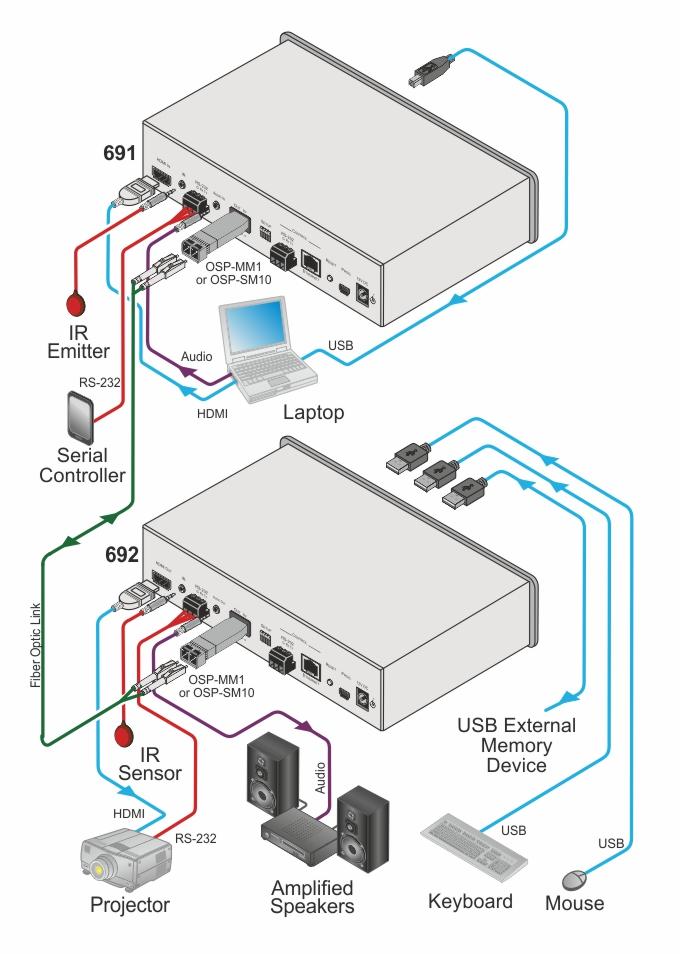

Product Diagrams

View Diagrams

Specifications

OPTICAL LINE

Single–mode G.652D compliant OFNR fiber

PORTS

2–strand fiber optic LC(PC/UPC) connector for reception and transmission SFP+ compliant pluggable interface
Note: Do not use with LC(APC) connectors

MAX. REACH

33Km (20.5 miles) reach over OS1 SM fiber

NOMINAL PEAK WAVELENGTH

1310nm

MAX. DATA RATE

10.2Gbps

TRANSMITTER TYPE

OPTICAL TYPICAL TRANSMISSION POWER

–2.5dBm

OPTICAL TYPICAL MAXIMUM RECEIVER SENSITIVITY

–14.4dBm

OPTICAL TYPICAL MAXIMUM LOSS BUDGET

11.9dB

STANDARDS COMPLIANCE

IEEE 802.3ae, SFF–8431

LASER SAFETY COMPLIANCE

Laser Class I

REGULATORY CERTIFICATIONS

FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024

POWER CONSUMPTION

OPERATING TEMPERATURE

0° to 70°C

STORAGE TEMPERATURE

–40° to 85°C

HUMIDITY

5% to 95% RH

PRODUCT DIMENSION

1.33cm x 5.70cm x 0.85cm (0.52" x 2.24" x 0.33" ) W, D, H

SHIPPING DIMENSION

12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) W, D, H

SHIPPING WEIGHT

0.1kg (0.1lbs) approx
