Description

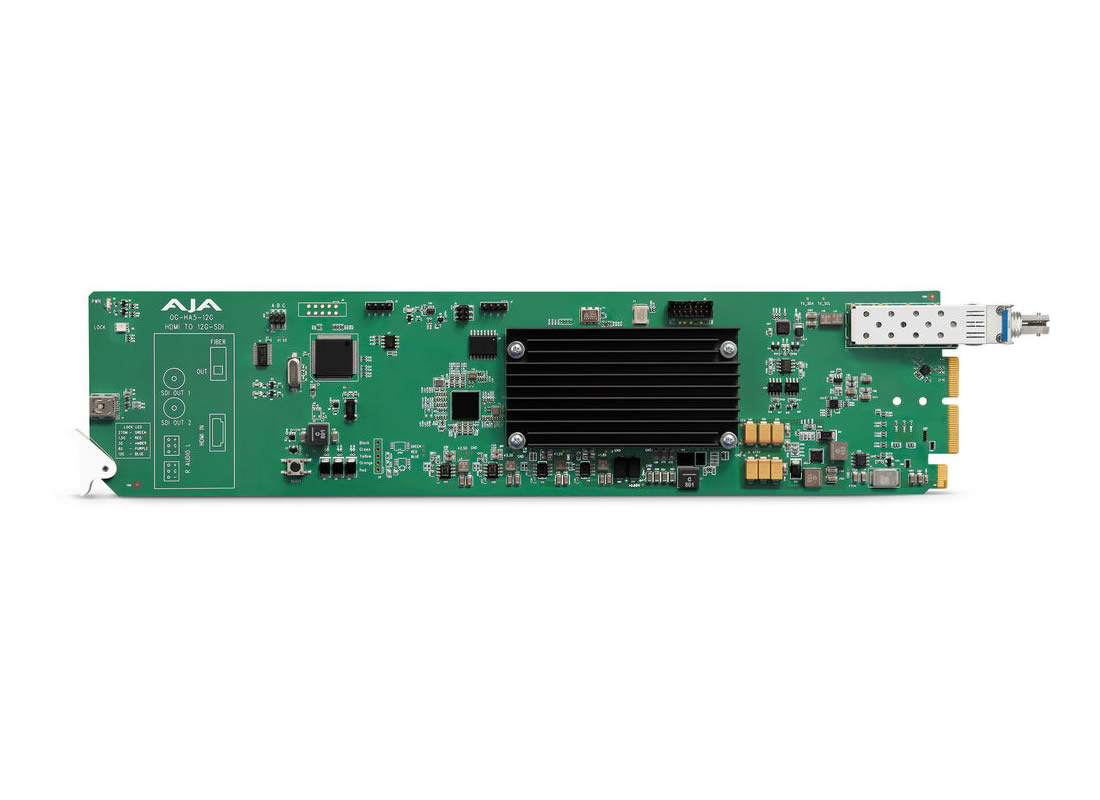

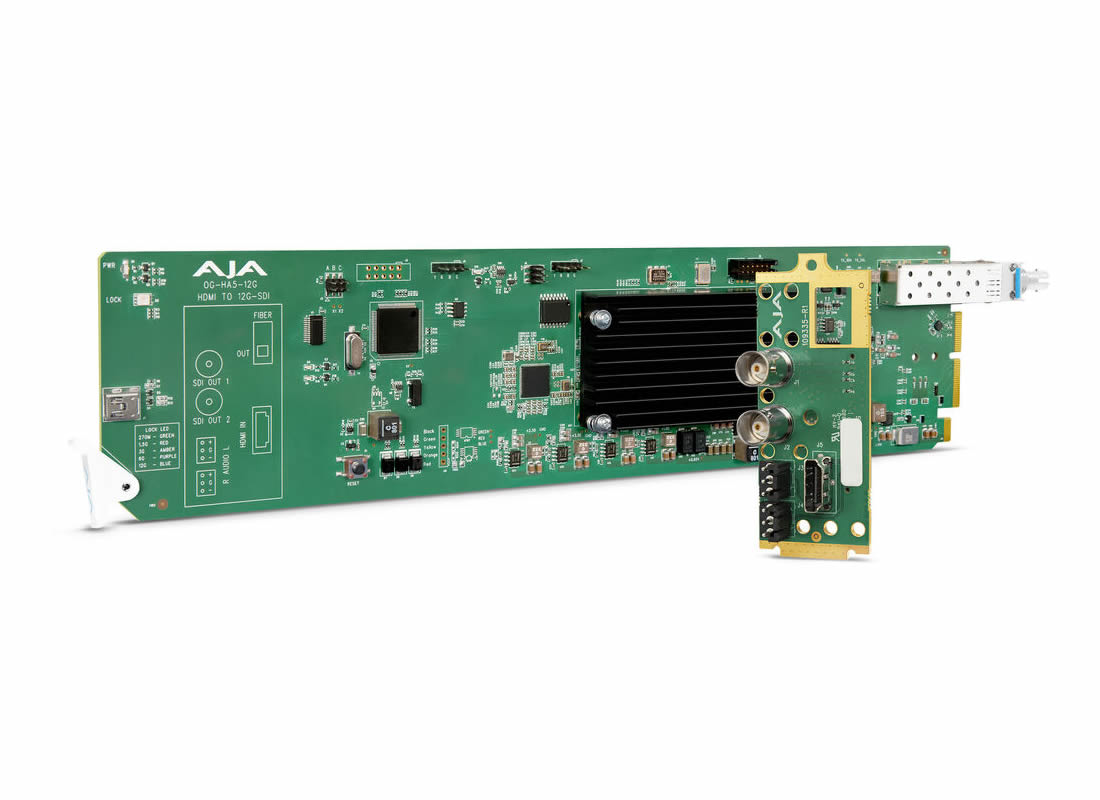

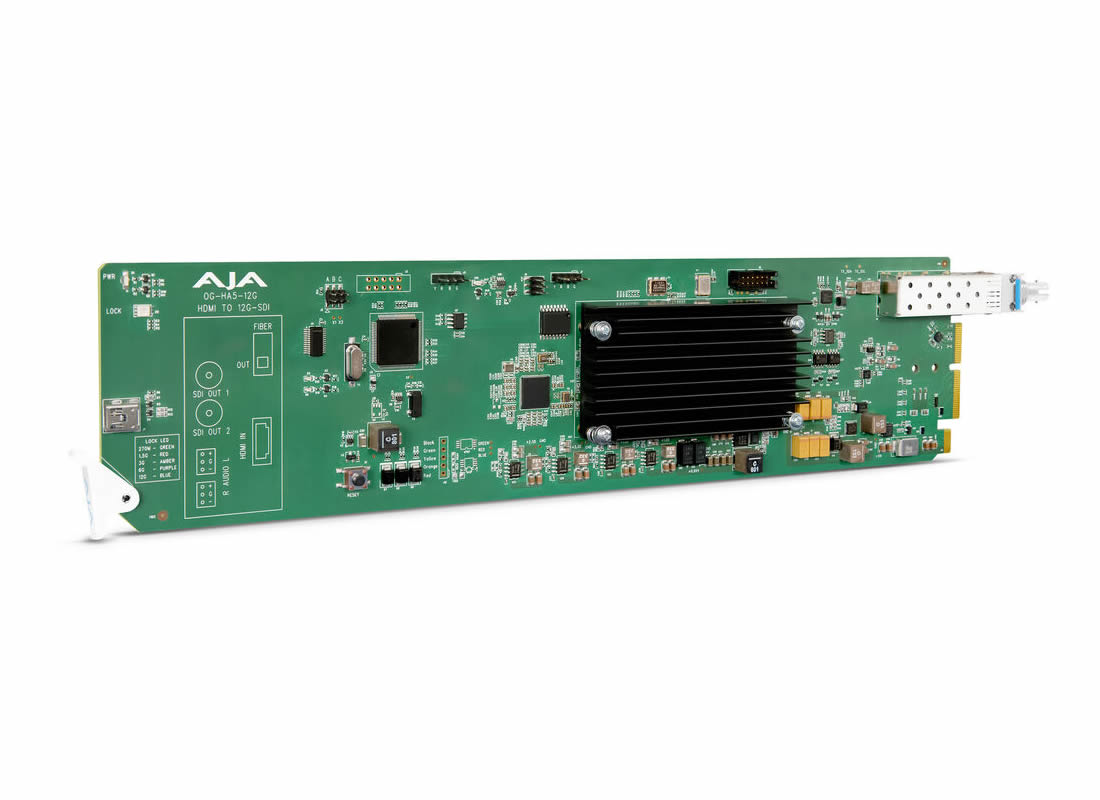

The AJA OG-HA5-12G-T is a versatile converter designed to transform HDMI 2.0 input into 12G-SDI output, catering to 4K/UltraHD single-link requirements. This compact device offers exceptional functionality, including two 12G-SDI distribution amplifier outputs, capable of carrying 8 or 2 channels of embedded audio from an HDMI source.
One notable feature of the OG-HA5-12G is its support for Extended Display Identification Data (EDID) emulation. This ensures a continuous supply of custom preferred video formats from the connected source on the output.
OG-HA5-12G-T and OG-HA5-12G-T-ST Models:
The OG-HA5-12G-T and OG-HA5-12G-T-ST models are equipped with Fiber SFP technology, making them ideal for extending HDMI 4K/UltraHD signals over long distances. The OG-HA5-12G-T model extends signals up to 10km over a single LC Fiber link, while the OG-HA5-12G-T-ST model achieves the same over an ST Fiber link. Both models come with SFPs pre-installed and offer all the functionality of the OG-HA5-12G, including the extension of audio and video signals over extended distances.
OG-HA5-12G-T Features:
- Converts HDMI 2.0 to 4K 60p to 12G-SDI with a second mirrored output
- Includes a single-channel Fiber 12G LC transmitter for extending 12G-SDI signals over long distances (10 km Single Mode)
- Ships with FiberLC-1T-12G SFP pre-installed
- Support for up to 60p input at 4:4:4/4:2:2/4:2:0
- Supports 12-bit workflows
- EDID LFR & HFR Emulation up to UltraHD 60p
- Two Sample Interleave (2SI) 4K/UltraHD source mapping
- Analysis of HDR Infoframe data from HDMI in accordance with HDMI v2.0b/CTA-861-G
- Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
- Selection of embedded audio from HDMI or Analog audio inputs
- Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos
- Monitor and control via Ross DashBoard software
- Five-year warranty
The AJA OG-HA5-12G series provides a reliable solution for converting and extending HDMI to 12G-SDI, making it suitable for various professional video applications.
HDR Support:
HDR (High Dynamic Range) enriches your visuals by offering a broader and more vibrant color range, brighter whites, and deeper blacks compared to standard signals. This technology provides a dynamic and true-to-life appearance to your content. The OG-HA5-12G fully supports HDR by analyzing HDR infoframe data received through HDMI.
4K and UltraHD:
4K signals feature a resolution of 4096 x 2160 pixels, while UltraHD signals measure 3840 x 2160 pixels. These differences can challenge some monitors, limiting their use in full 4K or UltraHD workflows. However, the OG-HA5-12G effectively compensates for these resolution differences, allowing the use of UltraHD monitors in 4K production and vice versa. Moreover, it supports High Frame Rate (HFR) inputs, enabling the conversion and output of 4K/UltraHD signals at 50 or 60 fps for display on HDMI 2.0 compatible screens.
Full HDMI Support:
The equalized input on OG-HA5-12G is engineered to accommodate HDMI runs up to 30 meters in length using 24-gauge cable. Embedded HDMI audio support simplifies installations, offering a single-cable solution and reducing clutter.
12G-SDI Support:
The 12G-SDI outputs on OG-HA5-12G ensure the highest quality signal representation, making it suitable for large raster and deep color workflows where image quality is paramount.
Pristine Image Quality:
The 12G-SDI output features PLL clock filtering, guaranteeing a low jitter output for rock-solid image stability. An LED indicator provides quick signal identification, displaying the input source as SD (green), HD (red), or 4K/UltraHD (orange).
The AJA OG-HA5-12G is your solution for reliable HDMI to 12G-SDI conversion and signal extension, tailored for professional video applications.
