Description
OG-DANTE-12GAM is an openGear format 12G-SDI audio embedder and disembedder that bridges embedded SDI audio and Dante audio-over-IP networks. It maps up to 64 audio channels per card between SDI and Dante, allowing direct transport of multichannel audio alongside SDI video. The card installs in an openGear frame to provide scalable channel density for broadcast and pro AV systems.
The unit supports 12G/6G/3G-SDI video standards and provides dual independent 12G-SDI inputs and outputs. Each SDI connection supports up to 16 channels of embedded audio, and the card presents Dante endpoints as 32 sources and 32 destinations for routing. Redundant network operation is provided by Primary and Secondary Gigabit Ethernet ports to support Dante redundancy.
OG-DANTE-12GAM operates with low Dante latency and supports automatic SDI input format detection for seamless operation across SD, HD, 2K, UHD and 4K workflows. DashBoard integration allows remote monitoring and configuration of channel status and mapping. The card also supports common Audinate applications such as Dante Controller, Dante Domain Manager, Dante Via and Dante Virtual Soundcard.

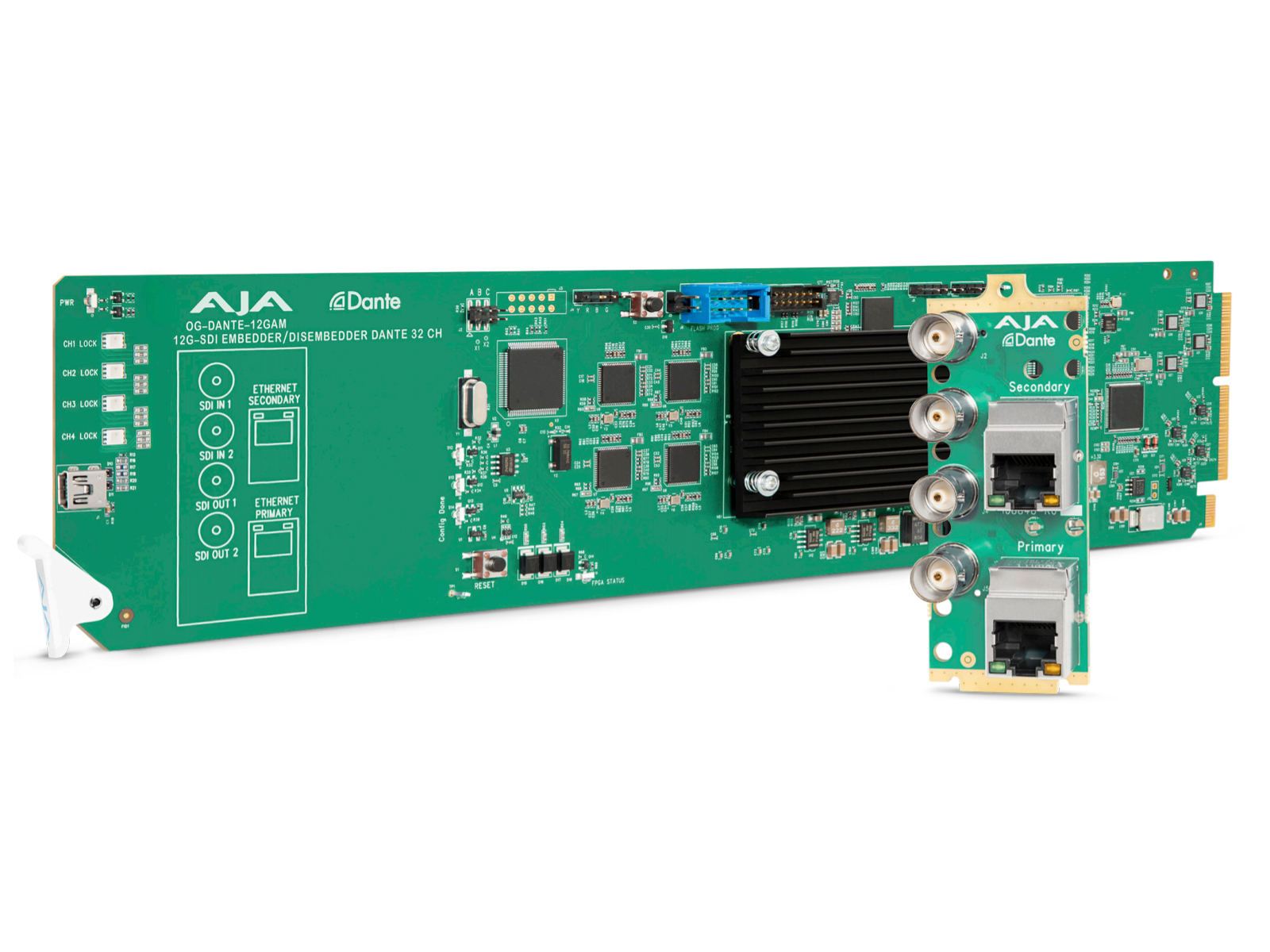

Connectivity includes two 12G-SDI inputs and two 12G-SDI outputs plus one Primary and one Secondary Gigabit Ethernet port for Dante. The modular rear panel supports custom I/O configurations and the device is hot-swap capable when used in compatible openGear frames. The openGear frame itself can provide redundant power for mission critical installations.

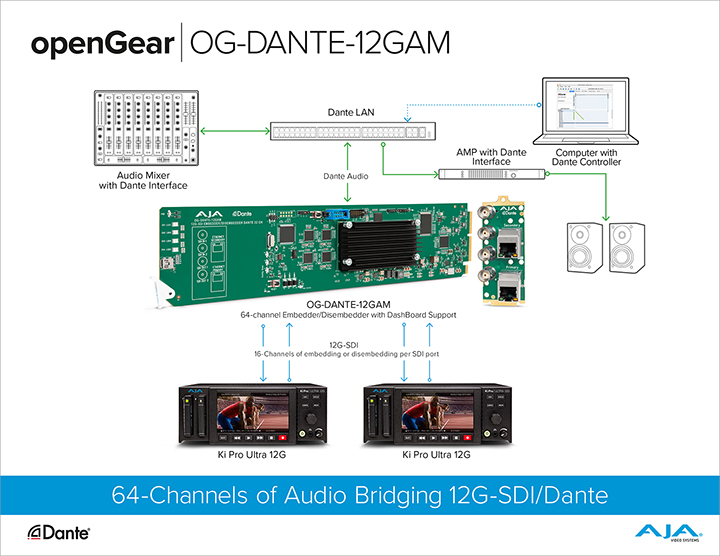

OG-DANTE-12GAM is suited for broadcast OB trucks, live event production, fixed facilities and any environment that requires large scale SDI to Dante audio bridging. It enables embedding of DAW outputs into SDI feeds and disembedding of SDI program audio for distribution to mixers and amplifiers across a Dante network. The high density of up to ten cards per frame enables significant channel consolidation in a single rack space.
Installation and operation are streamlined via DashBoard and Dante Controller, providing clear routing, status and configuration controls. The card is built to openGear standards for interoperability with other certified cards and frames. AJA supports the product with a five year warranty to ensure long term reliability and support.
