NVR-FX24POE-15U32MP1 Recorder 24-Port PoE 8TB

Description

The NVR-FX24POE-15U32MP1 is a 24-channel rackmount network video recorder designed to centralize IP surveillance recording and analytics. This compact 1.5U recorder supports resolutions up to 32MP and advanced compression options to preserve image quality while optimizing storage. The unit runs Embedded LINUX ICR 4.0 for reliable 24/7 operation and streamlined management.

The recorder integrates a 24-port IEEE 802.3af/at PoE switch with a 210W total PoE budget and per-port support up to 25.5W. It supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG compression to reduce bandwidth and storage consumption. Dual HDMI outputs provide independent video source selection and HDMI supports up to 4K output for monitoring and local display requirements.

On the performance side the NVR delivers up to 384 Mbps aggregate throughput when AI is disabled and supports up to four SATA III drives for a maximum internal capacity of 64 TB. Playback and recording support multiple high resolutions including 32MP, 24MP, 16MP, 12MP and 4K tiers. The recorder also provides configurable pre-record and post-record intervals and per-channel bitrate control for flexible retention planning.

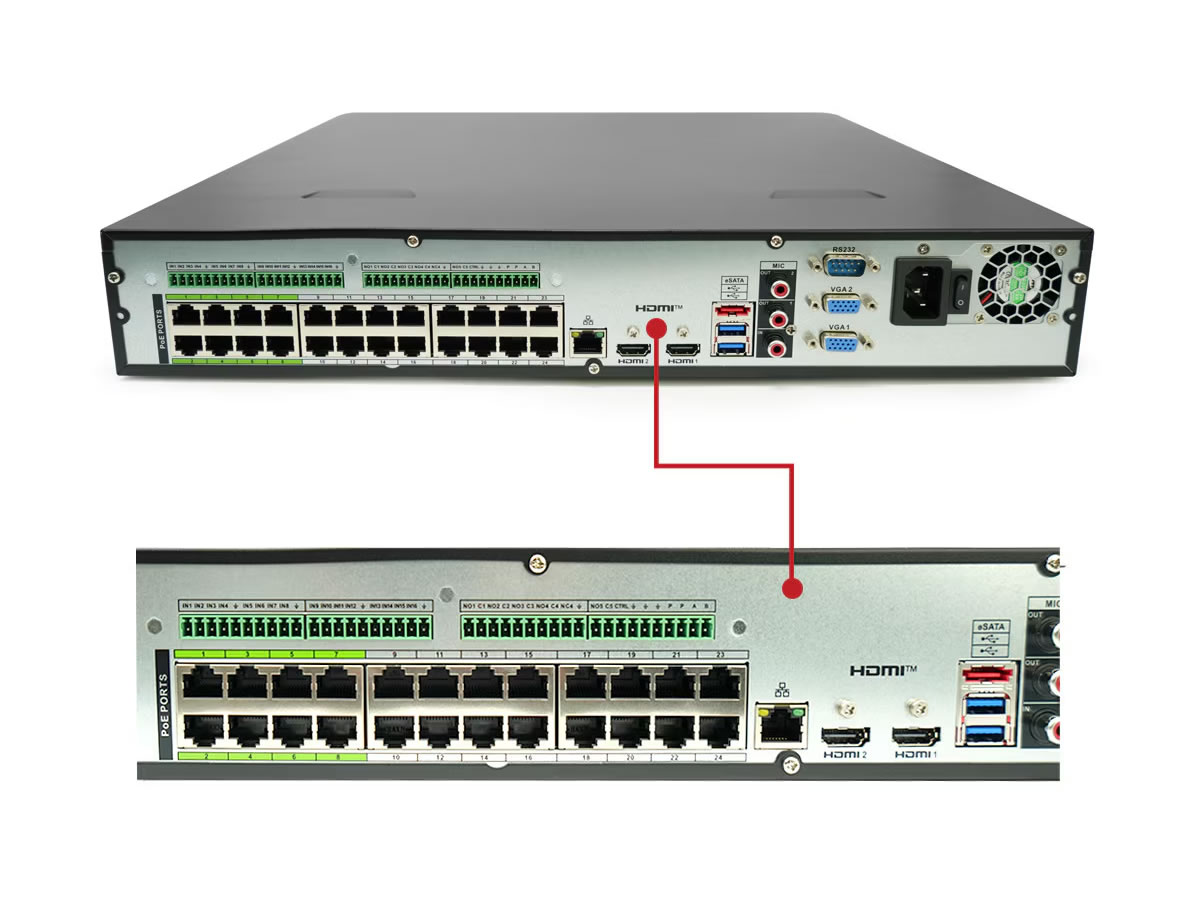

Connectivity includes 24 PoE camera ports, one RJ45 1 Gbps network uplink, one eSATA, three USB ports and analog RCA audio I/O. The unit is ONVIF Profile T/S/G compliant and supports CGI and SDK for third-party integration. Mobile access is available via IC View+ for iOS and Android and desktop management is provided by IC Now.

Typical deployments include retail, commercial buildings and campus environments where consolidated PoE feeds and centralized recording are required. The recorder supports AI by Recorder and AI by Camera features including IVS, face detection and recognition, ANPR, people counting and perimeter protection to enable advanced event detection and forensic search. Bridge Mode enables use with third-party cameras where required.

Designed for rack installation the NVR occupies 1.5U and measures 17.32″ × 16.36″ × 2.99″ and runs on AC100V to 240V power. It is manufactured in South Korea, conforms to TAA and is backed by a 10-year warranty and dedicated technical support. The unit is engineered for long-term reliability and straightforward integration into existing surveillance infrastructures.

Specifications

System
Main Processor	Multi-core embedded processor
Operating System	Embedded LINUX, ICR 4.0
Display
Display Interface	2 VGA ports, 2 HDMI ports, independent HDMI1/HDMI2 outputs, simultaneous VGA/HDMI outputs
Display Resolution	HDMI up to 4K; VGA up to 1080p
Fisheye Dewarp	Supported
Display Split	Main 1/4/8/9/16/25; Sub 1/4/8/9/16
HDMI Decoding	AI disabled: 2ch 32MP@25fps;2ch 24MP@25fps;4ch 16MP@30fps;5ch 12MP@30fps;8ch 8MP@30fps;12ch 5MP@30fps;16ch 4MP@30fps;24ch 1080p@30fps
AI disabled	1ch 32MP@25fps;1ch 24MP@25fps;2ch 16MP@30fps;4ch 12MP@30fps;6ch 8MP@30fps;8ch 5MP@30fps;12ch 4MP@30fps;24ch 1080p@30fps
Intelligence
IVS	IVS; Tripwire / intrusion
Advanced Intelligent Functions	AI by Recorder: IVS, Face detection, Face recognition, Perimeter Protection, iMD; AI by Camera: Face detection, Face recognition, Video metadata, Perimeter Protection, iMD2.0, ANPR, People counting, 3D analysis, Crowd Distribution, Heat map
Perimeter Protection.	Tripwire / intrusion; Recognition human and vehicle 4 channels; 10 IVS rules per channel (Recorder) or 16 channels (Camera)
Intelligent Motion Detect (iMD)	8 channels (Recorder) or 16 channels (Camera)
Face Detection	2 channels, up to 12 face images/s each channel (Recorder) or 16 channels (Camera)
Face Recognition	1) 16-channel FD(camera)+FR(recorder) image stream 16 face images/s; 2) 2-channel FD(recorder)+FR(recorder) video stream 12 face images/s
Video Metadata	8 channels (Camera)
Vehicle License Plate Comparison	8 channels (Camera)
Video
Supported Camera Types	IP
IP Camera Input	24
Trigger Events	Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, abnormal fan behavior, cybersecurity exception
Video Detection	Face detection, perimeter protection, face recognition, video metadata, iMD, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, heat map
Playback	Up to 16 channels
Search Mode	Object Search, Basic, AI Search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next/Previous File, Next/Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode	USB Device, Network
Audio
Compression	G.711a, G.711u, PCM, G726
Two-way Talk	Supported
Recording
Record Compression	Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Record Resolution	32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080p, 720p, D1, CIF, QCIF
Record Bit Rate	16Kbps ~ 20Mbps per channel
Record Mode	Manual, Schedule (Regular, Motion Detection, Alarm, IVS), Stop
Record Interval	1 ~ 120 min default 60, Pre-record 1 ~ 30 sec, Post-record 10 ~ 300 sec
Incoming Bandwith	AI disabled: 2ch 32MP@25fps;2ch 24MP@25fps;4ch 16MP@30fps;5ch 12MP@30fps;8ch 8MP@30fps;12ch 5MP@30fps;16ch 4MP@30fps;24ch 1080p@30fps
AI enabled	1ch 32MP@25fps;1ch 24MP@25fps;2ch 16MP@30fps;4ch 12MP@30fps;6ch 8MP@30fps;8ch 5MP@30fps;12ch 4MP@30fps;24ch 1080p@30fps
Throughput	384 Mbps
Storage
Internal HDD	4 SATA III ports, up to 16 TB per HDD
eSATA	1 port
Network
Ethernet	1 RJ-45 port 10/100/1000Mbps
Protocol	HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search, ISCSI
Compatibility	ONVIF 22.12 (Profile T, Profile S, Profile G), CGI, SDK
Web Viewer	Chrome, IE 9 or later, Edge, Safari, Firefox
Management Software	IC Now
Smart Phone	iOS, Android (IC View+)
PoE	24 ports, 10/100 Mbps, IEEE 802.3 af/at, Bridge Mode Supported
Interface
USB	3 ports (1 front USB 2.0, 2 rear USB 3.0)
Audio I/O	1 Channel Input, 2 Channel Output, RCA
Electrical
Power Supply	AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption	<13 W without HDD
Total POE Budget	Total 210W, Max per port 25.5W
Construction
Installation	Rack mountable
Dimensions	1.5U, 17.32" × 16.36" × 2.99" (440.0 mm × 415.6 mm × 76.0 mm)
