NVR-FX08POE-1U16MP1 Security NVR 8CH PoE 256Mbps

Description

The NVR-FX08POE-1U16MP1-2TB is an 8-channel rackmount PoE network video recorder designed for professional surveillance deployments. It provides local AI analytics, on-board storage, and 4K display output for centralized video recording and monitoring. The unit is built as a compact blade-style chassis to minimize rack space while delivering full NVR functionality.

Key features include eight PoE camera ports, AI-enabled human and vehicle detection, face recognition, and a 256 Mbps total throughput capacity. The recorder supports cameras up to 16MP and can decode and display up to 4K via the HDMI output. AI features use a private onboard database to keep recognition data local and secure.

Recording options include Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG compression, and resolutions up to 16 MP. The FX08POE includes two SATA III bays supporting up to 16 TB each for a maximum raw capacity of 32 TB. When AI is enabled, effective incoming and recording bandwidth is reduced to 180 Mbps to accommodate analytics processing.

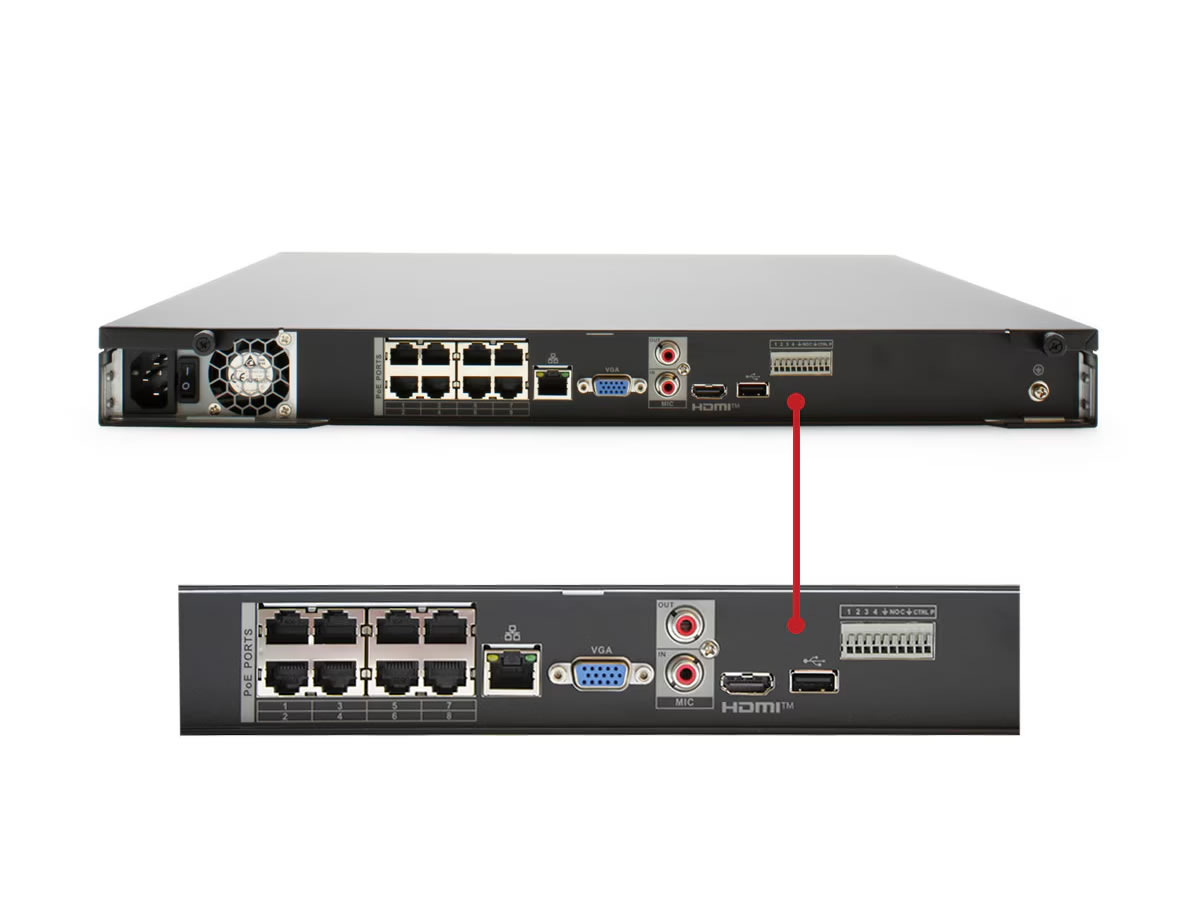

Connectivity includes one 1 Gbps Ethernet port, one HDMI output and one VGA output for local monitoring, and two USB 2.0 ports for backup. The unit is ONVIF compatible and supports IC Realtime remote clients including SmartICRSS v2 and IC View+ mobile app. PoE ports are IEEE 802.3af/at and support auto-initializing cameras for plug-and-play installation.

This NVR suits small to medium installations such as retail stores, branch offices, and campus buildings that require local AI analytics and secure, license-free recording. Multiple FX-series units can form a multi-node camera network to scale channel count and storage without centralized processing bottlenecks. Central monitoring and remote access are supported from PC, Mac, and mobile devices.

Installation is straightforward with rackmount form factor, built-in 8-port PoE switch, and web-based or client software management. The chassis is engineered for continuous operation across standard surveillance temperature ranges and includes encrypted network traffic for cybersecurity. IC Realtime provides a 10-Year Limited Warranty to back long-term deployment reliability.

Specifications

Main Processor	Multi-core embedded processor
Operating System	Embedded LINUX, ICR 4.0
Display Interface	1 HDMI, 1 VGA
Display Resolution	HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA	1920 × 1080, 1280 × 1024, 1280 × 720
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Fisheye Dewarp	N/A
Display Split	1st Screen: 1/4/8/9/16
2nd Screen	1/4/8/9/16
Display Out Max Decode	Simultaneous heterogeneous video sources output configurable
IVS	Tripwire & intrusion
Advanced Intelligent Functions	Perimeter Protection, Tripwire & intrusion, Human/Vehicle recognition 2 channels by recorder or 8 channels by camera
Intelligent Motion Detect (iMD)	4 channels (AI by Recorder) or 8 channels (AI by Camera)
Face Detection	1 channel up to 12 face images/s per channel (AI by Recorder) or 8 channels (AI by Camera)
Face Recognition	8-channel FD by camera + FR by recorder 12 face images/s; 1-channel FD+FR by recorder 12 face images/s
Vehicle License Plate Comparison	4 channel (AI by Camera)
LPR Database Management	Create up to 20,000 plate numbers; Blocklist; Allowlist
Supported Camera Types	IP
IP Camera Input	8
Trigger Events	Motion detection, Privacy masking, Video loss, Scene changing, PIR alarm, IPC external alarm
Playback	Up to 8 channels
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode	USB Device, Network, eSATA Device
Audio Compression	G.711a, G.711u, PCM, G726
Two-way Talk	Supported
Record Compression	Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Record Resolution	16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF
Incoming Bandwith	AI disabled 256 Mbps incoming, 256 Mbps recording, 256 Mbps outgoing; AI enabled 180 Mbps incoming, 180 Mbps recording, 180 Mbps outgoing
Throughput	256 Mbps
Internal HDD	2 SATA III ports, Up to 16 TB each
HDD Mode	Redundancy
Ethernet	1x 10/100/1000 Mbps RJ-45
Protocol	HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration
Compatibility	ONVIF 22.06 Profile T/S/G, CGI, SDK
Web Viewer	Chrome, IE9+, Edge, Safari, Firefox
Management Software	IC Now
Smart Phone	Android, iOS, iPhone
PoE	8 ports 10/100 Mbps IEEE 802.3af/at, Bridge Mode Supported, Total output power 130W, Max per port 25.5W
USB	2 USB 2.0 ports
Power Supply	100-240 VAC, 47-63 Hz
Power Consumption	NVR <10 W without HDD, PoE total 130W, Max per port 25.5W
Total POE Budget	130W, Max per port 25.5W
Operating Conditions	14 °F to +131 °F (-10 °C to +55 °C)
Operating Humidity	10%–93% RH
Installation	Rack mount
Dimensions	14.76" × 12.96" × 2.09" (375 mm × 329.3 mm × 53.0 mm)
