NVR-EL16-2U32MP1-4TB 16CH AI NVR 32MP 384Mbps

Description

The NVR-EL16-2U32MP1-4TB is a 16-channel rackmount network video recorder designed to centralize IP video recording and onboard AI analytics. It supports cameras up to 32MP and provides high-bandwidth stream handling for multi-channel environments. The recorder is built in a 2U chassis that accepts eight SATA III drives to provide large local storage capacities.

This NVR integrates IC Realtime ICR 4.0 operating system and a multi-core embedded processor to support Smart H.265+ H.265 H.264 and MJPEG compression. It offers on-device AI features including human detection face recognition vehicle recognition and ANPR capabilities. The unit supports recorder-based AI on selected channels and camera-based AI on all channels through FlexSmartAi.

Performance specifications include a maximum incoming bandwidth of 384 Mbps when AI is handled by cameras and 200 Mbps when AI is processed by the recorder for object search workflows. HDMI outputs support up to 4K display resolution while VGA outputs support up to 1080p. The NVR provides up to 16 IP camera inputs and concurrent playback across all channels.

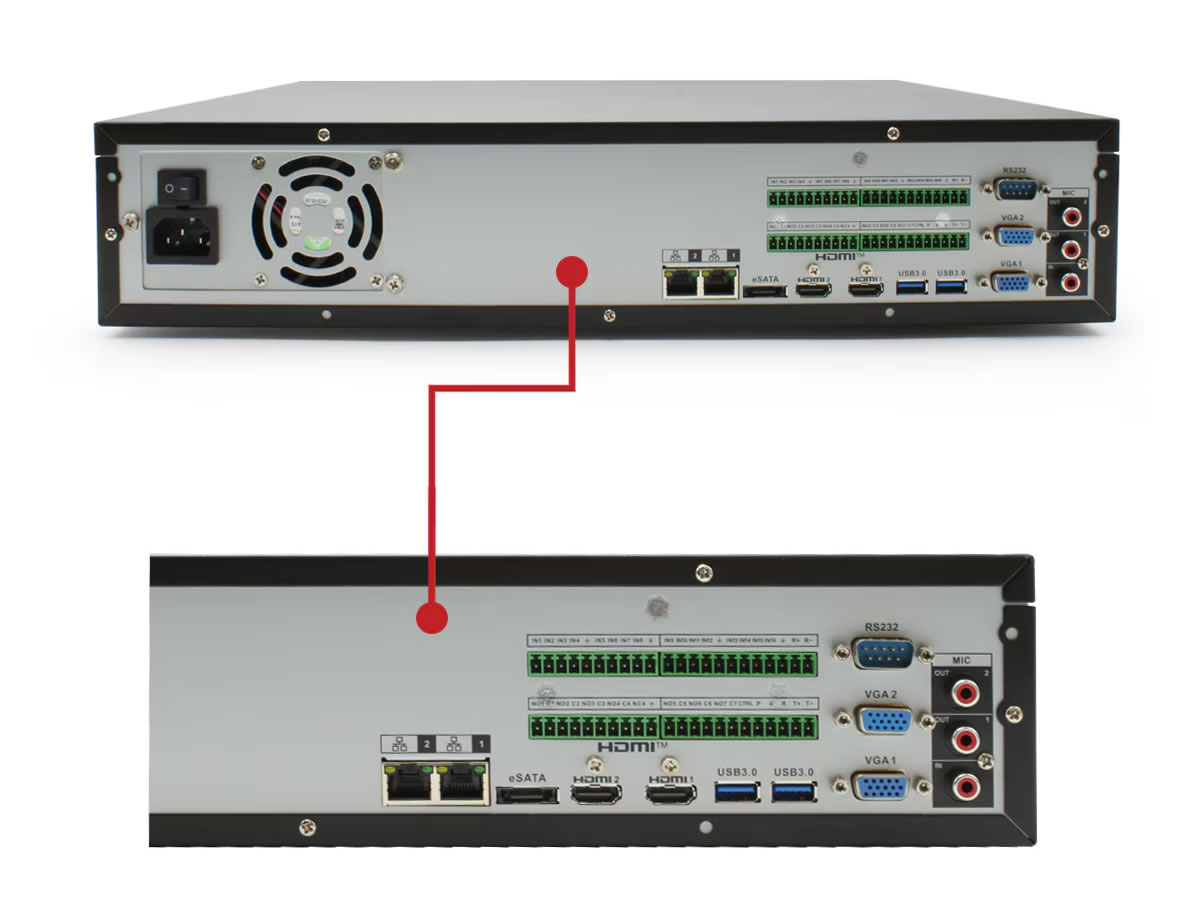

Connectivity is comprehensive with dual gigabit LAN ports dual HDMI dual VGA 16 alarm inputs 8 alarm outputs eSATA four USB ports and RCA audio I/O. Network protocols include HTTP HTTPS TCP IP IPv4 IPv6 RTSP SNMP DHCP and others and the unit is ONVIF 21.12 compatible for integration with third-party cameras and VMS systems. Web viewer support includes modern browsers and mobile apps for Android and iOS.

Typical use cases include enterprise video surveillance centralized recording for campus deployments intelligent analytics for access control and vehicle monitoring. The recorder is capable of storing metadata from AI-enabled cameras to power object search people counting heat maps and business intelligence reports. It also supports RAID modes including 0 1 5 6 10 for data protection.

The NVR-EL16-2U32MP1-4TB is built for rack installation with a robust internal power supply and SATA III drive bays to meet large retention requirements. The unit operates across a wide temperature range and includes alarm inputs outputs for integration with external devices. For integrators the unit offers SDK and CGI for custom integrations and P2P auto registration to speed deployments.

Specifications

Main Processor	Multi-core embedded processor
Operating System	Embedded LINUX, ICR 4.0
Display Interface	2-channel VGA, 2-channel HDMI video output
Display Resolution	HDMI Up to 4K, VGA Up to 1080p
Mixed video source output	HDMI1 and HDMI2, VGA1 and HDMI1 simultaneous, VGA2 and HDMI2 simultaneous
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Display Split	1st Screen 1/4/8/9/16, 2nd Screen 1/4/8/9/16
HDMI Decoding (AI disabled)	2ch 32MP@20fps, 2ch 24MP@20fps, 4ch 16MP@30fps, 5ch 12MP@30fps, 8ch 8MP@30fps, 12ch 5MP@30fps, 16ch 4MP@30fps
HDMI Decoding (AI enabled)	1ch 32MP@20fps, 1ch 24MP@20fps, 2ch 16MP@30fps, 4ch 12MP@30fps, 4ch 8MP@30fps, 8ch 5MP@30fps, 12ch 4MP@30fps
IVS	Tripwire / intrusion 10 IVS rules per channel 50 objects max 4 channels recorder AI or 16 channels camera AI
Advanced Intelligent Functions	Perimeter Protection, Tripwire / intrusion, Human and vehicle recognition 4 channels recorder AI or 16 channels camera AI
Intelligent Motion Detect (iMD)	8 channels recorder AI or 16 channels camera AI
Face Detection	2 channels up to 12 face images/s each channel recorder AI or 16 channels camera AI
Face Recognition	16-channel FD by camera + FR by recorder 16 face images/s; 2-channel FD by recorder + FR by recorder 12 face images/s; or 16 channels camera AI
Video Metadata	8 channels camera AI
Vehicle License Plate Comparison	8 channels camera AI
Supported Camera Types	IP
IP Camera Input	16
Trigger Events	Motion detection, video tampering, video loss, scene changing, PIR alarm, IPC external alarm
Alarm Conditions	Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, abnormal fan behavior
Analytics List	Face detection, perimeter protection, face recognition, video metadata, iMD, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, heat map
Playback	Up to 16 channels
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode	USB device, network
Audio Compression	G.711a, G.711u, PCM, G726
Two-way Talk	Supported
Record Compression	Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Record Resolution	32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080p, 720p, D1, CIF, QCIF
Incoming Bandwith	384 Mbps (AI by Camera), 200 Mbps (AI by NVR/Object Search)
Throughput (AI by Camera)	384 Mbps incoming, 384 Mbps recording, 384 Mbps outgoing
Throughput (AI by NVR/Object Search)	200 Mbps incoming, 200 Mbps recording, 200 Mbps outgoing
Internal HDD	8 SATA III Ports, Up to 16 TB per HDD
HDD Mode	RAID 0,1,5,6,10 Support
Ethernet	2 RJ-45 Ports 10/100/1000Mbps
Protocol	HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration
Compatibility	ONVIF 21.12 Profiles T S G, CGI, SDK
Web Viewer	Chrome, IE 9 or later, Edge, Safari, Firefox
Management Software	Smart ICRSS, DSS
Smart Phone	Android, iOS, iPhone
PoE	N/A
USB	4 (2 front USB 2.0, 2 rear USB 3.0)
Alarm I/O	Input 16 channels, Output 8 channels, 1-channel 12V 1A output
Power Consumption	≤ 13 W without HDD
Operating Conditions	+14°F ~ +131°F (-10°C ~ +55°C), 86 ~ 106kpa
Installation	Rack mountable

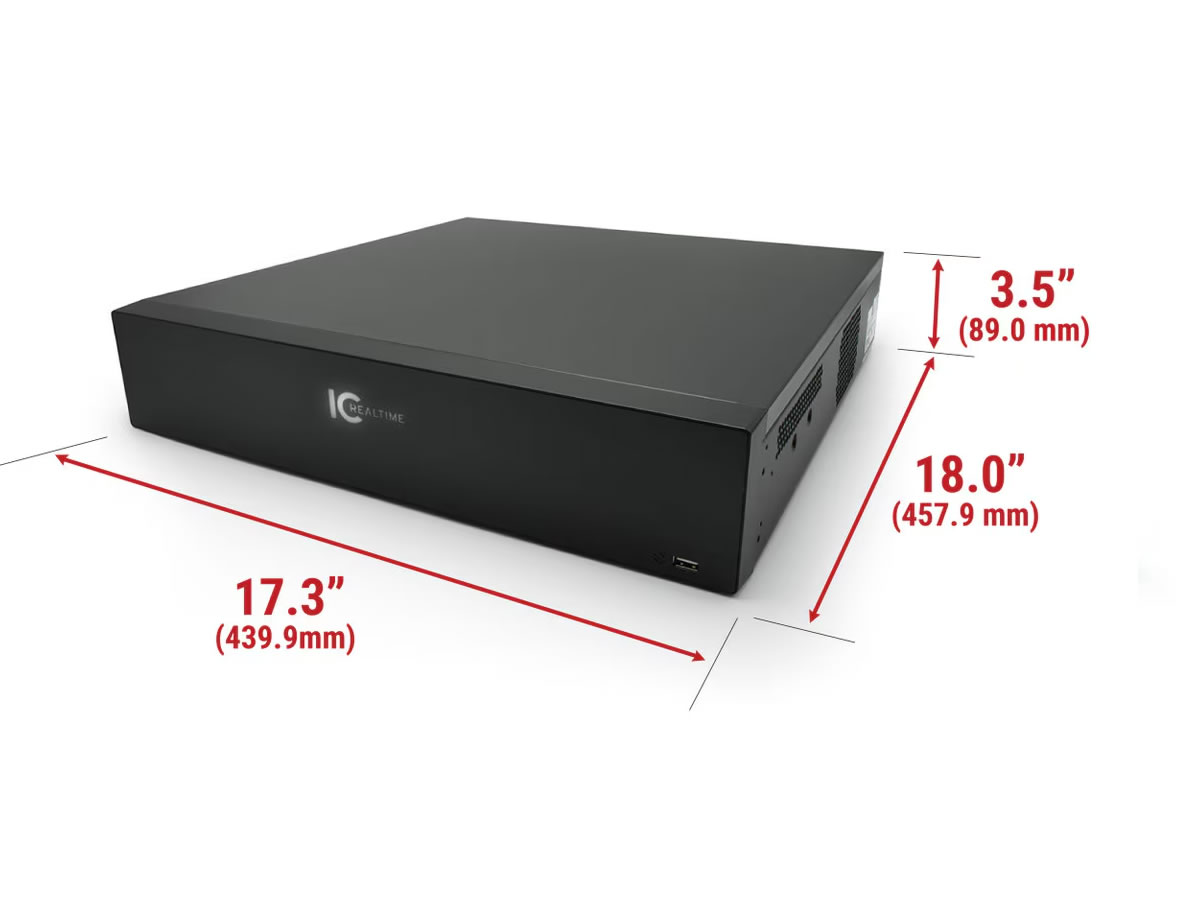

Dimensions	2U, 17.32" × 18.03" × 3.50" (439.9 mm × 457.9 mm × 89.0 mm)
