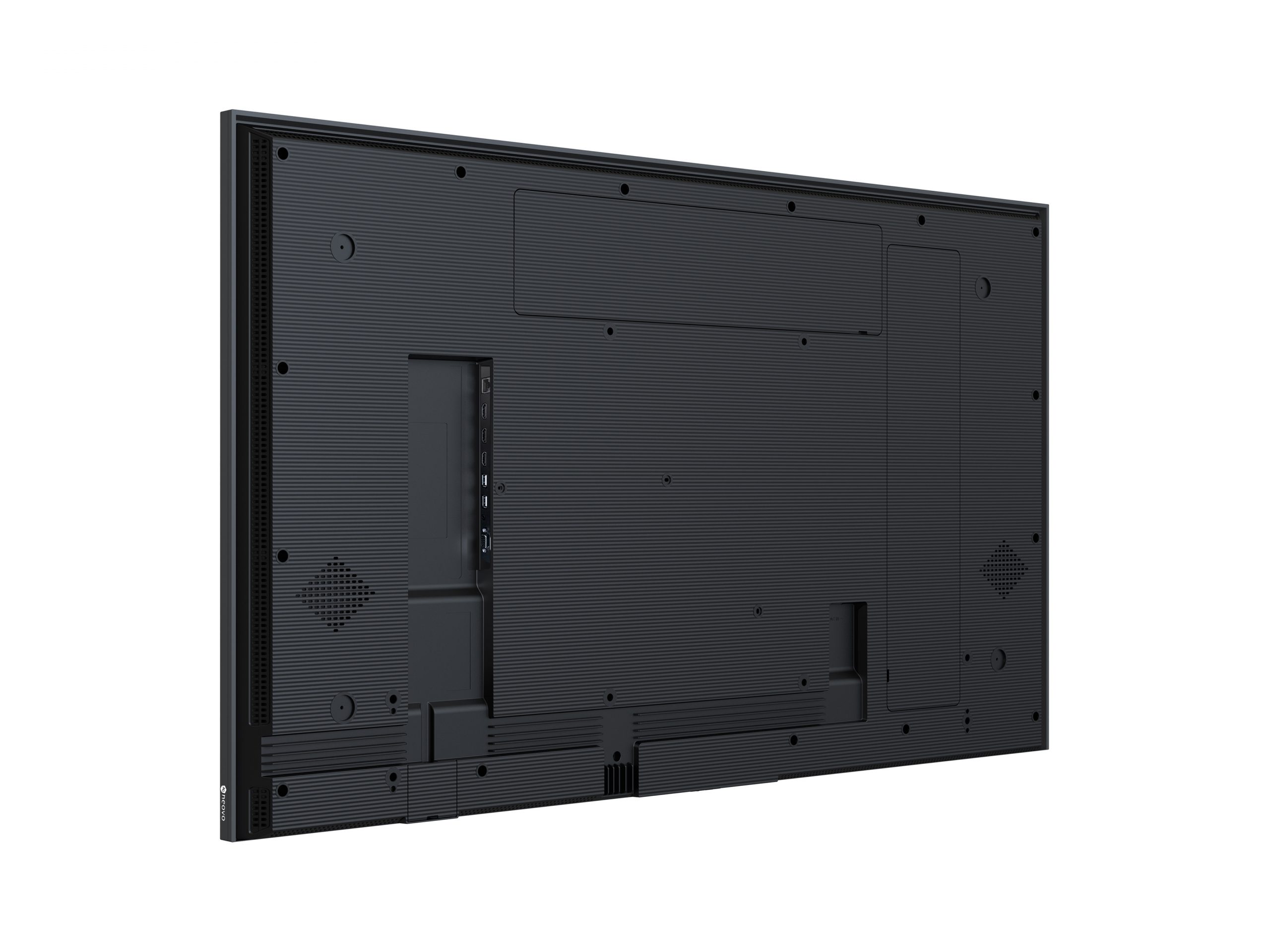

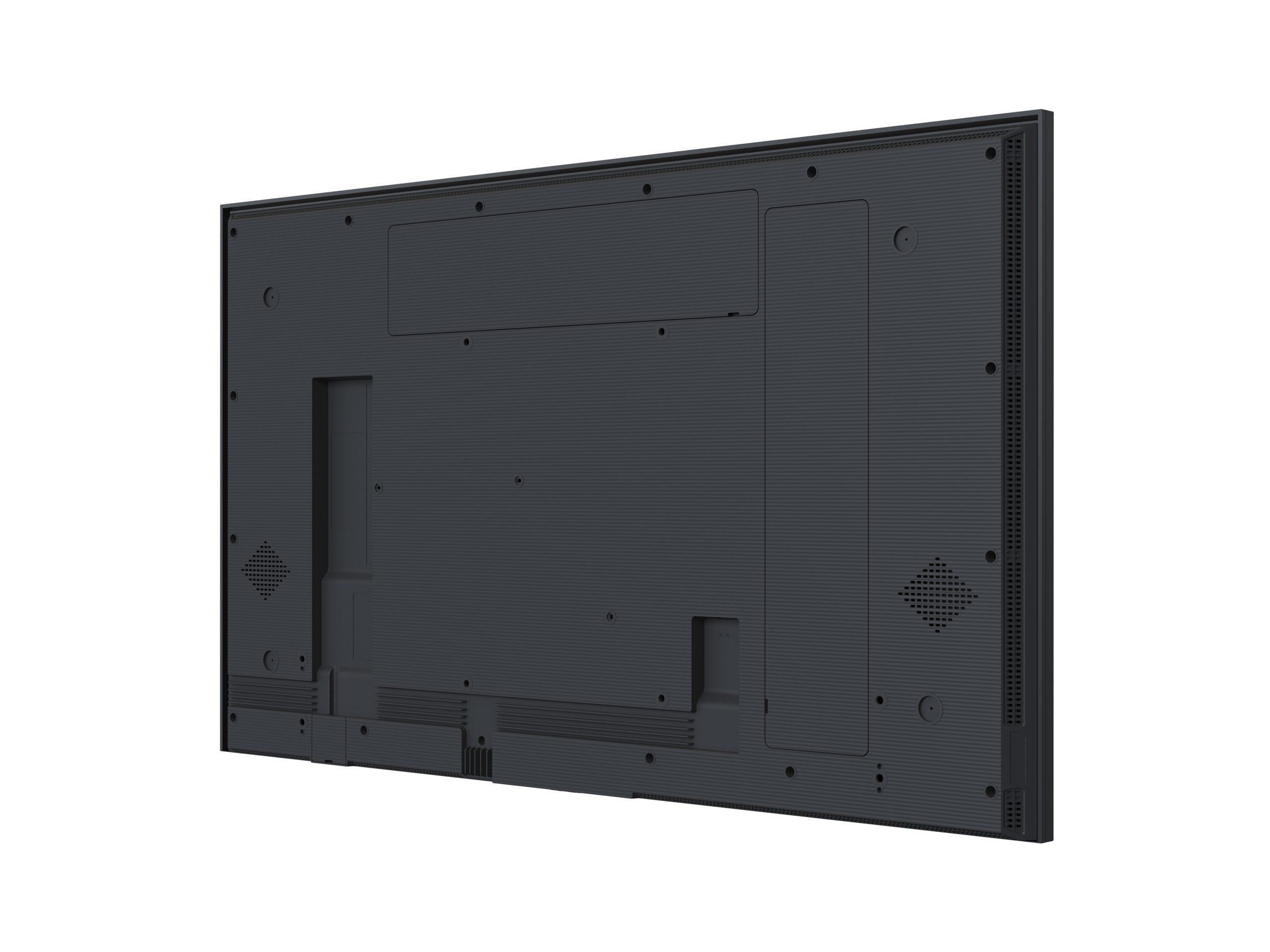

AG Neovo NSD-5503/DS5551U 55in 4K UHD Digital Signage Display Android 500 nits 25% Haze IP5X

SKU: NSD-5503/DS5551U
Brand: AG Neovo
$799.00
Brand AG Neovo
SKU NSD-5503/DS5551U
Weight 49.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The AG Neovo DS5551U is a 55in all-in-one 4K UHD digital signage display designed to deliver high-resolution visual messaging for retail, hospitality, and public spaces. It runs Android 9.0 and integrates content scheduling, playback, and remote monitoring in a single slim panel. The display combines high brightness and anti-glare surface treatment to maintain readability in varied lighting conditions.

Key features include 3840 x 2160 resolution, 500 nits brightness, 25% haze anti-glare surface, and patented Anti-BURN-IN technology to protect static content. The internal Android media player supports USB playback, web-based content scheduling, and a built-in browser for URL playlists. Connectivity options include three HDMI 2.0 inputs, USB, RS232, LAN control, built-in Wi-Fi 5, and Bluetooth for flexible content delivery.

Performance and reliability are engineered into the DS5551U with a VA panel offering 4000:1 contrast, 178 degree viewing angles, 5 ms response time, and 1.07G color depth for accurate image reproduction. Power consumption is efficient at 89W typical and under 0.5W in standby while an IP5X dust-proof rating improves durability in dusty environments. FailOver technology ensures continuous content display by switching to a backup source on input failure.

Connectivity supports multiple deployment workflows – local USB media playback with playlist scheduling, direct web content via the built-in browser, and wireless screen sharing over Wi-Fi for quick updates. Remote device management is available through Neovo Manager and Neovo Controller apps for role-based updates and intuitive control from iOS, Android, and Windows devices. RS232 and LAN control provide integration into existing AV control systems.

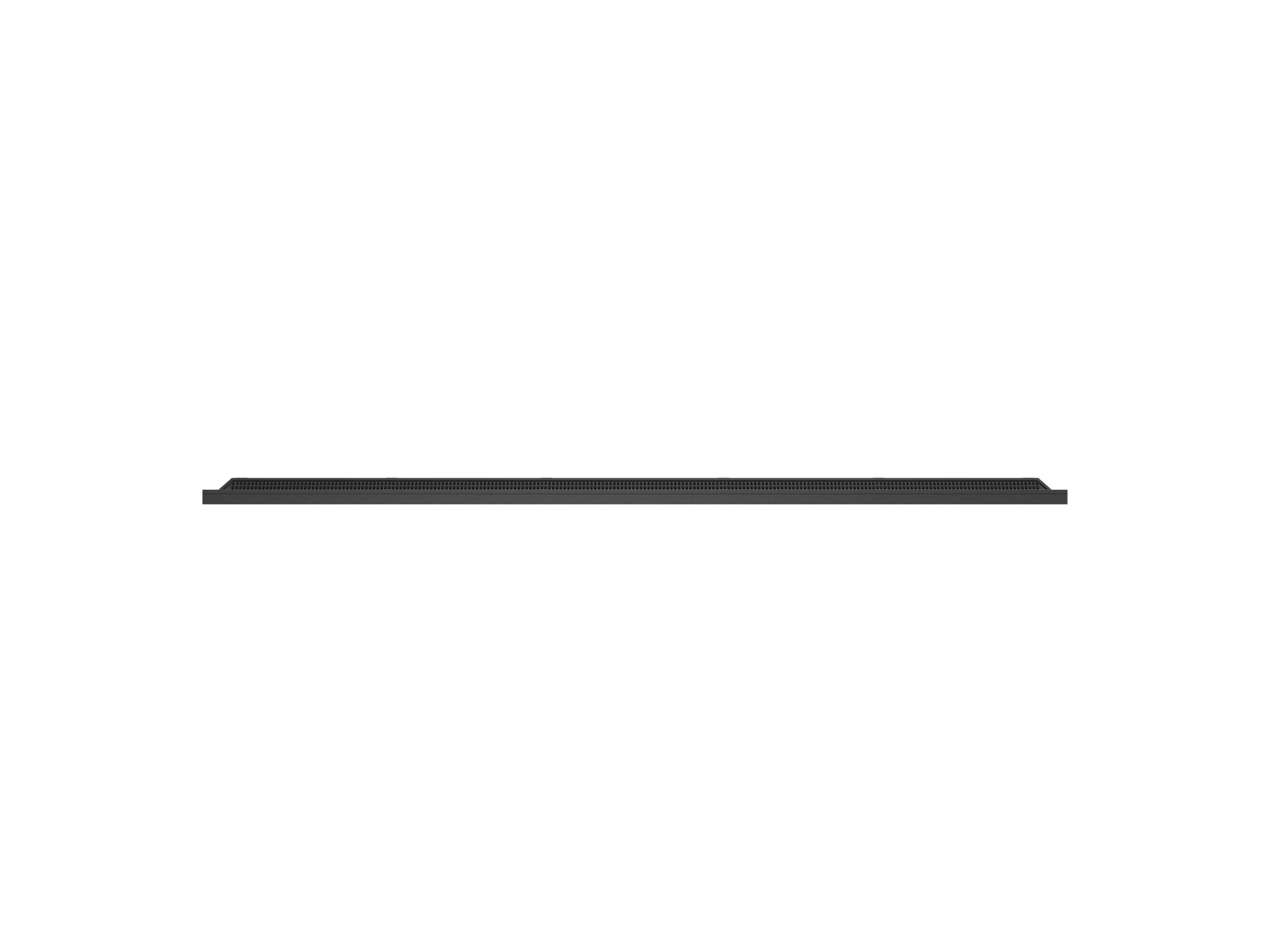

The DS5551U fits unified signage installations with a slim profile and an extendable bracket option to sit close to the wall for a clean installation. VESA 300mm x 400mm mounting provides compatibility with common commercial mounts and the included ultra slim narrow-gap wall mount simplifies setup. Operating conditions support 0°C to 40°C and non-condensing humidity from 20% to 80% for typical indoor environments.

This display is ideal for storefront promotion, lobby information screens, and menu boards where 4K clarity, reliable uptime, and simplified content management are required. The combination of Android-based media playback, built-in wireless, and professional control options delivers an efficient signage platform that minimizes maintenance while maximizing visual impact. The DS5551U provides a practical balance of image quality, connectivity, and manageability for modern digital signage deployments.

Product Diagrams

View Diagrams

Specifications

Panel TypeVA
Size54.6"
Max. ResolutionUHD 3840 x 2160
Pixel Pitch0.315 mm
Brightness500 cd/m²
Contrast Ratio4000:1
Viewing Angle (H/V)178°/178°
Display Colour1.07G
Response Time5 ms
Surface TreatmentHaze 25%
Hard Coating(3H)3H
Frequency (H)18kHz-135kHz
Frequency (V)24Hz-60Hz
Signal InputHDMI 2.0 x 3
External ControlRS232 In,LAN
RS232 In9-Pin D-Sub
LANRJ45 x 1
Embedded Player OSAndroid 9.0
CPUA35*4
Memory2G
Storage16G
Other ConnectivityUSB 2.0 x 2
USB2.0 x 2
WirelessWi-Fi 5,Bluetooth
Audio OutStereo Audio Jack (3.5 mm)
Internal Speakers10W x 2
Power SupplyInternal
Power RequirementsAC 100-240V 50/60 Hz
On Mode89W (On)
Standby Mode< 0.5W
On Mode (Max)140W (Max)
IP RatingIP5X
Operating Conditions Temperature0°C ~ 40°C
Operating Conditions Humidity20%-80% (non-condensing)
Storage Conditions Temperature-20°C to 60°C
Storage Conditions Humidity20%-80% (non-condensing)
Mounting VESA FPMPMI300mm*400mm
Bezel Width13.3 mm (Top/Left/Right)
Product w/o Base (W x H x D)1239.7 x 712.5 x 38.6 mm
Packaging (W x H x D)1390.0 x 850.0 x 136.0 mm
Product w/o Base Weight17.6 kg (38.8 lb)
Packaging Weight22.2 kg (48.9 lb)
Certifications & ComplianceFCC, ICES-003 Issue 7
Anti-Burn-in TechnologyPatented ANTI-BURN-IN
FailOver TechnologyFailOver
Wall Mount IncludedWMK-04 Ultra Slim Narrow-Gap Wall Mount
